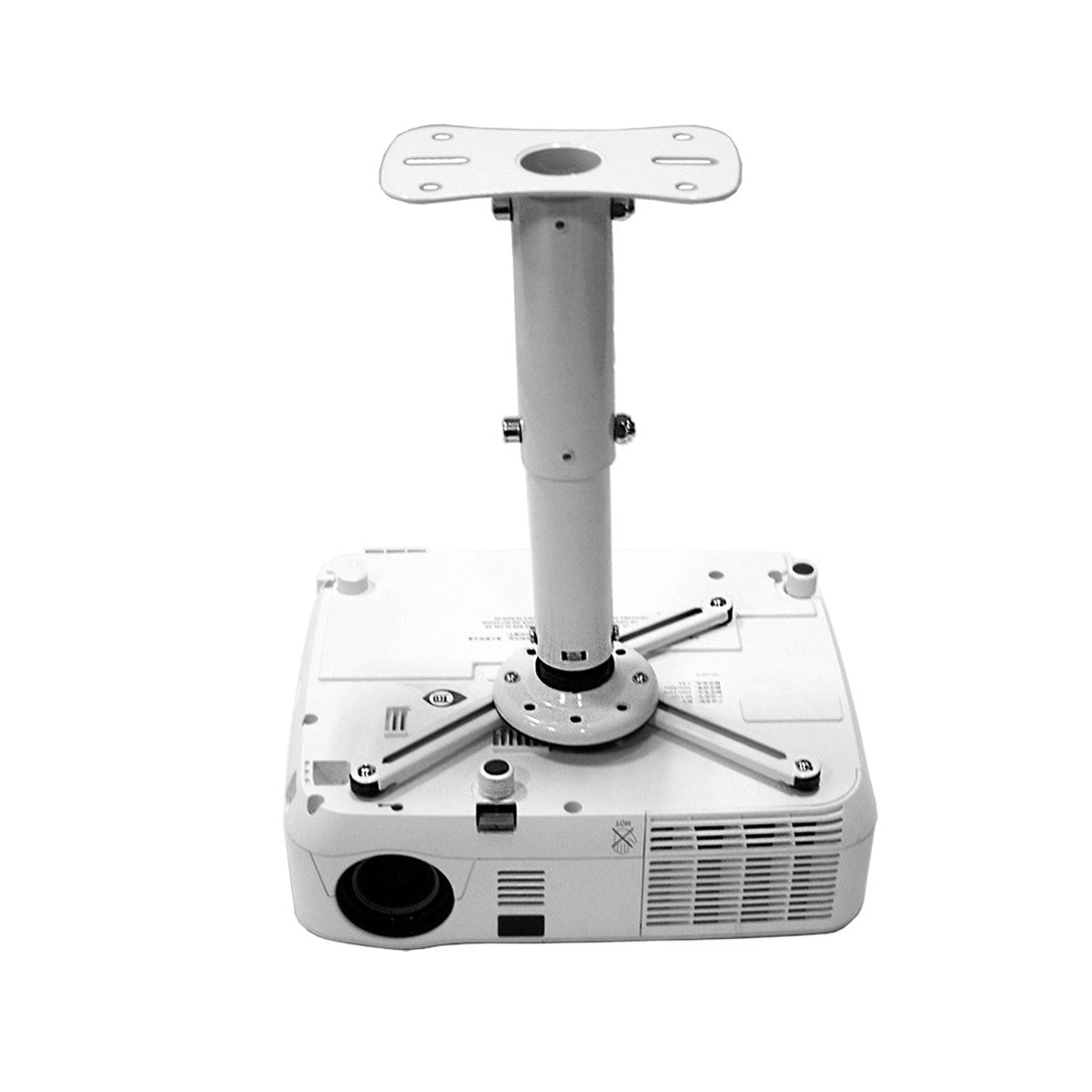

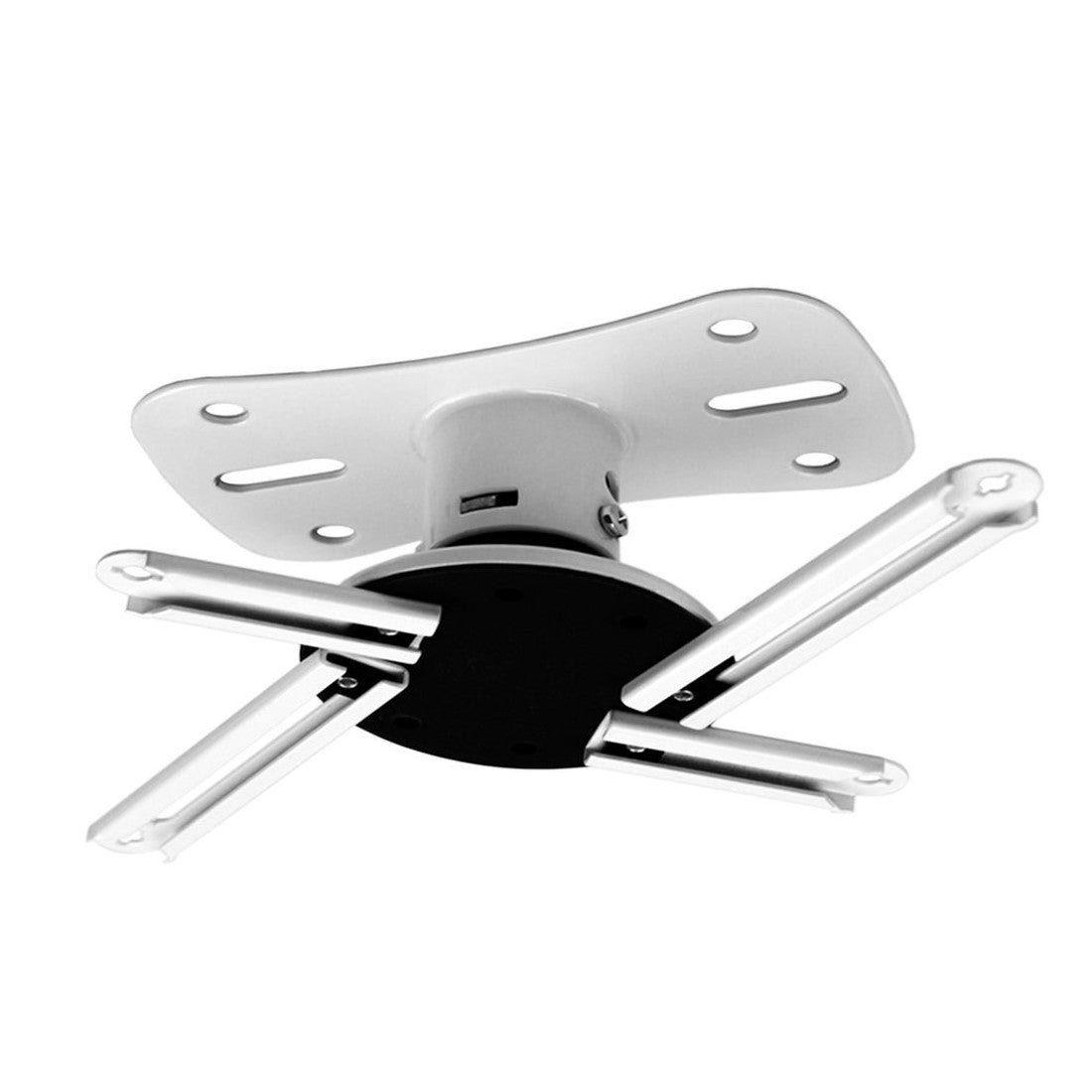

Kanto P101W Universal Ceiling Projector Mount with 9" to 12" Extension - White

Kanto P101W Universal Ceiling Projector Mount with 9" to 12" Extension - White

The Kanto P101W gives you a flexible way to mount a projector securely to the ceiling in boardrooms, offices, or home theatre spaces. Built from steel and aluminum, this universal projector mount supports projectors up to 22 lb while offering adjustable tilt, 360° swivel, and multiple height options for easier screen alignment.

Flexible 9" to 12" Ceiling Extension

Need more control over how far your projector hangs from the ceiling? The Kanto P101W sits only 3 inches from the ceiling without the extension tubes. Add the supplied extension tubes, and you can position the projector between 9 and 12 inches from the ceiling.

This adjustable design makes the Kanto P101W useful across different room layouts. Think of the extension tubes as extra reach when your projector needs more distance from the ceiling for proper positioning.

360° Swivel for Easier Projector Alignment

The Kanto P101W features a ball swivel that allows the projector to rotate a full 360°. This gives you plenty of flexibility when aligning the projected image with your screen.

Why struggle with a fixed mounting position? The adjustable ball adapter lets you rotate the projector as needed, while its tension can also be adjusted when necessary.

Up to 20° of Tilt

Along with full swivel adjustment, the Kanto P101W provides up to 20 degrees of tilt. Once the projector is mounted, you can angle it toward the screen and make positioning adjustments without changing the entire mount location.

The combination of tilt and swivel makes the mount work like a flexible joint between your ceiling and projector, giving you more control over where the image lands.

Designed to Fit Most Projectors

The Kanto P101W includes four mounting arms already attached to the tilt head, plus four longer mounting arms in the box. These different arm lengths help the mount reach the mounting holes found on virtually all projectors.

The adjustable arm configuration also makes it easier to locate the projector's center of gravity. As a result, the Kanto P101W can adapt to a wide range of projector shapes and mounting-hole positions.

Supports Projectors Up to 22 lb

The Kanto P101W has a maximum weight allowance of 22 lb, or 10 kg. Its steel and aluminum construction provides a solid structure for compatible projectors while keeping the mount itself at a product weight of 4 lb.

Durable White Powder-Coated Finish

The Kanto P101W features a durable powder-coated white finish. Its clean appearance works especially well in rooms with lighter ceilings where you want the projector mount to blend more naturally into the surrounding space.

Spring Lock for Easy Attachment and Removal

A built-in spring locking mechanism allows the projector to be attached to or removed from the Kanto P101W more easily. This practical design keeps the mounting system straightforward while still providing secure projector support.

Projector Mounting Hardware Included

The Kanto P101W includes an installation manual along with the hardware needed to attach your projector to the mount. A full selection of extension arm lengths is also supplied, giving you the components needed to configure the mount for compatible projectors.

Hardware for attaching the ceiling mounting plate itself is not included because ceiling materials and mounting requirements can vary significantly.

Kanto P101W Specifications

• Universal ceiling projector mount
• Colour: White
• Weight allowance: 22 lb (10 kg)
• Tilt adjustment: ±20°
• Swivel adjustment: 360°
• Minimum position without extension tubes: 3" from ceiling
• Extension range with supplied tubes: 9" to 12" (23 to 30 cm)
• Adjustable horizontal leveling
• Spring locking mechanism
• Material: Steel and aluminum
• Finish: Durable powder coating
• Product weight: 4 lb (1.8 kg)
• Shipping box weight: 4.4 lb (2 kg)
• Shipping box dimensions: 11" x 7" x 3.5" (28 x 17.8 x 8.8 cm)
• UPC: 800152712277

A Flexible Mount for Work or Home Theatre Spaces

The Kanto P101W combines adjustable height, 360° swivel, 20° tilt, multiple mounting arm lengths, and a 22 lb weight capacity in one universal ceiling mount. Whether you are positioning a projector in an office, boardroom, or home theatre, its adjustable design gives you several ways to align the projector with your screen while maintaining a clean white finish.

Frequently Asked Questions

How much weight can the Kanto P101W support? The mount supports projectors weighing up to 22 lb, or 10 kg.

How far can the Kanto P101W extend from the ceiling? With the supplied extension tubes, it can extend from 9 to 12 inches, or approximately 23 to 30 cm.

Can the Kanto P101W sit closer to the ceiling? Yes. Without the extension tubes, the mount positions the projector approximately 3 inches from the ceiling.

How much can the projector tilt and swivel? The mount provides ±20° of tilt and a full 360° of swivel for projector positioning.

What materials are used for the Kanto P101W? It is constructed from steel and aluminum and finished with a durable white powder coating.
