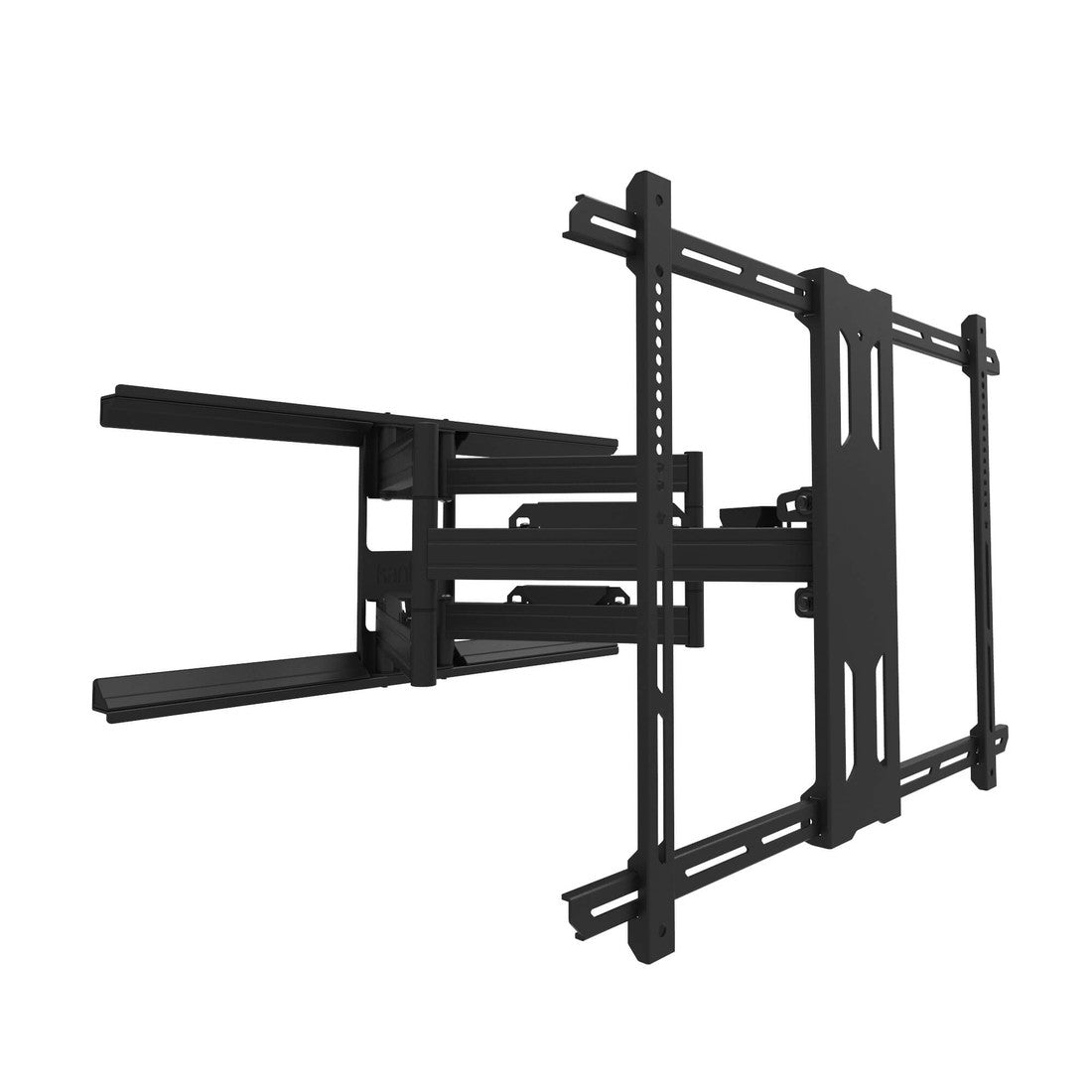

Kanto PDX700 Full Motion TV Wall Mount with 150 lb Capacity
The Kanto PDX700 gives large TVs the support and flexibility needed for a comfortable viewing setup. Designed for TVs from 50 to 100 inches, this full motion mount supports up to 150 lb while extending as far as 31.1 inches from the wall. Its extra-wide wall plate, heavy-duty articulating arms, adjustable tilt, and integrated cable management combine strength with practical everyday control.

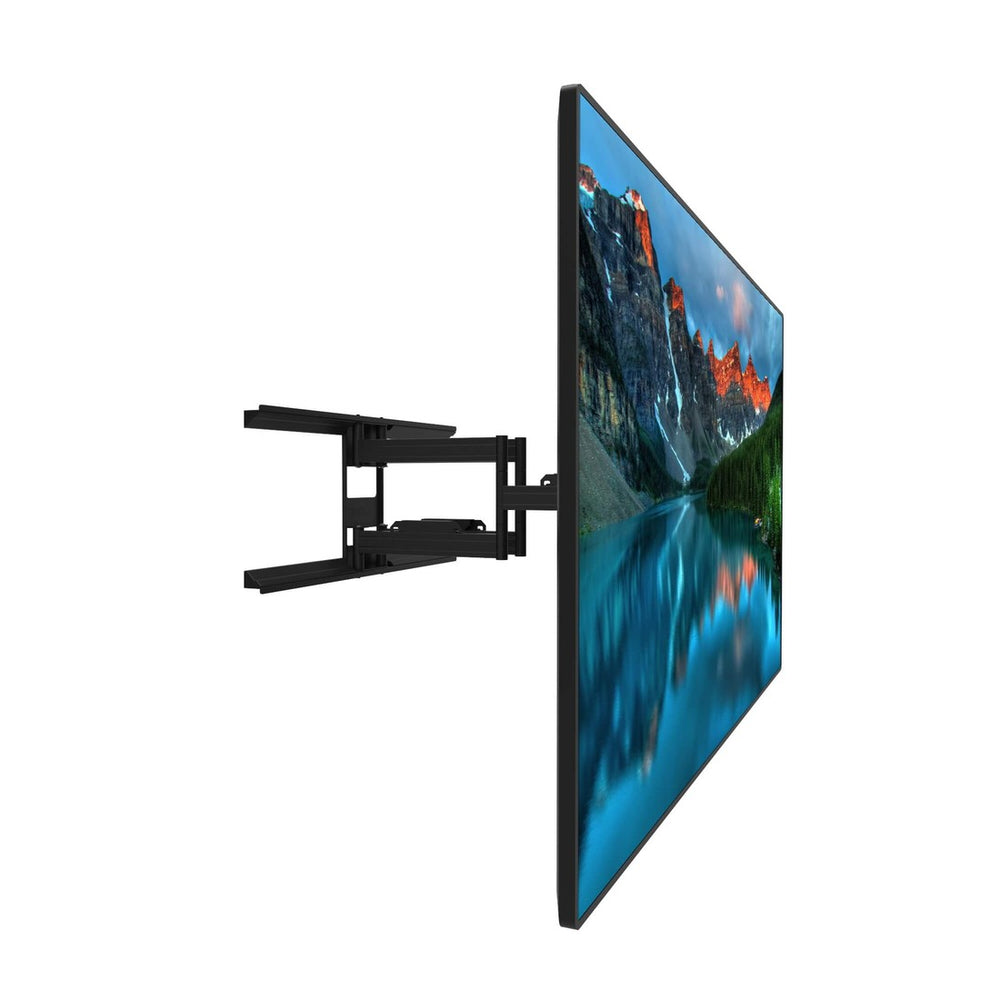

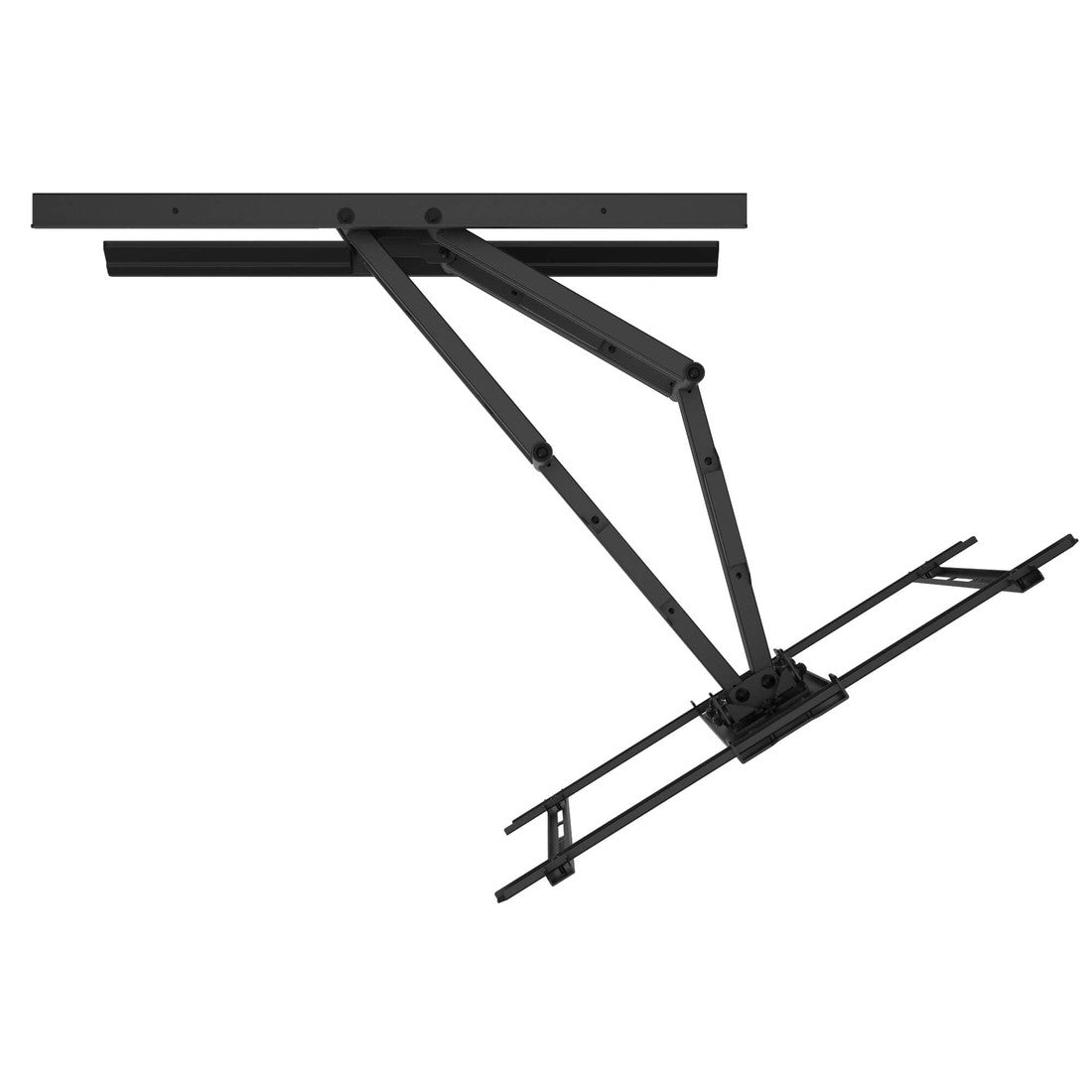

Full Motion Control for Large TVs
The Kanto PDX700 uses heavy-duty articulating arms that let you pull your television up to 31.1 inches away from the wall. You can also swivel the screen up to 90° in either direction, depending on its size. Need a better view from another seat? Simply reposition the screen instead of rearranging the room around your television.
When pushed back, the mount keeps your TV just 2.4 inches from the wall. As a result, the Kanto PDX700 combines extended movement with a relatively low-profile position when you do not need the extra reach.

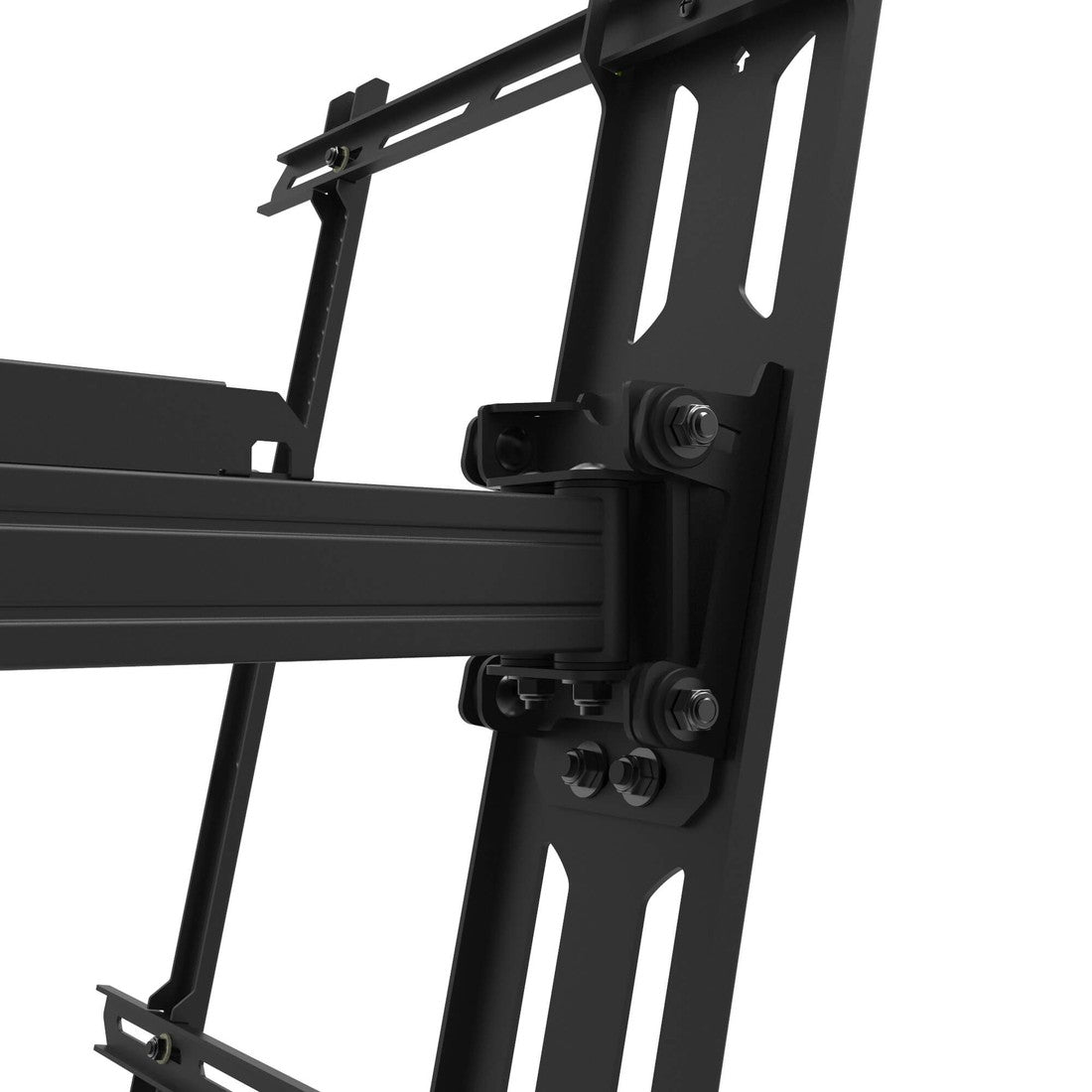

Adjustable Tilt for a Better Line of Sight
Mounting your television above eye level can make viewing less comfortable. Therefore, the Kanto PDX700 provides +15° to -3° of tilt, helping you improve your line of sight and reduce glare.
You can tension the tilt head for quick adjustments or tighten it to hold the screen firmly in your preferred position. Think of it like adjusting the rearview mirror in your car: a small change in angle can make a noticeable difference.
Supports TVs from 50 to 100 Inches
The Kanto PDX700 supports compatible televisions ranging from 50 to 100 inches and weighing up to 150 lb, or 68 kg. Its adjustable mounting arms accommodate VESA patterns from 200x100 through 700x500, giving the mount broad compatibility with larger flat-screen TVs.
The solid steel construction and durable powder-coated finish provide the strength needed to handle larger displays. In addition, Kanto designed the mount to meet UL safety standards for added peace of mind.
Extra-Wide Wall Plate for Flexible Positioning
The extra-wide wall plate gives the Kanto PDX700 more flexibility when positioning your television. It supports wood studs spaced up to 24 inches apart and can also mount to brick or concrete.
Kanto includes a drill template to help you accurately mark the mounting points. The organized hardware package also includes the necessary lag bolts, anchors, washers, and spacers for supported mounting surfaces.
Keep Your Viewing Area Clean

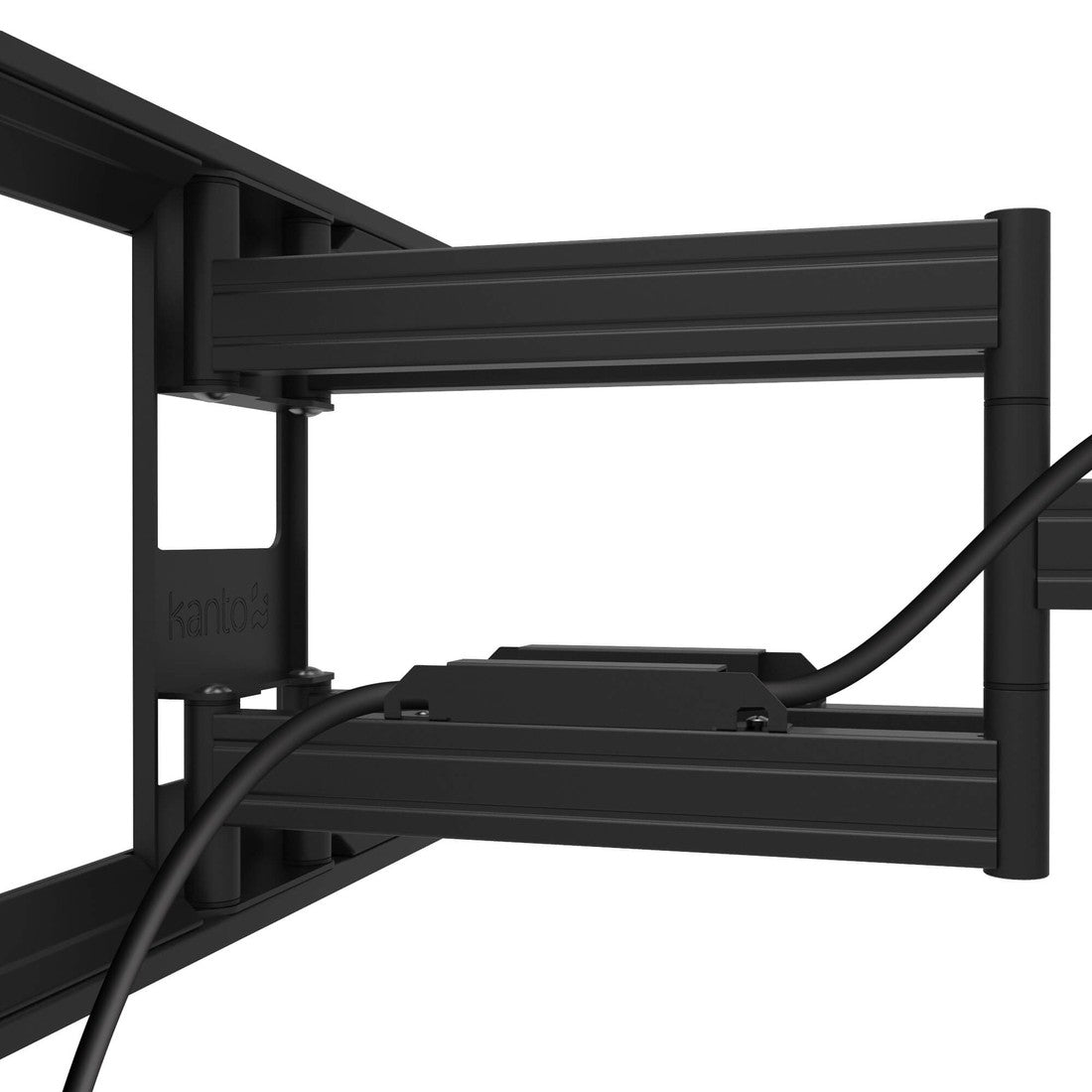

Large TV mounts can quickly become surrounded by visible cables and hardware. The Kanto PDX700 addresses that with integrated cable management clips that help guide cables along the mounting arms.
Wall plate covers and magnetic lag bolt covers also help conceal mounting hardware. Together, these details give the finished setup a cleaner, more professional appearance without taking attention away from your screen.
Fine-Tune Your TV After Mounting
The Kanto PDX700 includes adjustable horizontal leveling, giving you another way to fine-tune the position of your television. This feature helps keep the screen properly aligned after mounting, especially when working with a large display where small adjustments can become much more noticeable.
Kanto PDX700 Specifications
- TV size compatibility: 50" to 100"
- Maximum weight capacity: 150 lb (68 kg)
- VESA compatibility: 200x100 to 700x500
- Extension range: 2.4" to 31.1"
- Tilt range: +15° to -3°
- Swivel: Up to 180° total, depending on screen size
- Profile: 2.4" (6.1 cm)
- Material: Solid steel with durable powder-coated finish
- Adjustable horizontal leveling
- Integrated cable management
- Magnetic lag bolt covers
- Product weight: 40 lb (18.2 kg)
- Shipping weight: 44.7 lb (20.3 kg)
- Shipping box dimensions: 34.3" x 15.7" x 4.3" (87 x 39.8 x 11 cm)
- UPC: 800152718774
- 5-year warranty

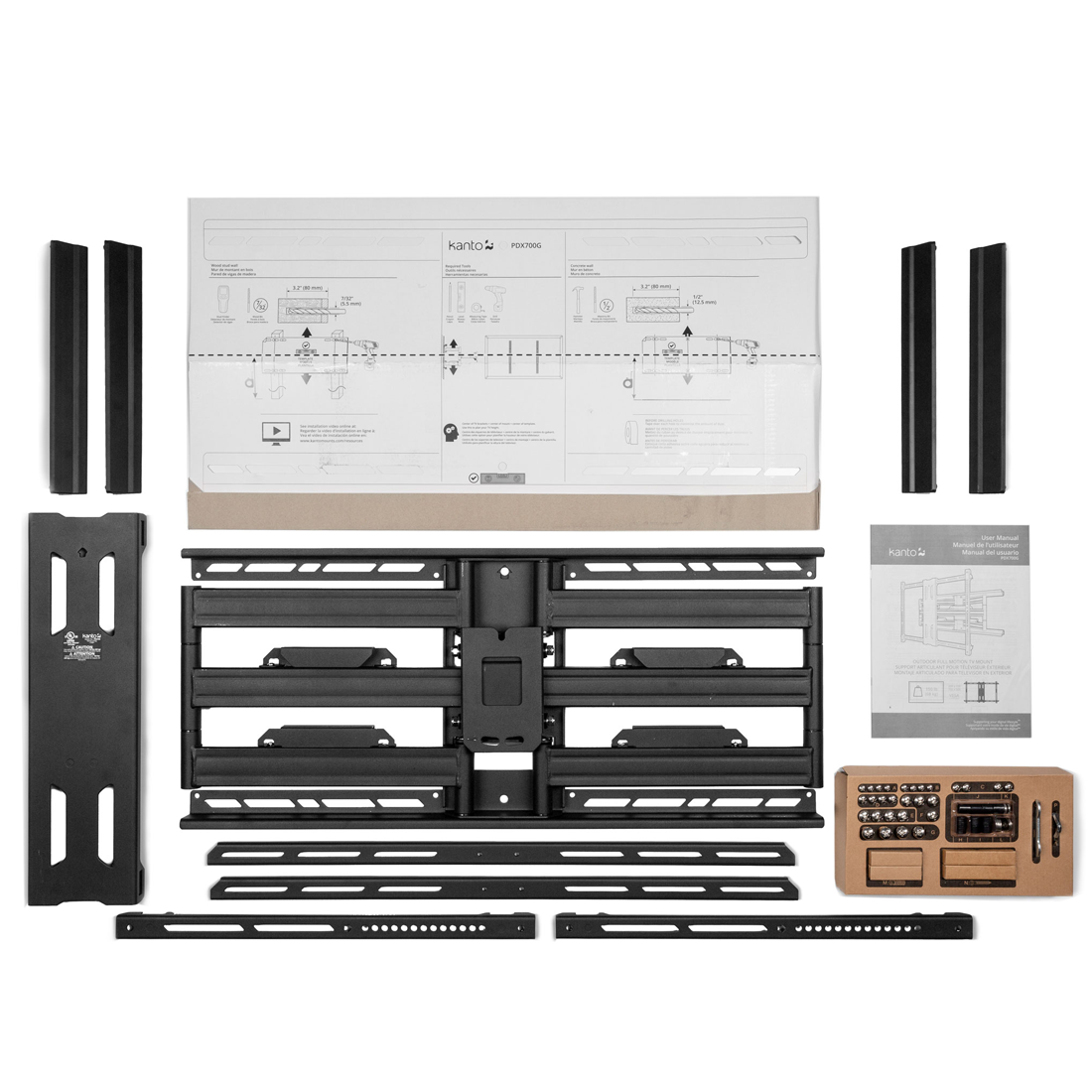

What Comes in the Box?
The Kanto PDX700 includes an installation manual along with mounting hardware for wood stud and concrete applications. You also receive the drill template and organized hardware needed for supported mounting configurations.
A Strong and Flexible Mount for Bigger Screens
The Kanto PDX700 supports TVs up to 100 inches and, additionally, handles 150 lb with wide VESA compatibility. Meanwhile, its 31.1-inch extension, adjustable tilt, and cable management provide greater control over positioning. Therefore, the extra-wide wall plate and full motion design deliver a strong, flexible solution for large compatible TVs.
Frequently Asked Questions
What TV sizes does the Kanto PDX700 support? The Kanto PDX700 supports compatible televisions ranging from 50 to 100 inches.
How much weight can the mount support? It supports televisions weighing up to 150 lb, or 68 kg.
How far can the TV extend from the wall? The mount extends from a 2.4-inch profile to a maximum distance of 31.1 inches from the wall.
What VESA patterns are compatible with the mount? The Kanto PDX700 supports VESA mounting patterns ranging from 200x100 to 700x500.
Can I adjust the viewing angle after mounting the TV? Yes. You can tilt the screen from +15° to -3° and swivel it up to 90° in either direction, depending on screen size.
