Kanto PF400 Low-Profile Fixed TV Wall Mount with 200 lb Capacity

Kanto PF400 Low-Profile Fixed TV Wall Mount with 200 lb Capacity

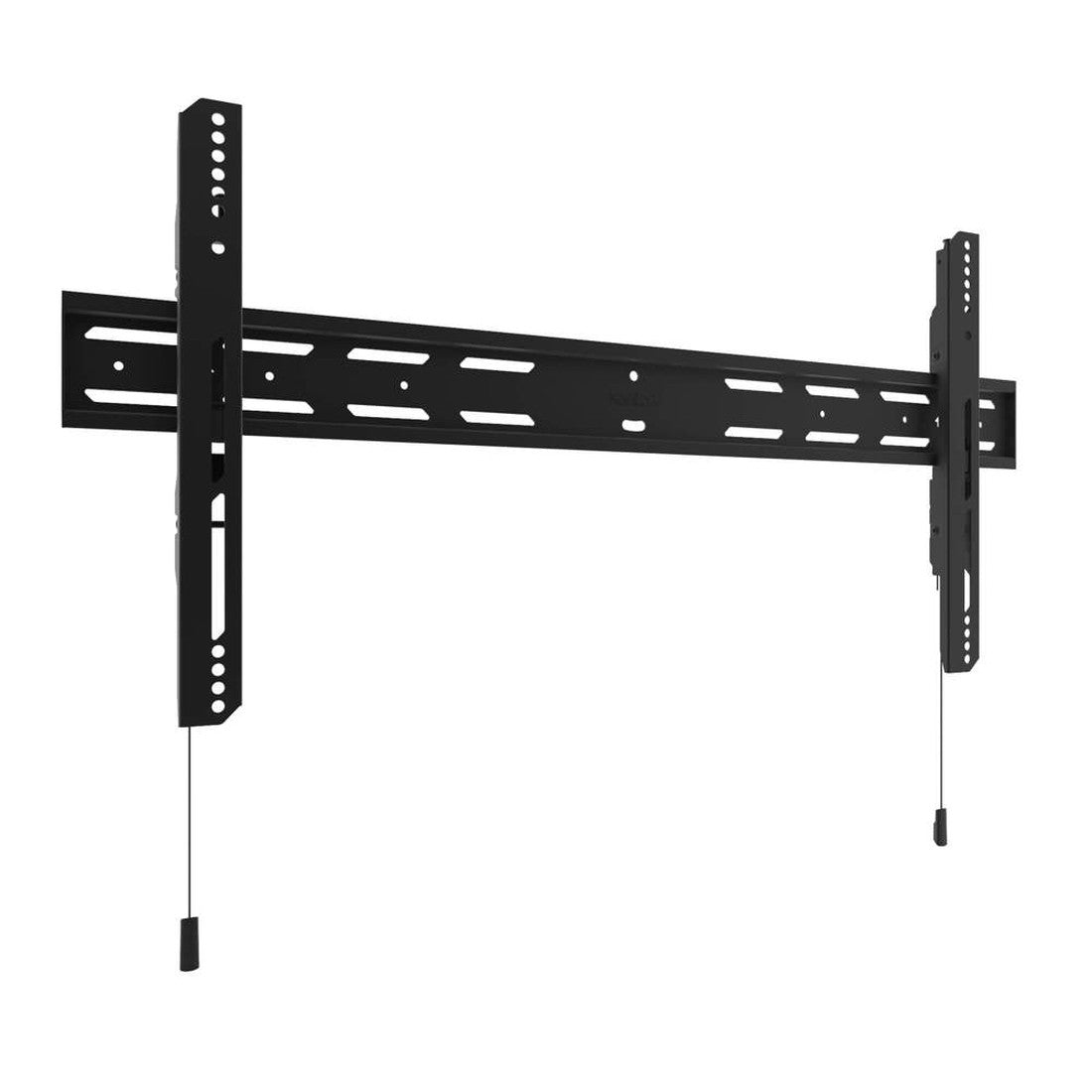

The Kanto PF400 securely mounts 40 to 120-inch TVs, while supporting up to 200 lb. Additionally, solid steel construction and a wide wall plate provide reliable support with a clean appearance. Meanwhile, adjustable leveling and lockable arms add practical functionality. Finally, magnetic quick-release cords simplify TV removal, while the low-profile design keeps your TV just 1.4 inches from the wall.

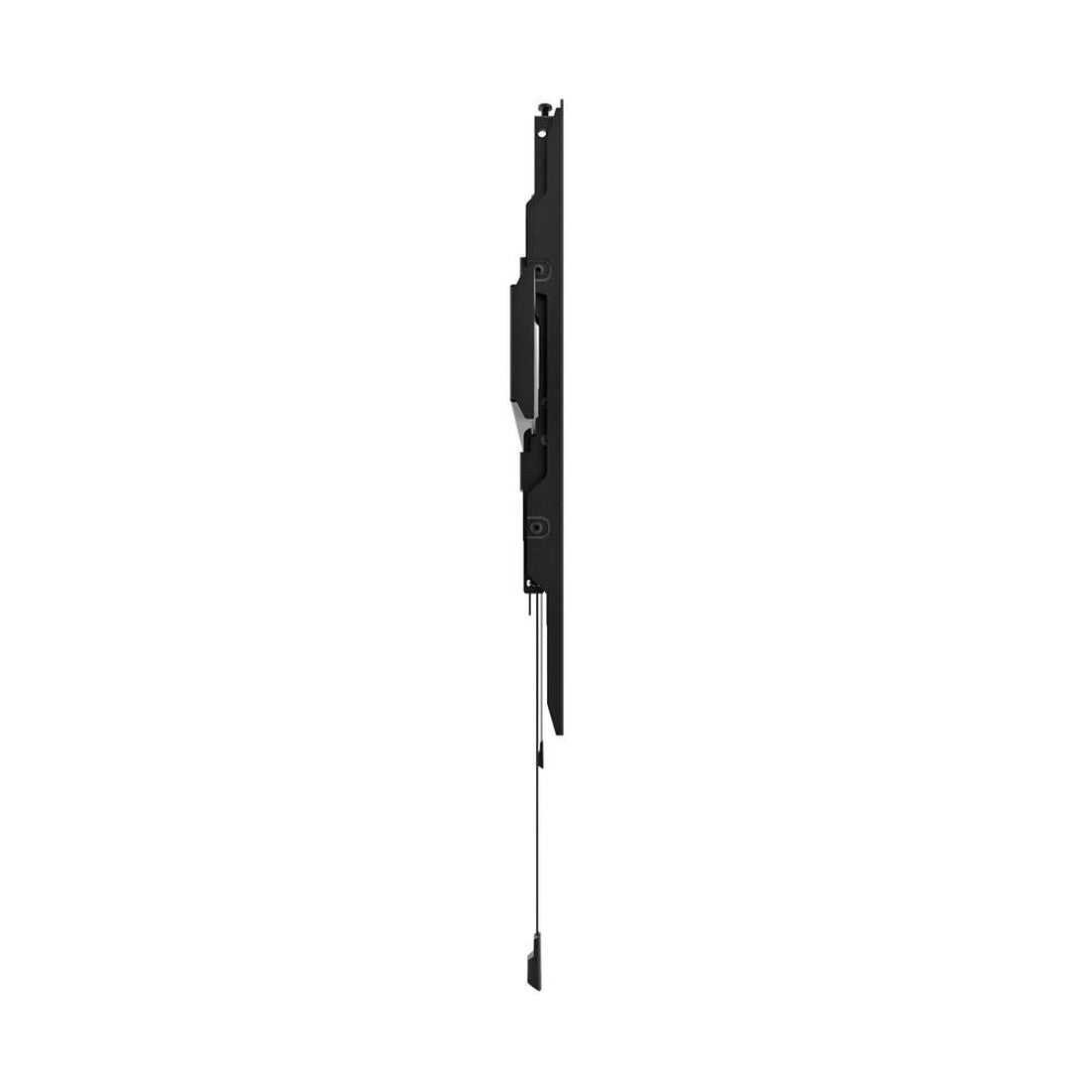

Low-Profile Design for a Clean TV Setup

The Kanto PF400 uses slim mounting brackets and a compact wall plate to position your television only 1.4 inches from the wall. This close fit helps create a streamlined look without adding unnecessary distance behind your screen. Think of it like keeping your TV tucked neatly against the wall instead of letting the mounting hardware dominate the space.

Supports TVs from 40 to 120 Inches

Designed for larger flat-screen TVs, the Kanto PF400 supports screen sizes ranging from 40 to 120 inches. Additionally, its 200 lb, or 91 kg, weight allowance provides the strength needed for compatible televisions across a wide size range. The mount supports VESA patterns from 100×100 to 800×400, giving you flexibility when matching it with a compatible TV.

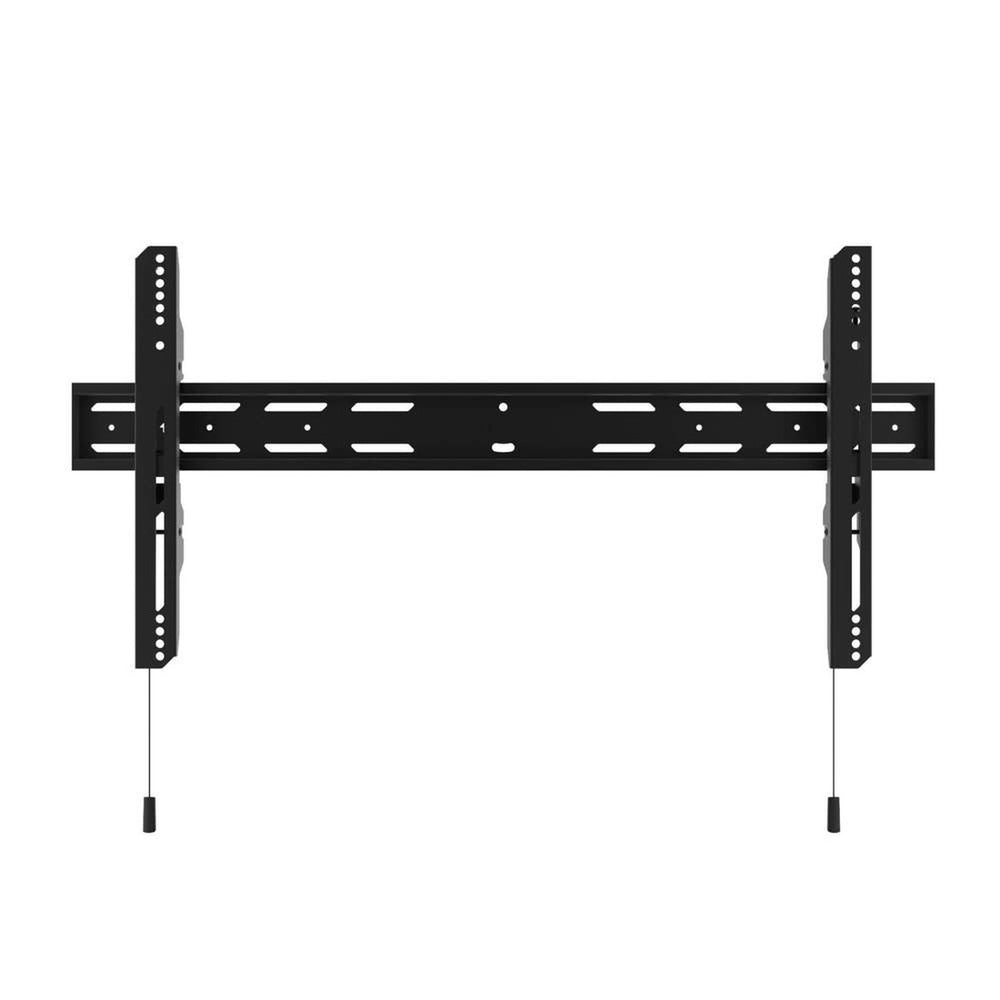

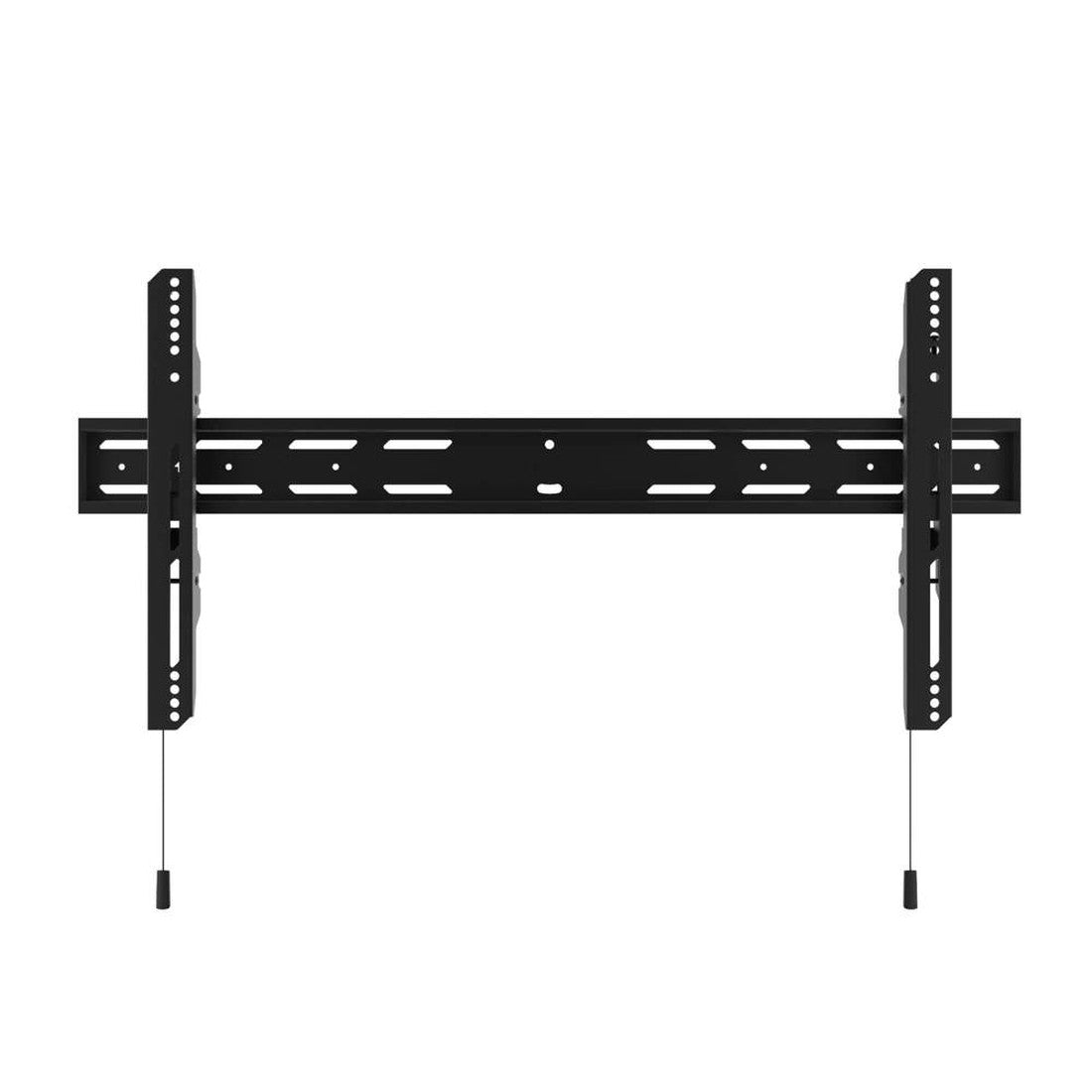

Extra-Wide 34.8-Inch Solid Steel Wall Plate

The Kanto PF400 features a solid steel wall plate measuring approximately 34.8 inches wide. As a result, you can mount it across three studs with 16-inch spacing or position it across 24-inch stud centers. The wide plate gives you more flexibility when choosing where your TV sits on the wall instead of forcing the screen to follow a single stud position.

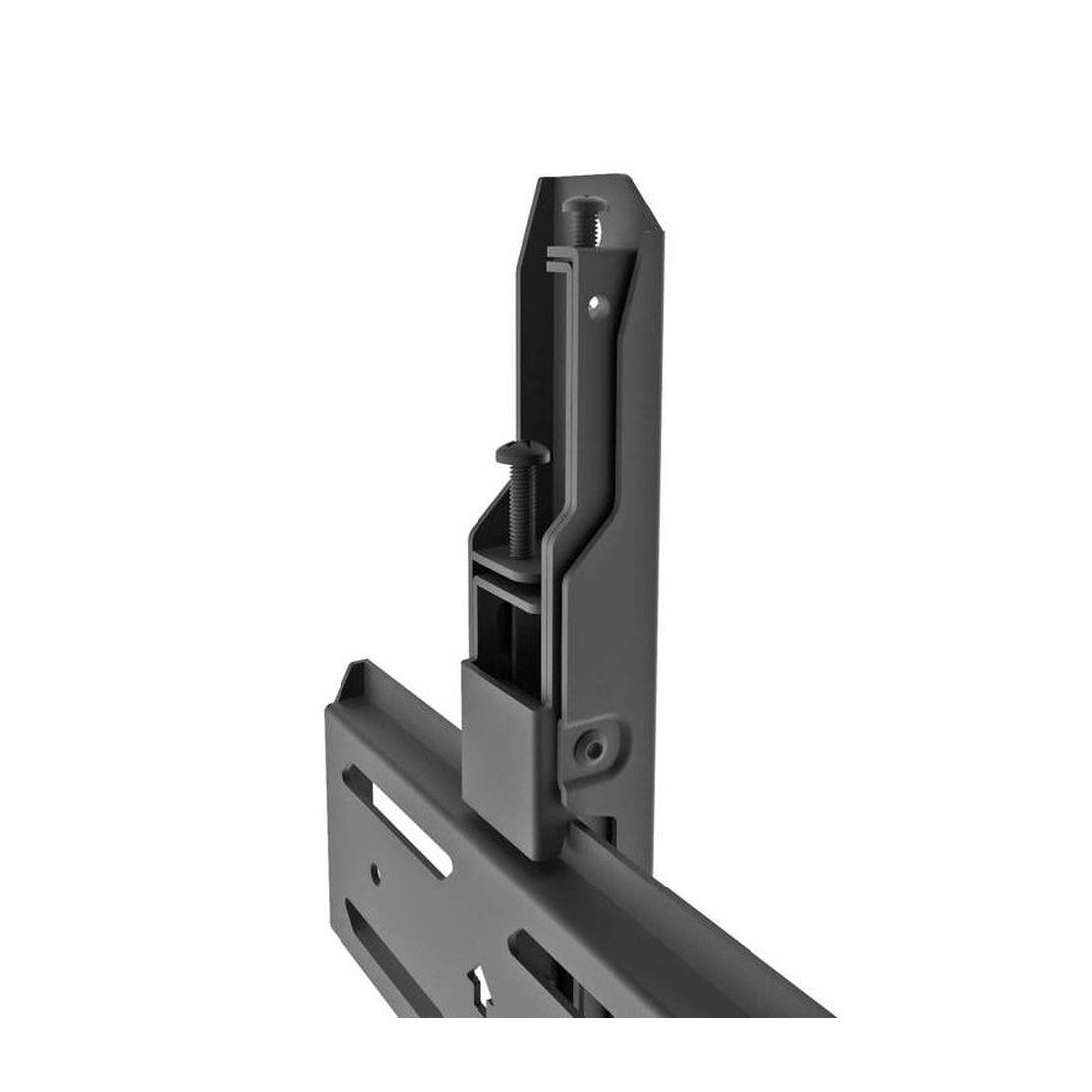

Post-Installation Leveling for Precise Positioning

A slightly uneven TV can stand out immediately. Fortunately, the Kanto PF400 includes two adjustable screws that allow horizontal leveling after the television has been mounted. The included 6-inch extension bit makes the leveling screws easier to reach behind the TV, helping you fine-tune its position without removing the screen first.

Lockable Arms with Torx Security Screws

The Kanto PF400 includes two Torx screws that can secure the mounting arms after the television is in place. Using the supplied key and extension bit, you can tighten these screws to help prevent the TV from being removed from the mount. This added security works quietly in the background, much like a hidden lock protecting the connection between your TV and wall mount.

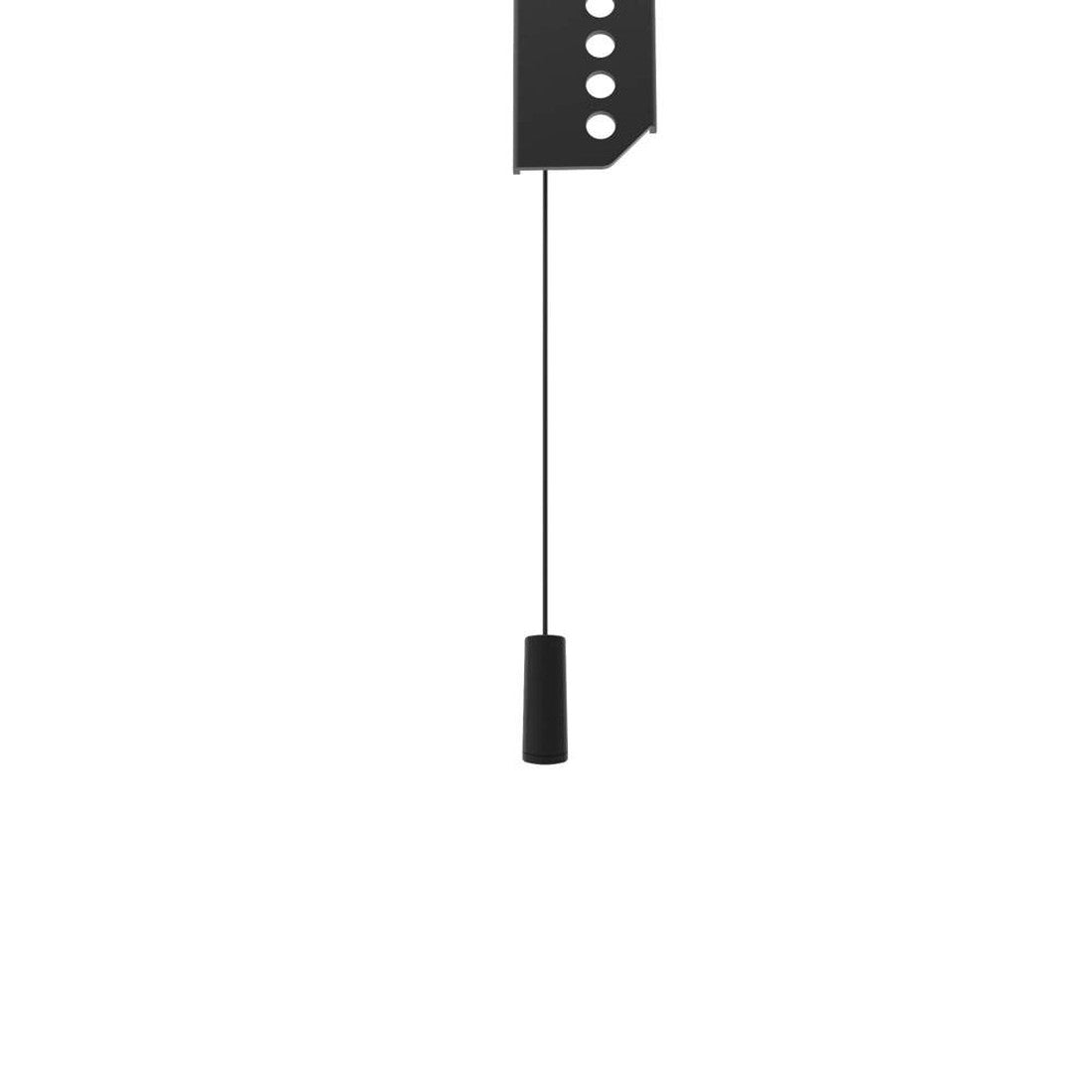

Magnetic Quick-Release Cords

Need to remove your television from the wall? The Kanto PF400 keeps the process straightforward with two quick-release cords. Simply pull the cords to release the mounting brackets. Better yet, each cord has a magnetic end, allowing you to tuck it neatly out of sight when you are not using it.

Integrated Cable Management

The Kanto PF400 includes integrated cable management to help keep your TV setup organized. Combined with its 1.4-inch profile, this feature helps maintain a cleaner appearance around your mounted television while keeping the focus on the screen rather than the hardware behind it.

Solid Steel Construction

Built from solid steel, the Kanto PF400 provides a strong foundation for compatible TVs weighing up to 200 lb. Its durable powder-coated finish complements the mount's functional design while providing a clean black appearance suited to a wide range of television setups.

Hardware for Wood Stud and Concrete Mounting

The Kanto PF400 comes with the mounting hardware required for wood stud and concrete applications. It also includes an installation manual, Torx key, and 6-inch extension bit. With the essential components packaged together, you have the hardware designed specifically for setting up the mount on supported wall types.

What’s Included

• Kanto PF400 fixed TV wall mount
• Installation manual
• Mounting hardware for wood stud and concrete applications
• 6-inch extension bit
• Torx key

Kanto PF400 Specifications

• TV size compatibility: 40 to 120 inches
• Maximum weight allowance: 200 lb (91 kg)
• VESA compatibility: 100×100 to 800×400
• Distance from wall: 1.4 inches
• Wall plate width: 34.8 inches (88.4 cm)
• Stud compatibility: Three 16-inch studs or offset mounting on 24-inch stud centers
• Material: Solid steel
• Finish: Durable powder-coated finish
• Product weight: 6.6 lb (3 kg)
• Shipping box weight: 9.3 lb (4.2 kg)
• Shipping box dimensions: 36.2 x 6.8 x 3.3 inches (91.9 x 17.3 x 8.4 cm)
• UPC: 800152718248

A Strong Fixed Mount Without the Extra Bulk

The Kanto PF400 supports TVs up to 120 inches and 200 lb, while maintaining a slim 1.4-inch profile. Additionally, its wide steel wall plate provides a strong mounting foundation. Meanwhile, post-mount leveling and lockable arms add practical control and security. Finally, magnetic release cords and integrated cable management help keep your TV setup functional and organized.

Frequently Asked Questions

What TV sizes are compatible with the Kanto PF400? The Kanto PF400 supports compatible televisions ranging from 40 to 120 inches.

How much weight can the Kanto PF400 support? It supports TVs weighing up to 200 lb, or 91 kg.

How far does the TV sit from the wall? The mount positions a compatible television approximately 1.4 inches from the wall.

What VESA patterns does the mount support? It supports VESA mounting patterns ranging from 100×100 to 800×400.

Can the TV be leveled after it is mounted? Yes. Two adjustable screws provide horizontal leveling, while the included 6-inch extension bit helps you reach the adjustment screws behind the television.
