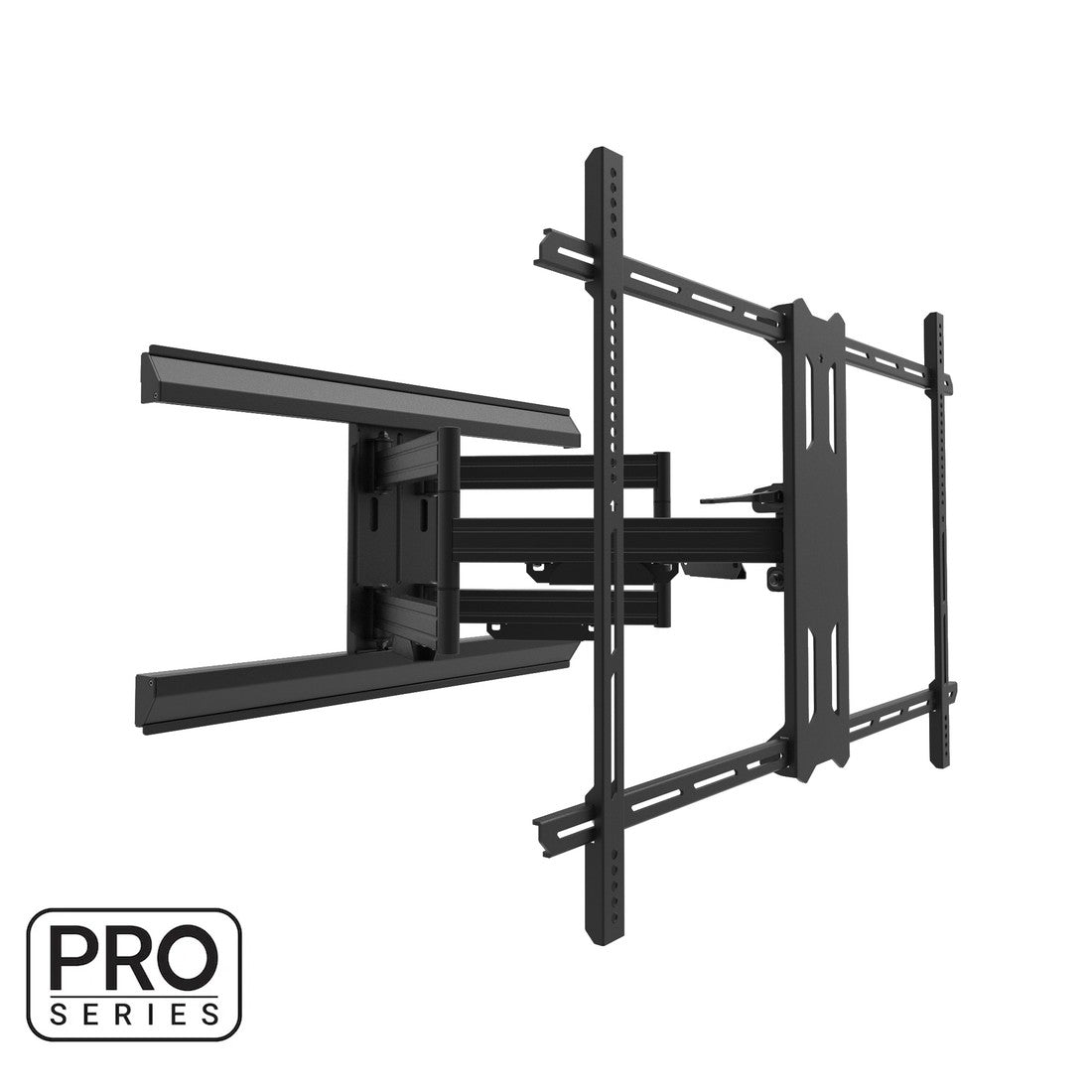

Kanto Pro PMX800 Full Motion TV Wall Mount with 200 lb Capacity

Kanto Pro PMX800 Full Motion TV Wall Mount with 200 lb Capacity

The Kanto Pro PMX800 gives you the strength and flexibility needed to mount extra-large TVs and interactive displays. Designed for screens from 55 to 120 inches, it supports up to 200 lb while offering 31.3 inches of extension, broad VESA compatibility, and 22 inches of total horizontal offset. Its full motion design makes positioning a large display much easier without letting wall studs dictate the final placement.

Built for Extra-Large Screens

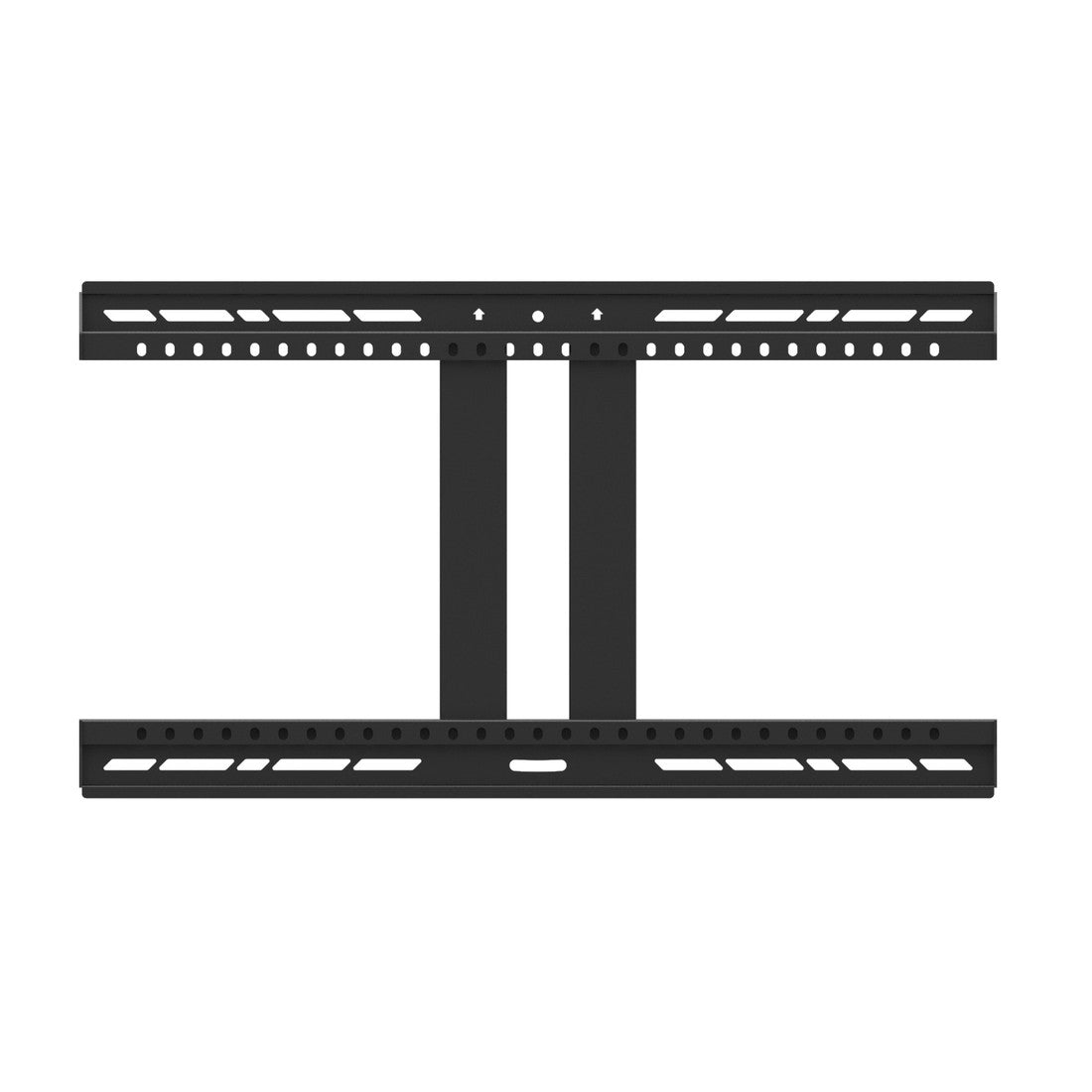

The Kanto Pro PMX800 supports displays weighing up to 200 lb, or 90.9 kg. It works with compatible TVs from 55 to 120 inches and supports VESA patterns ranging from 200x100 to 900x600.

That oversized VESA range makes the mount suitable for large televisions and interactive touch panels. Think of it as giving your display a larger mounting canvas, with more flexibility for vertical positioning.

22 Inches of Horizontal Offset

Wall studs do not always line up exactly where you want your television. Fortunately, the Kanto Pro PMX800 provides 22 inches of total horizontal offset, allowing you to move the display up to 11 inches in either direction.

Oversized TV brackets also give you more flexibility when setting the display height. As a result, you can fine-tune placement without being completely limited by your stud locations.

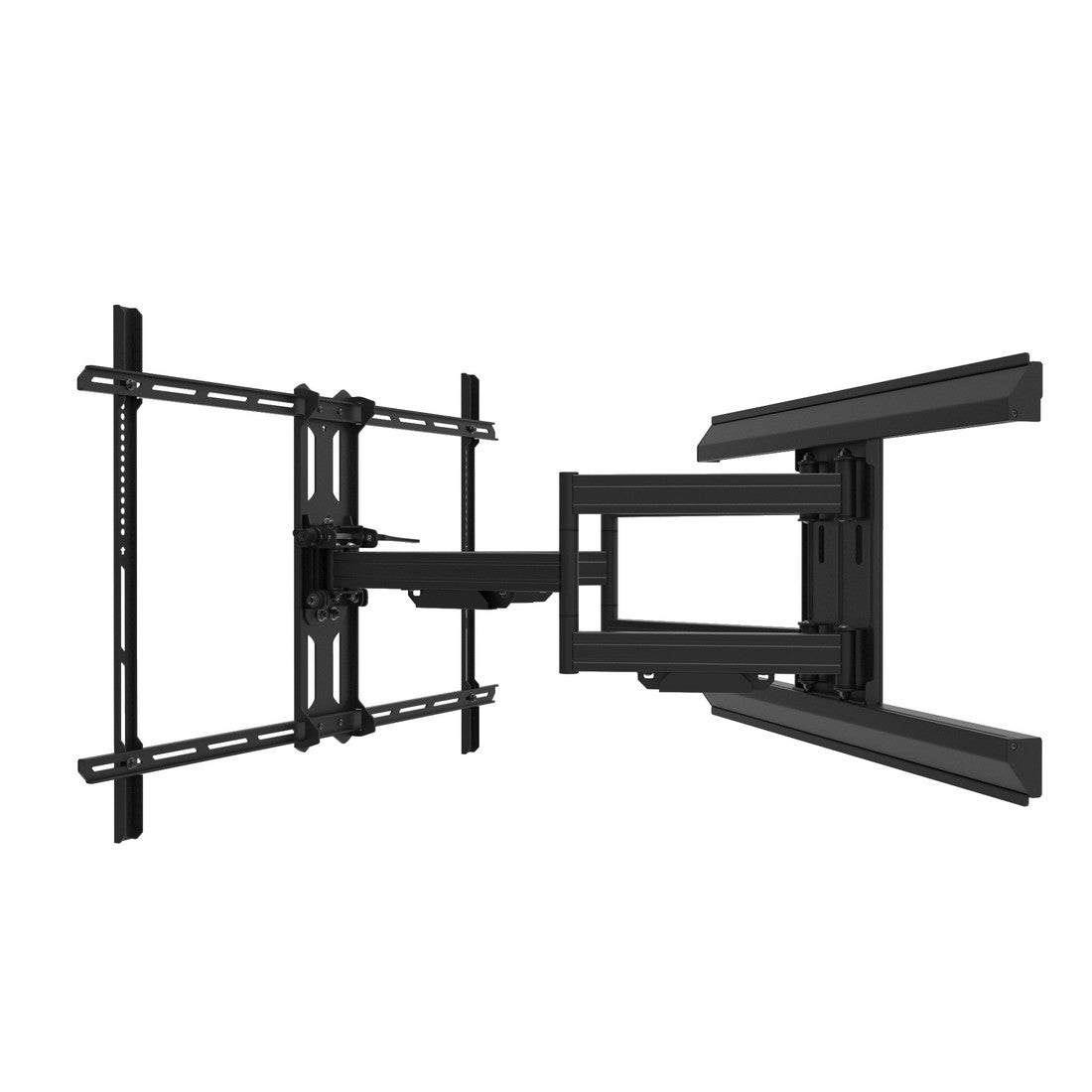

Extend Your TV Up to 31.3 Inches

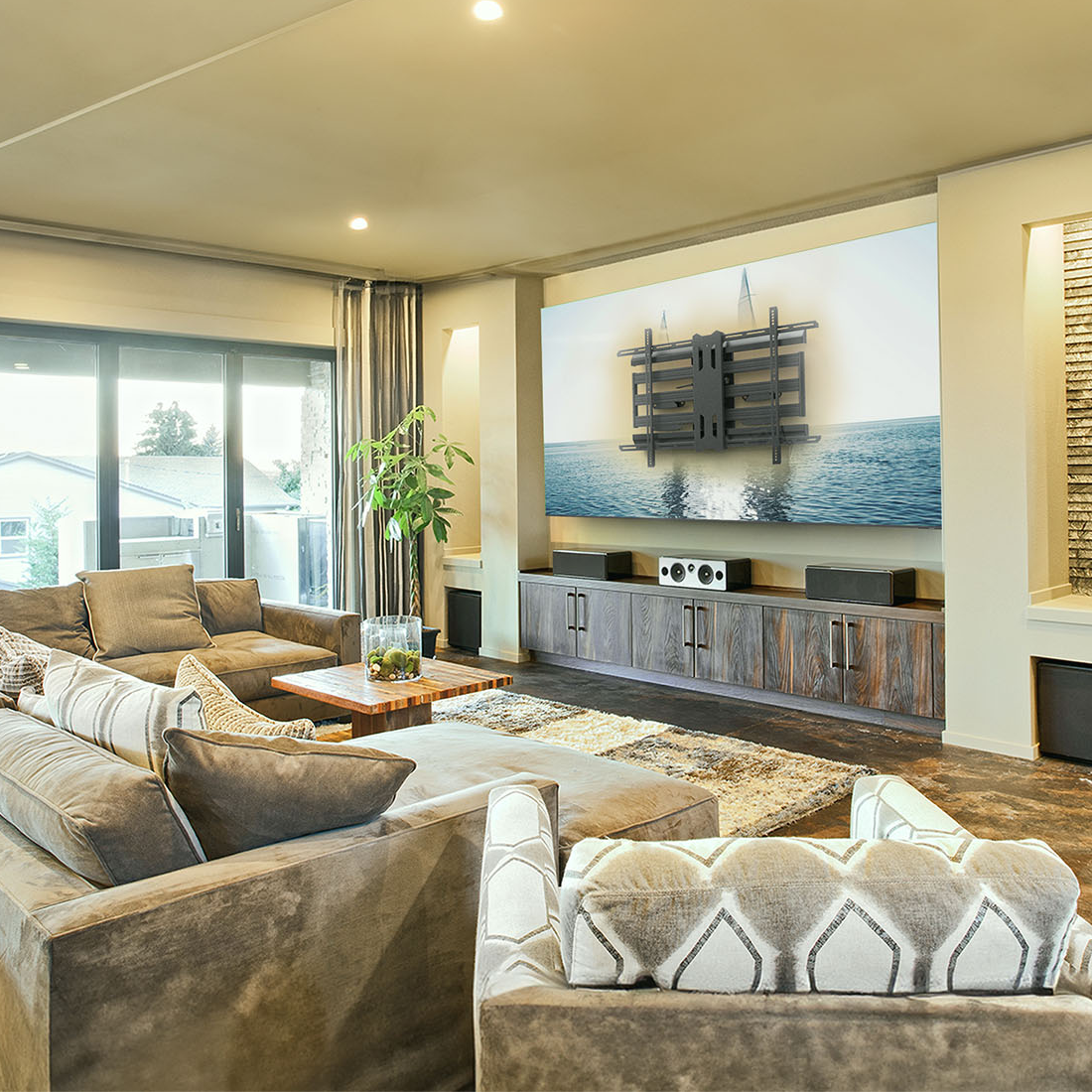

The Kanto Pro PMX800 extends from 2.6 inches to 31.3 inches from the wall. That extra reach can help when positioning a screen over a fireplace or bringing it forward from a recessed area.

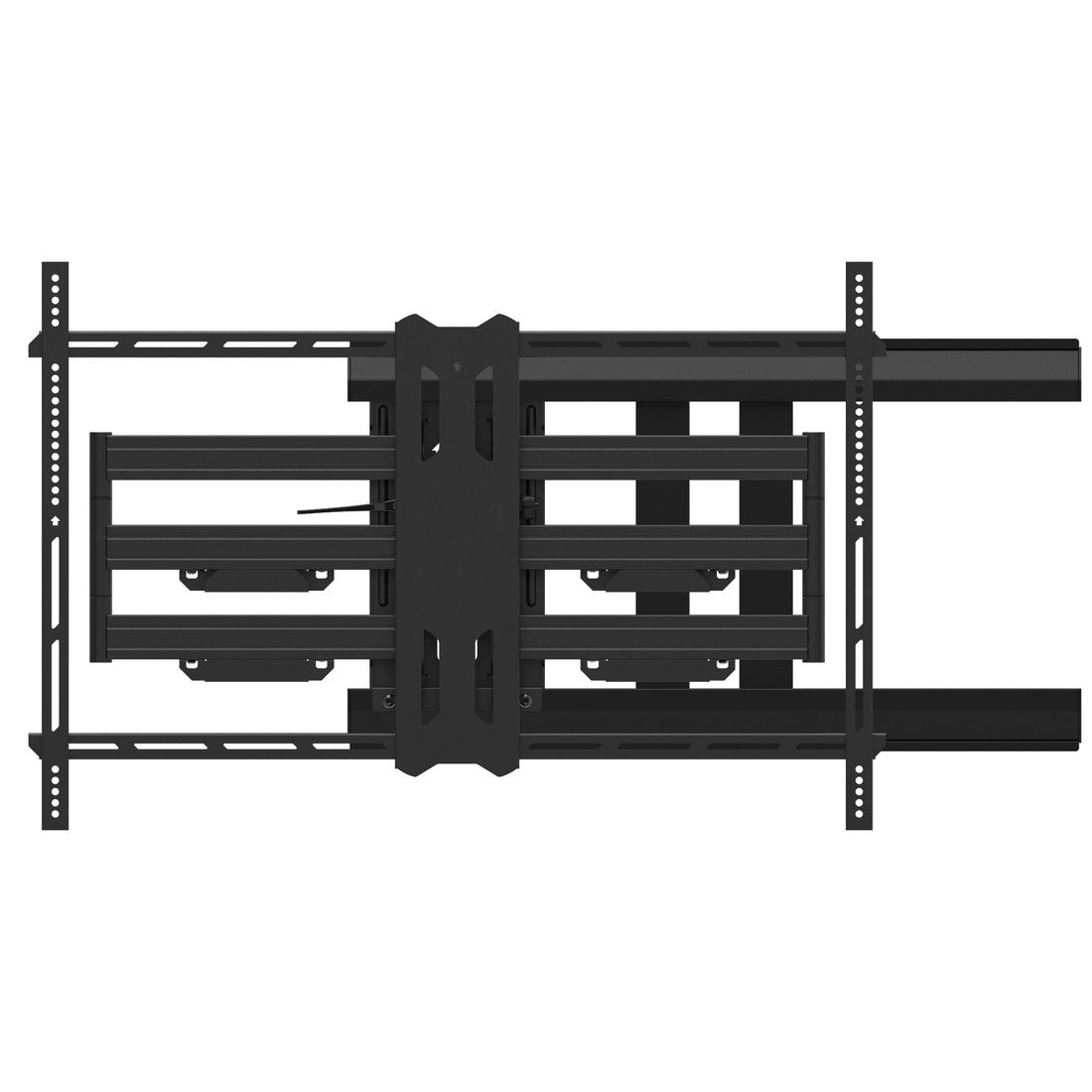

When you do not need the extension, the low-profile design allows the display to sit only 2.6 inches from the wall. You get generous movement without giving up a clean retracted position.

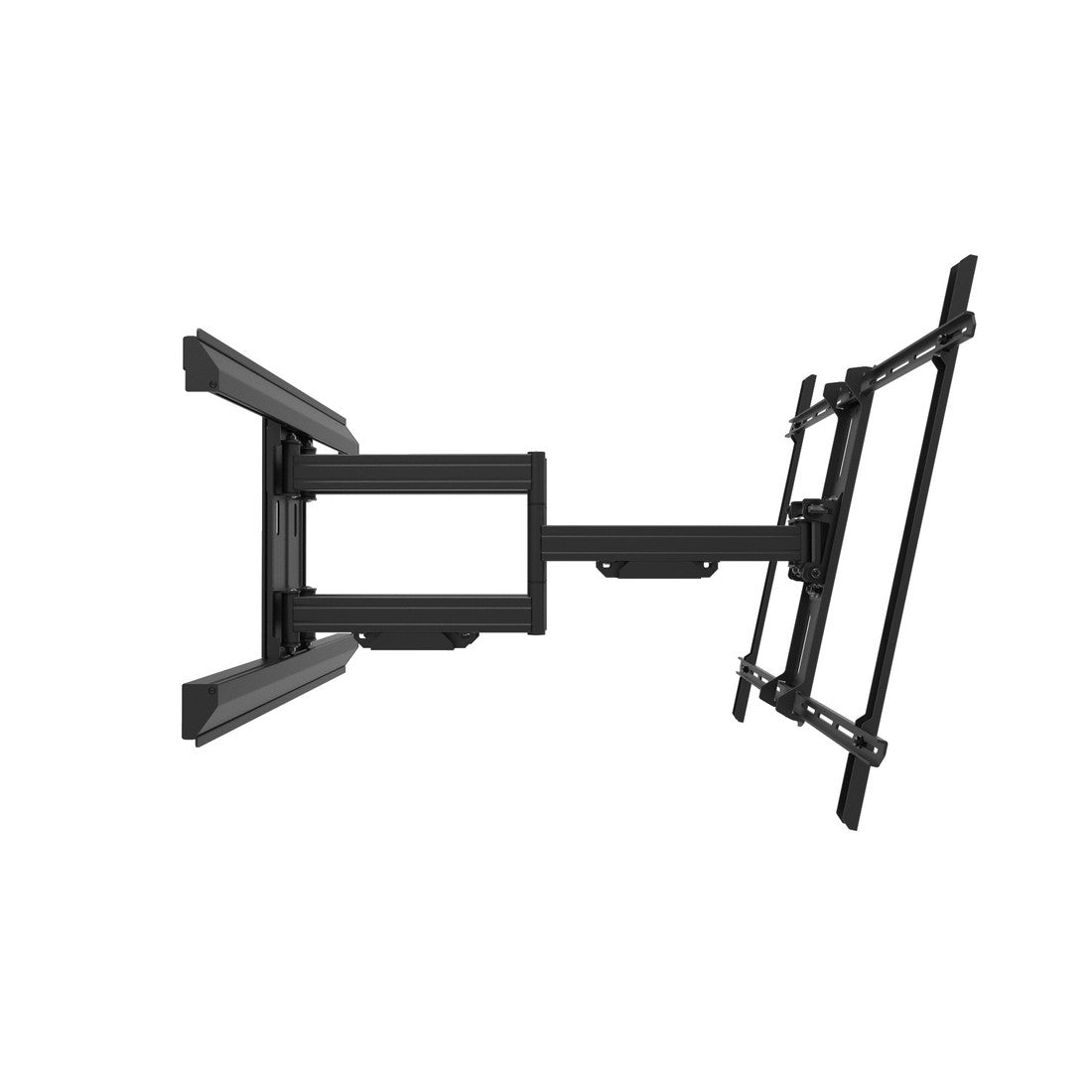

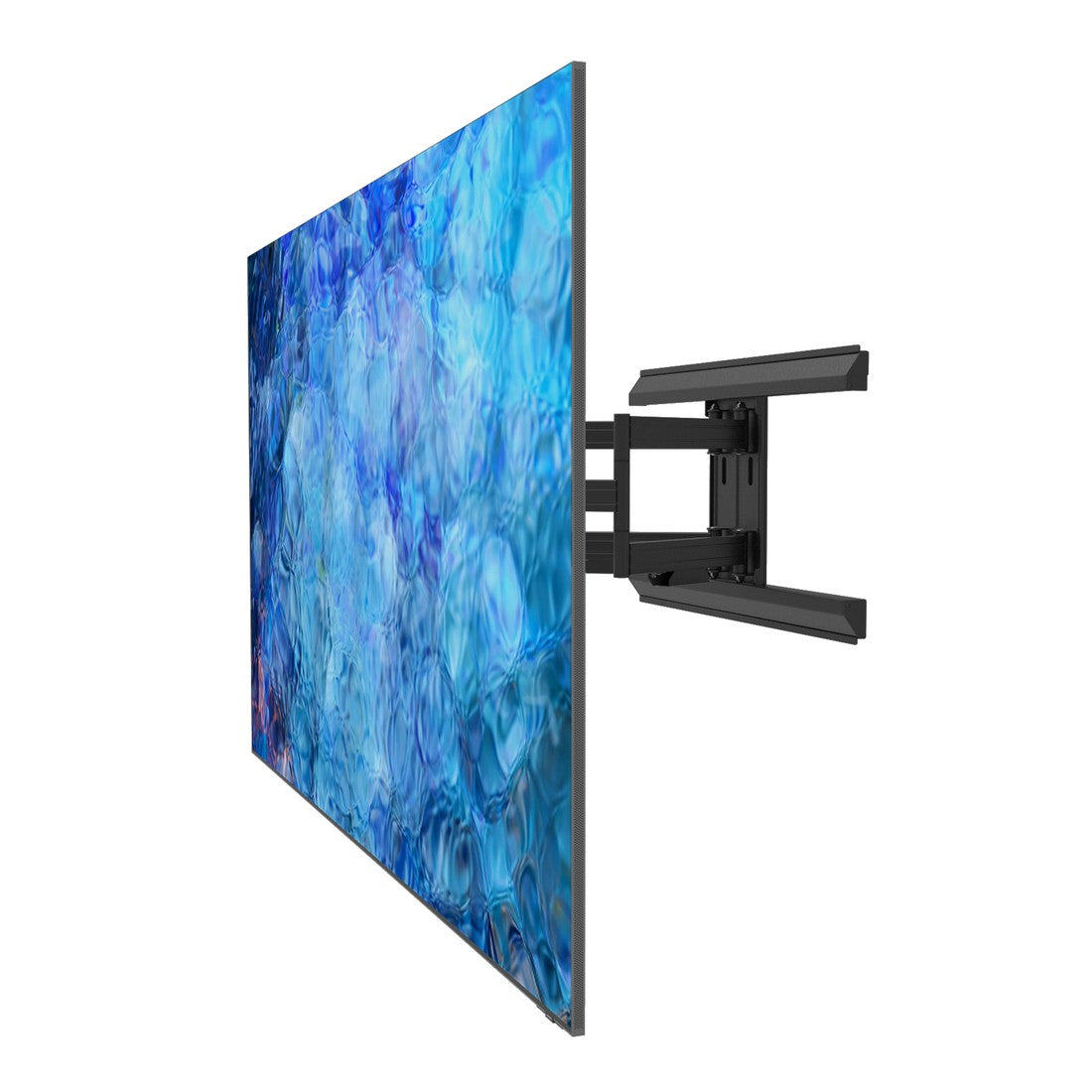

Swivel for Different Viewing Positions

The Kanto Pro PMX800 can swivel your TV up to 90 degrees left or right, depending on screen size. This movement lets you adjust the screen toward different seating areas instead of forcing everyone to watch from one fixed angle.

With up to 180 degrees of total swivel, the mount gives large screens the freedom to move more like a smaller display.

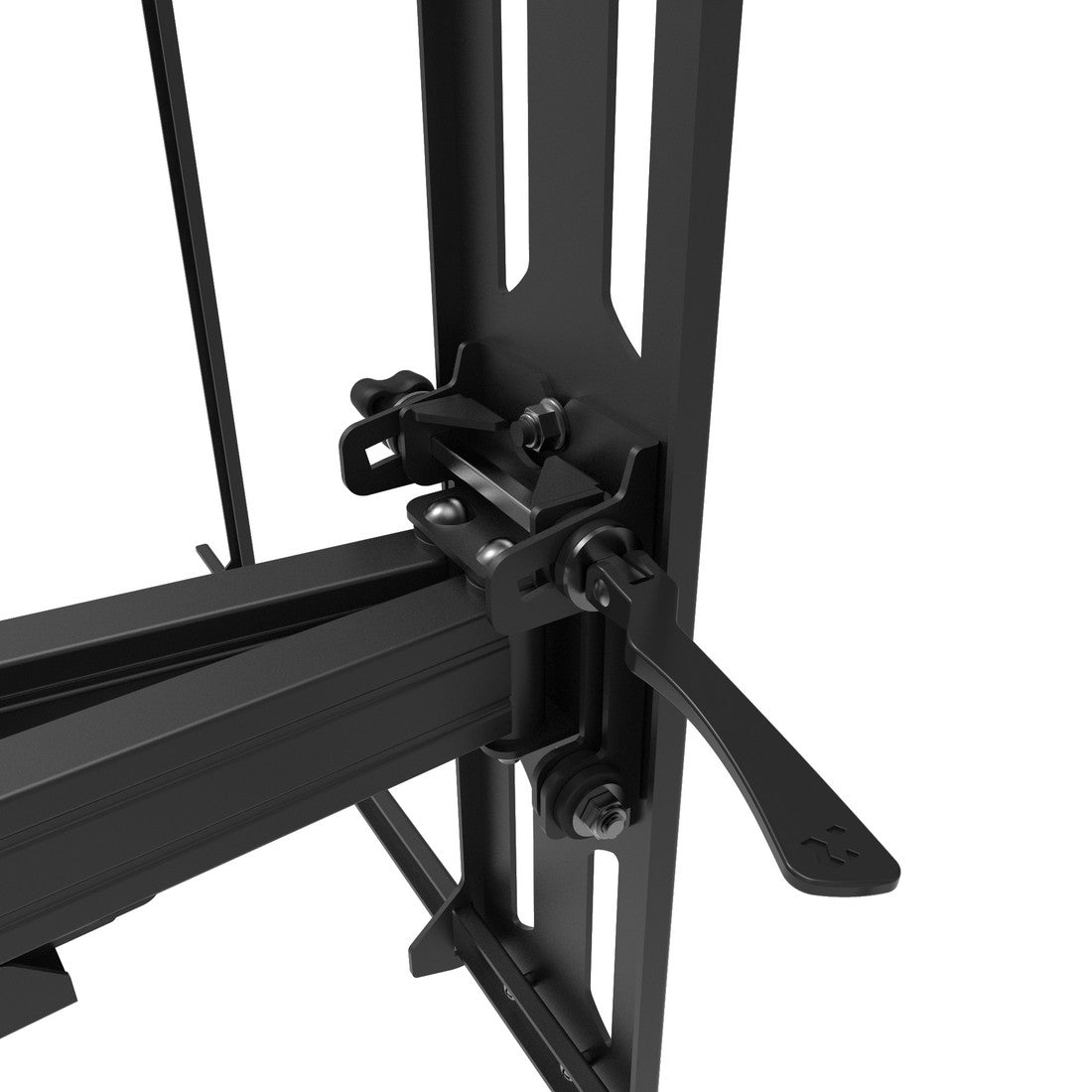

Toolless Tilt for Quick Adjustments

The Kanto Pro PMX800 uses a toolless cam lever tilt mechanism for easy on-the-fly adjustments. You can tilt the screen forward up to 12 degrees or backward up to 3 degrees.

This feature makes it easier to adjust the viewing angle whenever your setup changes. No extra tools are required each time you want to reposition the tilt.

Strong Metal Cable Management

The Kanto Pro PMX800 includes an integrated cable management system made from metal. Kanto designed this system to handle regular use while keeping cables organized around the articulating arms.

Aluminum wall plate covers also help hide the lag bolts and create a cleaner finished appearance. Together, these details keep the hardware from becoming the visual focus of your setup.

Designed for Flexible Wall Placement

The Kanto Pro PMX800 uses a 32.4-inch wall plate that accommodates dual studs spaced up to 24 inches apart. Adjustable horizontal leveling provides another way to refine the final position of your display.

The mount also includes hardware for wood stud and concrete wall applications. A paper wall template helps you mark pilot holes accurately before mounting.

Hardware for Different TV Configurations

The Kanto Pro PMX800 includes versatile mounting hardware and, moreover, supports different compatible TV configurations. Additionally, multiple bolt diameters, lengths, and spacers help create a more precise fit for your television.

Lag bolts and concrete anchors are also included, along with an installation manual and paper wall template.

Kanto Pro PMX800 Specifications

• TV size compatibility: 55" to 120"
• Maximum weight capacity: 200 lb (90.9 kg)
• VESA compatibility: 200x100 to 900x600
• Extension: 2.6" to 31.3" (79.5 cm)
• Toolless tilt: +12° to -3°
• Swivel: ±90° left or right, depending on screen size
• Total horizontal offset: 22" (55.8 cm)
• Horizontal offset: Up to 11" in either direction
• Wall plate width: 32.4" (82.3 cm)
• Stud spacing: Up to 24"
• Integrated metal cable management
• Adjustable horizontal leveling
• Aluminum covers to hide lag bolts
• Product weight: 48.3 lb (21.9 kg)
• Shipping weight: 58.4 lb (26.5 kg)
• Shipping box dimensions: 41.6" x 21.3" x 4.9" (105.7 x 58.3 x 12.5 cm)
• UPC: 800152721712

What’s Included

• Paper wall template for marking pilot holes
• Installation manual
• Mounting hardware for wood stud and concrete applications
• Multiple bolt diameters and lengths
• Spacers
• Lag bolts
• Concrete anchors

More Control for Bigger Displays

The Kanto Pro PMX800 supports up to 200 lb and, additionally, offers flexible positioning for very large displays. Meanwhile, its 31.3-inch extension and 22-inch horizontal offset provide greater control over screen placement. Finally, 900x600 VESA support, toolless tilt, and wide swivel deliver a strong, low-profile full motion solution.

Frequently Asked Questions

What TV sizes does the Kanto Pro PMX800 support? The Kanto Pro PMX800 supports compatible TVs and displays ranging from 55 to 120 inches.

How much weight can the mount support? It supports displays weighing up to 200 lb, or 90.9 kg.

How far can the Kanto Pro PMX800 extend from the wall? It extends from 2.6 inches to a maximum of 31.3 inches.

What VESA patterns are compatible with the mount? It supports VESA patterns ranging from 200x100 to 900x600.

How much can I adjust the viewing angle? You can tilt the screen from +12° to -3° and swivel it up to 90° left or right, depending on screen size.
