Kanto PS200 Full Motion TV Wall Mount with 88 lb Capacity

Kanto PS200 Full Motion TV Wall Mount with 88 lb Capacity

The Kanto PS200 gives you flexible control over your TV position without requiring a bulky mounting system. Designed for most flat-panel TVs from 26 to 60 inches, this single-stud full motion TV mount supports up to 88 lb and lets you extend, tilt, and swivel your screen. Want a better view from different areas of the room? Its articulating design makes adjusting your TV simple.

Full Motion Viewing for More Flexibility

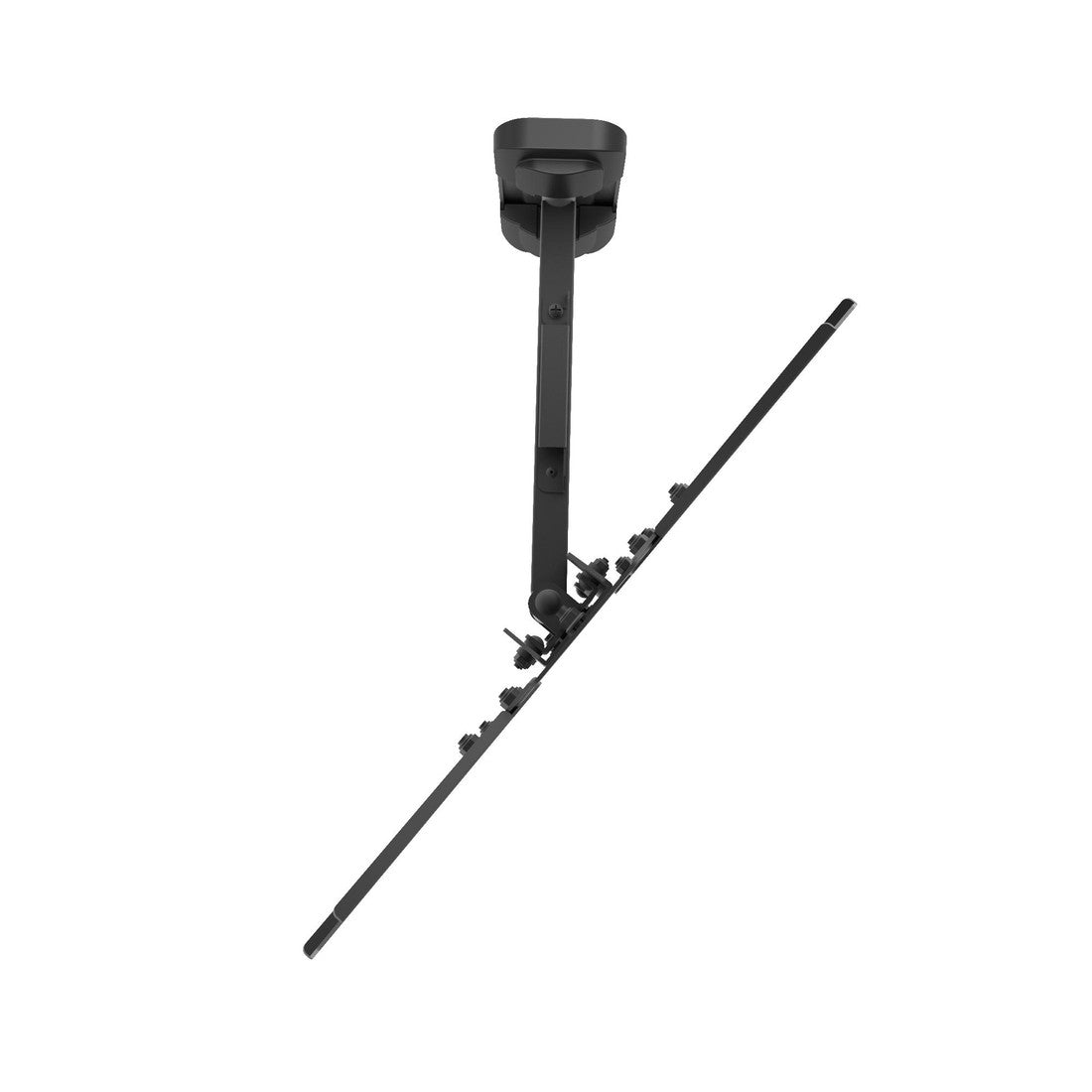

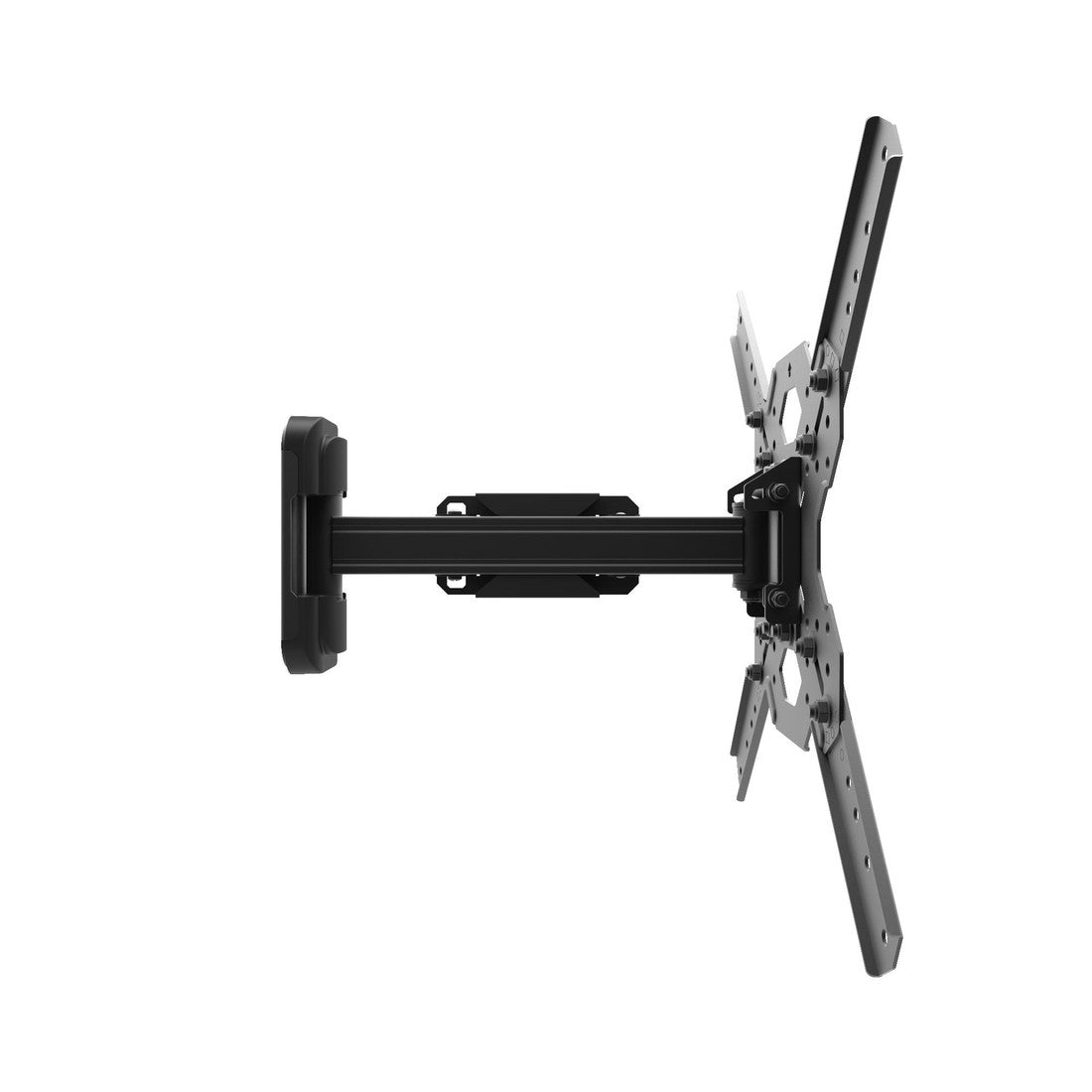

The Kanto PS200 moves with the way you use your space. It extends from 2 inches up to 13.8 inches from the wall, giving you room to reposition your screen when needed. Push it back when you're finished, and your TV sits less than 2 inches from the wall for a cleaner, low-profile appearance.

Its extension arm also provides up to 180° of swivel, depending on your TV size. You can turn your screen left or right by 90° or more, making the mount useful when your ideal viewing position changes throughout the room.

Adjust Your TV Angle with +12° to -2° Tilt

The Kanto PS200 includes 12° of forward tilt and 2° of backward tilt, giving you another way to fine-tune your viewing position. Instead of keeping your TV locked at one fixed angle, you can adjust the screen to better suit where you're sitting.

Supports TVs from 26 to 60 Inches

Built from solid steel, the Kanto PS200 supports most compatible flat-panel TVs between 26 and 60 inches. Its maximum weight allowance is 88 lb, or 40 kg, providing a strong mounting platform while maintaining the flexibility of an articulating arm.

• Supports most 26" to 60" flat-panel TVs
• Maximum TV weight of 88 lb (40 kg)
• Single-stud wall plate design
• Solid steel construction
• Durable powder-coated finish

Wide VESA Compatibility Up to 400x400

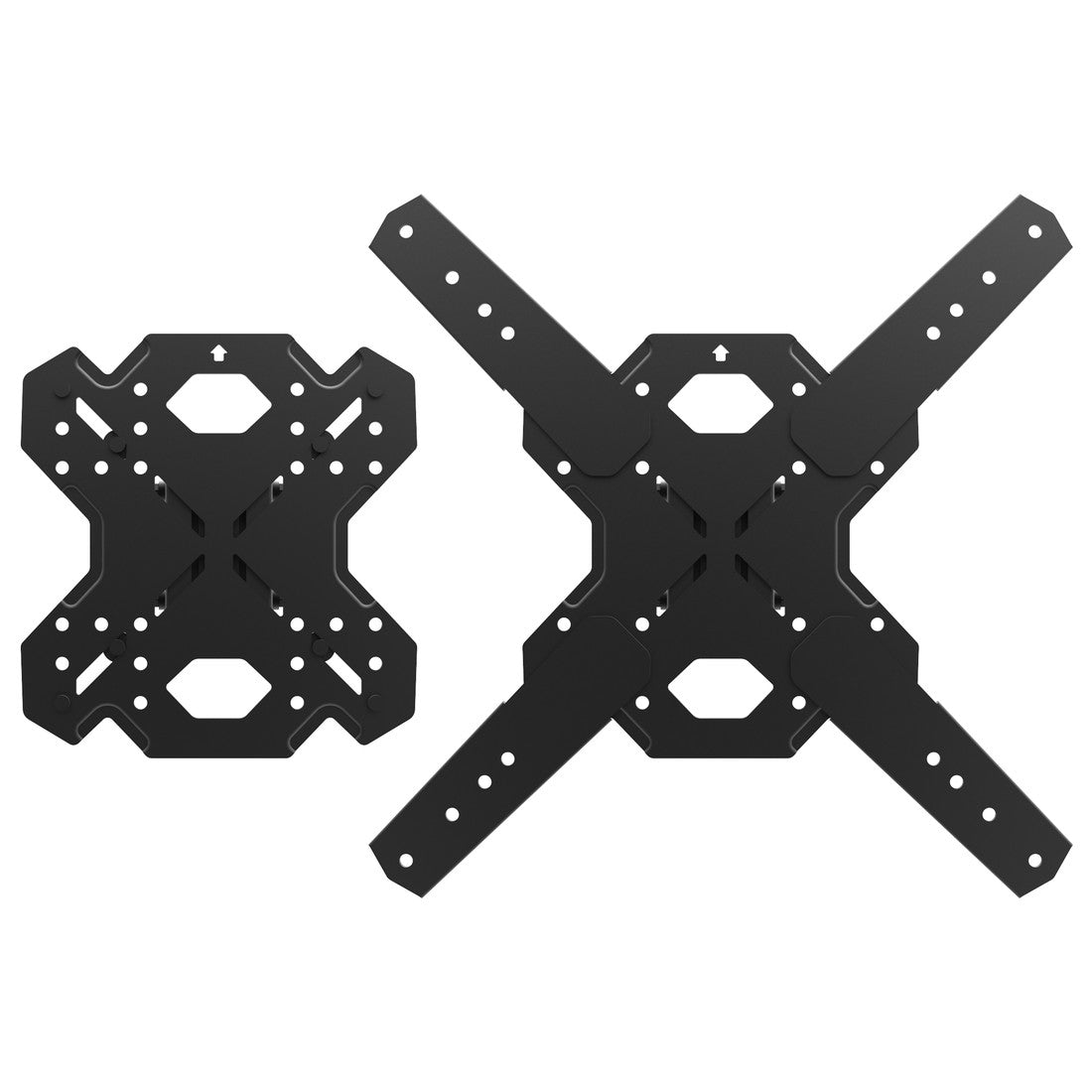

The Kanto PS200 supports a broad selection of VESA mounting patterns from 100x100 through 400x400. For smaller patterns such as 100x100 and 200x200, the TV plate can accommodate the required configuration. Larger patterns, including 300x300 and 400x400, use the four supplied extension arms and Nylock nuts.

Supported VESA patterns include 100x100, 100x150, 100x200, 150x100, 150x150, 200x100, 200x150, 200x200, 200x250, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, and 400x400.

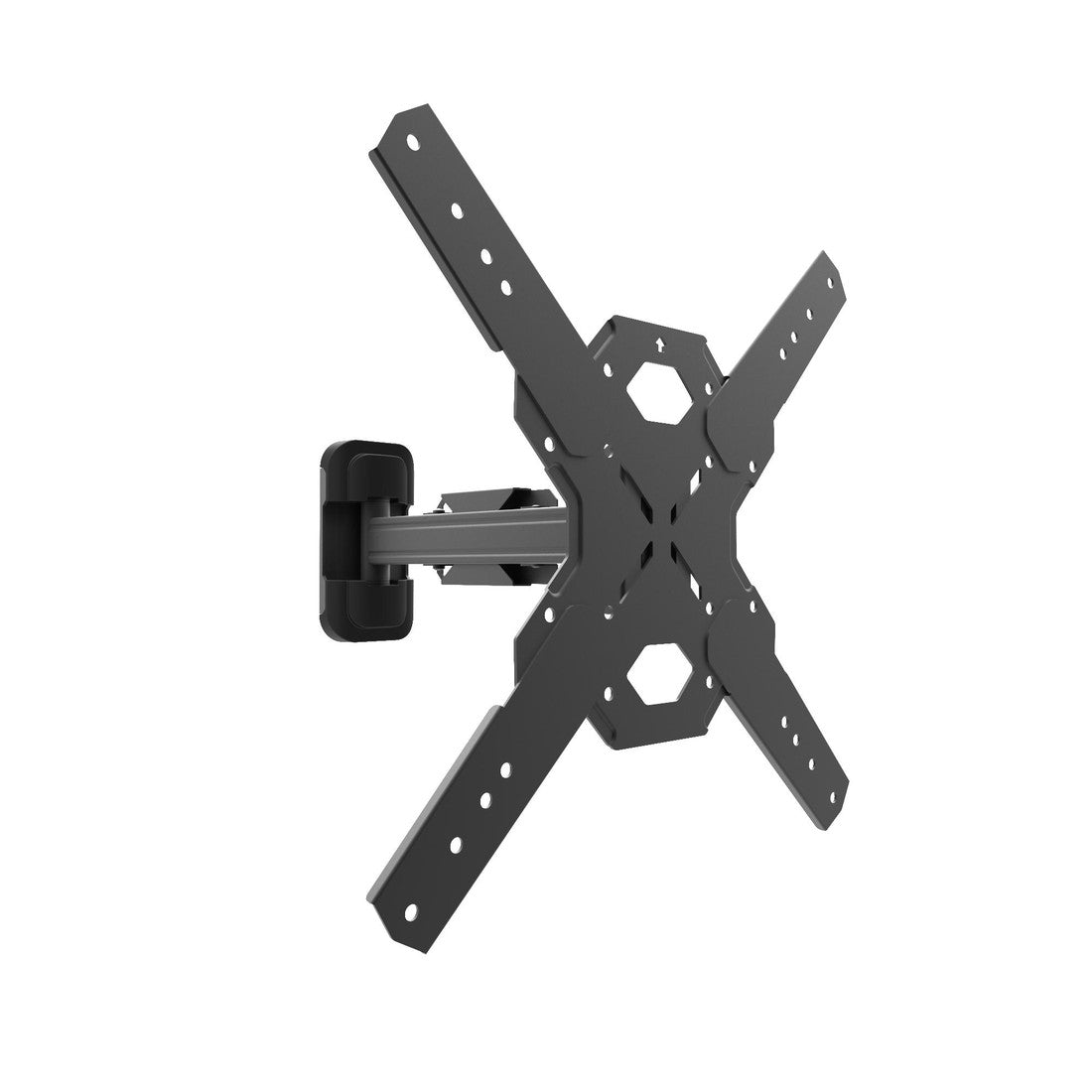

Single-Stud Articulating Design

The Kanto PS200 uses a single-stud mounting design, combining a compact wall plate with an articulating extension arm. When the mount is pushed against the wall, the center of the TV plate is offset approximately 13 inches to the left or right of the stud center. This is an important detail when planning where you want your screen positioned.

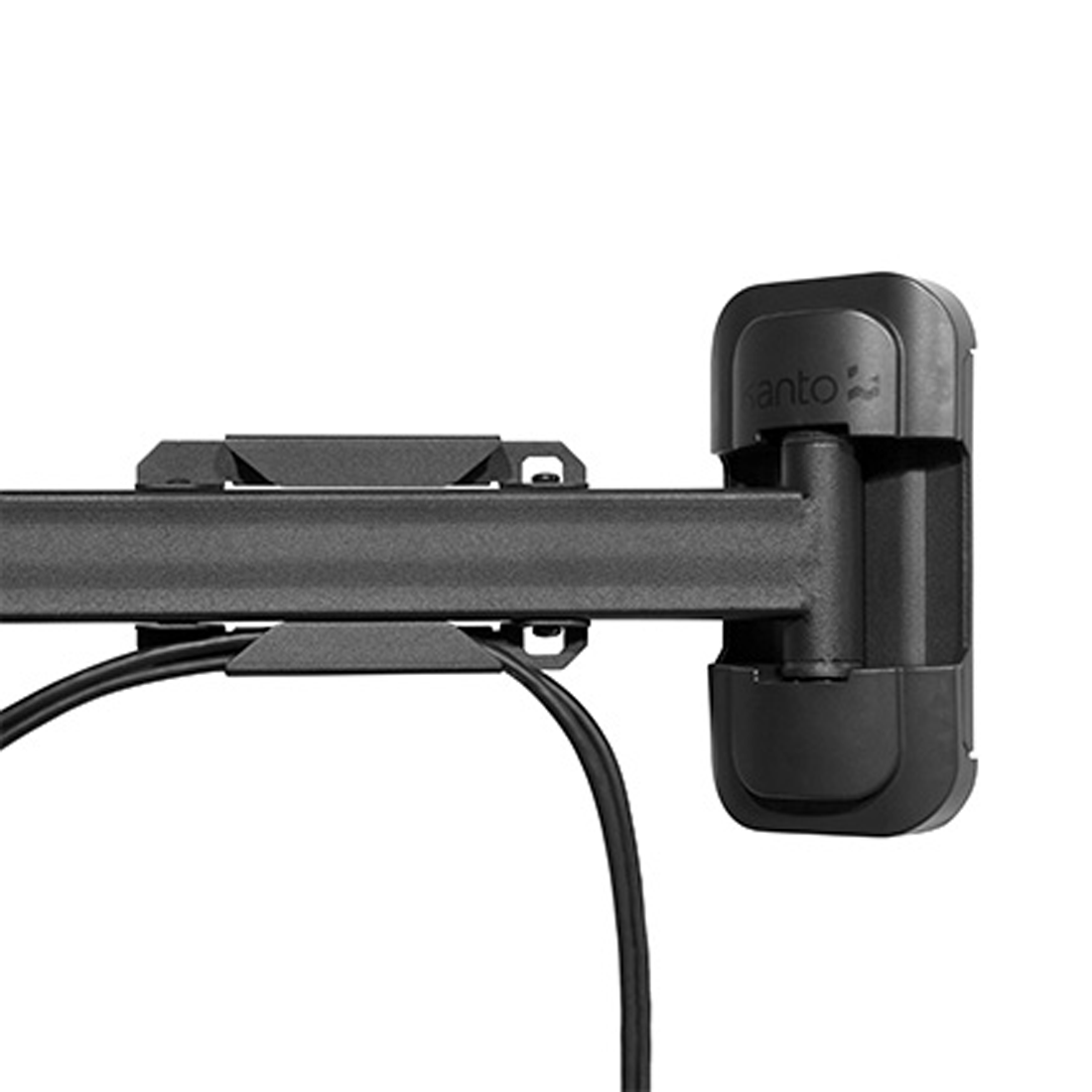

Integrated Cable Management

A flexible TV mount shouldn't leave your cables looking like a tangled afterthought. The Kanto PS200 includes integrated cable management that lets you route power and video cables neatly between your television and the wall. Simple covers help finish the appearance and keep the mounting area organized.

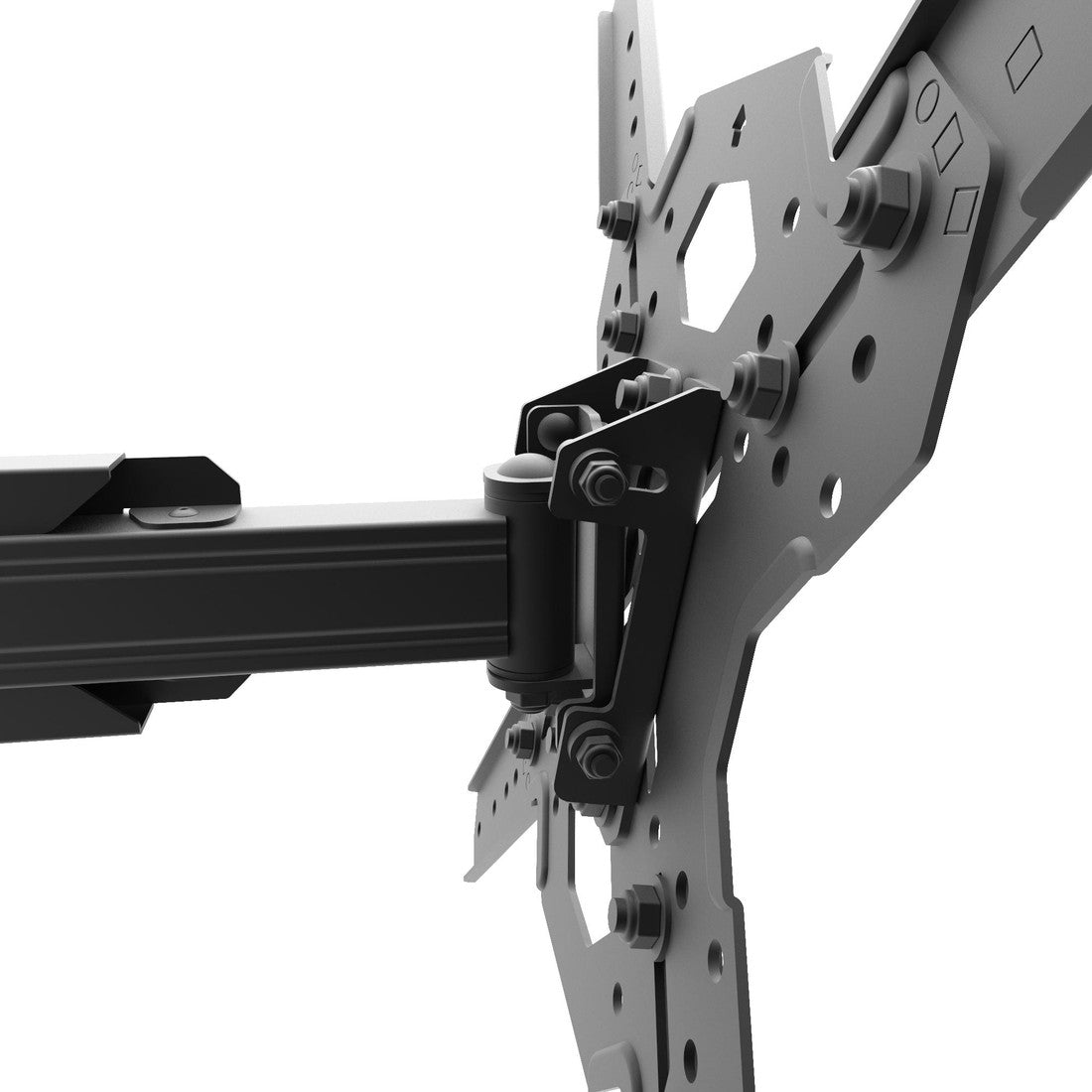

Adjustable Horizontal Leveling

The Kanto PS200 also includes adjustable horizontal leveling, giving you additional control over your TV's final position. This feature helps you make small horizontal adjustments so the screen sits where you want it after mounting.

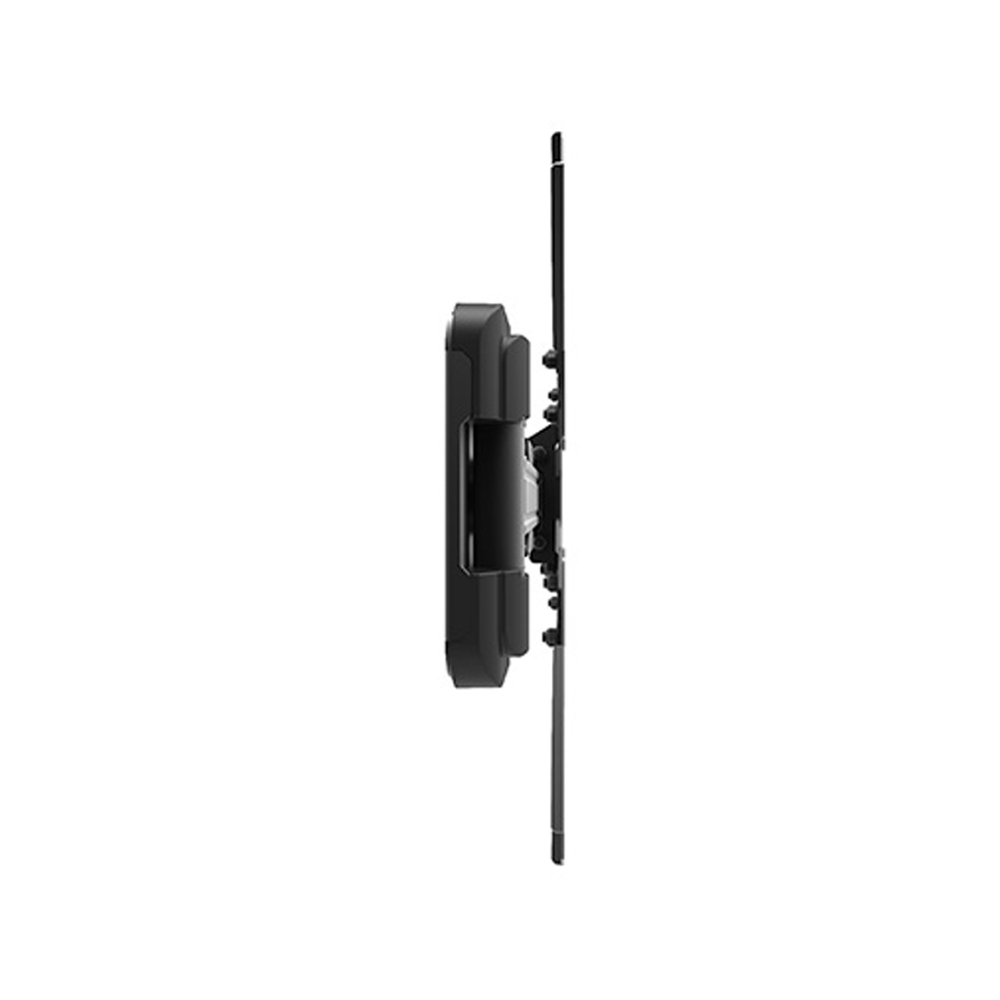

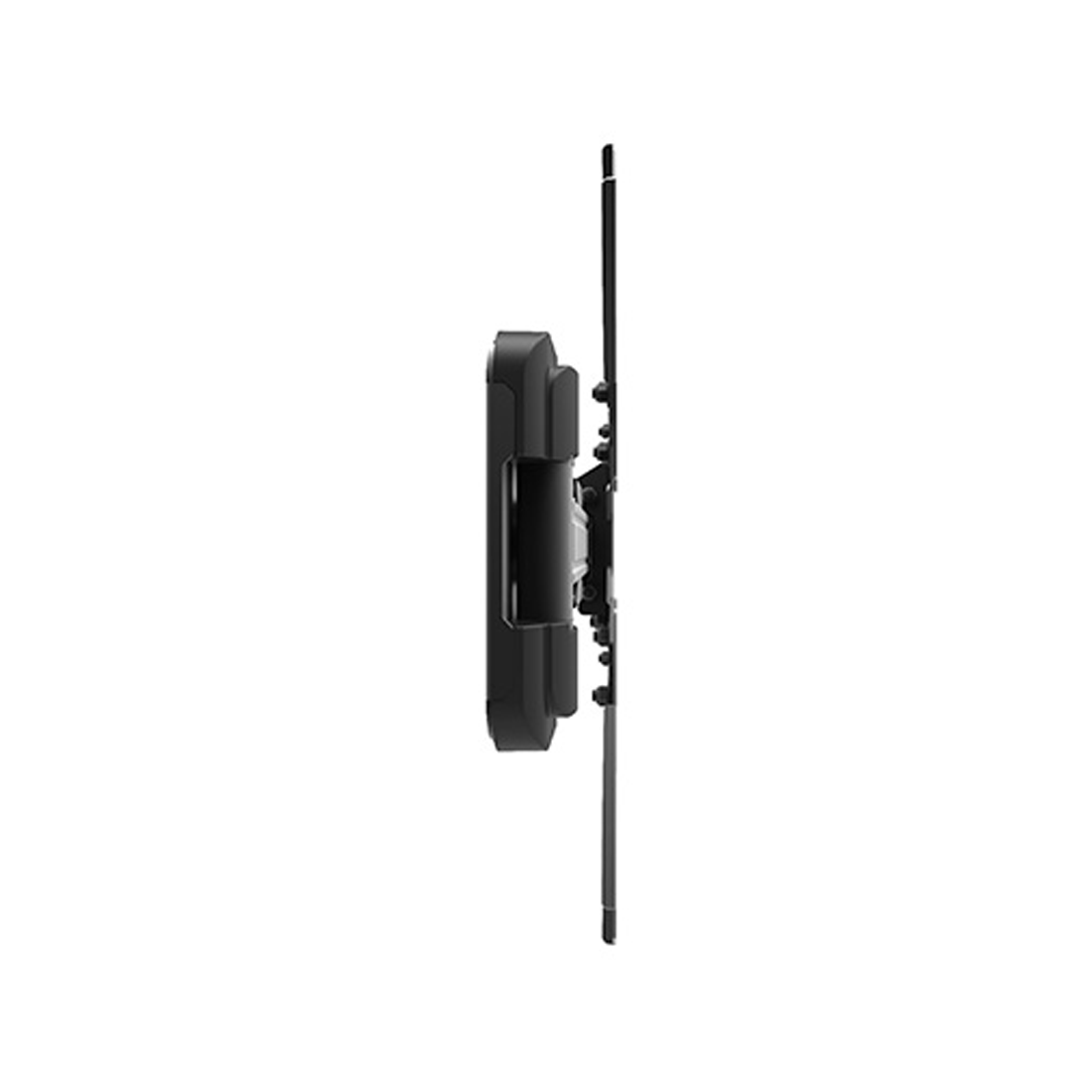

Low-Profile Design When Retracted

Full motion doesn't mean your TV always needs to project far into the room. Although the Kanto PS200 extends as far as 13.8 inches, it retracts to less than 2 inches from the wall. Think of the articulating arm like a drawer: pull it out when you need flexibility, then push it back for a more streamlined setup.

Mounting Hardware Included

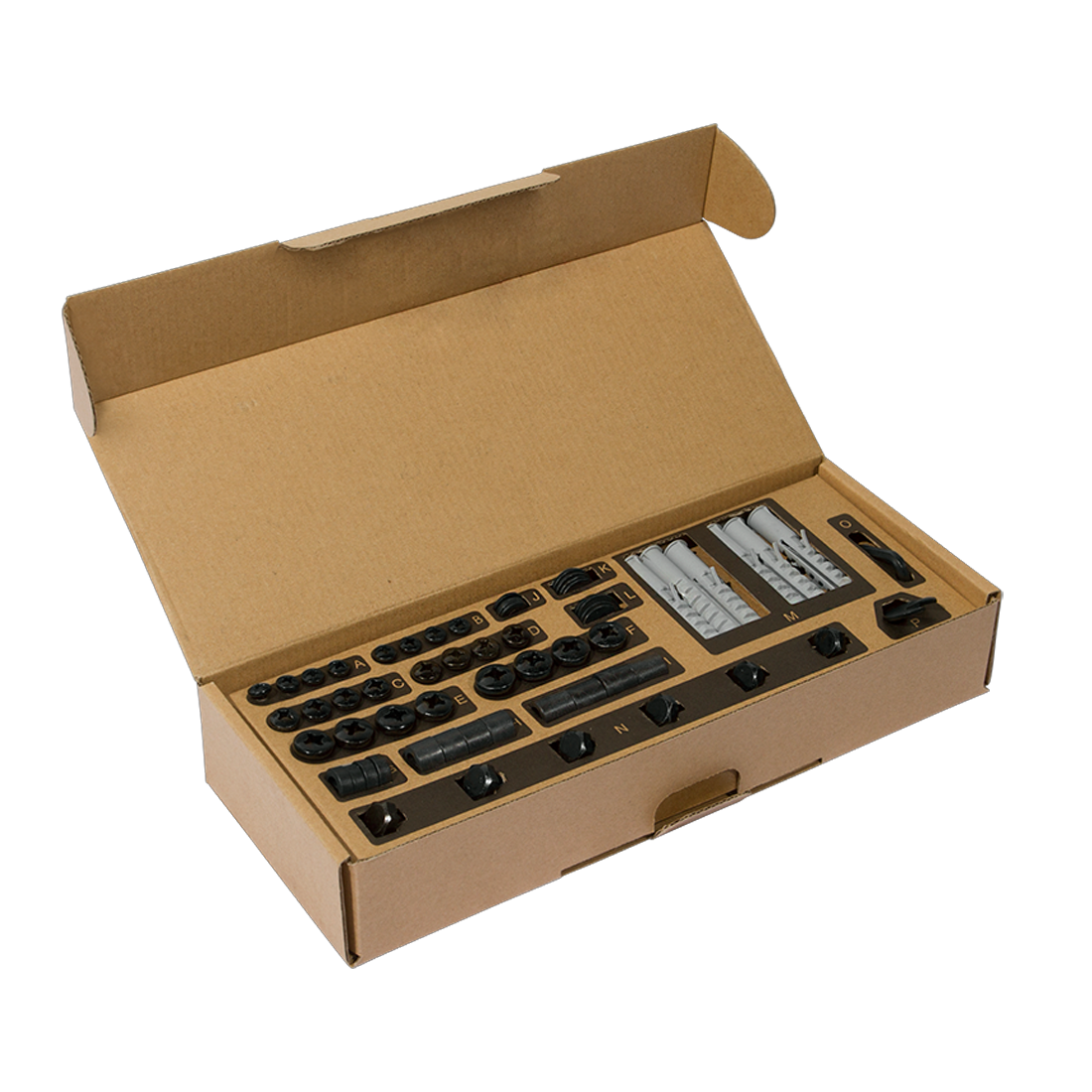

The Kanto PS200 comes with a convenient bolt pack containing lag bolts, anchors, mounting bolts, washers, and spacers. The hardware is clearly labeled to correspond with the instructions, helping make each component easier to identify.

Inside the box you'll find:

• Paper wall template for marking pilot holes
• Installation manual
• Mounting hardware for wood stud and concrete installation
• Lag bolts and anchors
• Mounting bolts, washers, and spacers
• Magnetic lag bolt covers

Kanto PS200 Specifications

• TV size compatibility: 26" to 60"
• Maximum weight allowance: 88 lb (40 kg)
• Tilt: +12° to -2°
• Swivel: Up to 180°, depending on TV size
• Extension: 2" to 13.8"
• Wall plate: Single-stud mounting
• VESA compatibility: 100x100 to 400x400
• Integrated cable management
• Adjustable horizontal leveling
• Magnetic lag bolt covers
• Product weight: 8.6 lb (3.9 kg)
• Shipping box weight: 11.5 lb (5.2 kg)
• Shipping box dimensions: 20.7" x 13.9" x 2.9" (52.5 x 35.3 x 7.4 cm)
• UPC: 800152714394
• Warranty: 5 years

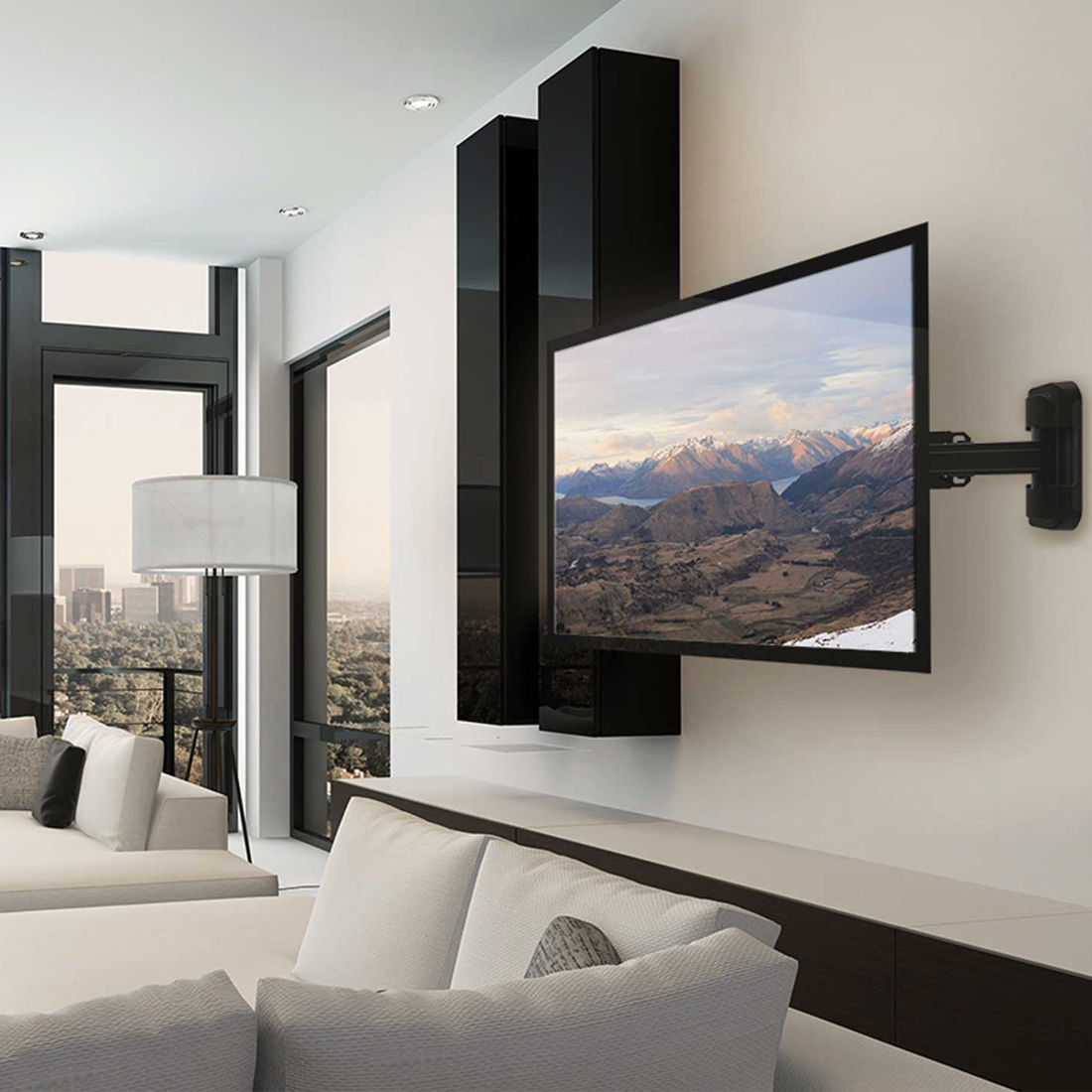

A Flexible Mount for Home or Office

The Kanto PS200 combines a compact single-stud design with the movement needed for changing viewing positions. Its 88 lb capacity, 13.8-inch extension, tilt adjustment, wide swivel range, integrated cable management, and VESA support up to 400x400 make it a practical option for compatible TVs in home or office spaces. When you don't need the extra reach, simply push the screen back toward the wall for a clean, low-profile look.

Frequently Asked Questions

What TV sizes does the Kanto PS200 support? The Kanto PS200 is designed to support most compatible flat-panel TVs ranging from 26 to 60 inches.

How much weight can the Kanto PS200 hold? It supports TVs weighing up to 88 lb, or 40 kg.

How far does the Kanto PS200 extend from the wall? The mount can extend up to 13.8 inches and retract to less than 2 inches from the wall.

How much can the Kanto PS200 swivel and tilt? It provides up to 180° of swivel depending on TV size, along with +12° to -2° of tilt adjustment.

Which VESA patterns are compatible with the Kanto PS200? It supports multiple VESA patterns ranging from 100x100 to 400x400, including 200x200, 300x300, and 400x400 configurations.
