Kanto PS300 Full Motion TV Wall Mount with 22" Extension
Product Description
Product Description

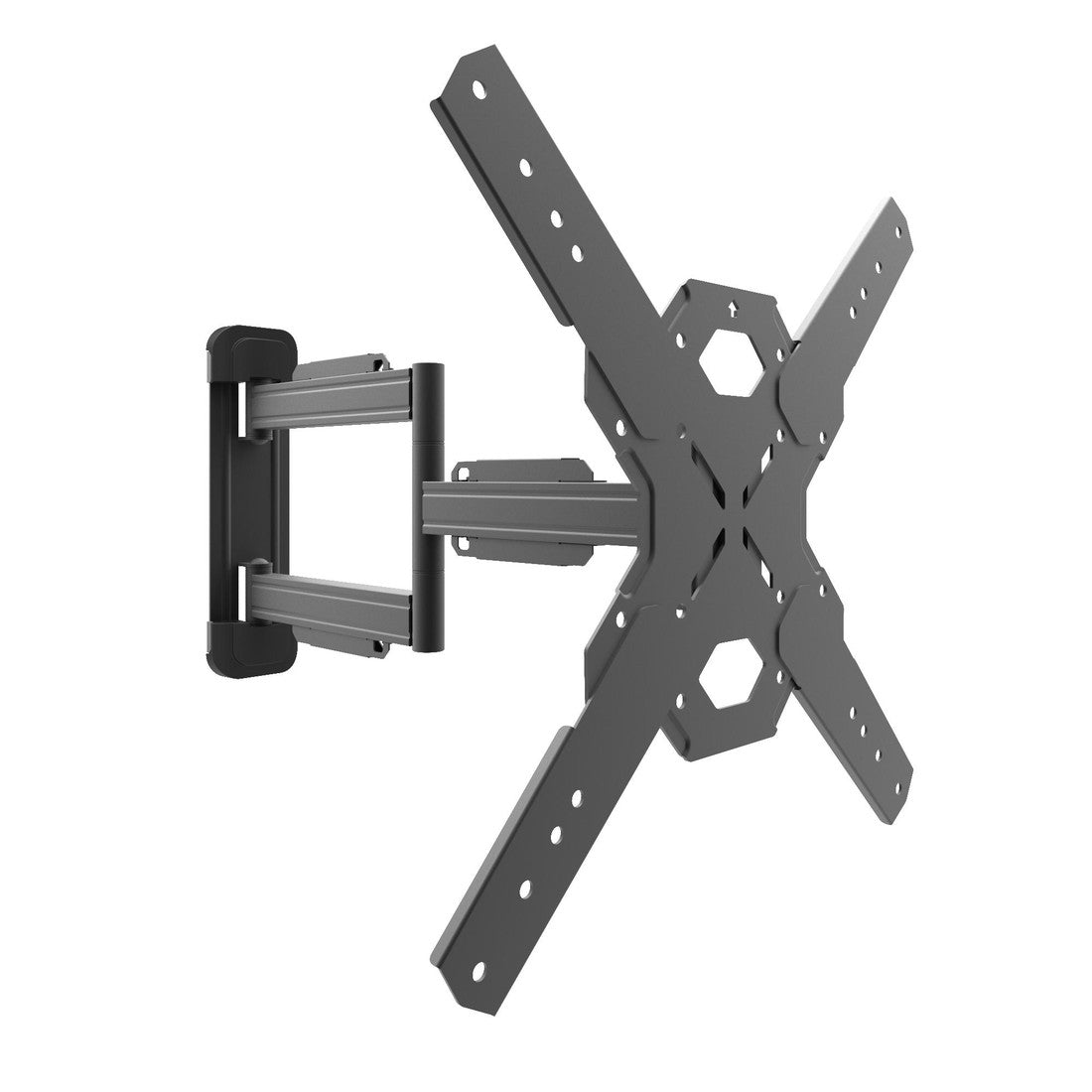

Kanto PS300 Full Motion TV Wall Mount with 22-Inch Extension
The Kanto PS300 gives you the flexibility to position your TV around your viewing space instead of working around a fixed screen. Designed for 25-inch to 75-inch TVs weighing up to 88 pounds, this full motion TV wall mount combines extension, swivel, and tilt adjustment with a compact single-stud design. Plus, solid steel construction and integrated cable management keep the setup sturdy and organized.
Full Motion Viewing Flexibility

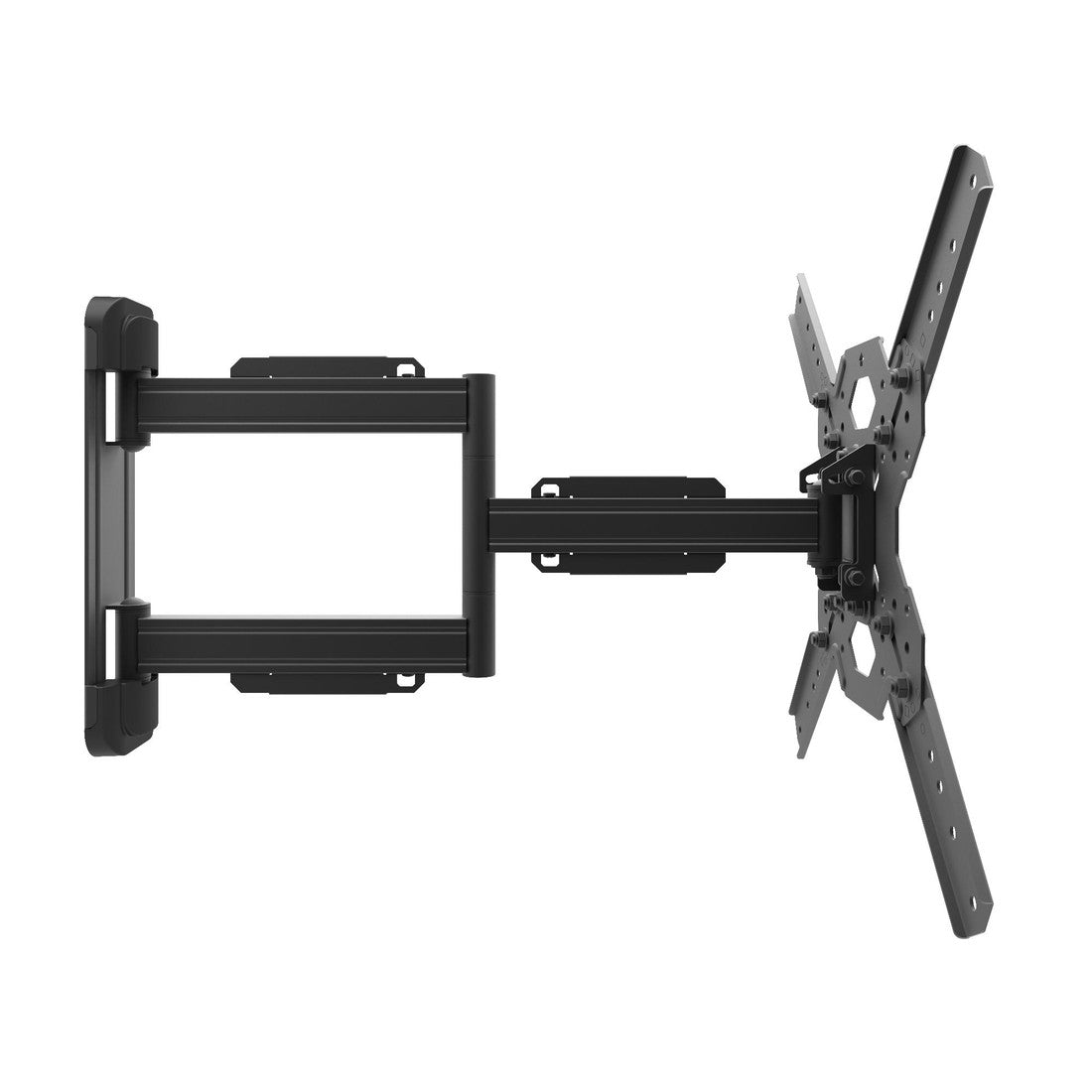

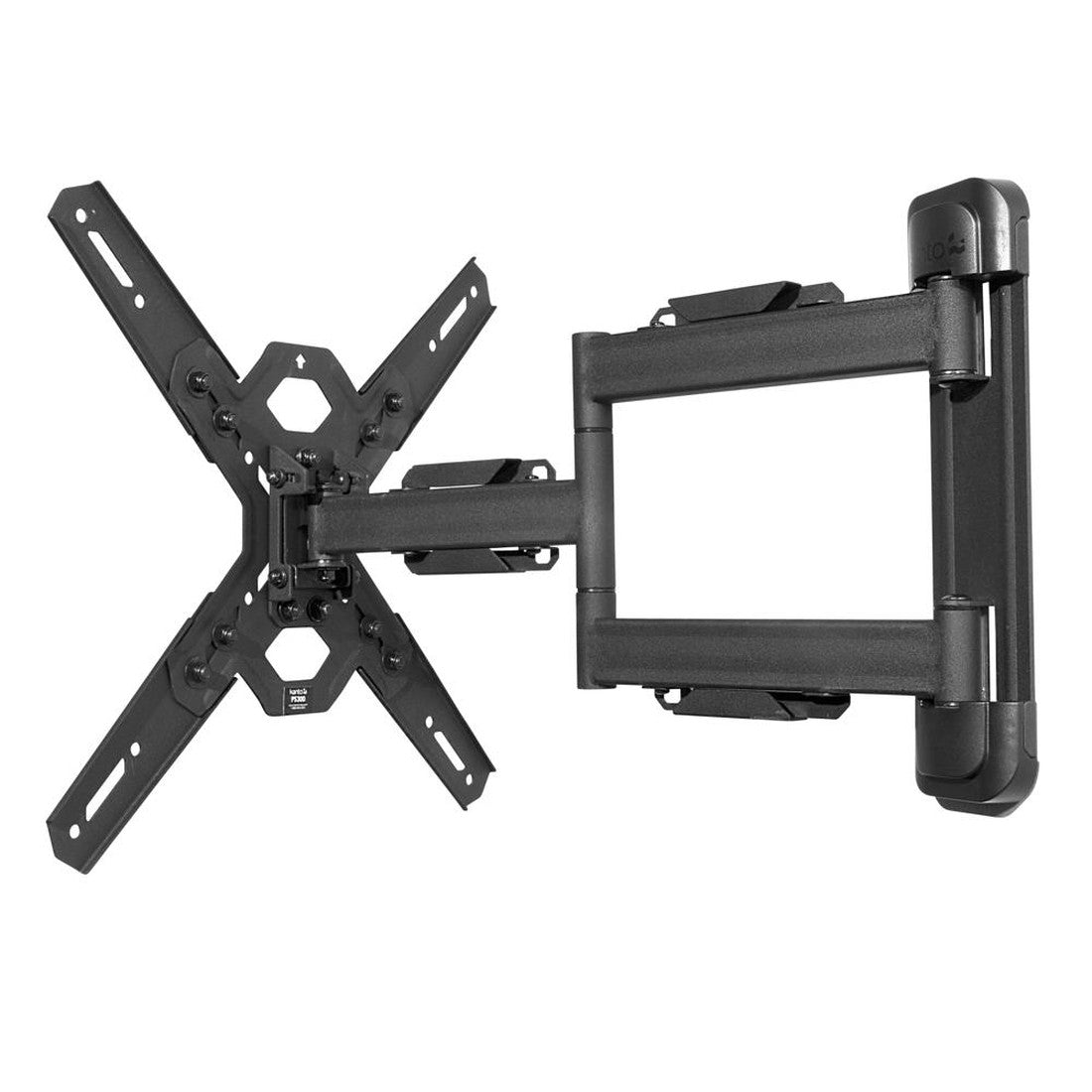

Why settle for one viewing angle when your seating position can change? The Kanto PS300 uses articulating arms that let you extend, swivel, and tilt your television. Essentially, the mount acts like an adjustable arm behind your screen, giving you more control over where the TV faces.
The Kanto PS300 can swivel your TV up to 90 degrees left or right, depending on the television's size. As a result, you can adjust the screen without being limited to a straight-ahead viewing position.
Extends Up to 22 Inches
The Kanto PS300 extends your TV up to 22 inches away from the wall. That extra reach gives you more freedom when positioning the screen and makes the mount considerably more versatile than a fixed wall setup.
When you no longer need the extra extension, simply push the TV back toward the wall. This combination of reach and compact positioning lets you adapt the screen without permanently sacrificing space.
Low-Profile 1.9-Inch Design
Despite its long extension range, the Kanto PS300 keeps things compact when retracted. Your TV can sit just 1.9 inches from the wall, with the center of the screen aligned with the full motion mount.
This low-profile design helps create a cleaner appearance when the mount is pushed back. You get the movement of an articulating mount without having your screen unnecessarily extended all the time.
Supports TVs from 25 to 75 Inches
The Kanto PS300 supports televisions ranging from 25 inches to 75 inches and can hold up to 88 pounds. Its solid steel construction provides the durability and reliability needed to support compatible displays throughout its listed size range.
- TV size compatibility: 25 inches to 75 inches
- Maximum supported weight: 88 lb
- Maximum extension: 22 inches
- Retracted wall distance: 1.9 inches
- VESA compatibility: 100x100 to 400x400
- Swivel: up to 90° left or right, depending on TV size
- Tilt: 12° forward and 2° backward
VESA Compatibility Up to 400x400
The Kanto PS300 supports VESA mounting patterns ranging from 100x100 to 400x400, including common configurations such as 100x100 and 200x200. This range makes it suitable for many small and midsize televisions within its supported screen dimensions.
For larger mounting patterns such as 300x300 and 400x400, the Kanto PS300 uses four extension arms. These arms attach using the supplied Nylock nuts, expanding the mounting configuration for compatible displays.

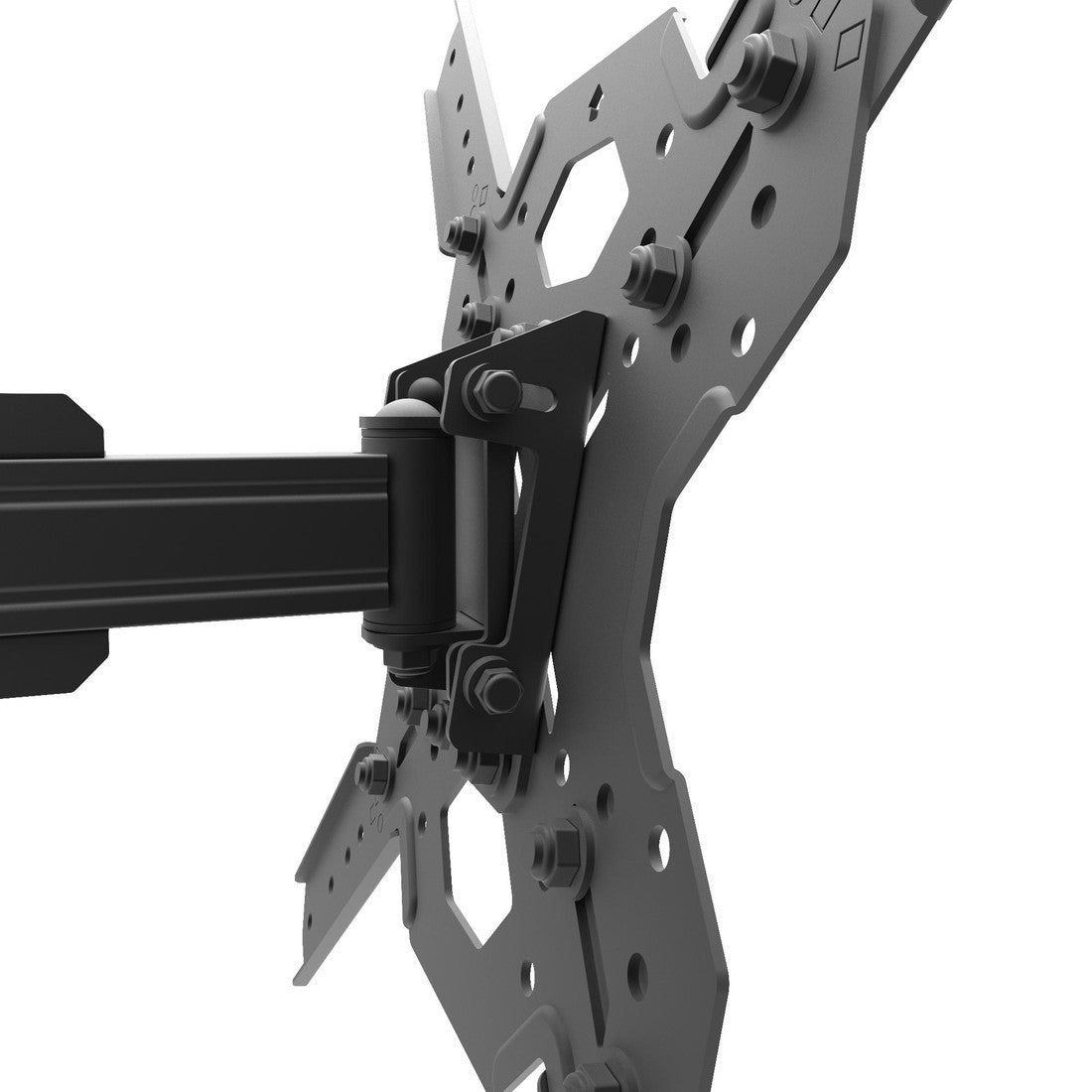

Adjustable Forward and Backward Tilt
Need to angle your television instead of keeping it completely vertical? The Kanto PS300 offers 12 degrees of forward tilt and 2 degrees of backward tilt. Combined with its swivel and extension capabilities, this adjustment gives you another way to position the screen around your preferred viewing angle.
Solid Steel with a Powder-Coated Finish
The Kanto PS300 is built from solid steel and finished with a durable powder coating. The construction supports its 88-pound weight capacity while giving the mount a clean, sophisticated appearance behind your television.
Single-Stud Mounting Design
The Kanto PS300 uses a single-stud wall mounting design despite supporting TVs up to 75 inches. This compact mounting configuration works together with its articulating arm system, allowing the screen to extend, swivel, tilt, and retract from one central mounting position.
Integrated Cable Management
Moving a television away from the wall can make power and video cables more noticeable. To keep things organized, the Kanto PS300 includes an integrated cable management system that routes your wiring neatly between the television and the wall.
This keeps cables controlled as you adjust the mount, helping the finished setup look cleaner instead of leaving wires hanging around the articulating arms.
Convenient Hardware Pack
The Kanto PS300 comes packaged with lag bolts, anchors, mounting bolts, washers, and spacers. The included hardware is clearly labeled to correspond with the supplied manuals, making it easier to identify the required pieces while setting up the mount.
A Flexible Mount for Everyday Viewing
The Kanto PS300 combines a 1.9-inch retracted profile while offering up to 22 inches of extension. Additionally, its swivel and tilt adjustments provide greater flexibility for positioning your TV. Moreover, solid steel construction and broad VESA support add practical versatility. Finally, built-in cable management helps keep wires organized behind your screen.
Frequently Asked Questions
What TV sizes does the Kanto PS300 support? The Kanto PS300 is designed for televisions ranging from 25 inches to 75 inches.
How much weight can the Kanto PS300 hold? It supports compatible TVs weighing up to 88 pounds.
How far can the mount extend from the wall? The mount can extend your television up to 22 inches from the wall.
What VESA patterns are compatible with the Kanto PS300? It supports VESA patterns from 100x100 through 400x400, including 200x200, 300x300, and 400x400 configurations.
How much can the TV swivel and tilt? The TV can swivel up to 90 degrees left or right, depending on its size, with 12 degrees of forward tilt and 2 degrees of backward tilt.
