Kanto PT300 Tilting TV Wall Mount with 150 lb Capacity

Kanto PT300 Tilting TV Wall Mount with 150 lb Capacity

The Kanto PT300 is a tilting TV wall mount built for screens from 40 to 100 inches and weighing up to 150 lb. Designed with a dual-stud wall plate, it combines a slim 1.4-inch profile with 12° of forward tilt, giving you better control over glare and your viewing angle. It also adds leveling adjustments, quick-release cords, and locking options for a more practical and secure setup.

Supports TVs from 40 to 100 Inches

The Kanto PT300 supports TVs from 40 to 100 inches with a maximum weight of 150 lb. Additionally, its 68 kg capacity accommodates compatible large-screen televisions. Moreover, VESA support ranges from 100×100 to 600×400 for broad compatibility.

The 26.9-inch wall plate can accommodate stud spacing up to 24 inches. As a result, the mount works with both 16-inch and 24-inch stud spacing while providing a wide mounting surface behind your TV.

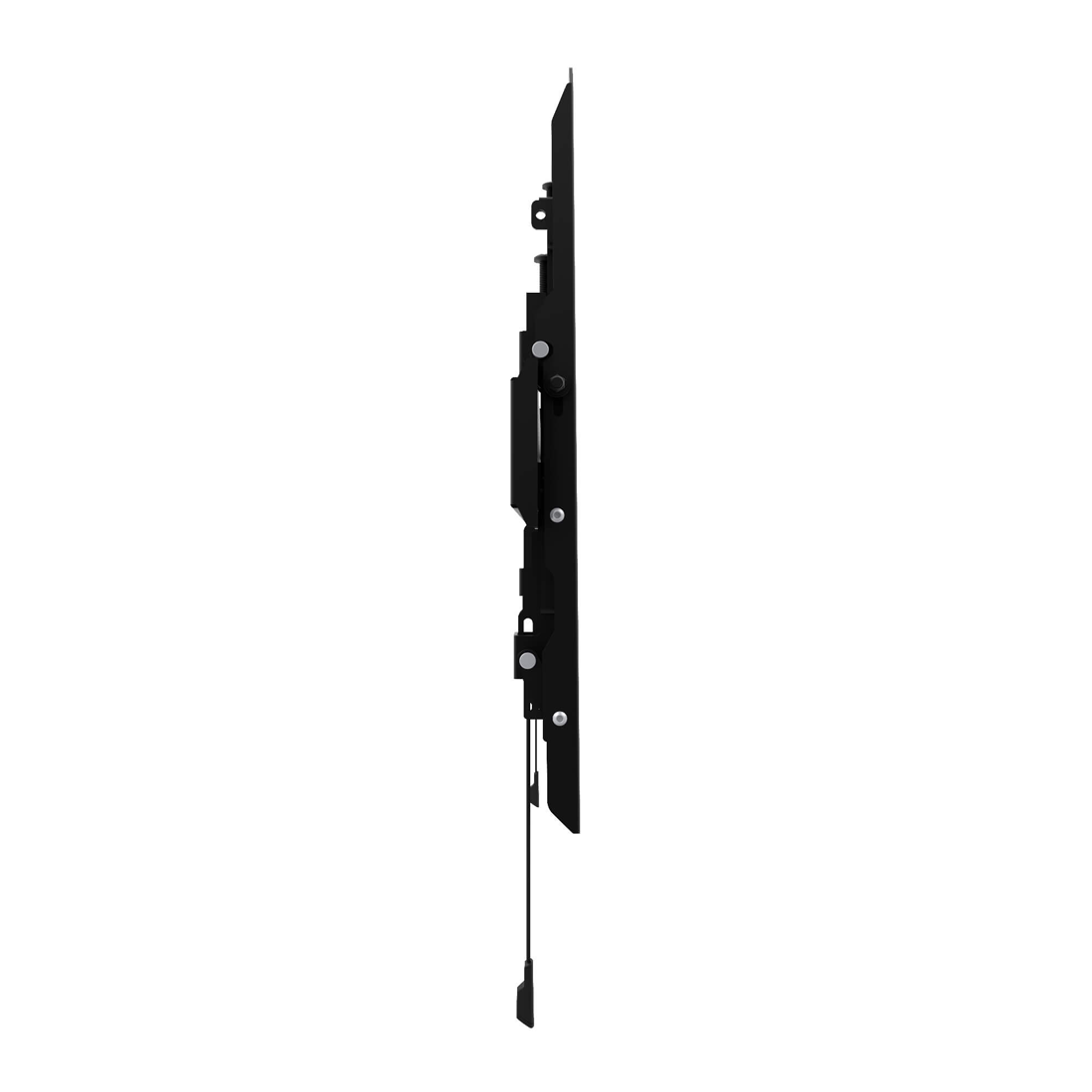

Low-Profile 1.4-Inch Design

Want your TV close to the wall without losing tilt adjustment? The Kanto PT300 keeps your screen only 1.4 inches away. Additionally, its low-profile design creates a clean, compact appearance without sacrificing useful positioning.

Its slim wall plate and mounting brackets keep the TV close to the mounting surface instead of pushing it unnecessarily far into the room. Think of it as keeping the mount in the background while your screen takes center stage.

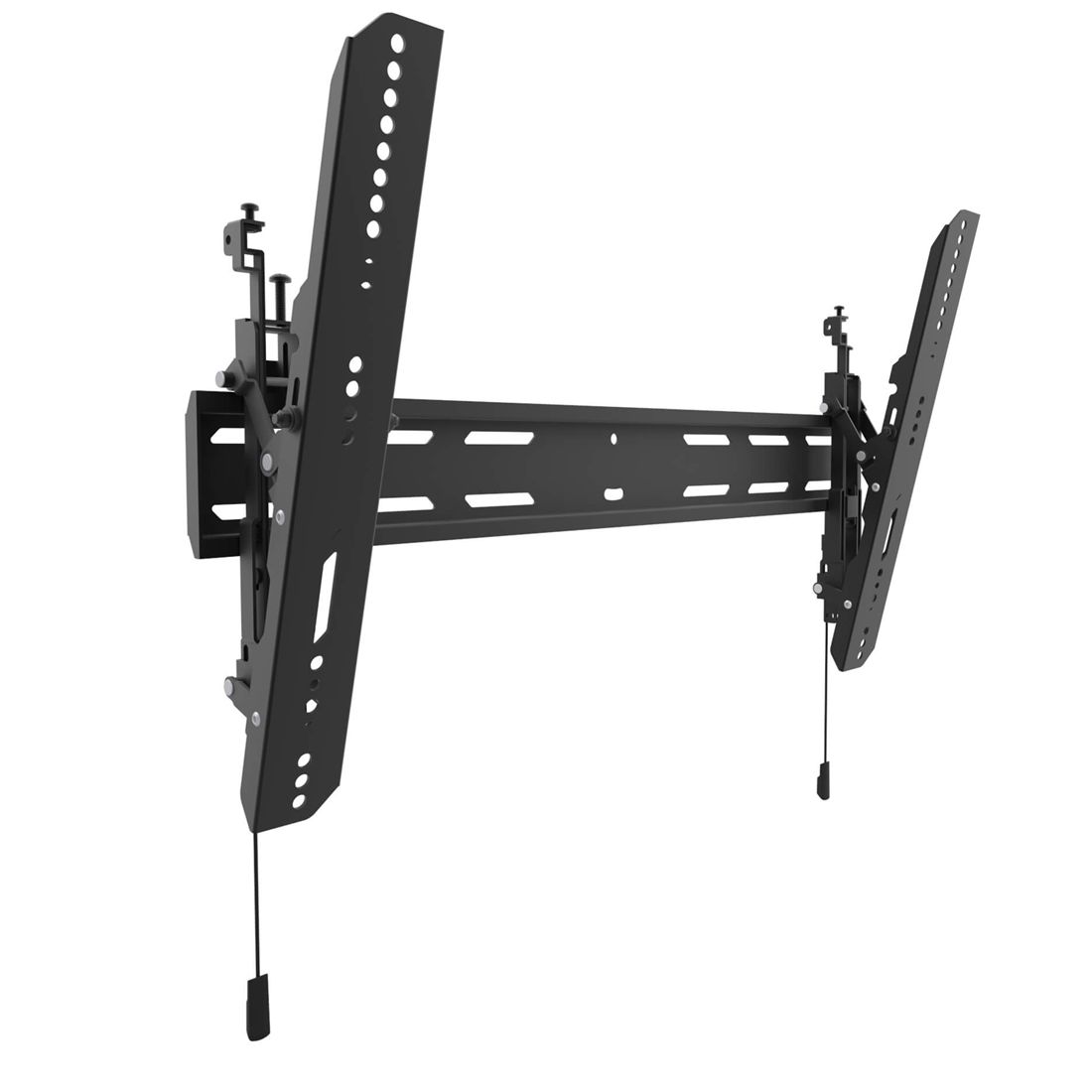

12 Degrees of Forward Tilt

The Kanto PT300 provides up to 12° of forward tilt. This adjustment can help reduce glare while improving your line-of-sight with the screen, particularly when the TV is positioned higher on the wall.

Rather than keeping your television locked into one fixed viewing position, the tilting brackets let you angle the screen downward when needed. It is a simple adjustment that gives you more control over how the TV faces your viewing area.

Precision Horizontal Leveling

Each mounting bracket on the Kanto PT300 includes a horizontal leveling screw. These screws allow you to make precision leveling adjustments so your TV can sit properly aligned after it has been mounted.

Small alignment changes can make a noticeable visual difference on a large screen. Instead of treating the wall position as completely fixed, these leveling screws give you additional adjustment when fine-tuning the television.

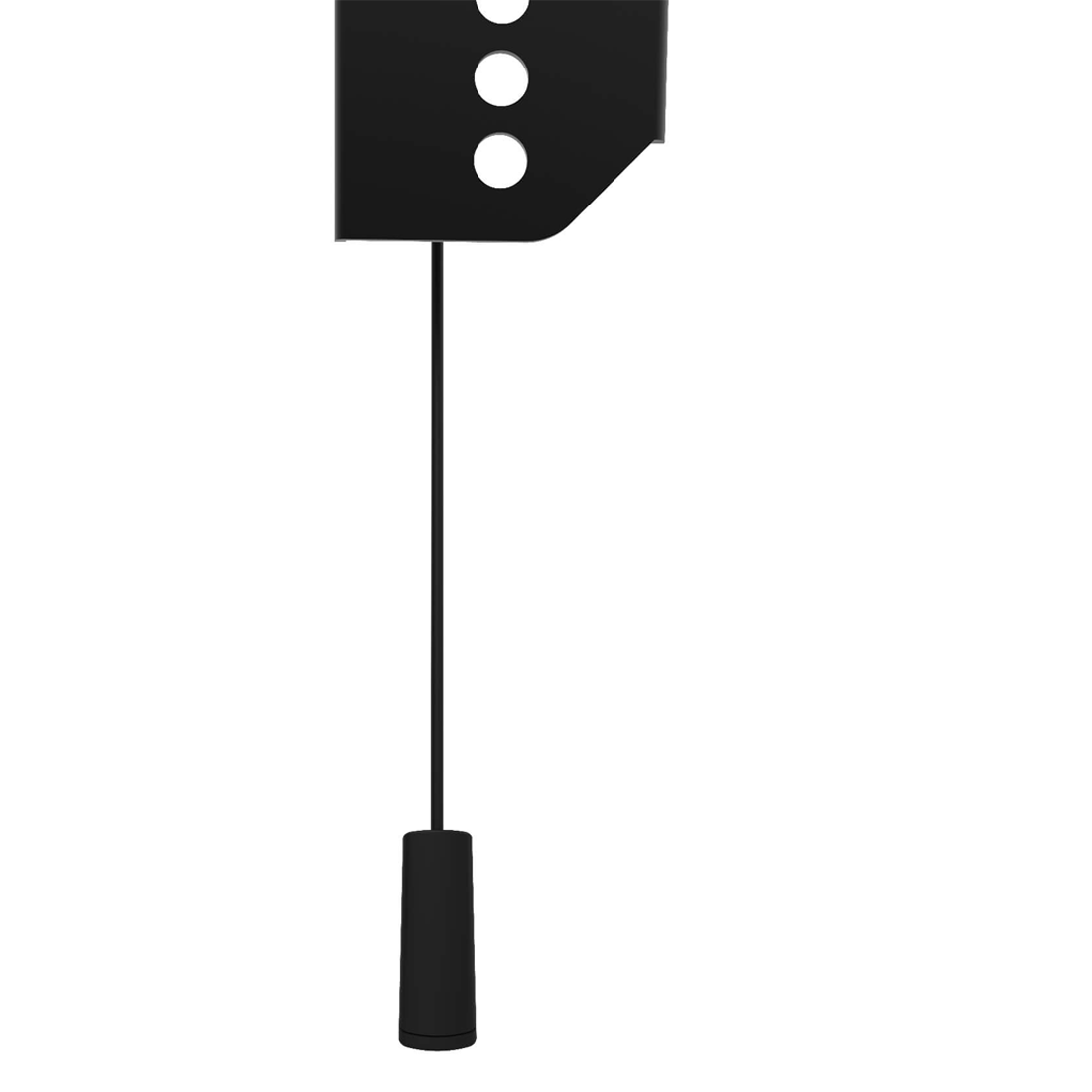

Magnetic Quick-Release Cords

Need to remove your television from the wall? The Kanto PT300 uses two quick-release cords for easy removal. Additionally, the cords help release the TV from the mounting brackets quickly and conveniently.

Each cord has a magnetic end, allowing it to be tucked neatly out of sight when not being used. This keeps the release system accessible without leaving loose cords hanging underneath your screen.

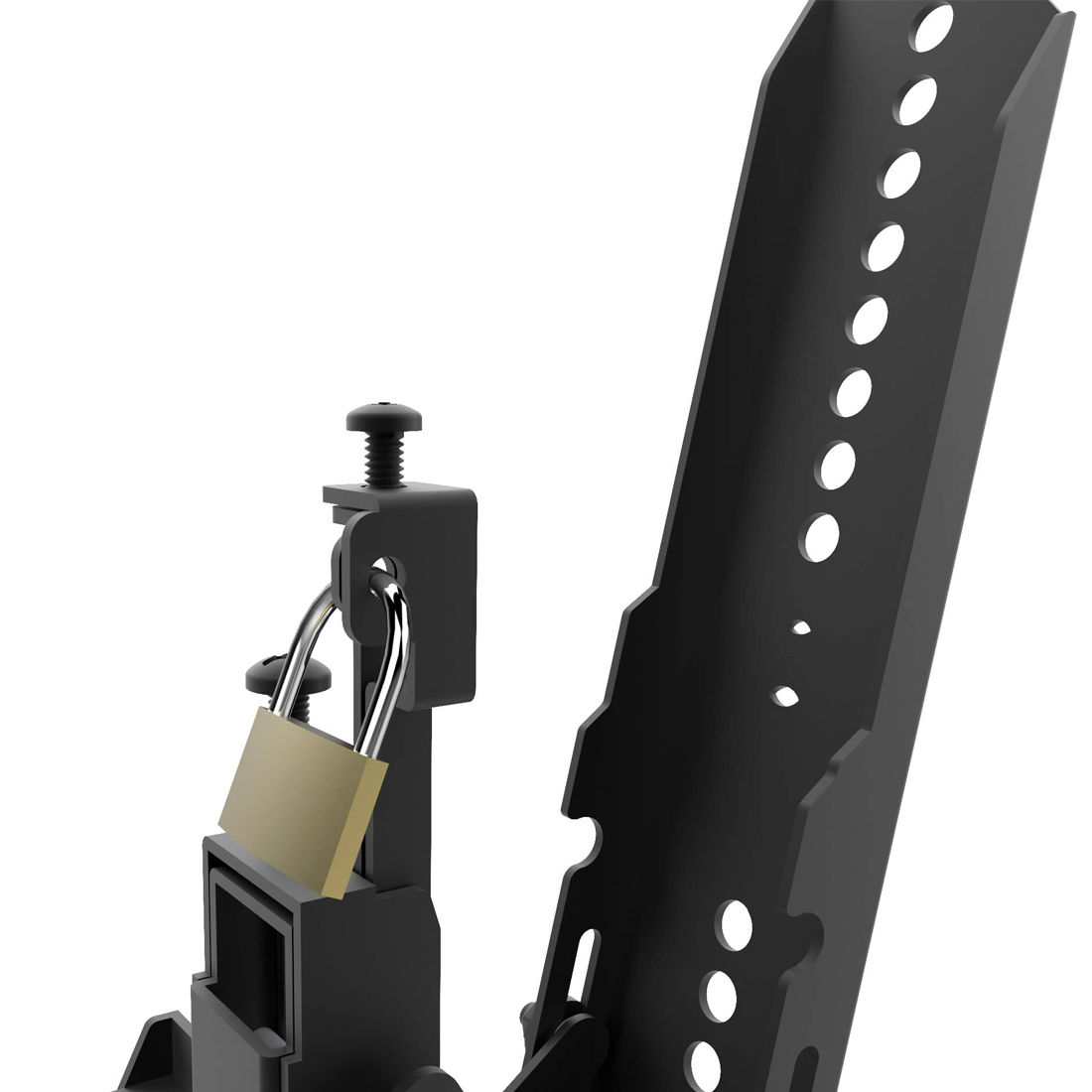

Lockable Mounting Arms

The Kanto PT300 also functions as a lockable TV mount. Two Torx screws can be tightened using the provided key to help prevent the television from being removed from the mounting brackets.

Alternatively, a separate lock can be attached to the brackets to secure them in place. The lock itself is not included, but this additional locking option makes the mount suitable when you want greater control over TV removal.

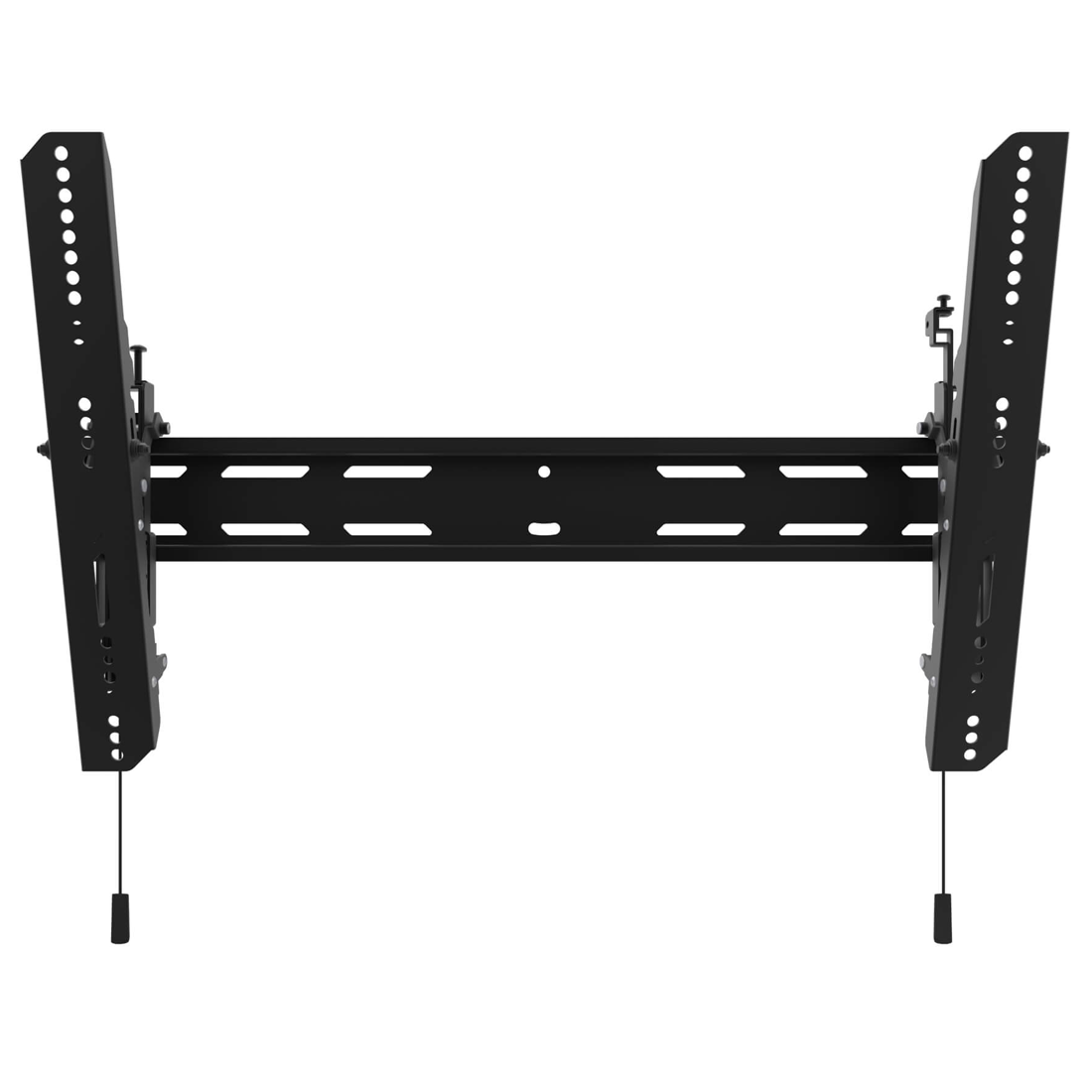

Dual-Stud Wall Plate

The Kanto PT300 features a 26.9-inch wall plate that accommodates stud spacing up to 24 inches. Additionally, it supports common 16-inch and 24-inch stud spacing configurations for greater mounting flexibility.

Its dual-stud layout provides the mounting structure needed for TVs weighing up to the specified 150 lb capacity while maintaining the mount's low-profile design.

Hardware Included

The Kanto PT300 includes an installation manual and mounting hardware for wood stud and concrete installation. Additionally, the included components keep the necessary mounting hardware organized for supported wall applications.

Kanto PT300 Key Specifications

• TV size compatibility: 40 to 100 inches
• Maximum weight capacity: 150 lb (68 kg)
• VESA compatibility: 100×100 to 600×400
• Forward tilt: up to 12°
• Distance from wall: 1.4 inches
• Wall plate width: 26.9 inches (68.4 cm)
• Supports stud spacing up to 24 inches
• Product weight: 7.5 lb (3.4 kg)
• Shipping box weight: 9.6 lb (4.4 kg)
• Shipping box dimensions: 28.3 × 6.8 × 3.3 inches (71.9 × 17.3 × 8.4 cm)
• UPC: 800152715919

A Slim Mount with Useful Adjustability

The Kanto PT300 combines a 150 lb weight capacity with support for TVs up to 100 inches while keeping the screen only 1.4 inches from the wall. Its 12° forward tilt, horizontal leveling screws, magnetic quick-release cords, and locking options add useful functionality without turning the mount into an overly complicated system. For compatible TVs, it provides a clean balance of low-profile positioning, adjustment, and security.

Frequently Asked Questions

What TV sizes does the Kanto PT300 support? The Kanto PT300 is designed for TVs measuring between 40 and 100 inches.

How much weight can the Kanto PT300 hold? It supports televisions weighing up to 150 lb, or 68 kg. Therefore, it is suitable for compatible TVs within its specified size and VESA range.

What VESA patterns are compatible with the Kanto PT300? The mount supports VESA patterns from 100×100 to 600×400. Therefore, it works with a broad range of compatible TVs within its supported size and weight limits.

How far does the Kanto PT300 sit from the wall? The low-profile design keeps a compatible TV just 1.4 inches from the wall. As a result, the screen maintains a clean, close-to-wall appearance.

Can the Kanto PT300 be locked? Yes, its Torx screws can be secured with the included key. Alternatively, you can attach a separate lock to the mounting brackets. However, the separate lock is not included.
