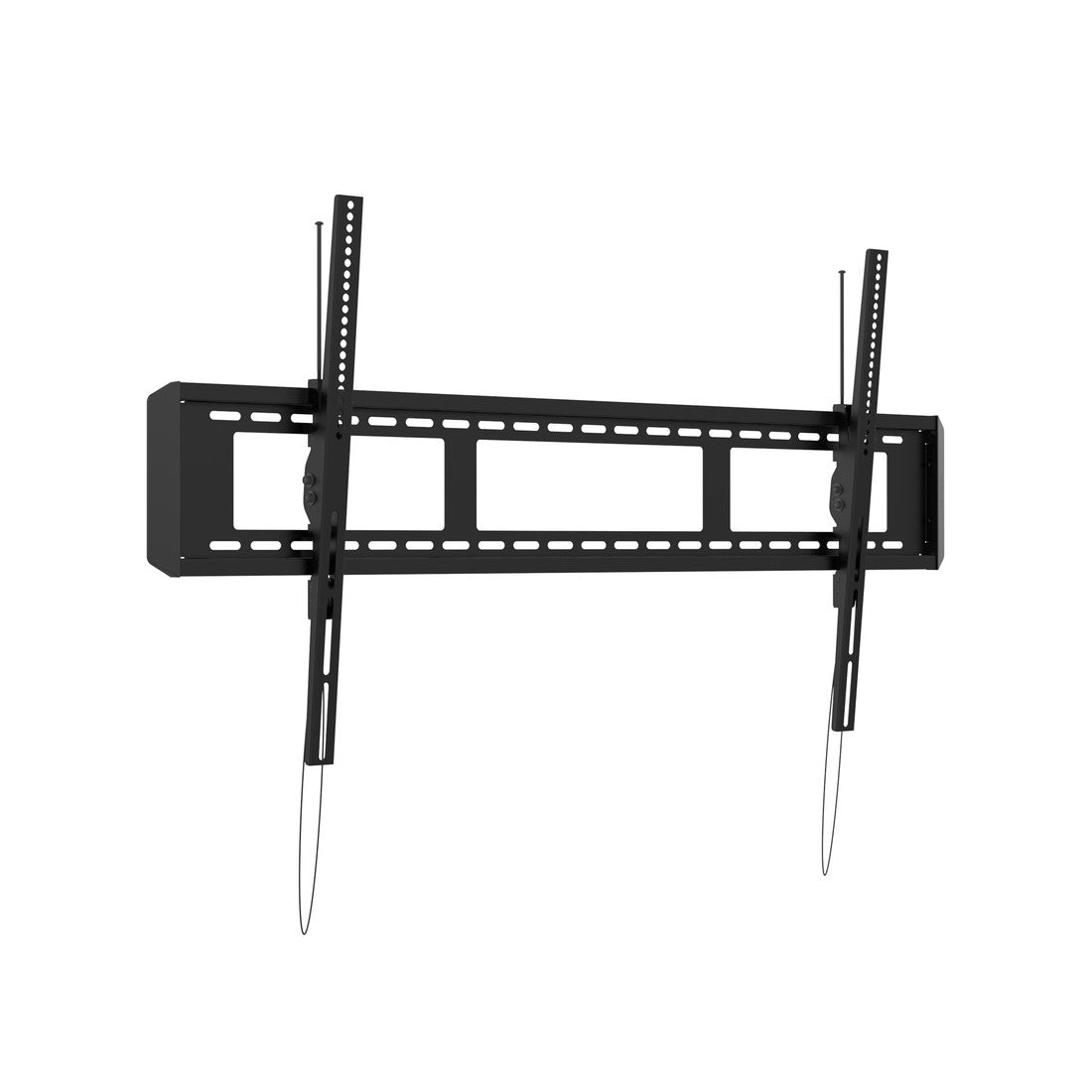

Kanto T6090 Tilting TV Wall Mount with 200 lb Capacity

Kanto T6090 Tilting TV Wall Mount with 200 lb Capacity

The Kanto T6090 gives extra-large TVs a strong, adjustable mounting solution with support for up to 200 lb. Designed for compatible 55-inch to 120-inch televisions, it supports VESA patterns from 100x100 to 1100x600. Its solid steel construction, wide wall plate, adjustable tilt, and slim 2-inch profile help you position a large screen without adding unnecessary bulk.

Extra-Large TV Support Up to 120 Inches

Large televisions need serious support, and the Kanto T6090 handles compatible displays weighing up to 200 lb, or 91 kg. It works with TV sizes ranging from 55 to 120 inches and supports an extensive VESA range from 100x100 to 1100x600.

That broad compatibility makes the mount suitable for many of the largest television panels available. Instead of limiting your setup with a narrow mounting range, the Kanto T6090 gives you plenty of room to work with larger screen configurations.

Adjustable Tilt for Better Viewing Angles

Need to change the screen angle after mounting your TV? The Kanto T6090 provides 10 degrees of forward tilt and 5 degrees of rear tilt, giving you a total adjustment range from +10° to -5°.

You can also lock the mount at +5°, 0°, or -5°. This feature helps prevent unwanted adjustments in public spaces while keeping the television positioned at the selected angle. It works like a set stopping point for the screen rather than leaving the tilt completely open.

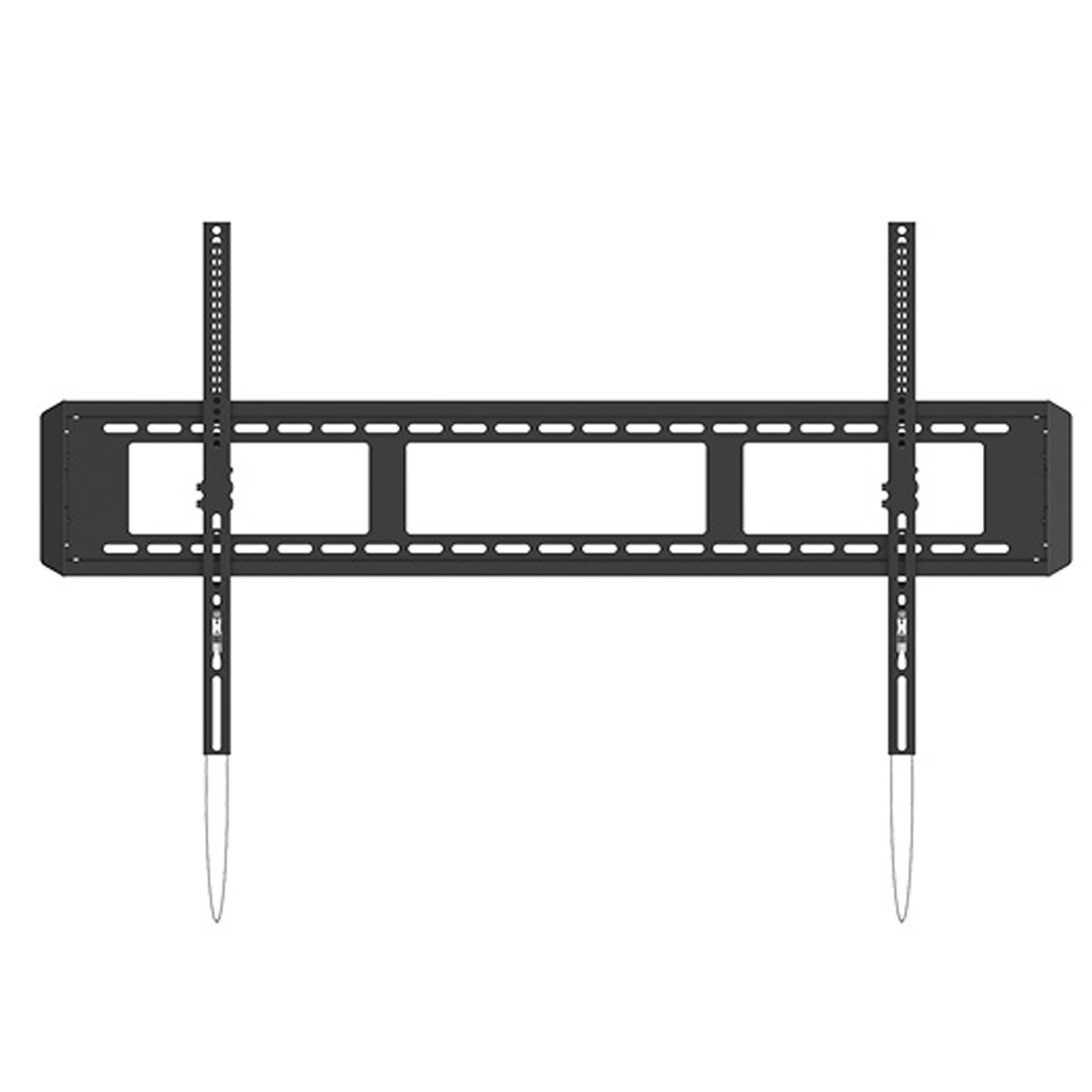

Extra-Wide Wall Plate for Flexible Placement

The Kanto T6090 uses a 47.6-inch wall plate that gives you more freedom when choosing where your television sits. The plate can accommodate three studs with spacing up to 16 inches or allow offset positioning on 24-inch stud centers.

Why should stud placement decide exactly where your television goes? The extra-wide plate lets you shift the screen horizontally along the wall, helping you place it where it works best for your room.

Fine-Tune the Horizontal Level

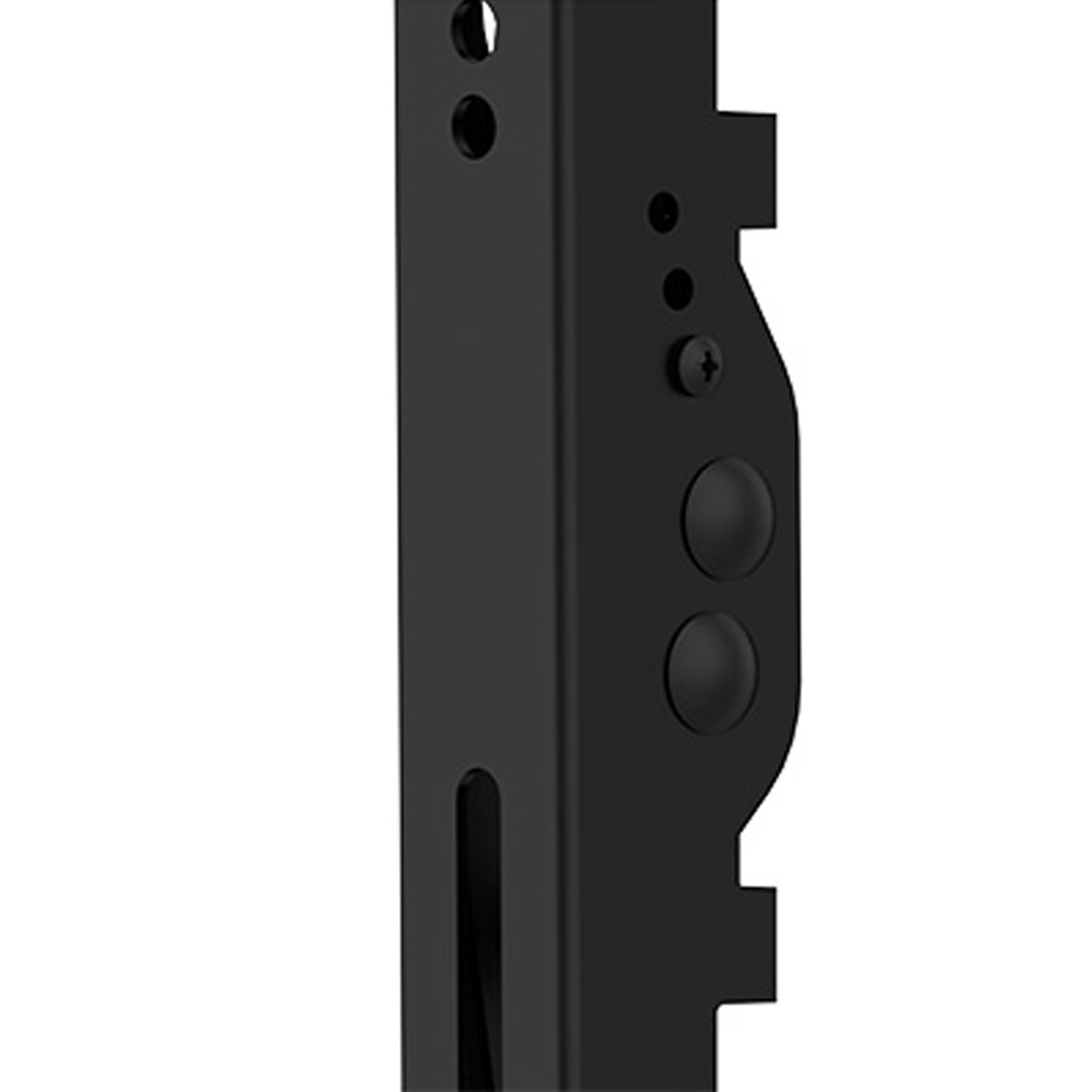

Even a small tilt from side to side can look obvious on a very large television. The Kanto T6090 includes extra-tall horizontal leveling screws that let you make adjustments after positioning the panel.

You can reach over large, already-mounted TVs and adjust the level using a screwdriver or socket. This gives you another way to refine screen placement without removing the television simply to make a minor horizontal correction.

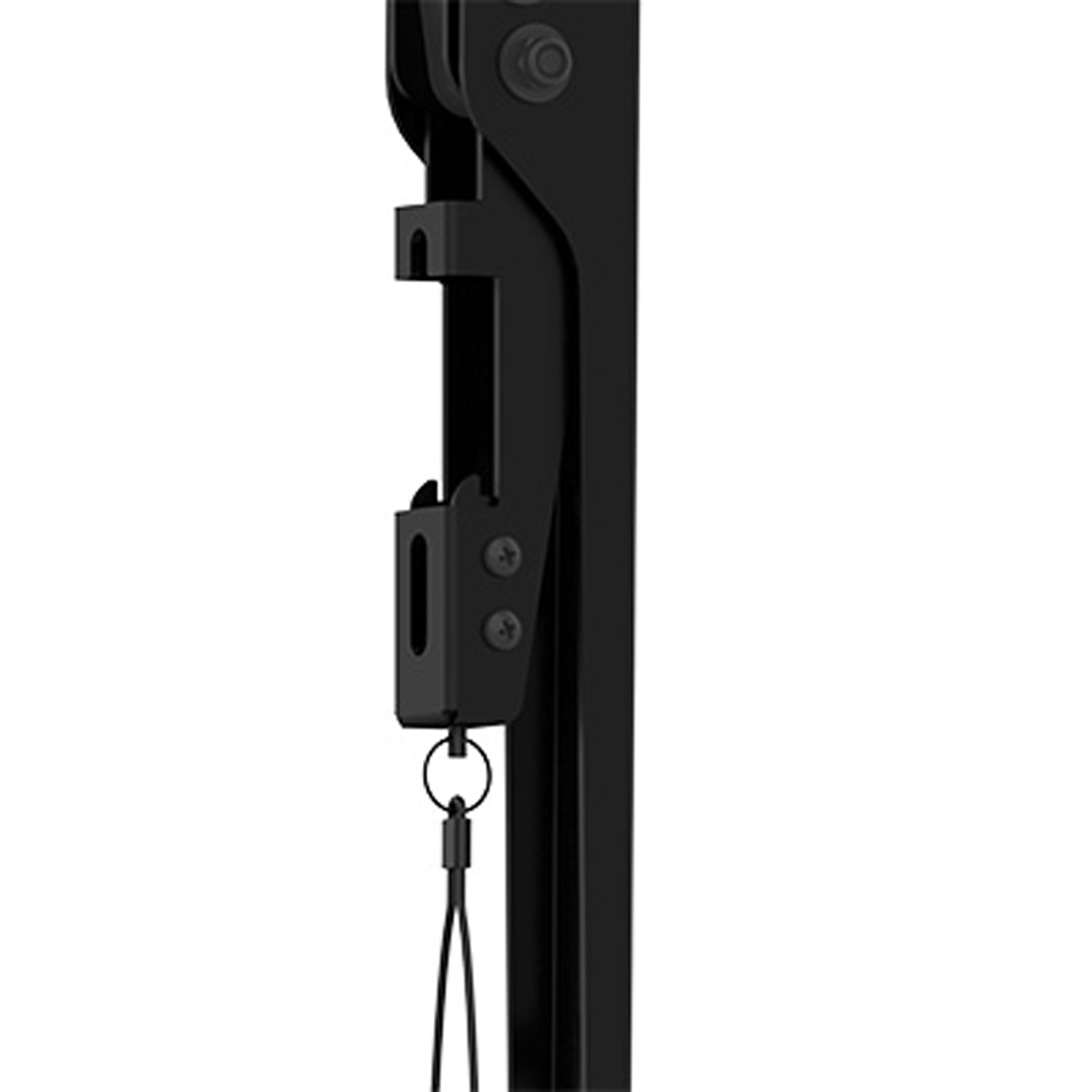

Quick-Release TV Brackets

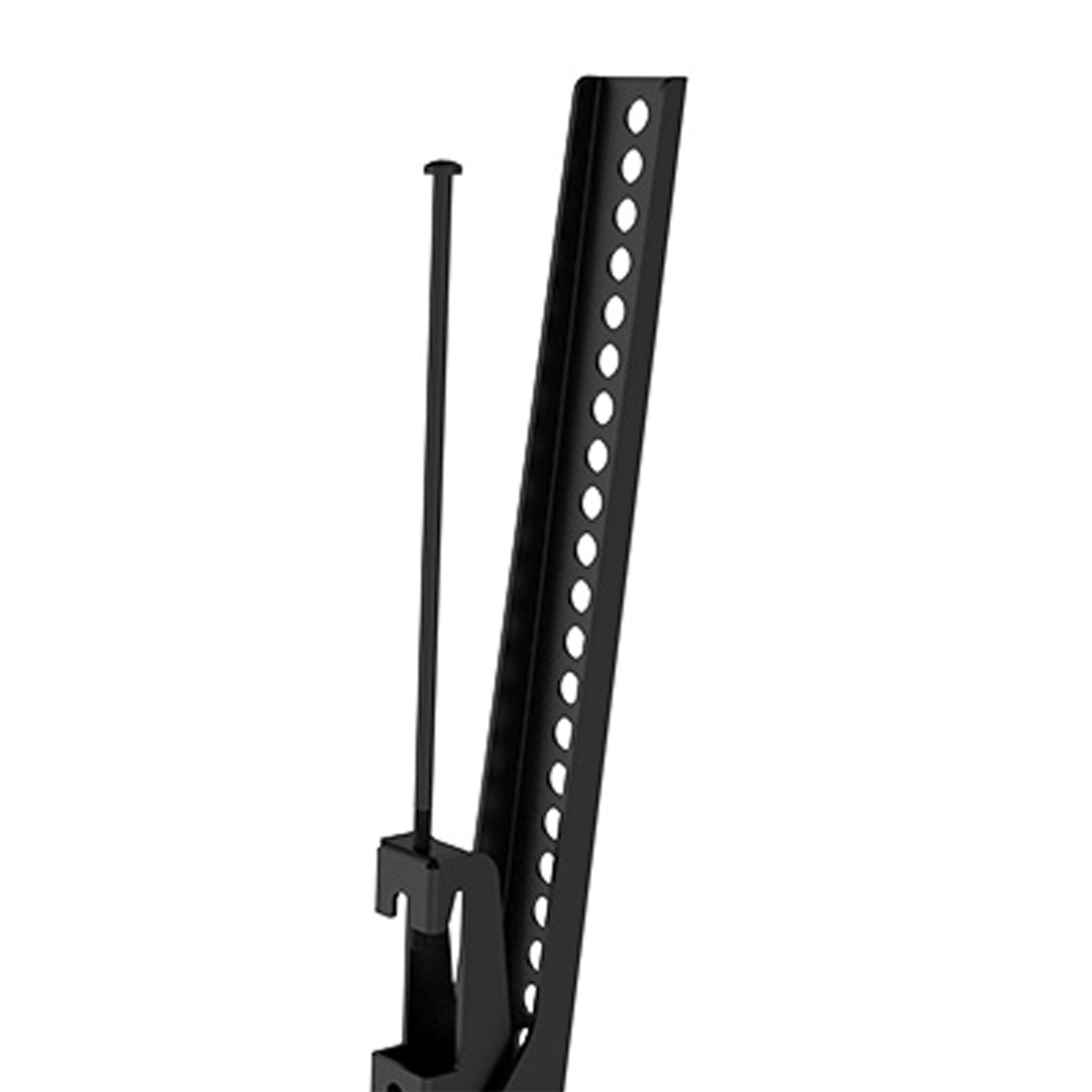

The Kanto T6090 uses spring-loaded TV brackets that click securely into place. When you need access behind the television, quick-release cords let you detach the TV brackets more easily for servicing.

This design keeps the mounting system straightforward while still providing convenient access when needed. With a television this large, easier servicing can make the setup far more manageable.

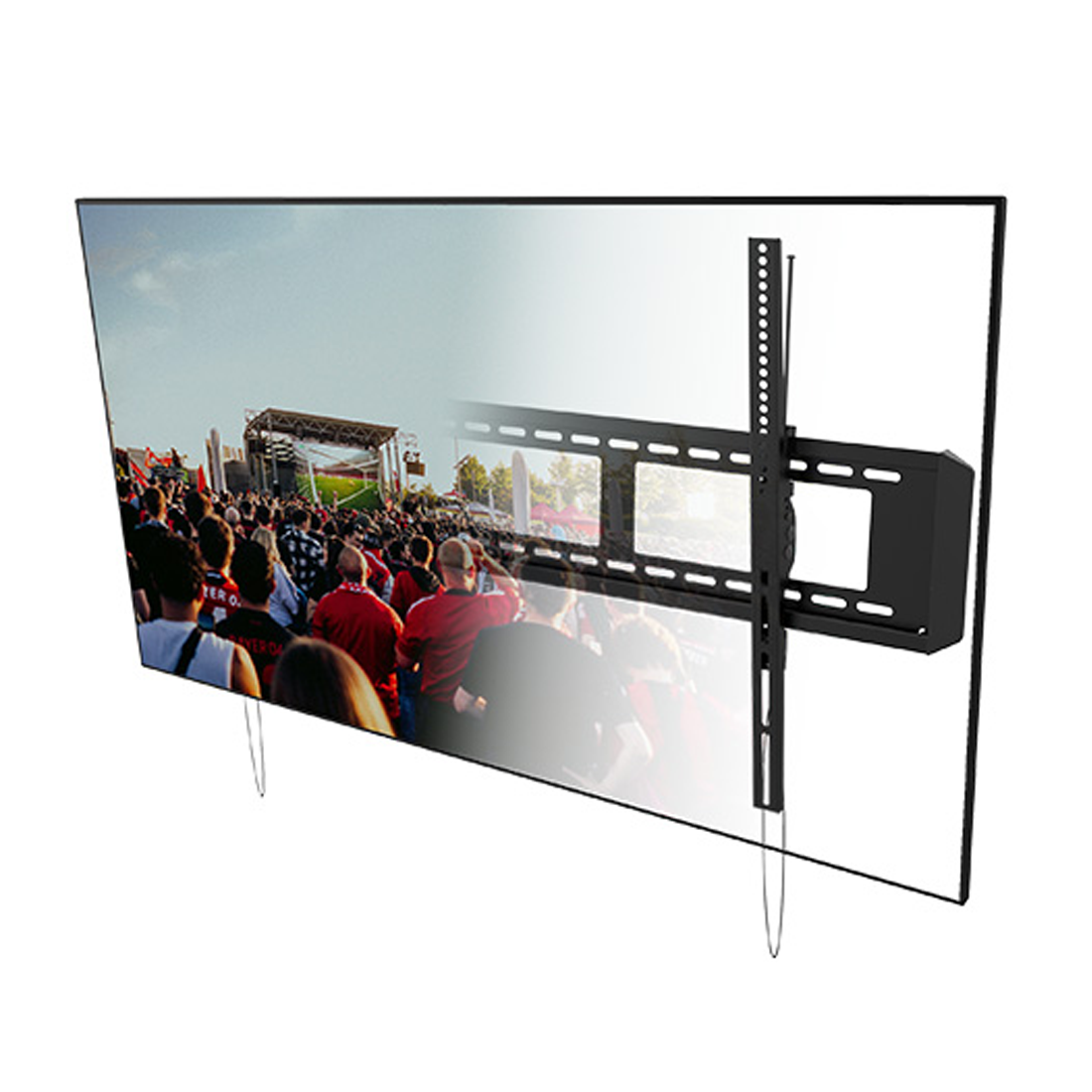

Low-Profile 2-Inch Design

Despite its 200 lb weight capacity, the Kanto T6090 keeps your television only 2 inches from the wall. That low-profile position helps large screens sit closer to the mounting surface instead of projecting farther into the room.

The mount uses solid steel with a durable powder-coated finish, giving the structure the strength required for its extra-large TV support while maintaining a relatively clean wall-mounted appearance.

Mounting Hardware Included

The Kanto T6090 includes an installation manual and mounting hardware for both wood stud and concrete installation. With the required mounting hardware included, you have the components provided for either supported wall type.

Kanto T6090 Specifications

• TV sizes: 55" to 120"
• Weight allowance: 200 lb (91 kg)
• VESA compatibility: 100x100 to 1100x600
• Tilt range: +10° to -5°
• Lockable tilt positions: +5°, 0°, and -5°
• Distance from wall: 2"
• Wall plate width: 47.6" (121 cm)
• Stud compatibility: Three studs with up to 16" spacing or offset positioning on 24" stud centers
• Material: Solid steel with durable powder-coated finish
• Product weight: 14.3 lb (6.5 kg)
• Shipping box weight: 15.9 lb (7.2 kg)
• Shipping box dimensions: 47" x 9.6" x 3.7" (119.5 x 24.5 x 9.5 cm)
• UPC: 800152712192

A Strong Mount for Large-Screen Positioning

The Kanto T6090 combines a 200 lb capacity, support for televisions up to 120 inches, and VESA compatibility reaching 1100x600. Its extra-wide wall plate improves placement flexibility, while adjustable tilt, horizontal leveling screws, and quick-release brackets give you more control over a large-screen setup. At only 2 inches from the wall, the Kanto T6090 also keeps the finished setup relatively low profile.

Frequently Asked Questions

What TV sizes does the Kanto T6090 support? The Kanto T6090 supports compatible televisions ranging from 55 inches to 120 inches.

How much weight can the Kanto T6090 hold? The mount supports televisions weighing up to 200 lb, or 91 kg.

What VESA patterns are compatible with the Kanto T6090? It supports VESA mounting patterns ranging from 100x100 to 1100x600.

How much can the TV tilt? The mount provides 10 degrees of forward tilt and 5 degrees of rear tilt, with lockable positions at +5°, 0°, and -5°.

How far does the TV sit from the wall? The Kanto T6090 keeps the television approximately 2 inches from the wall.
