Kanto TE300 Extend & Tilt TV Wall Mount with 150 lb Capacity

Kanto TE300 Extend & Tilt TV Wall Mount with 150 lb Capacity

The Kanto TE300 combines a simple tilting design with extra movement, while making your TV easier to access. Additionally, it supports 43-to-90-inch TVs weighing up to 150 lb and VESA patterns from 100×100 to 600×450. Moreover, the mount extends up to 6 inches, providing convenient access to cables and inputs. Finally, this extension gives you more room for quick adjustments behind your TV.

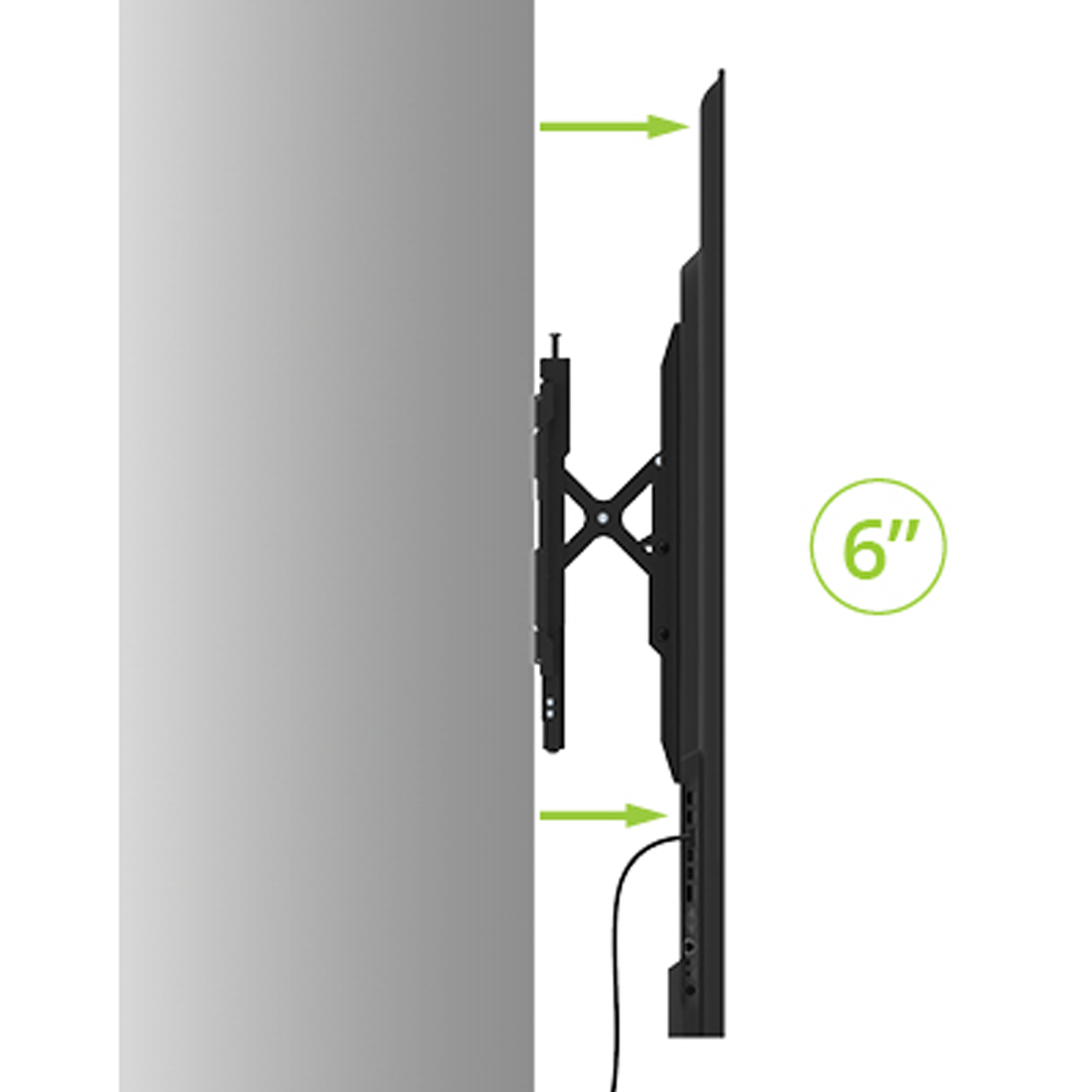

Extend Your TV Up to 6 Inches

The Kanto TE300 pulls forward up to 6 inches, while keeping the straightforward design of a basic tilt mount. Additionally, this extension provides easier access to the back of your television. As a result, reaching connections becomes more convenient. Moreover, the added space makes cable management less restrictive.

When fully pushed back, the mount maintains a slim 2.4-inch profile. It works a little like a drawer: pull it forward when you need access, then return it close to the wall when you're finished.

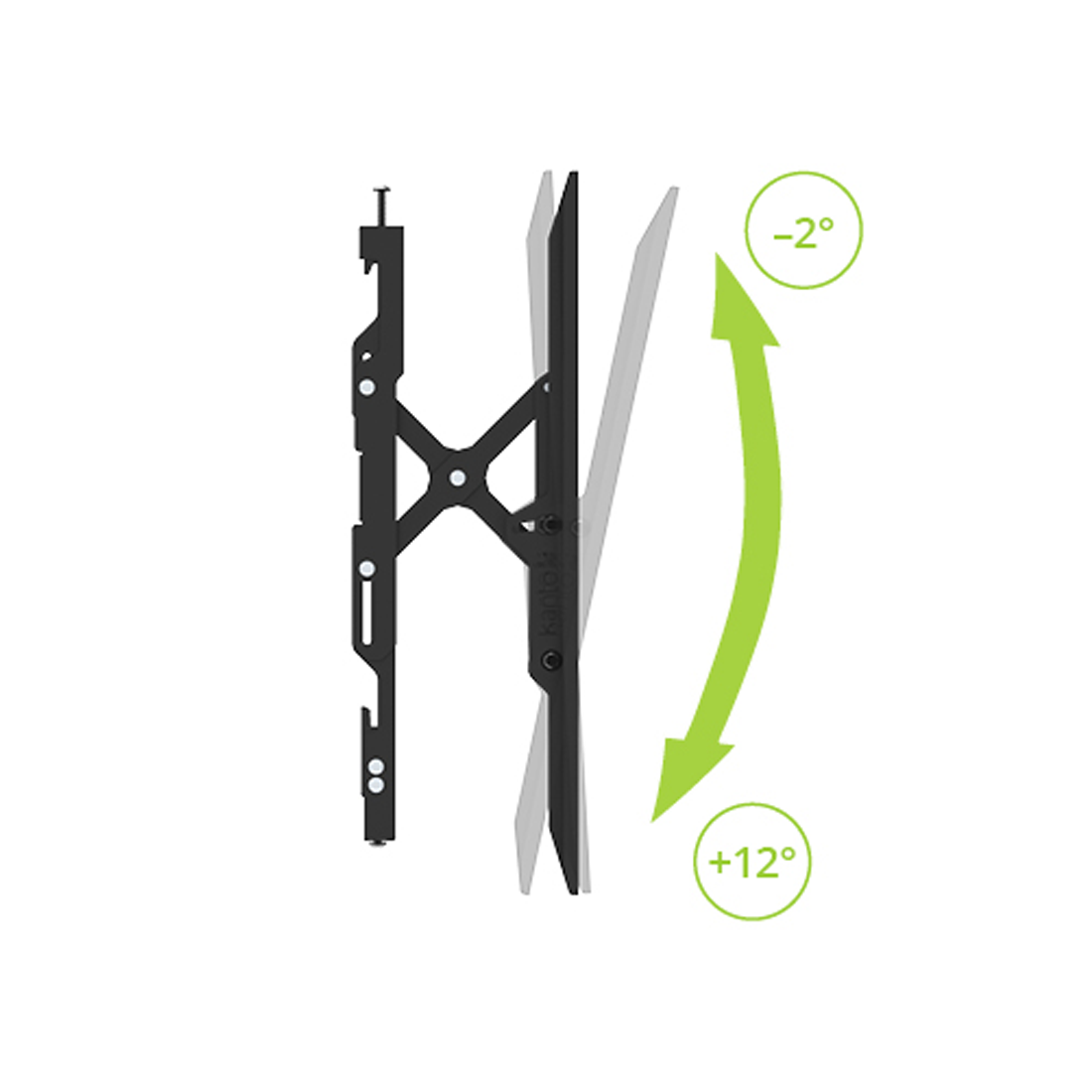

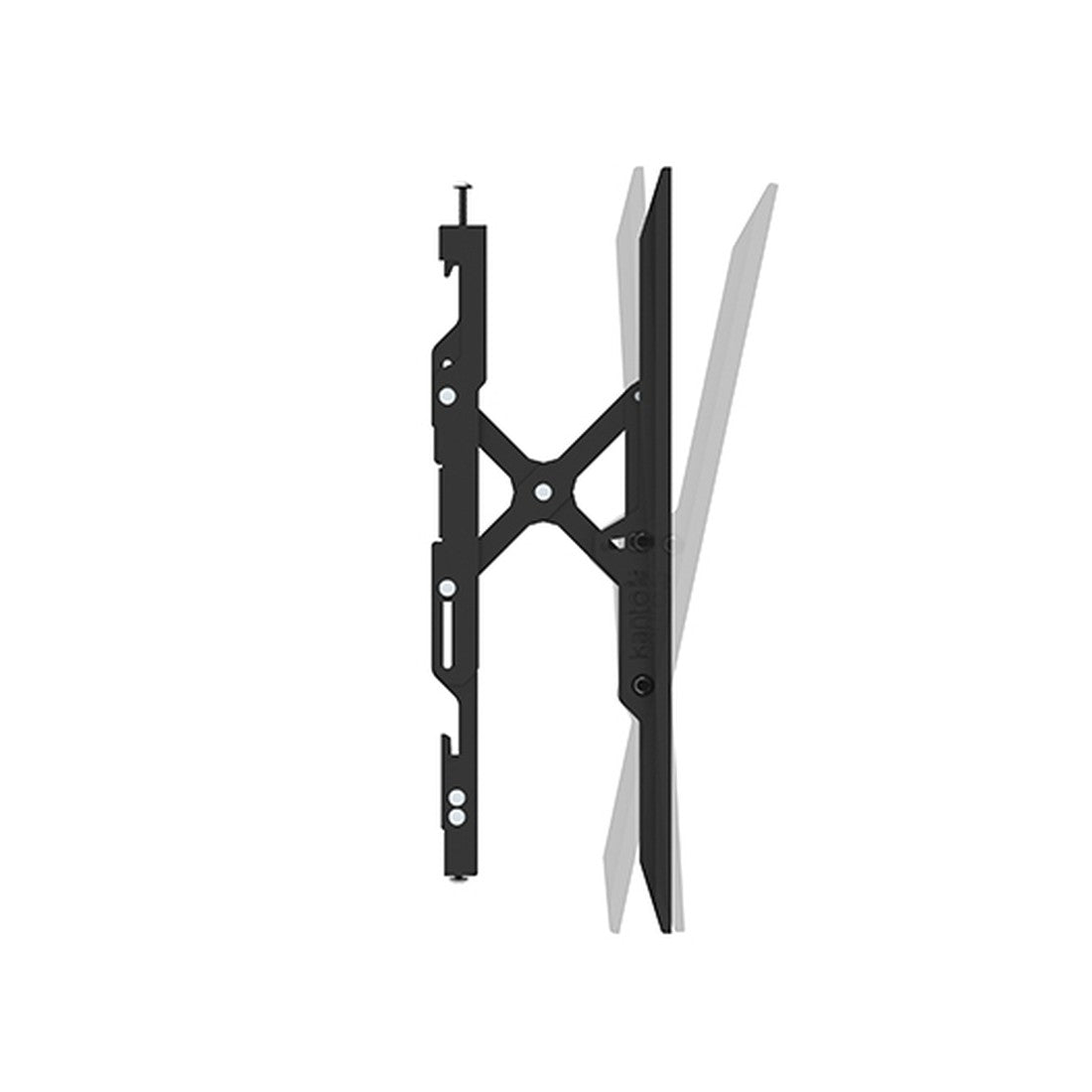

Forward and Backward Tilt

The Kanto TE300 lets you tilt your TV up to 12 degrees forward or 2 degrees backward. This range can help reduce glare while improving your line of sight, especially when your television sits above eye level.

Instead of being locked into one viewing angle, you can adjust the screen to better suit your seating position and room layout.

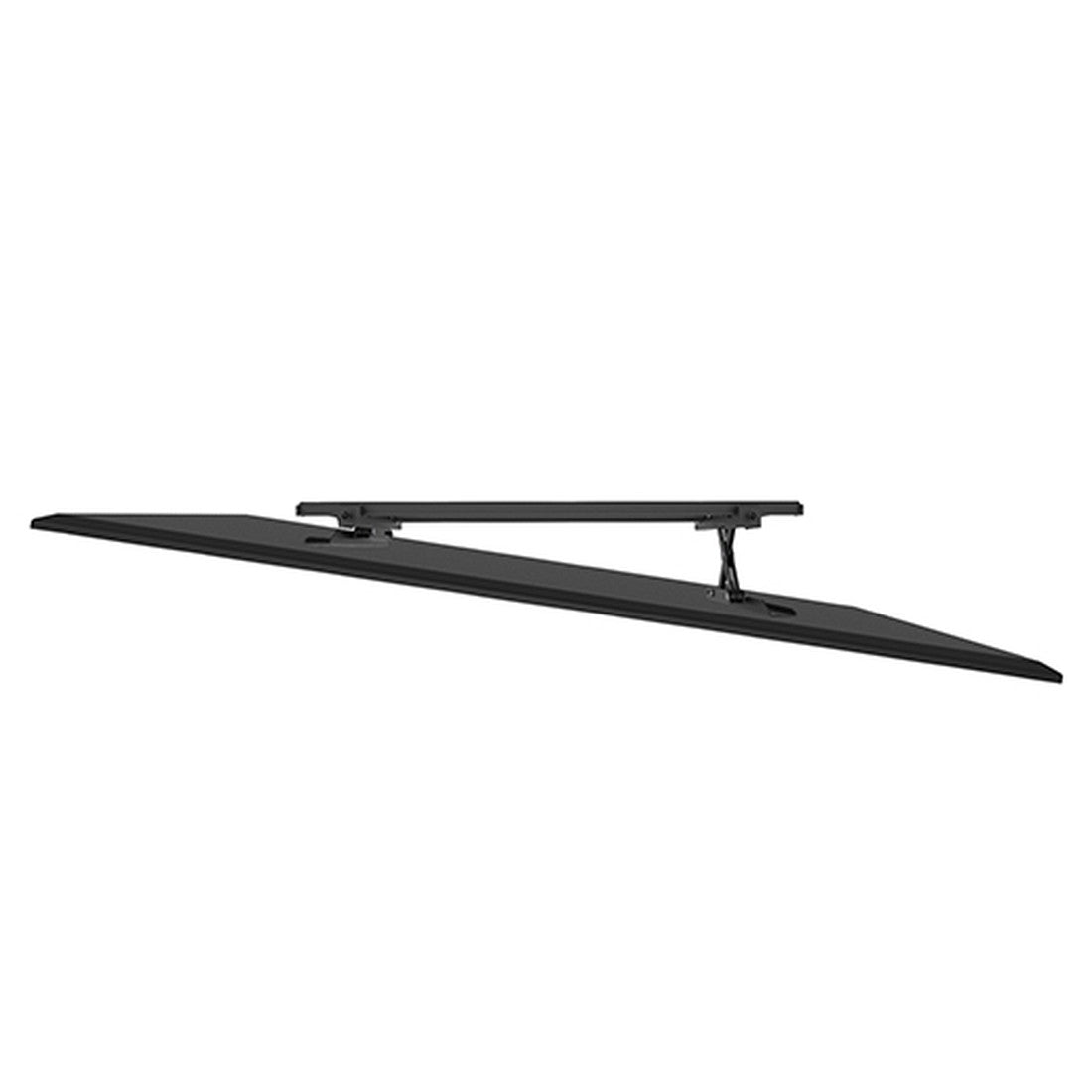

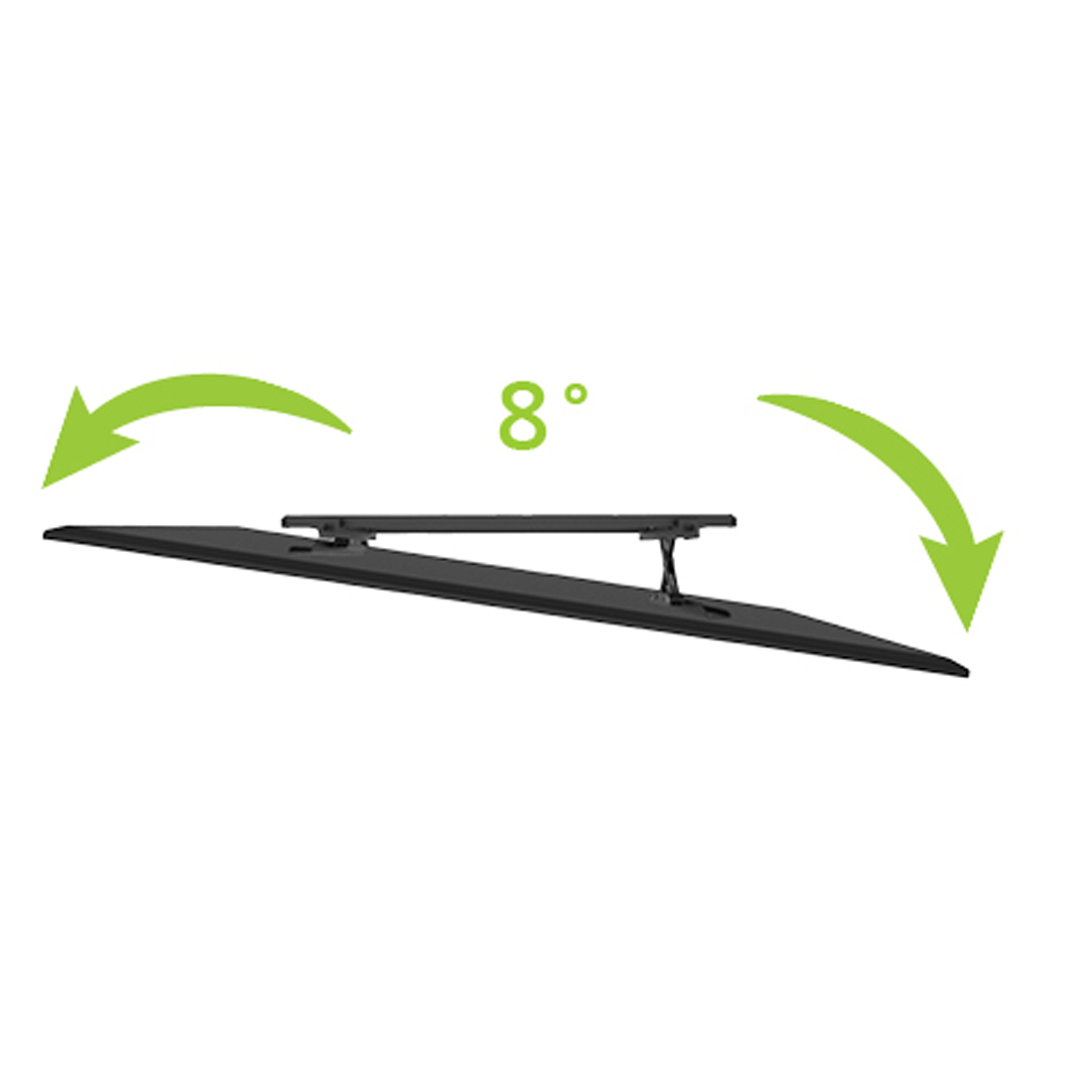

Up to 8 Degrees of Side-to-Side Pan

The extension mechanism also gives the Kanto TE300 up to 8 degrees of pan to either the left or right. That extra movement can make your screen more comfortable to view when you're sitting slightly off-center.

It's not designed like a full-motion arm, but that small amount of movement adds useful flexibility without giving up the straightforward design of a tilting mount.

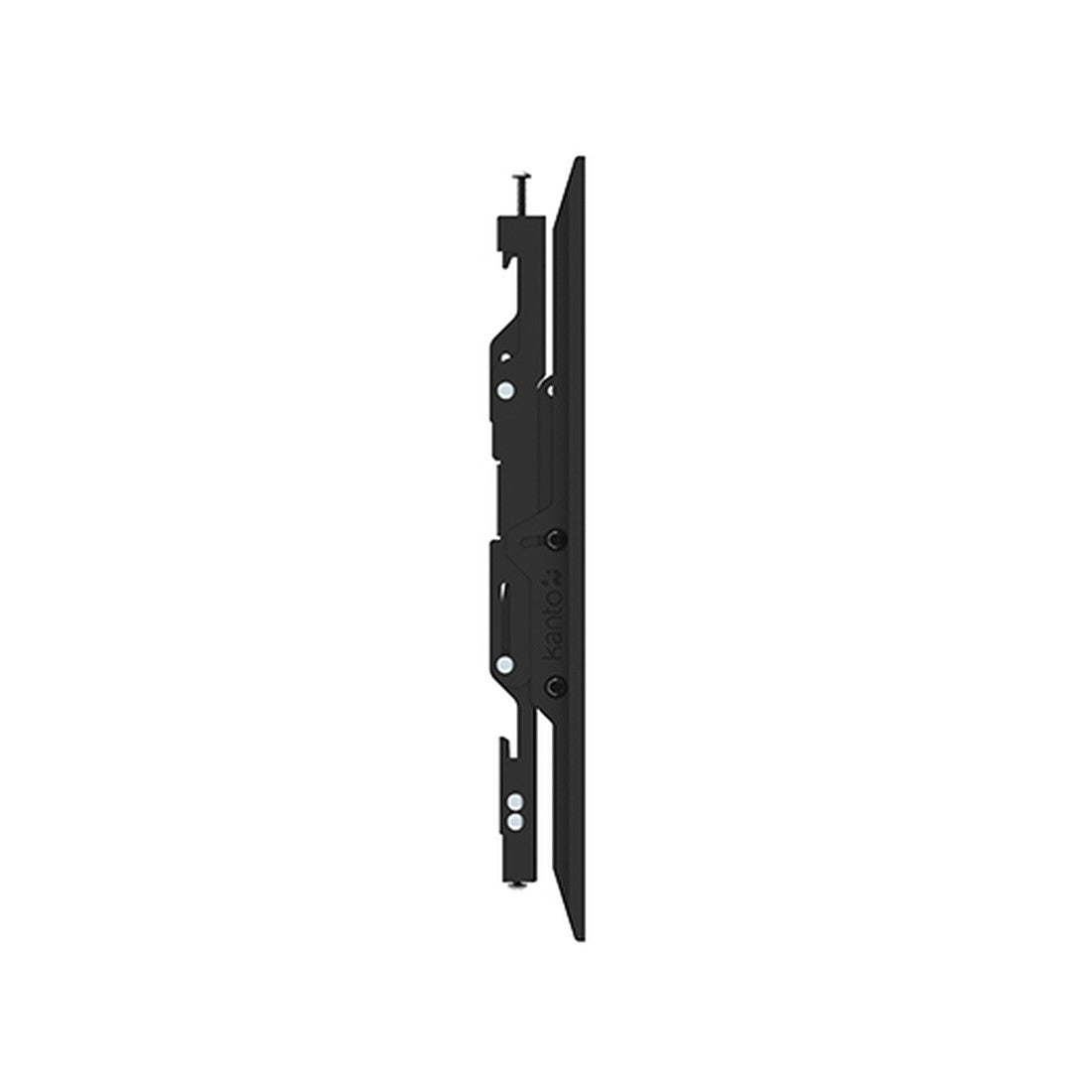

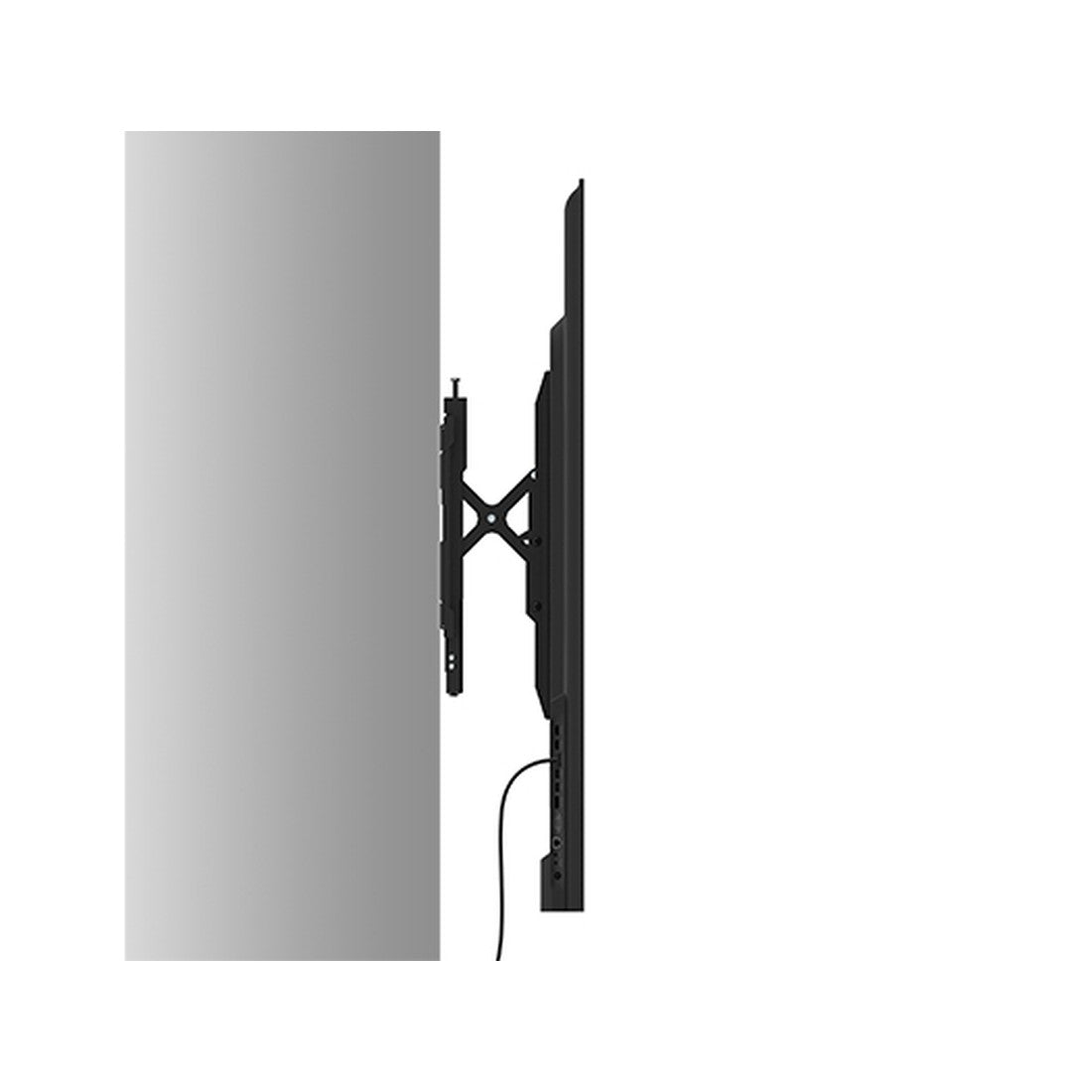

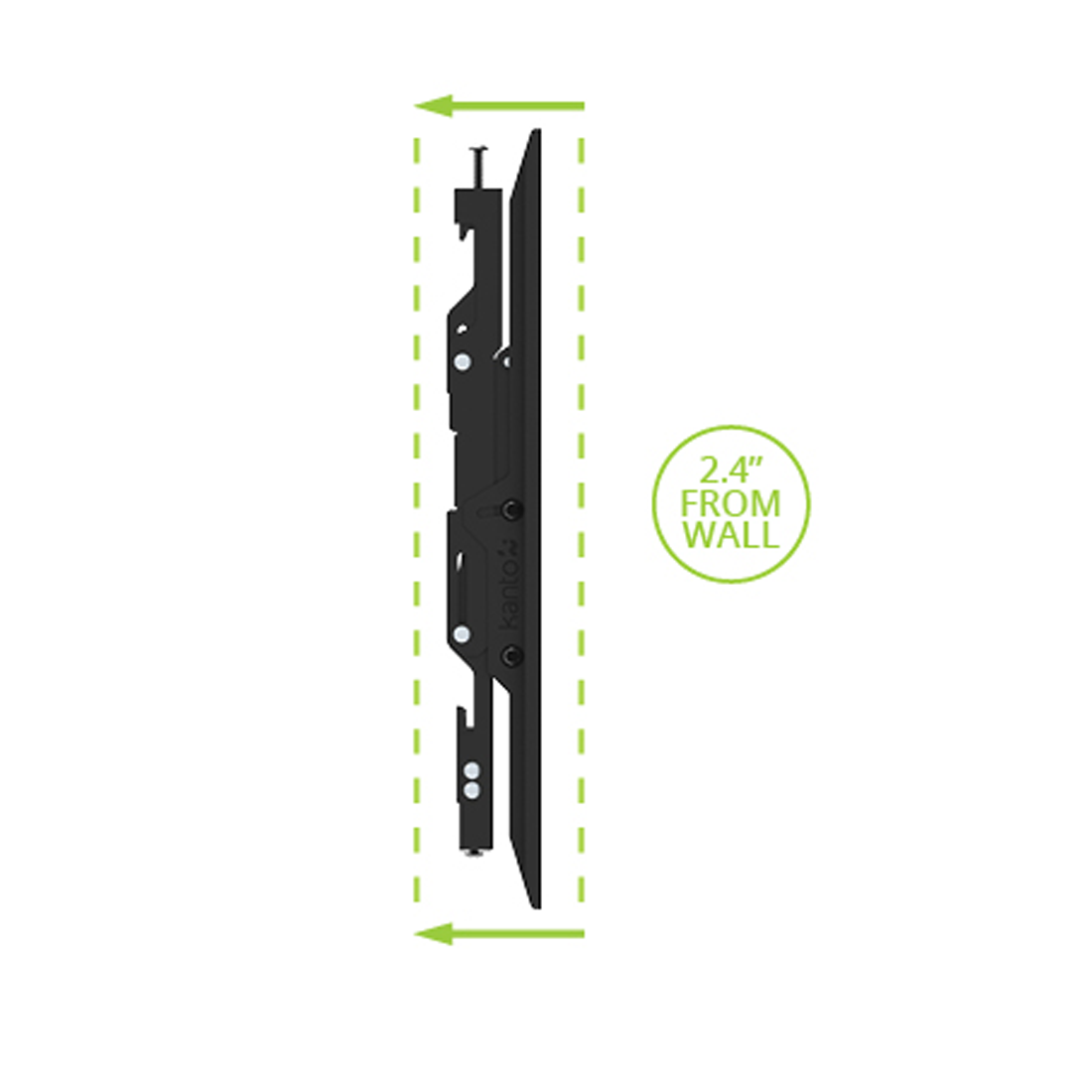

Slim 2.4-Inch Wall Profile

Once pushed back, the Kanto TE300 positions your TV just 2.4 inches, or 6.1 cm, from the wall. This keeps the screen relatively close to the mounting surface while still giving you the option to extend it whenever you need more working room behind the television.

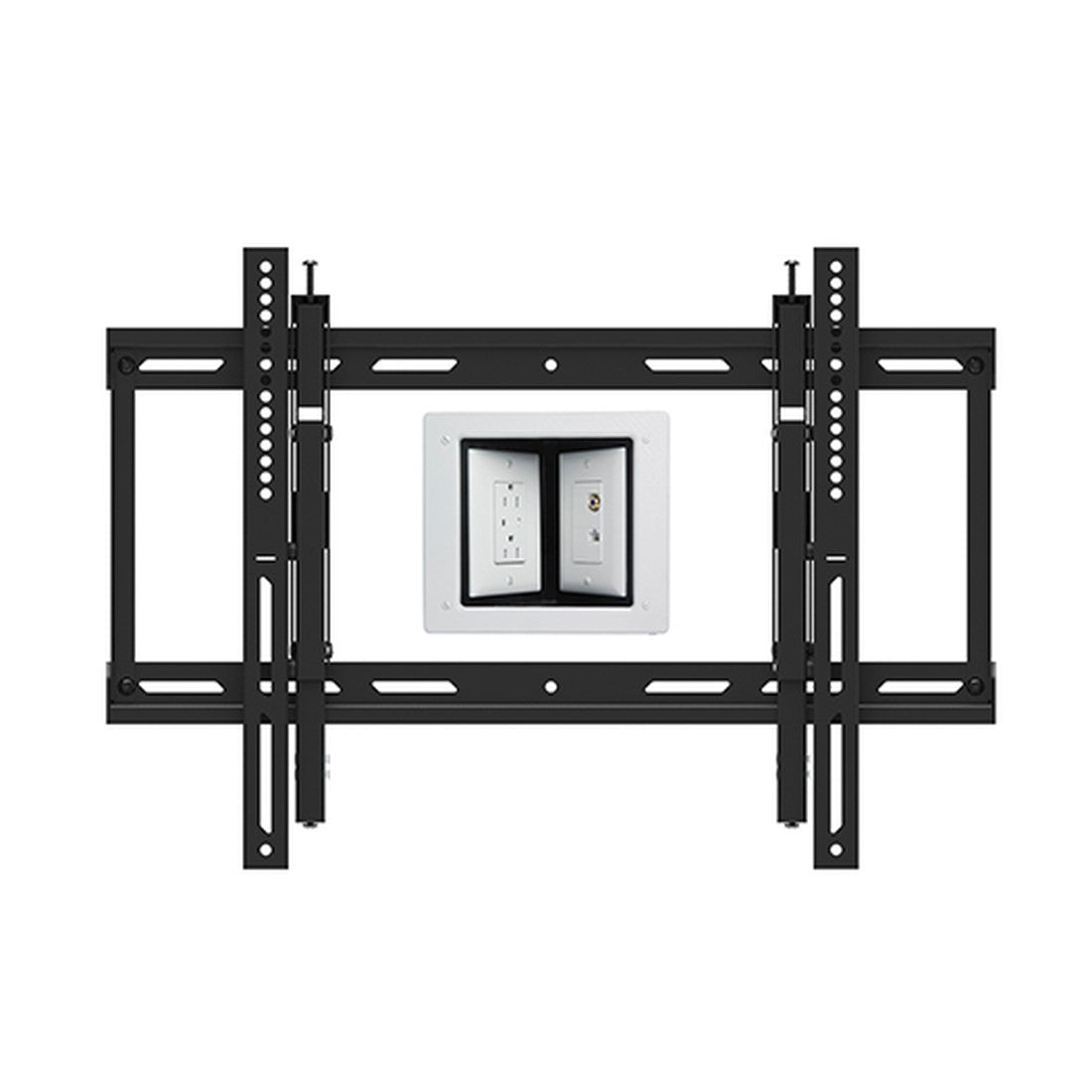

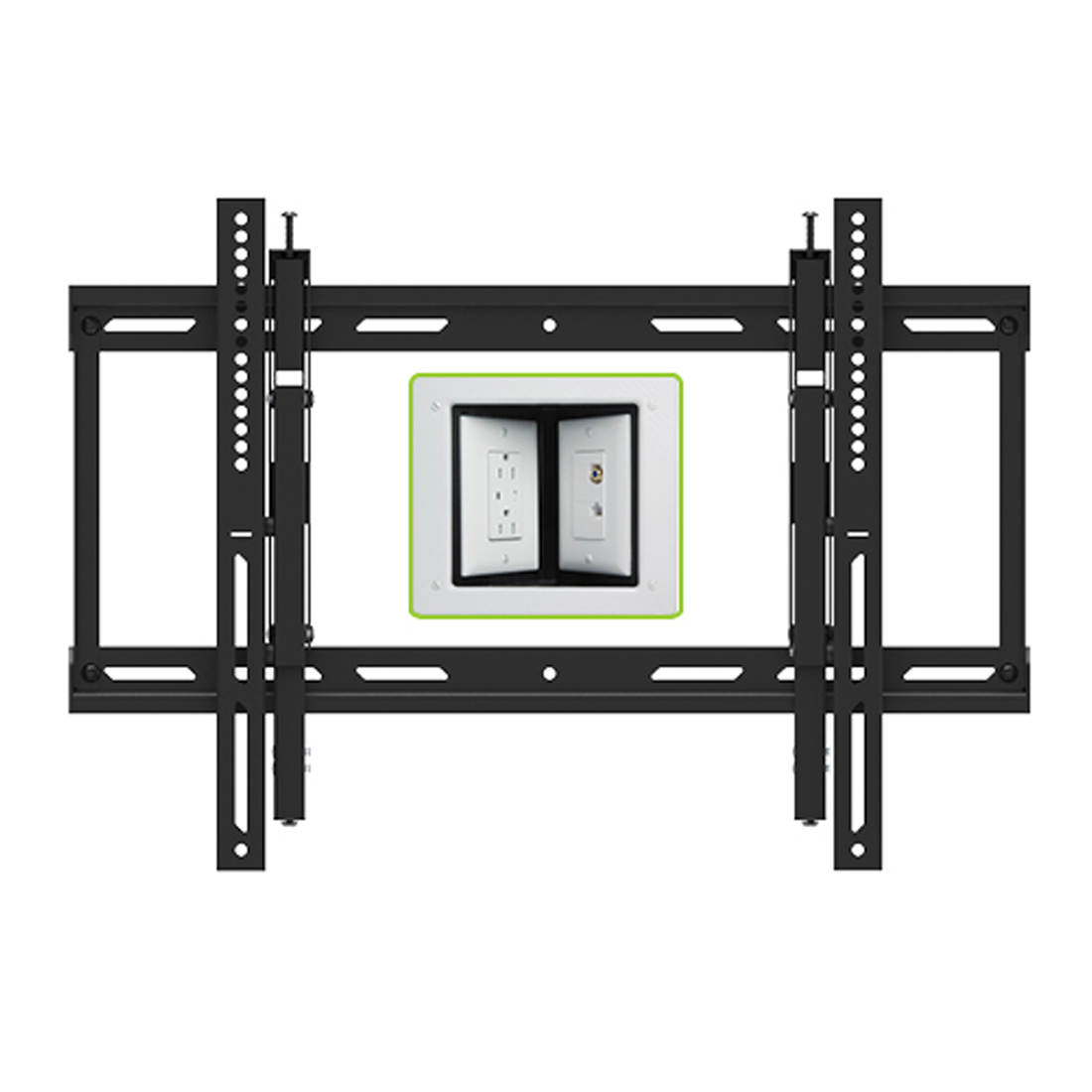

Open Wall Plate for Cable Routing

The wide, open-frame wall plate gives the Kanto TE300 extra flexibility when routing cables. Its spacious design also allows the mount to sit over electrical outlets or media boxes, helping you keep connections accessible behind your screen.

The 27-inch dual-stud wall plate supports stud spacing up to 24 inches, providing a broad mounting area while leaving plenty of open space for cable management.

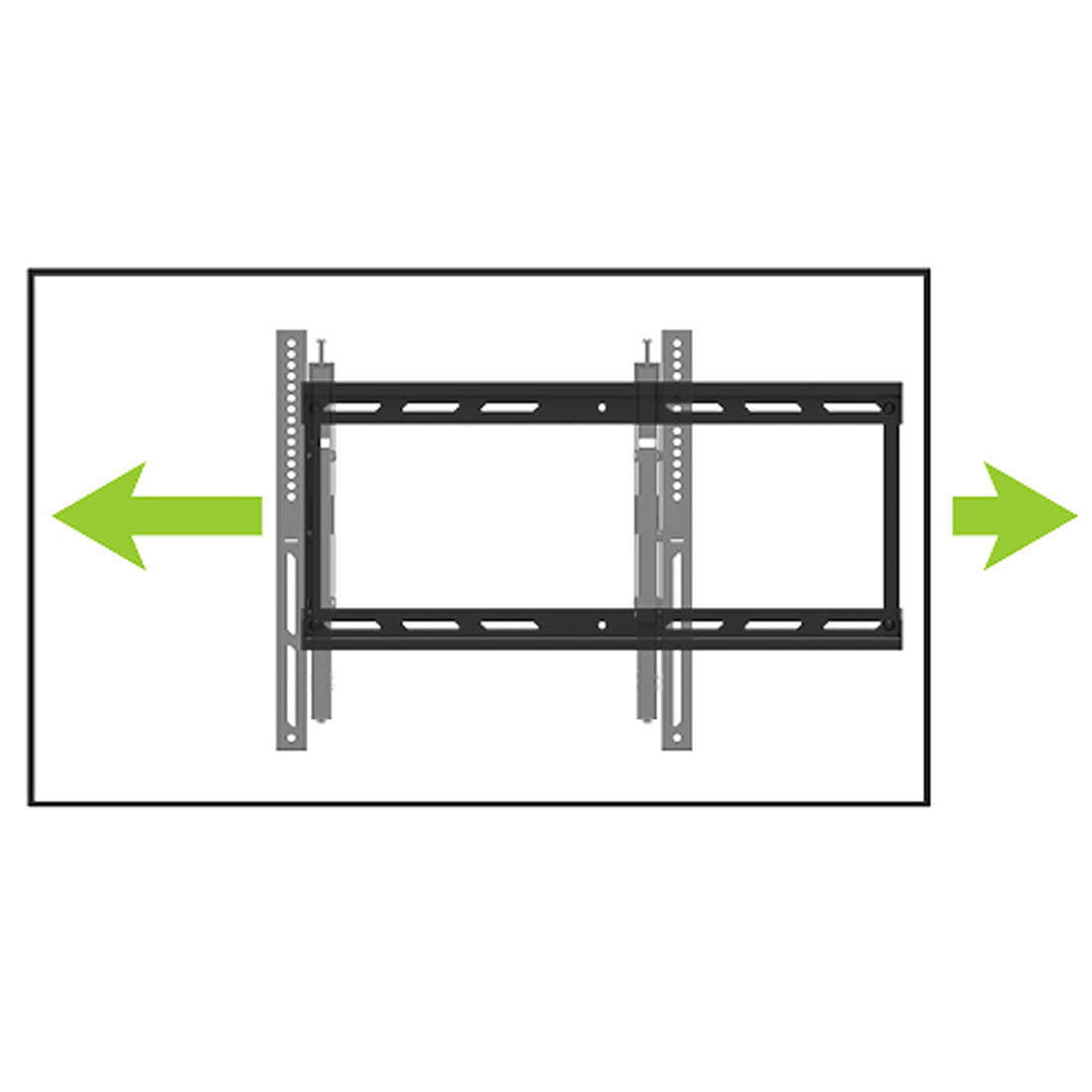

Vertical and Horizontal TV Adjustment

Getting your TV into the right position doesn't always end when the wall plate is attached. The Kanto TE300 uses oversized TV brackets that let you adjust the screen vertically, while the wide wall plate provides horizontal adjustment.

This combination gives you extra control over placement, helping you fine-tune where the television sits on the wall.

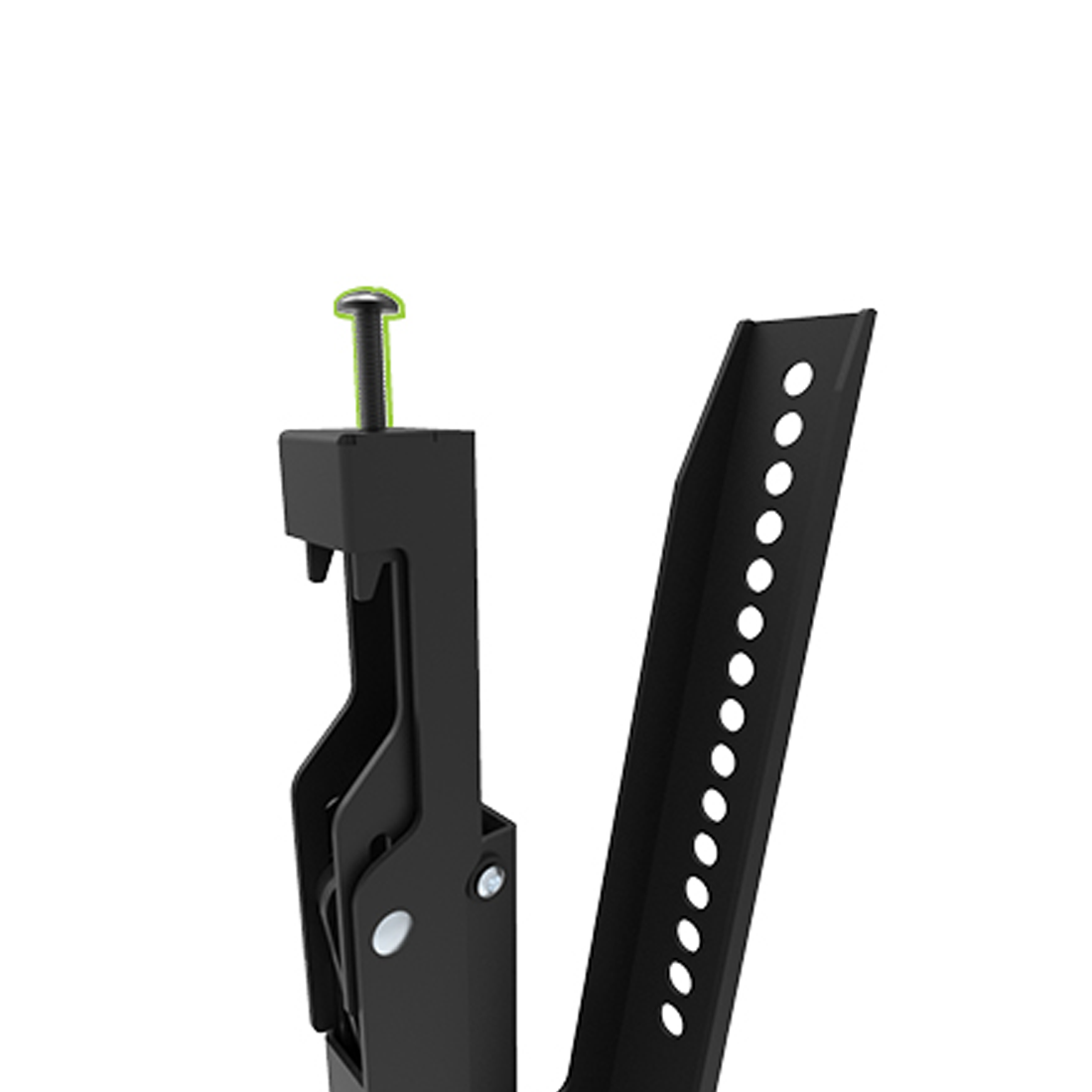

Post-Installation Leveling

The Kanto TE300 includes individual adjustment screws on top of each mounting bracket. These screws allow you to level the TV after it has been mounted, giving you another way to correct its final position without changing the entire setup.

Supports TVs from 43 to 90 Inches

Built for larger televisions, the Kanto TE300 supports screen sizes from 43 to 90 inches and a maximum weight of 150 lb, or 68 kg. Its VESA compatibility ranges from 100×100 to 600×450, covering a wide selection of compatible TVs within its listed size and weight limits.

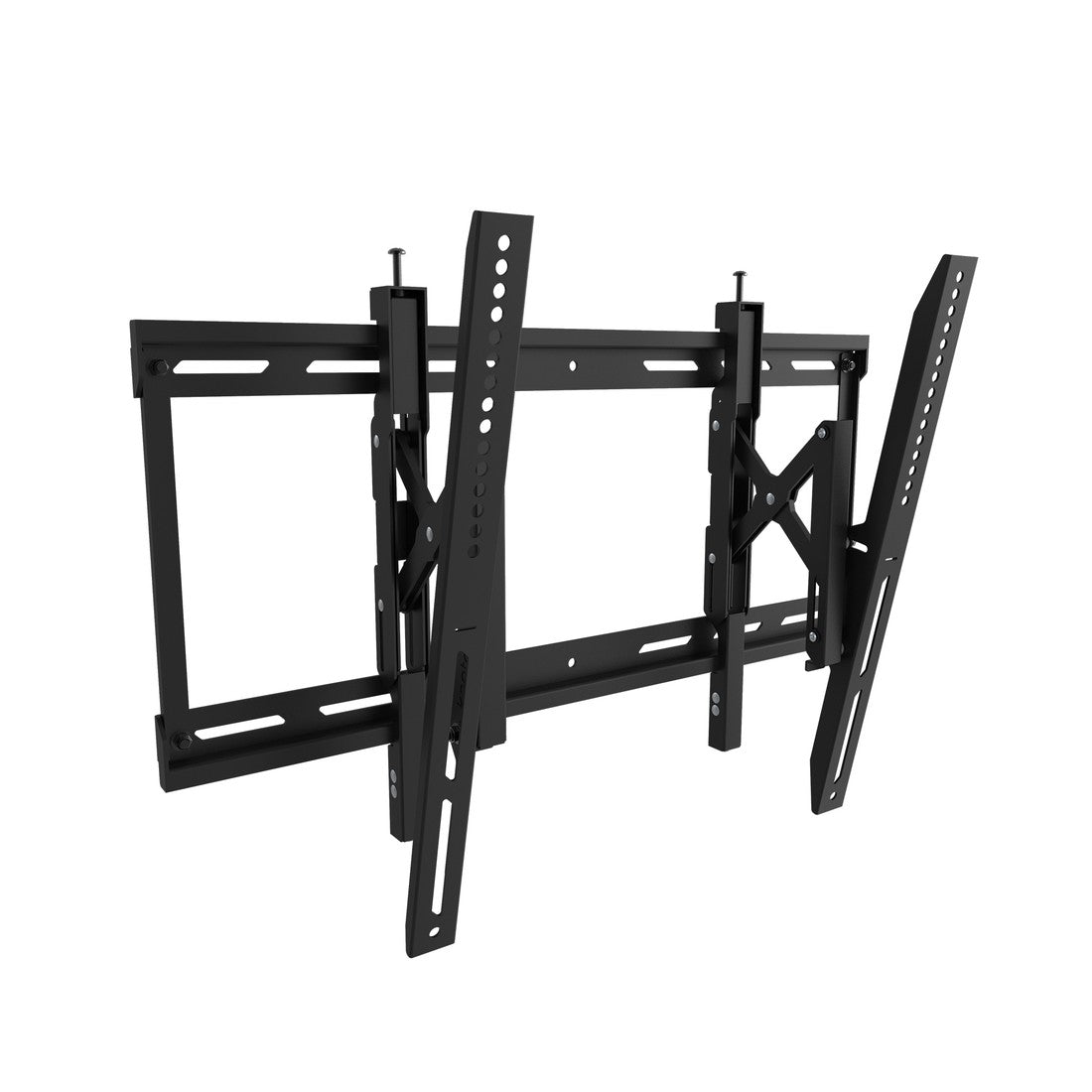

Solid Steel Construction

The Kanto TE300 is made from solid steel with a durable powder-coated finish. The mount itself weighs 12.1 lb, or 5.5 kg, while providing support for compatible televisions weighing up to 150 lb.

What’s Included

• Installation manual
• Drill template
• Mounting hardware for wood stud and concrete installation

Key Specifications

• TV size range: 43” to 90”
• Maximum weight capacity: 150 lb (68 kg)
• VESA compatibility: 100×100 to 600×450
• Forward tilt: Up to 12°
• Backward tilt: Up to 2°
• Left/right pan: Up to 8°
• Wall profile: 2.4” (6.1 cm)
• Maximum extension: 6” (15.2 cm)
• Wall plate: 27” (68.6 cm) dual-stud design
• Maximum stud spacing: 24”
• Material: Solid steel with powder-coated finish
• Product weight: 12.1 lb (5.5 kg)
• Shipping box weight: 13.9 lb (6.3 kg)
• Shipping box dimensions: 30.4” × 6.8” × 3.9” (77.3 × 17.3 × 9.8 cm)
• UPC: 800152721347

A Flexible Alternative to a Standard Tilt Mount

The Kanto TE300 adds useful flexibility without turning your TV setup into something overly complicated. Its 6-inch extension improves rear access, while forward tilt, backward tilt, and limited side-to-side movement give you more control over visibility. Add vertical adjustment, horizontal positioning, post-mount leveling, and a slim 2.4-inch profile, and you get a practical mount built for compatible TVs from 43 to 90 inches.

Frequently Asked Questions

What TV sizes does the Kanto TE300 support? The Kanto TE300 is designed for TVs ranging from 43 to 90 inches.

How much weight can the Kanto TE300 hold? It supports compatible televisions weighing up to 150 lb, or 68 kg.

How far can the Kanto TE300 extend from the wall? The mount can extend up to 6 inches, or 15.2 cm, from the wall and sits 2.4 inches from the wall when fully retracted.

Can the Kanto TE300 move from side to side? Yes. The mount can pan the TV up to 8 degrees to the left or right.

What VESA patterns are compatible with the Kanto TE300? It supports VESA mounting patterns ranging from 100×100 to 600×450.
