Kenwood eXcelon DAX800XR 8" HD Direct Replacement Digital Multimedia Receiver

Kenwood eXcelon DAX800XR HD Direct Replacement OEM Digital Multimedia Receiver with 8" Touchscreen Display

The Kenwood eXcelon DAX800XR is built for drivers who want more than a basic screen in their dash. It’s a high-definition, direct OEM replacement multimedia receiver with a bold 8" touchscreen display, smart connectivity, and serious audio tech—all crafted to look and feel like it belongs in your vehicle from day one.

8” High-Definition Touch Display with Enhanced Visibility

The 8" monitor features a high-luminance white LED backlight and 1280x720 resolution that delivers 2.4 times the clarity of a WVGA screen. The electrostatic capacitive panel responds effortlessly to touch, while the wide 170° viewing angle (both vertical and horizontal) ensures crystal-clear visibility from nearly any seat. A built-in anti-glare protective film reduces reflection, making it easy to read even under direct sunlight.

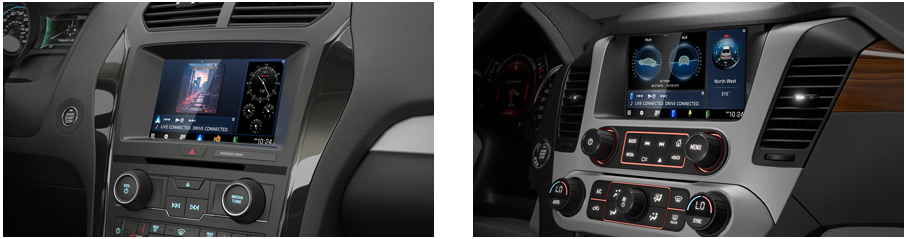

Clean OEM Fit with Separated Display and Chassis

The DAX800XR is designed for seamless OEM dashboard replacement. Its 1DIN separated display and chassis structure allows flexible installation—vertically or horizontally—making it adaptable for a wide range of vehicles. The chassis and screen are connected via cable, and if more length is needed, the KCA-A150EX 5ft extension cable (sold separately) offers the solution. With support for iDatalink Maestro APX parts, this receiver retains factory features and integrates tightly with existing controls.

Wireless and Wired Smartphone Compatibility

You’ve got options—Apple CarPlay and Android Auto both work wired or wirelessly, giving you instant access to calls, messages, music, and maps. The DAX800XR also supports split-screen functionality, letting you use CarPlay or Android Auto alongside Kenwood’s source control in one view. Wireless smartphone mirroring is available for select devices, and HDMI mirroring is also supported using the optional KCA-HD200 HDMI cable and applicable adapters.

Hi-Res Audio and Pro-Level Sound Control

For those who care about sound, the Kenwood eXcelon DAX800XR supports High-Resolution Audio, even over wireless via LDAC. It’s built with premium audio components—custom capacitors and carefully tuned circuitry—to deliver exceptional sound clarity. The receiver includes a 13-band graphic equalizer, digital time alignment, and a parametric EQ that allows fine-tuning at 14 separate points with options like Q factor and shelving filters. For advanced setups, a digital optical output lets you connect to your DSP of choice.

4 Camera Inputs with HD Support

This receiver supports up to four camera inputs, allowing you to connect front, rear, and side cameras, plus a dash cam. It’s HD front/rear camera ready, specifically built to work with the CMOS-740HD, which outputs sharp 1280x720 resolution. Whether you need full coverage or just want a safer reverse, the DAX800XR is built to handle it all. Automatic switching and on-screen controls are available when used with iDatalink Maestro on compatible vehicles.

Dash Cam Link and Safety Features

Pair the DAX800XR with Kenwood’s DRV-N520 dash cam for full HD video recording and added safety. With High Dynamic Range, the camera handles both low light and high glare effectively. Built-in gyro sensors detect collisions and save footage automatically to a separate section of the 8GB SD card. The system can also alert you to forward collisions or stalled traffic using optional safety features.

iDatalink Maestro Integration for Full Vehicle Control

When paired with an iDatalink Maestro RR or RR2 (sold separately), the DAX800XR retains factory steering wheel controls, amplifier settings, and even secondary displays. You can view real-time vehicle performance data, adjust climate controls, and monitor battery voltage. For added visibility, it can also display radar detector alerts when integrated with compatible K40 or Escort radar systems.

Media Playback and Connectivity

This receiver supports a wide variety of audio and video formats via USB, giving you flexibility with your media collection. It also includes a USB Type-C port (with Type-A adapter included) for rapid charging up to 3.0A. Built-in Wi-Fi ensures smooth wireless features, and the included remote control lets passengers take charge from anywhere in the car.

Feature-Rich for Everyday Use

• HD Radio with CD-quality sound on FM and AM.
• SiriusXM Ready, including 360L streaming support.
• USB Type-C with fast charging (up to 3.0A) and included adapter.
• Built-in Wi-Fi for wireless features and updates.
• Remote control included for passenger convenience.
• Customizable home screen with widgets for EQ, compass, or even album art.

Customizable Display and Widgets

The home screen features a smart layout with both a Driving Widget and Source Control Widget. You can choose from a clock, compass, or EQ display and set your background to album art, visualizer, or personal photos via the Kenwood Portal App. The Pitch & Roll GUI uses the built-in gyro sensor to display your vehicle's position, which is handy on steep inclines or uneven terrain.

Built-In HD Radio and SiriusXM 360L Ready

Listen to your favorite local stations in digital quality with the built-in HD Radio tuner. It offers CD-quality FM and FM-quality AM, along with additional multicast channels. The receiver is also SiriusXM Ready and supports SiriusXM 360L—the next-gen satellite + streaming hybrid. Enjoy personalized content, sports broadcasts, and on-demand shows (Wi-Fi required for 360L streaming).

FAQs

1. Does the DAX800XR support split-screen mode with CarPlay and Android Auto? Yes, you can use both CarPlay or Android Auto alongside Kenwood's native source controls on the same screen.
2. How many cameras can be connected to this unit? You can connect up to 4 cameras, including front, rear, and side views, as well as a dash cam.
3. Is the DAX800XR compatible with high-resolution audio? Yes, it supports High-Resolution Audio, including wireless playback via LDAC for enhanced sound quality.
4. What type of installation does the DAX800XR support? It uses a separated display and chassis system for flexible vertical or horizontal installation, designed to fit various vehicle types.
5. Can I view vehicle data on the screen? Yes, when used with iDatalink Maestro, you can monitor vehicle stats like climate control, performance data, and more.
