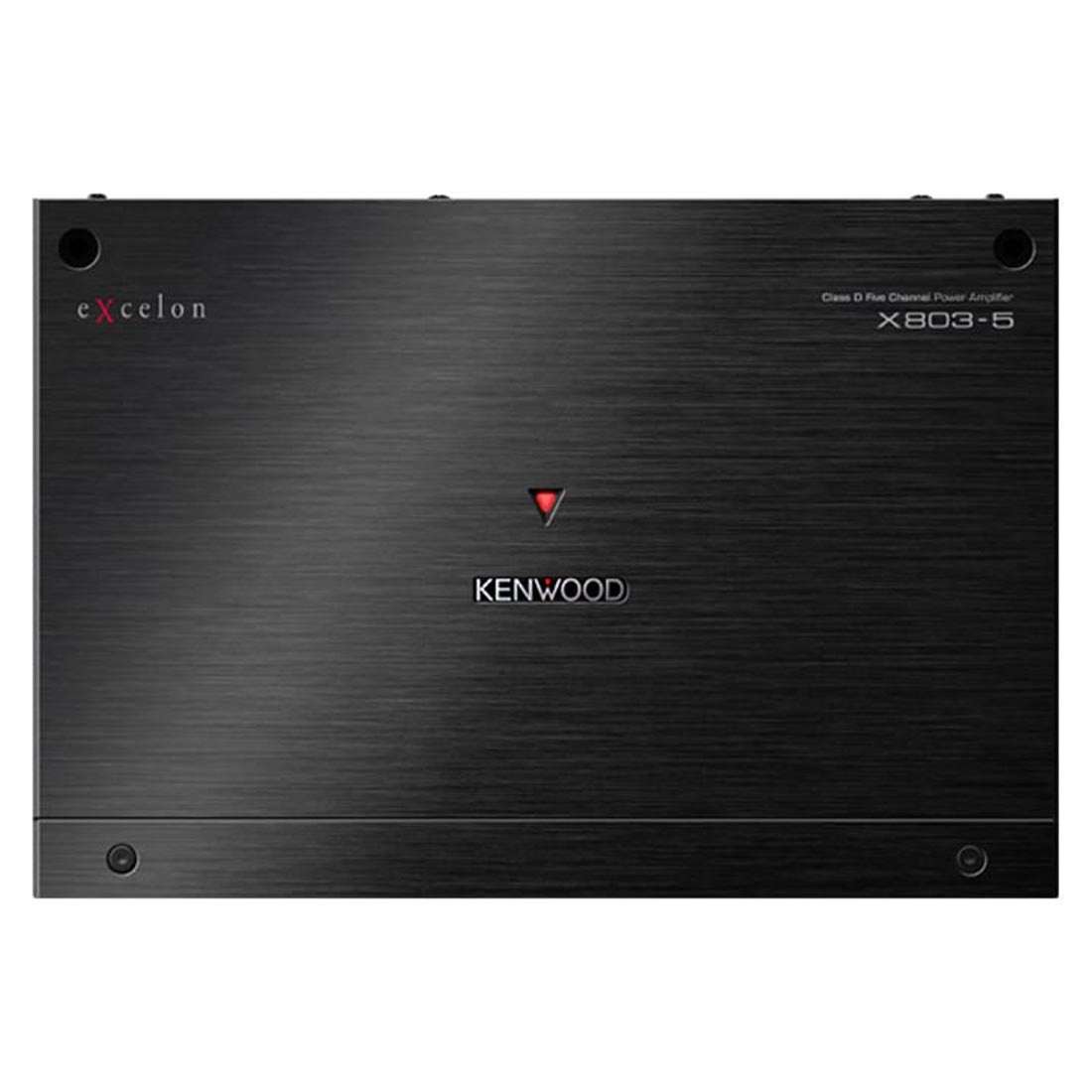

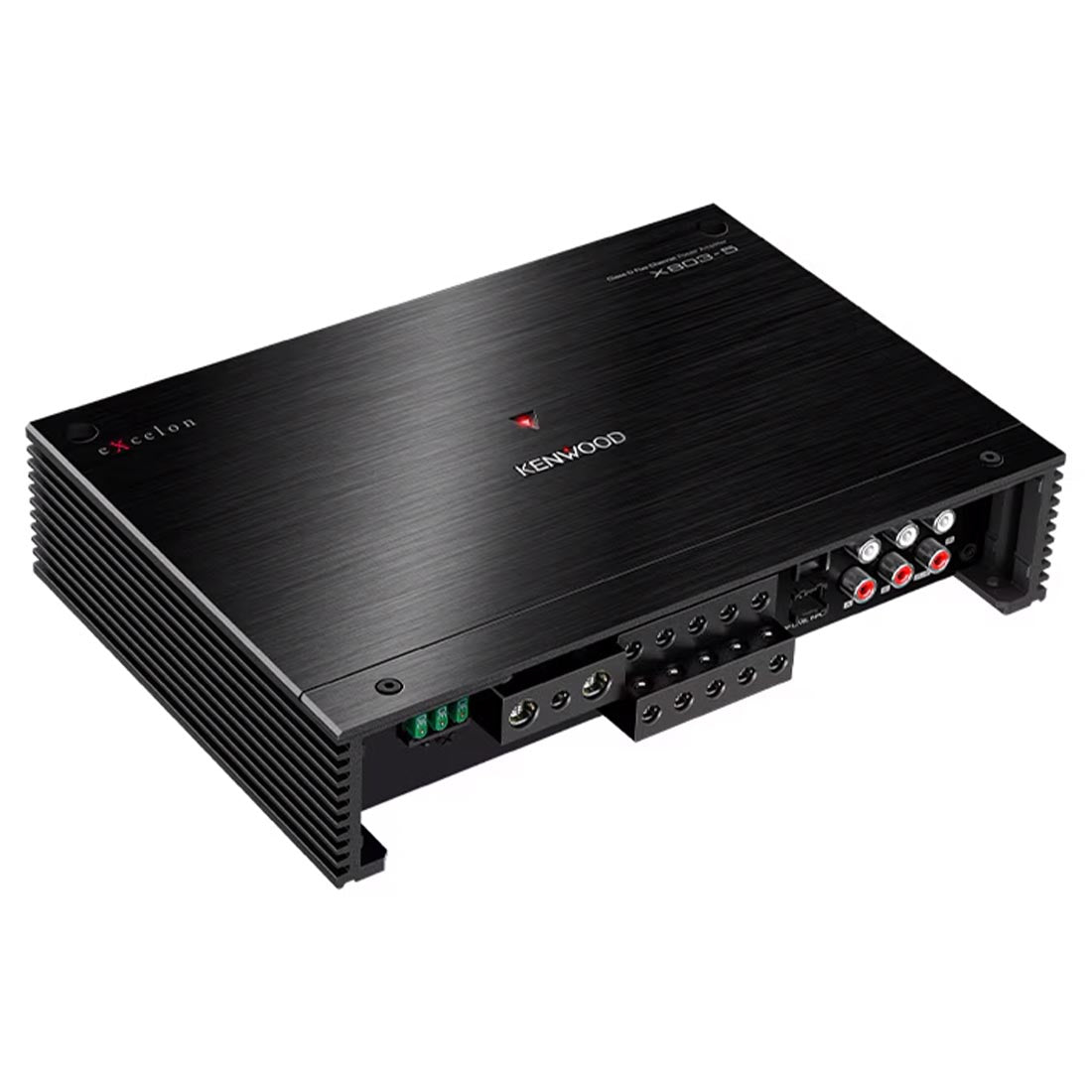

Kenwood eXcelon X803-5 Class D 5-Channel Power Amplifier

Kenwood eXcelon X803-5 800W Class D 5-Channel Hi-Res X-Series Power Amplifier with Wired Remote Level Controller

Looking to upgrade your car’s audio system? The Kenwood eXcelon X803-5 delivers high-resolution sound in a compact package. With a max power output of 1600W and multiple RMS configurations, this Class D amplifier ensures crystal-clear audio with deep bass and sharp highs. Whether you're pushing full-range speakers or a dedicated subwoofer, this amp provides clean and balanced power for an immersive listening experience.

High-Resolution Audio for Superior Sound

The Kenwood eXcelon X803-5 is High-Resolution Audio certified, meaning it reproduces sound with more detail and depth than standard CDs. This advanced technology enhances the clarity of your favorite tracks, allowing you to hear every subtle nuance in your music. From high-energy beats to smooth vocals, this amp brings your car audio system to life with precision and warmth.

Efficient Class D Amplification

Built with a Class D design, the Kenwood eXcelon X803-5 operates efficiently while maintaining high output. It runs cooler than traditional amps, making it a reliable choice for long drives and high-volume listening. With an optimized power structure, it ensures minimal distortion and maximum clarity across all frequencies.

Versatile Power Output for Any Setup

This 5-channel amplifier is designed to power an entire system. It offers multiple RMS power levels:

• 4Ω: 50W x 4 + 300W
• 2Ω: 75W x 4 + 500W
• Bridged: 150W x 2 + 300W

Whether you're driving full-range speakers, components, or a subwoofer, the X803-5 adapts to your needs with ease.

Precision Controls for Custom Sound

Fine-tune your audio experience with a range of built-in controls, including:

• Variable Low Pass Filter & High Pass Filter – Optimize frequencies for clear mids, highs, and deep bass.
• Bass Boost – Enhance low-end response for a more powerful punch.
• Input Sensitivity Control – Adjust levels to match your system’s components.
• Wired Remote Control – Conveniently manage subwoofer volume on the fly.

Built for Performance and Durability

Kenwood engineered the eXcelon X803-5 with high-quality components to ensure lasting performance.

• Output Coil with Magnetic Shield – Reduces interference and enhances sound clarity.
• Premium Capacitors – Minimize distortion for a more accurate audio reproduction.
• Gauge-Style Terminals – Secure wire connections for reliable operation.
• All-Terminal One-Side Design – Simplifies wiring for a clean installation.

Compact Design Without Sacrificing Power

Despite its powerful output, the Kenwood eXcelon X803-5 maintains a space-saving design. Measuring just 9-3/4” (W) x 2-1/16” (H) x 6-5/8” (D) and weighing only 4.6 lbs, it fits easily into most vehicles without taking up unnecessary space.

The Ultimate 5-Channel Amp for Serious Car Audio Enthusiasts

If you're looking for a high-performance amplifier that delivers high-resolution audio, powerful output, and customizable controls, the Kenwood eXcelon X803-5 is an excellent choice. Its efficient Class D design, premium components, and versatile tuning options make it a top-tier upgrade for any car audio setup.

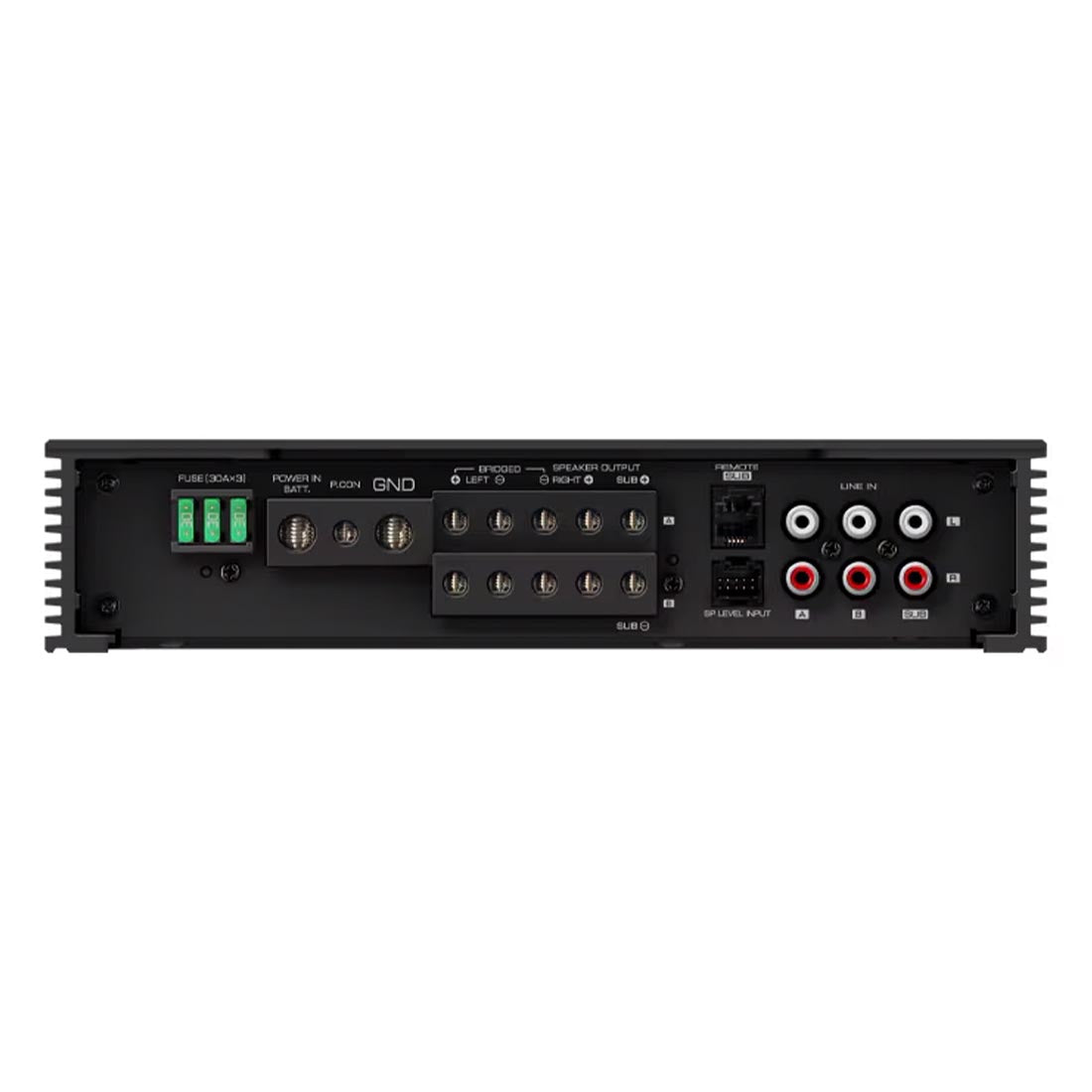

Connections:

1. Fuse (30A x3)
2. Battery terminal (POWER IN BATT.)
3. Power control terminal
4. Ground terminal (GND)
5. Speaker output terminals (A.ch/B.ch)
6. Speaker output terminals (Sub)
7. Speaker level input terminal
8. Remote terminal for Sub ch
9. Line in terminal (A.ch/B.ch/Sub)

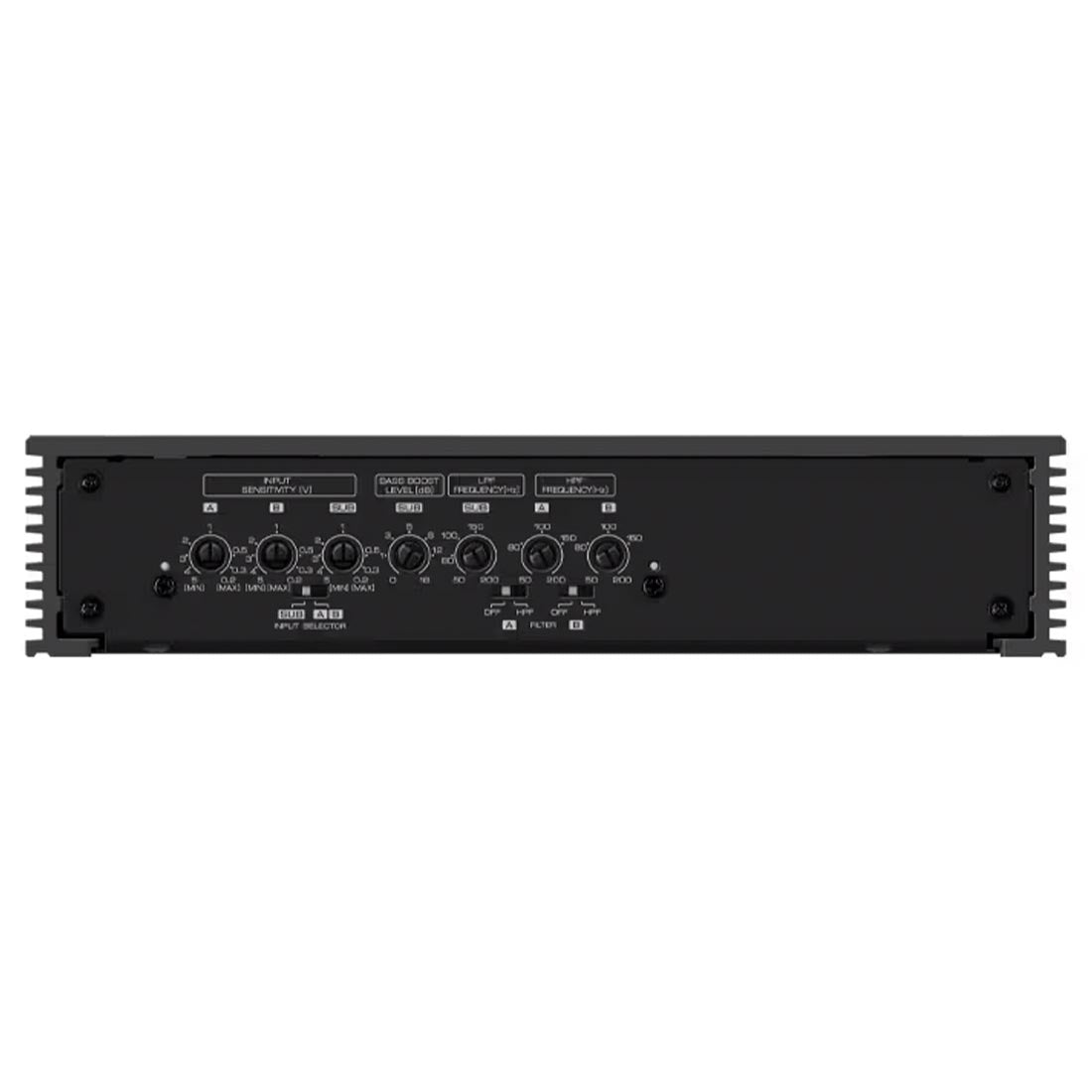

• 10. Input sensitivity control（A.ch/B.ch/Sub）
• 11. Input selector switch
• 12. Bass Boost Level control (Sub)
• 13. LPF frequency control (SUB)
• 14. Filter switch (A.ch/B.ch)
• 15. HPF frequency control (A.ch/B.ch)

Speaker Level Input Harness

Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.

Wired Level Control Included

The wired remote level control allows you to easily adjust the subwoofer volume.

FAQs

1. What makes the Kenwood eXcelon X803-5 different from other amplifiers? This amp offers High-Resolution Audio certification, an efficient Class D design, and a powerful yet compact build, making it stand out in the market.
2. Can the X803-5 power a full system including a subwoofer? Yes, its 5-channel design allows you to run four speakers and a subwoofer with clean and powerful output.
3. Does the amplifier come with a remote control? Yes, it includes a wired remote level controller for easy subwoofer adjustments.
4. What kind of power does this amp provide at 2 ohms? It delivers 75W x 4 for speakers and 500W for the subwoofer at 2Ω.
5. Is the Kenwood eXcelon X803-5 compatible with factory head units? Yes, it includes a speaker-level input harness, allowing seamless integration with factory systems.
