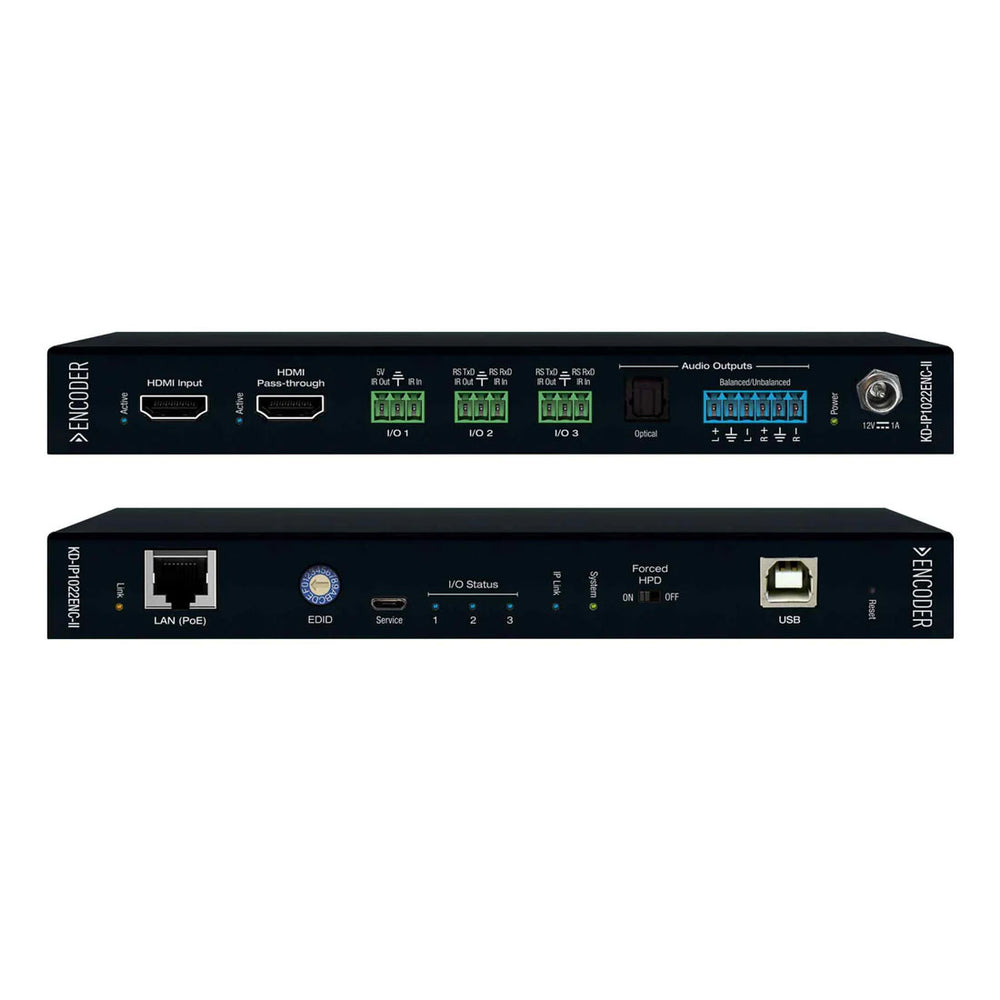

Key Digital KDIP1022ENCII 4K AV Over IP System Encoder

Key Digital KD-IP1022ENC-II 4K AV Over IP System Encoder

Are you looking for a flexible, high-quality solution for routing and distributing 4K video? The Key Digital KDIP1022ENCII 4K AV over IP System Encoder is exactly what you need. This robust system can be tailored to fit any installation, whether you’re setting up a video wall, independent audio and video routing, or simply need to streamline your AV distribution process. Let’s dive deeper into the details of this powerful system!

What is the Key Digital KDIP1022ENCII Encoder?

The Key Digital KDIP1022ENCII Encoder is an integral part of a 4K AV over IP system designed to handle high-definition video signals across a network. Whether you need to distribute content across a few screens or build a large video wall, this system scales to meet your needs by adding an encoder for each video source and a decoder for each display. The system uses a verified network switch as the hub for smooth HDMI routing, ensuring a seamless AV experience.

Key Features

The Key Digital KDIP1022ENCII Encoder comes with a wide range of impressive features that make it stand out in the market:

Full 4K AV Support: It supports 4K video resolution, allowing you to distribute ultra-high-definition video across multiple displays.
Scalable System: You can add an encoder for each video source and a decoder for each display, making it easy to customize based on your specific needs.
Versatile Control Options: The system includes multiple control options like IR, bi-directional RS-232, triggers, and TCP/IP, which makes it easy to manage and control the AV distribution.
Independent Audio and Video Routing: This system allows for separate control over video and audio signals, giving you ultimate flexibility.
User-Friendly Interface: The system features an app-ready interface that’s designed to be intuitive and easy to use for a seamless experience.

Technical Specifications of the Key Digital KDIP1022ENCII Encoder

Here’s a quick rundown of the technical specs:

Inputs:
1 HDMI
3 Multifunction Control (IR, Bi-Directional RS-232, Trigger)
1 TCP/IP
1 USB-B
Outputs:
1 HDMI
1 Analog Audio
DDC Signal (Data): 5 Volts p-p (TTL)
HDMI Video/Audio Signal: 1.2 Volts p-p
Audio Connector: Balanced/Unbalanced 6-Pin Phoenix, Optical Digital
Control Connectors: 3-Pin Phoenix
Networking: Shielded RJ45 TCP/IP 1G/100 BaseT, PoE
General Information

Regulation: CE, RoHS, WEEE
Enclosure: Black Metal
Power Supply: KDPS20W12VC (12V/1A, 20W, desktop type)
Operating Temperature: 150°F (65.5°C)
Surface Temperature: 104°F (40°C) at 77°F (room temperature)
BTU: 30.7 per hour
Accessories Included

Power Supply (12V/1A, 20W, desktop type)
USB Data Cable (6ft, A to Micro)
3-Pin Phoenix Terminals (3)
IR Sensor & Emitter
L-Bracket Mount & Screws
Operation User Manual

Why Choose the Key Digital KDIP1022ENCII Encoder?

The Key Digital KDIP1022ENCII 4K AV over IP System Encoder is the perfect solution for anyone seeking a reliable, scalable, and feature-packed AV distribution system. Whether you're working with a single display or managing multiple video walls, this system ensures smooth, high-quality 4K video and audio distribution. With its flexibility, control options, and ease of integration, the KDIP1022ENCII is a top choice for professionals who need dependable performance.

FAQs

1. What is the maximum resolution supported by the Key Digital KDIP1022ENCII Encoder? The Key Digital KDIP1022ENCII supports up to 4K resolution, providing crystal-clear video quality for any professional installation.
2. Can I control the system remotely? Yes, the Key Digital KDIP1022ENCII Encoder features app-ready capabilities, which allow for easy remote control and management of your AV setup.
3. Does the Key Digital KDIP1022ENCII Encoder support audio routing? Yes, it offers independent audio routing, allowing you to control video and audio separately.
4. Is this system easy to install? Absolutely! The Key Digital KDIP1022ENCII is designed for easy integration into existing systems, offering various control options like IR and RS-232 for simplified installation.
5. Can the Key Digital KDIP1022ENCII Encoder be used for video wall applications? Yes, the system supports video wall and mosaic video wall configurations, making it perfect for large-scale installations.
