Memphis Audio PRX1500.5V2 Power Reference 5-Channel 1500W Amplifier

Memphis Audio PRX1500.5V2 Power Reference Compact 5-Channel 1500W Amplifier

The Memphis Audio PRX1500.5V2 5-channel amplifier is built to deliver Power Reference performance in a compact space saving design. Its reduced footprint, hidden top-mount controls, and LED-accented acrylic top panel make it easier to install and adjust while adding a high end custom appearance.

Compact Design with Power Reference Output

Power Reference amplifiers were redesigned with a smaller footprint compared to their predecessors while maintaining the impressive power ratings expected from the series. That makes the Memphis Audio PRX1500.5V2 a strong solution for installations where space is limited but multi-channel output is still a priority.

• Compact space saving design
• Dimensions: 11.75 x 5.7 x 2.16 inches
• 75W x 4 + 400W RMS at 4Ω
• 125W x 4 + 700W RMS at 2Ω
• Can also be used as 125W x 4 at 2Ω + 1000W x 1 at 1Ω
• Bridged at 4Ω: 250W x 2 + N/A

Cleaner Installation and Easy Adjustment

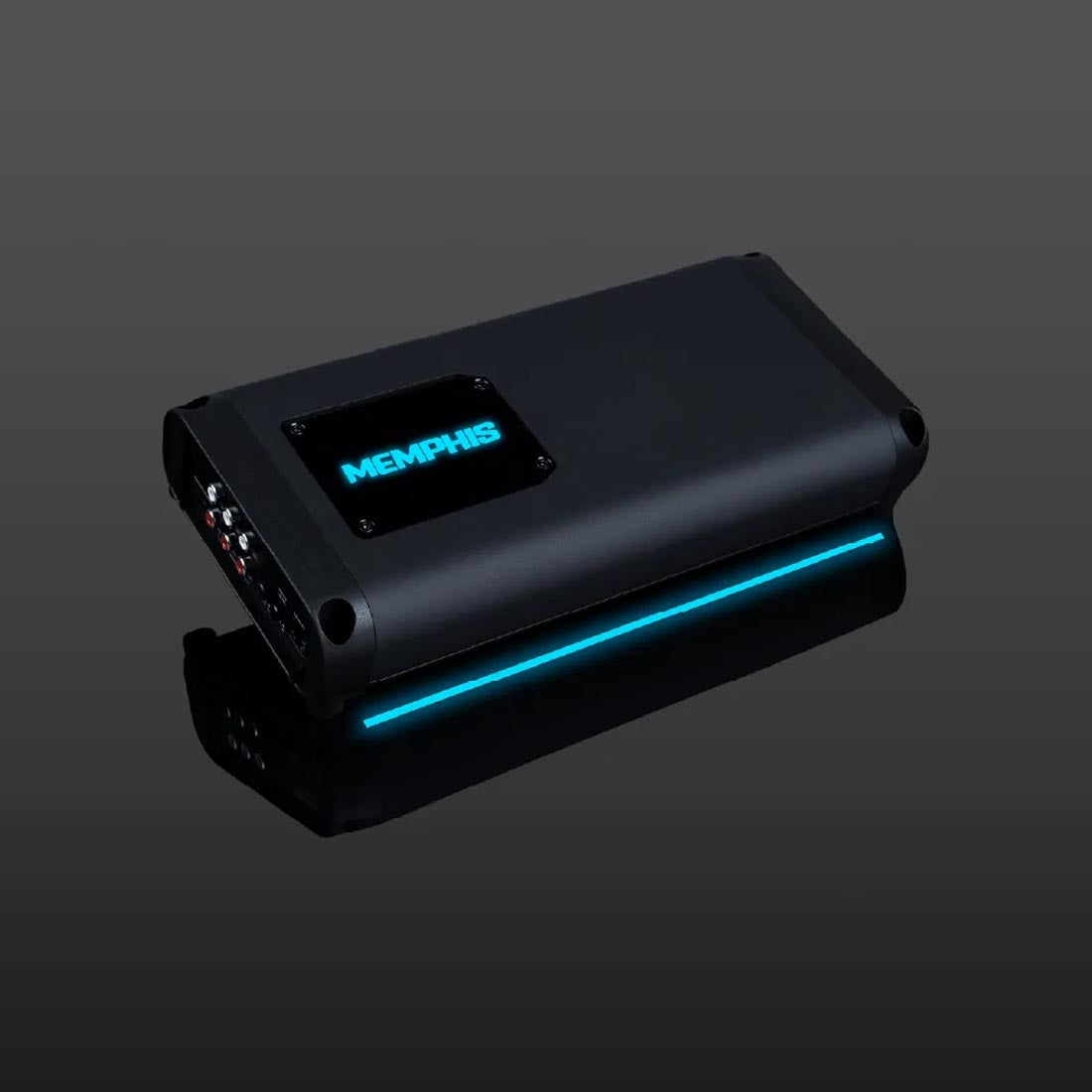

A sleek LED-accented acrylic top panel conceals conveniently located top-mounted controls, allowing for easy adjustments even in tight spaces. Undermount LED accent lighting adds a personalized touch and a high end custom appearance for builds that put installation detail on display.

• Blue LED top cover & ground lighting

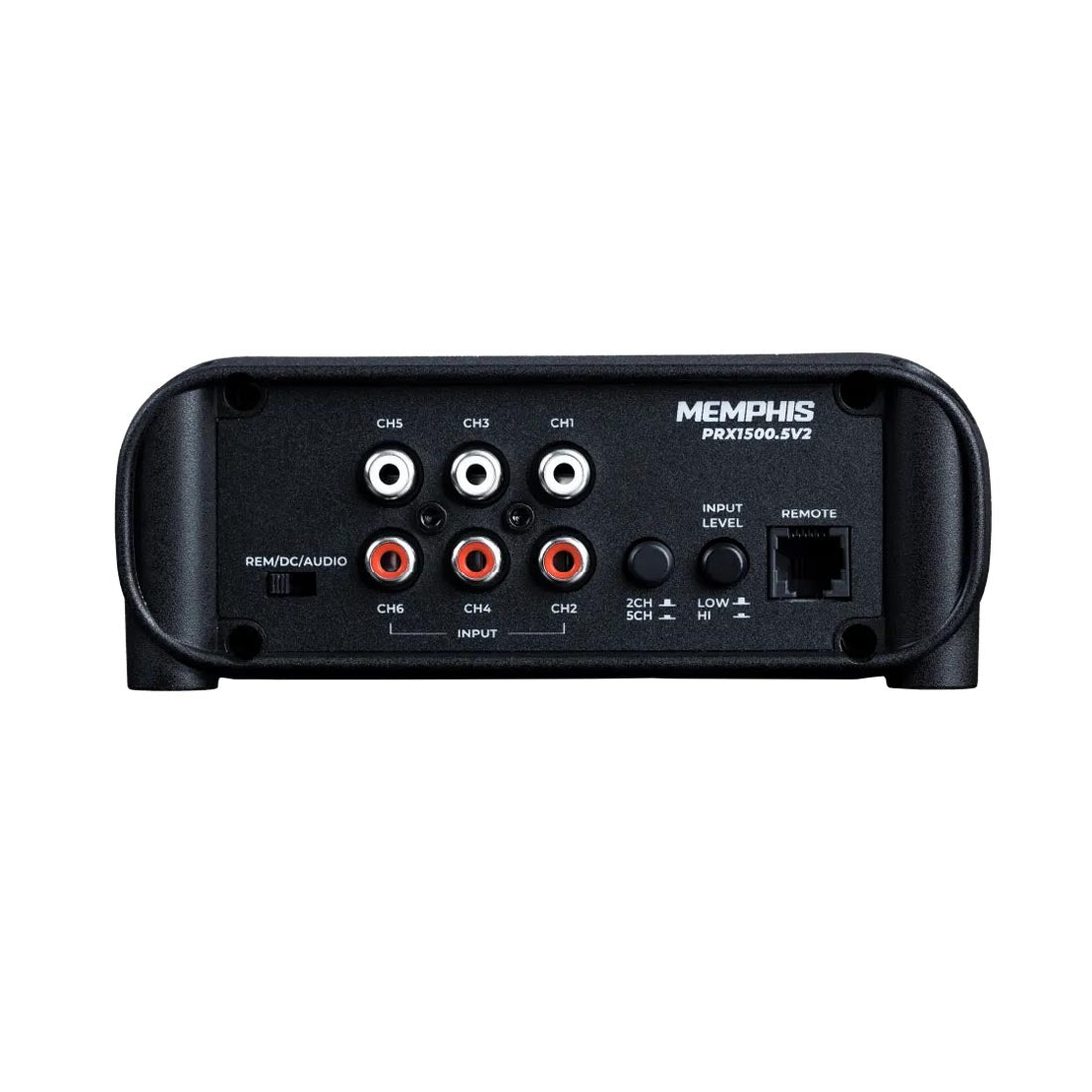

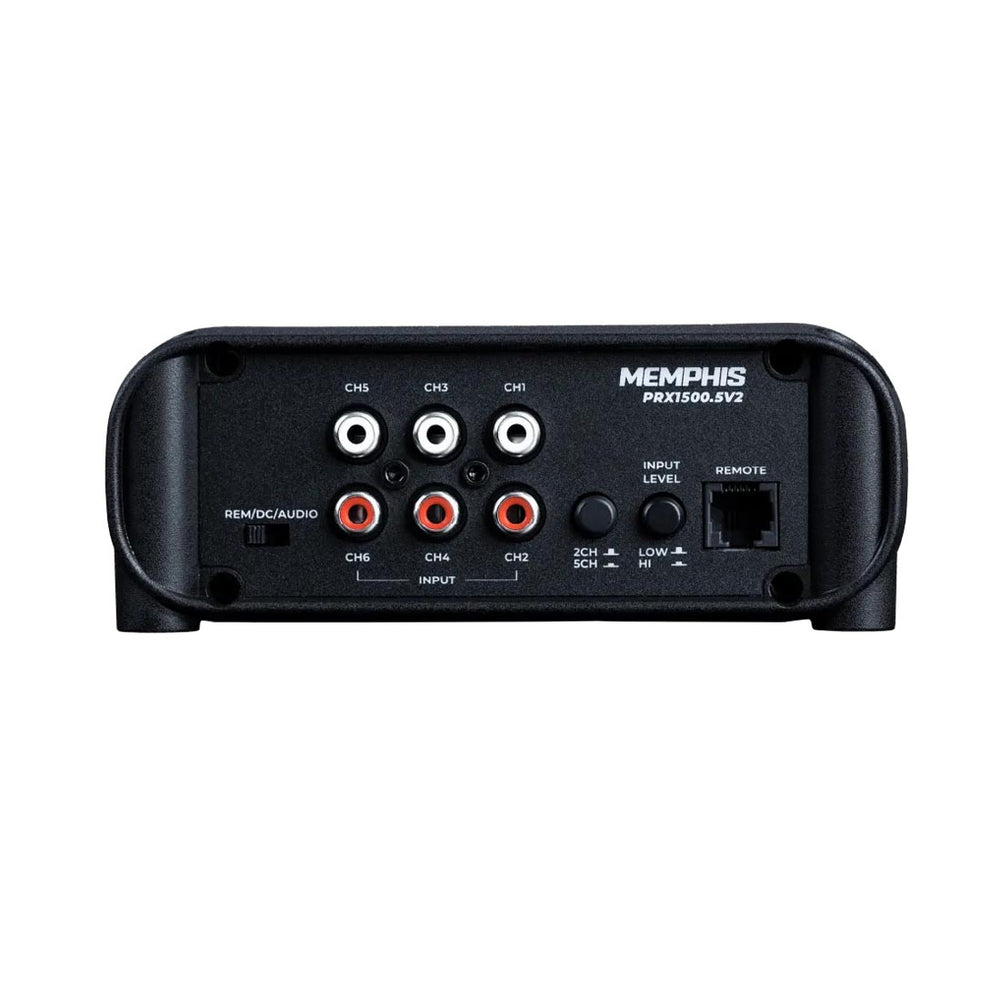

• Top mount controls hidden under panel
• Selectable amp turn on

Precise Sound Control for System Tuning

The Memphis Audio PRX1500.5V2 is equipped for detailed tuning with crossover and equalization controls that support precise sound control. A bass knob is included for convenient subwoofer level adjustment from the front of the vehicle.

• 12dB/octave butterworth crossovers
• Variable EQ boost: 0-12dB
• 18dB subsonic filter
• Frequency response: 10Hz – 21kHz

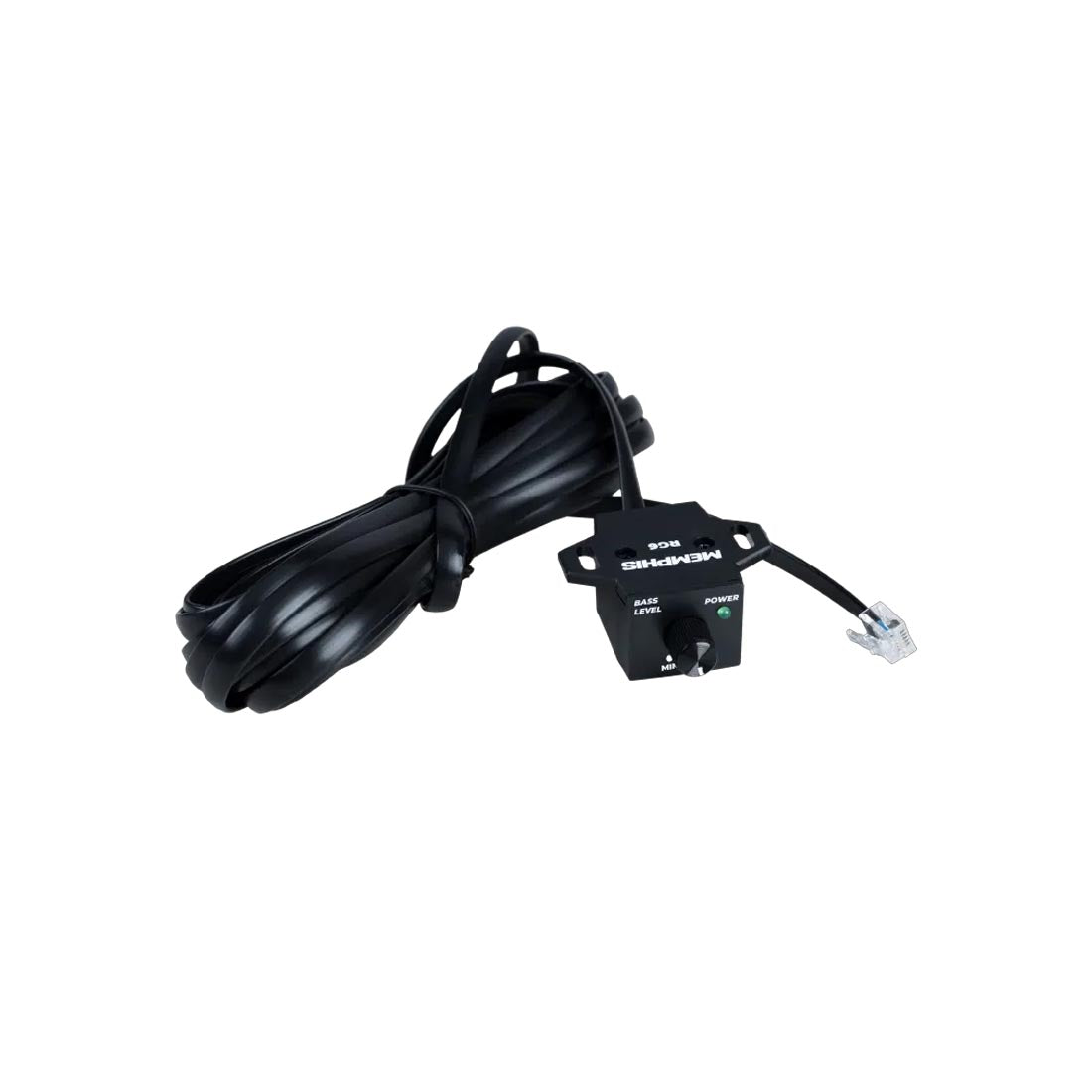

• Bass knob included

Built for Versatile Full-System Setups

The 5-channel design can power front and rear speakers along with a subwoofer from one amplifier, helping simplify a complete car audio upgrade. An extruded aluminum heatsink and unwavering reliability support dependable performance in a wide range of system layouts.

• 5-channel configuration
• Extruded aluminum heatsink
• Recommended amp kit: 0GKIT
• THD at 4Ω: <1%

FAQs

1. Are the Memphis Audio PRX1500.5V2 controls easy to access after installation? Yes. The top-mounted controls are hidden under the panel and allow easy adjustments even in tight spaces.
2. Does this amplifier include a bass knob? Yes. A bass knob is included.
3. How compact is the Memphis Audio PRX1500.5V2? It measures 11.75 x 5.7 x 2.16 inches.
4. What amplifier kit is recommended? The recommended amplifier kit is the 0GKIT.
