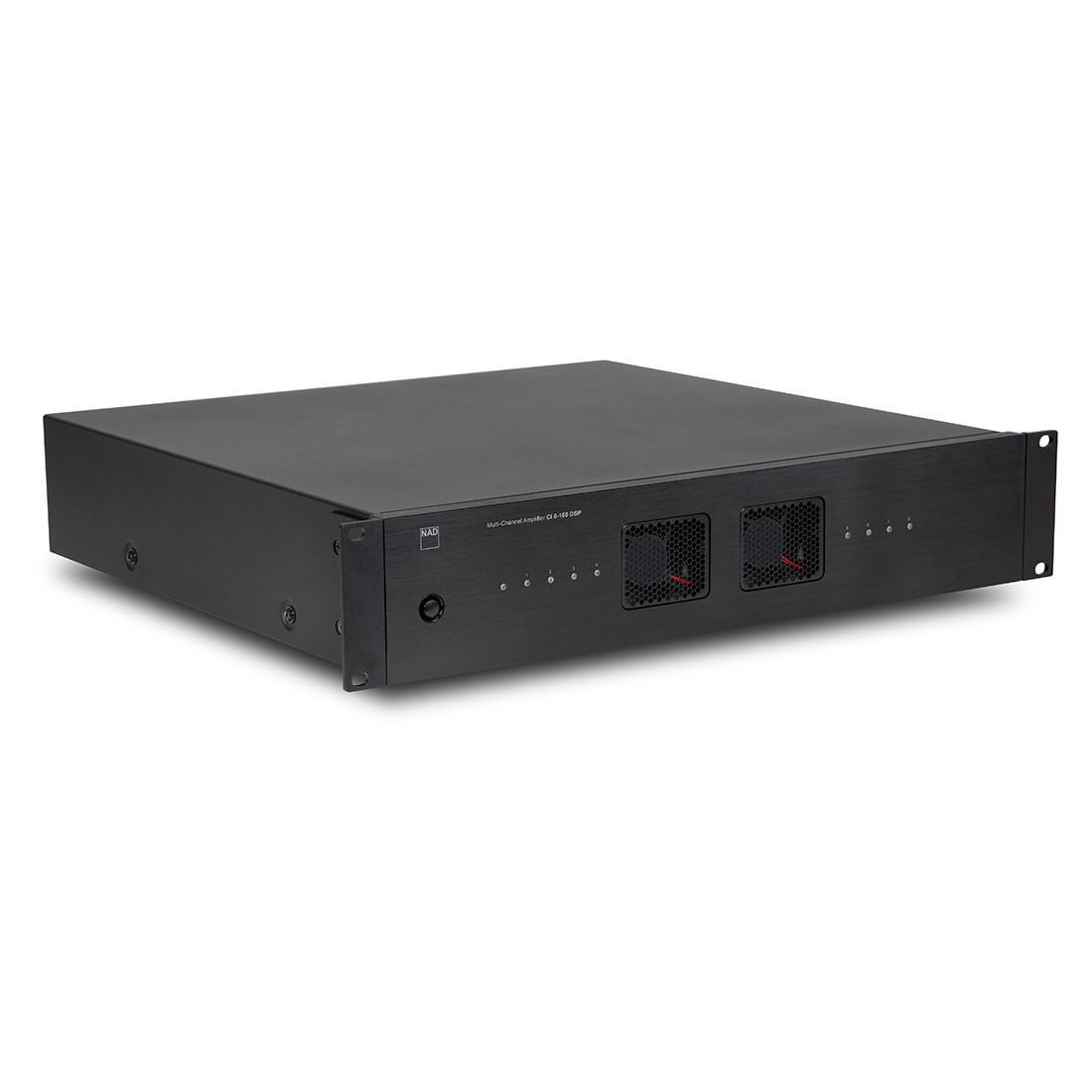

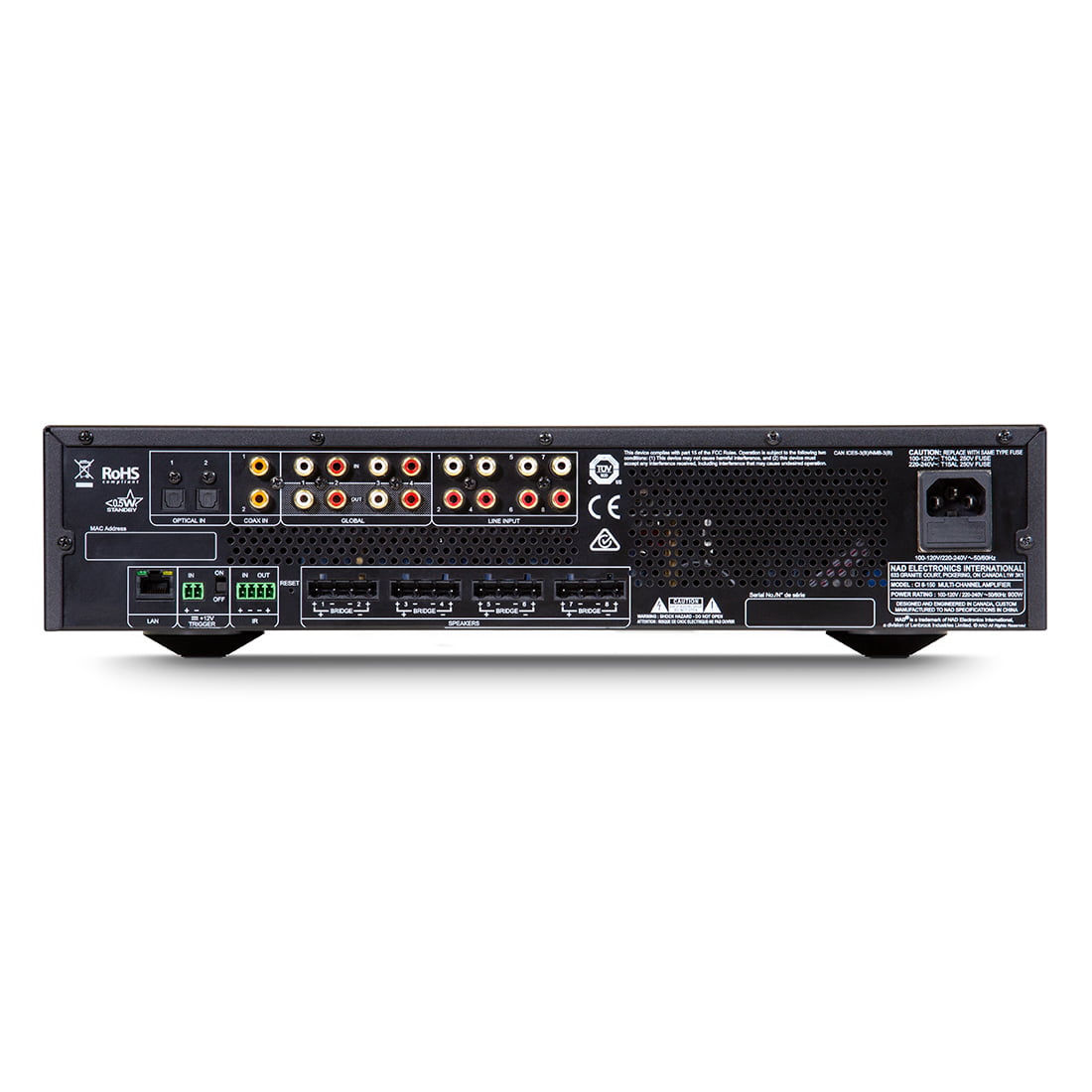

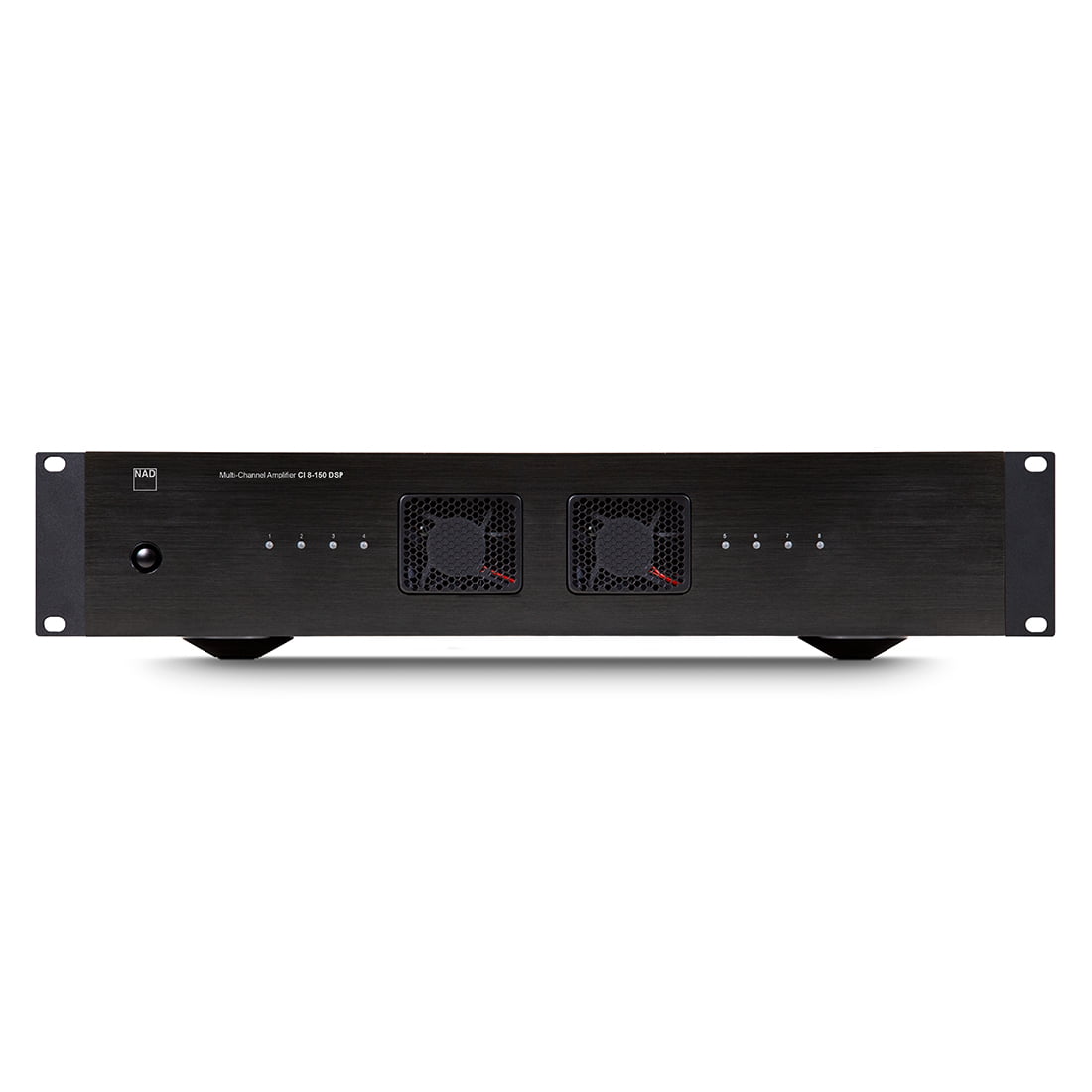

NAD CI 8-150 DSP Multi-Channel Amplifier

Product Descriptions

NAD CI 8-150 DSP Multi-Channel Amplifier

Our eight-channel powerhouse promises NAD’s legendary performance with reliability and stability with lots of installer-friendly Features. The all-new NAD CI 8-150 is an advanced amplifier targeted squarely at audiophile-grade distributed audio systems. Delivering a conservative 8 x 150 Watts per channel @ 8 Ohms, it is also bridgeable to 4 x 280 Watts per channel @ 8 Ohms with all channels driven. To put it simply, the CI 8-150 will drive most anything you need in your multi-room audio system, and will do so with remarkable sound quality.

Smart CI Solution with Audiophile Performance for Distributed Audio

The NCore amplifier platform delivers stable and efficient power with high current capability, all in a slim 1U rack space. To make this level of performance possible, the NAD CI 8-150 DSP uses a customized version of the proven NCore output stage. This allows for massive power with extremely low distortion and noise in the audible range. Every detail of this design has been carefully executed to wring out every last drop of performance. Designed to deal with the demands of the CI world, it was made to handle long cable runs and difficult speaker loads.
For additional flexibility for the system designer, the CI 8-150 offers multiple inputs including an additional two coax inputs and two optical inputs.
NAD is keenly aware that reliability is paramount for a professional installer so all models will be based on tried and true amplification platforms delivering stable and reliable performance. The CI 8-150 amplifier is robust and stable at 4 Ohm impedance. A variety of power methods are available as well as an Eco mode setting for minimal power consumption.



Key Features of the NAD CI 8-150 DSP Amplifier

  • 8 Channels x 150 Watts @ 8 Ohms
  • Bridgeable to 4 Channels X 280 Watts @ 8 Ohms, all channels driven
  • NCore amplifier technology for audiophile sound quality
  • 2U Rack Height- saves valuable rack space
  • Platform accessed through IP control
  • Custom web app manages DSP calibration, IP control and more
  • Effectively handles long cable runs and difficult speaker loads
  • Dual global Inputs/Outputs
  • 0.5W Standby Mode, 3W Network Standby
  • 12V Trigger In; IR In/Out
  • Auto Sense Turn-on
  • Universal AC Power Supply

Features & Specs

Weight17.6 kg

Dimensions483 × 90 × 435 mm

Specifications

-Continuous output power into 8 ohms: 150 W (ref. 20 Hz-20 kHz at rated THD – all channels driven); 180 W (ref. 20 Hz-20 kHz at rated THD – two channels driven)
-Continuous output power into 4 ohms: 180 W (ref. 20 Hz-20 kHz at rated THD – all channels driven); 300W (ref. 20 Hz-20 kHz at rated THD – two channels driven)
-Continuous output power into 8 ohms at Bridged mode: 280 W (ref. 20 Hz-20 kHz 0.02% THD – all channels driven); 500 W (ref. 20 Hz-20 kHz 0.02% THD – two channels driven)
-THD (20 Hz – 20 kHz): 0.02% (1 W to 120 W, 8 ohms and 4 ohms)
-Signal-to-Noise Ratio: 90 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
-Clipping power (All channels driven): 160W(1kHz8ohms 0.1%THD); 200W(1kHz4ohms 0.1%THD)
-Clipping power into 8 ohms at Bridged mode: 300 W (1 kHz 0.1 % THD – all channels driven); 550 W (1 kHz 0.1 % THD – two channels driven)
-IHF Dynamic Power (all channels driven) – 8 Ohms: 180W
-IHF Dynamic Power (all channels driven) – 4 Ohms: 280W
-IHF Dynamic Power (two channels driven) – 8 Ohms: 200W
-IHF Dynamic Power (two channels driven) – 4 Ohms: 360W
-IHF Dynamic Power (Bridged mode, All channels driven) – 8 Ohms: 520W
-IHF Dynamic Power (Bridged mode, All channels driven) – 4 Ohms: 670W
-IHF Dynamic Power (Bridged mode, Two channels driven) – 8 Ohms: 600W
-IHF Dynamic Power (Bridged mode, Two channels driven) – 4 Ohms: 800W
-Peak output current: 26A(1ohm,1ms)
-Damping Factor: 150 (ref. 8 ohms, 20 Hz to 6.5 kHz)
-Frequency Response: ±0.5dB(20Hz-20kHz)
-Channel Seperation: 75 dB (1 kHz); 65 dB (10 kHz)
-Maximum undistorted input level: 3300 mV
-Input sensitivity (for 150 W in 8 ohms, maximum volume): 1450 mV
-Analog Input audio sense threshold (one channel with signal): 3 ± 0.5 mVrms (ref. 100 Hz – 10 kHz)
-Trigger IN level: 3-30Vdc
-Standby power: 0.5 W
-Gross dimensions (W x H x D): 483x90x435mm; 19 1/16 x 3 9/16 x 17 3/16 inches
-Shipping Weight: 17.6 kg (38.8 lbs)

Amplifier Channels

8

Color

Black

Watts Per Channel

51 to 150w

Amplifier - DAC

No

RMS Power

1201 to 1600 Watts

Documents

Warranty

NAD Canada 2 Years Limited Manufacturers Warranty.
SKU: CI 8-150 DSP
$4,599.00
or

Payment as low as

$383.25/mo
Info icon

This monthly payment does not include any applicable tax or interest

Flash Sale Ends:

Free ShippingFree Shipping |

Lowest Price GuaranteeLowest Price Guarantee*

  • Bridgeable to 4 Channels X 280 Watts @ 8 Ohms, all channels driven
  • Ncore amplifier technology for audiophile sound quality
  • 2U Rack Height- saves valuable rack space
  • Platform accessed through IP control
Phone icon

Call 1-866-696-7189

Call for Expert AdviceCall for Expert Advice
Info icon

Does not apply to special order items.

60-day Return Policy
Lowest Price Guarantee*

Product Descriptions

NAD CI 8-150 DSP Multi-Channel Amplifier

Our eight-channel powerhouse promises NAD’s legendary performance with reliability and stability with lots of installer-friendly Features. The all-new NAD CI 8-150 is an advanced amplifier targeted squarely at audiophile-grade distributed audio systems. Delivering a conservative 8 x 150 Watts per channel @ 8 Ohms, it is also bridgeable to 4 x 280 Watts per channel @ 8 Ohms with all channels driven. To put it simply, the CI 8-150 will drive most anything you need in your multi-room audio system, and will do so with remarkable sound quality.

Smart CI Solution with Audiophile Performance for Distributed Audio

The NCore amplifier platform delivers stable and efficient power with high current capability, all in a slim 1U rack space. To make this level of performance possible, the NAD CI 8-150 DSP uses a customized version of the proven NCore output stage. This allows for massive power with extremely low distortion and noise in the audible range. Every detail of this design has been carefully executed to wring out every last drop of performance. Designed to deal with the demands of the CI world, it was made to handle long cable runs and difficult speaker loads.
For additional flexibility for the system designer, the CI 8-150 offers multiple inputs including an additional two coax inputs and two optical inputs.
NAD is keenly aware that reliability is paramount for a professional installer so all models will be based on tried and true amplification platforms delivering stable and reliable performance. The CI 8-150 amplifier is robust and stable at 4 Ohm impedance. A variety of power methods are available as well as an Eco mode setting for minimal power consumption.



Key Features of the NAD CI 8-150 DSP Amplifier

  • 8 Channels x 150 Watts @ 8 Ohms
  • Bridgeable to 4 Channels X 280 Watts @ 8 Ohms, all channels driven
  • NCore amplifier technology for audiophile sound quality
  • 2U Rack Height- saves valuable rack space
  • Platform accessed through IP control
  • Custom web app manages DSP calibration, IP control and more
  • Effectively handles long cable runs and difficult speaker loads
  • Dual global Inputs/Outputs
  • 0.5W Standby Mode, 3W Network Standby
  • 12V Trigger In; IR In/Out
  • Auto Sense Turn-on
  • Universal AC Power Supply

Features & Specs

Weight17.6 kg

Dimensions483 × 90 × 435 mm

Specifications

-Continuous output power into 8 ohms: 150 W (ref. 20 Hz-20 kHz at rated THD – all channels driven); 180 W (ref. 20 Hz-20 kHz at rated THD – two channels driven)
-Continuous output power into 4 ohms: 180 W (ref. 20 Hz-20 kHz at rated THD – all channels driven); 300W (ref. 20 Hz-20 kHz at rated THD – two channels driven)
-Continuous output power into 8 ohms at Bridged mode: 280 W (ref. 20 Hz-20 kHz 0.02% THD – all channels driven); 500 W (ref. 20 Hz-20 kHz 0.02% THD – two channels driven)
-THD (20 Hz – 20 kHz): 0.02% (1 W to 120 W, 8 ohms and 4 ohms)
-Signal-to-Noise Ratio: 90 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
-Clipping power (All channels driven): 160W(1kHz8ohms 0.1%THD); 200W(1kHz4ohms 0.1%THD)
-Clipping power into 8 ohms at Bridged mode: 300 W (1 kHz 0.1 % THD – all channels driven); 550 W (1 kHz 0.1 % THD – two channels driven)
-IHF Dynamic Power (all channels driven) – 8 Ohms: 180W
-IHF Dynamic Power (all channels driven) – 4 Ohms: 280W
-IHF Dynamic Power (two channels driven) – 8 Ohms: 200W
-IHF Dynamic Power (two channels driven) – 4 Ohms: 360W
-IHF Dynamic Power (Bridged mode, All channels driven) – 8 Ohms: 520W
-IHF Dynamic Power (Bridged mode, All channels driven) – 4 Ohms: 670W
-IHF Dynamic Power (Bridged mode, Two channels driven) – 8 Ohms: 600W
-IHF Dynamic Power (Bridged mode, Two channels driven) – 4 Ohms: 800W
-Peak output current: 26A(1ohm,1ms)
-Damping Factor: 150 (ref. 8 ohms, 20 Hz to 6.5 kHz)
-Frequency Response: ±0.5dB(20Hz-20kHz)
-Channel Seperation: 75 dB (1 kHz); 65 dB (10 kHz)
-Maximum undistorted input level: 3300 mV
-Input sensitivity (for 150 W in 8 ohms, maximum volume): 1450 mV
-Analog Input audio sense threshold (one channel with signal): 3 ± 0.5 mVrms (ref. 100 Hz – 10 kHz)
-Trigger IN level: 3-30Vdc
-Standby power: 0.5 W
-Gross dimensions (W x H x D): 483x90x435mm; 19 1/16 x 3 9/16 x 17 3/16 inches
-Shipping Weight: 17.6 kg (38.8 lbs)

Amplifier Channels

8

Color

Black

Watts Per Channel

51 to 150w

Amplifier - DAC

No

RMS Power

1201 to 1600 Watts

Documents

Warranty

NAD Canada 2 Years Limited Manufacturers Warranty.
