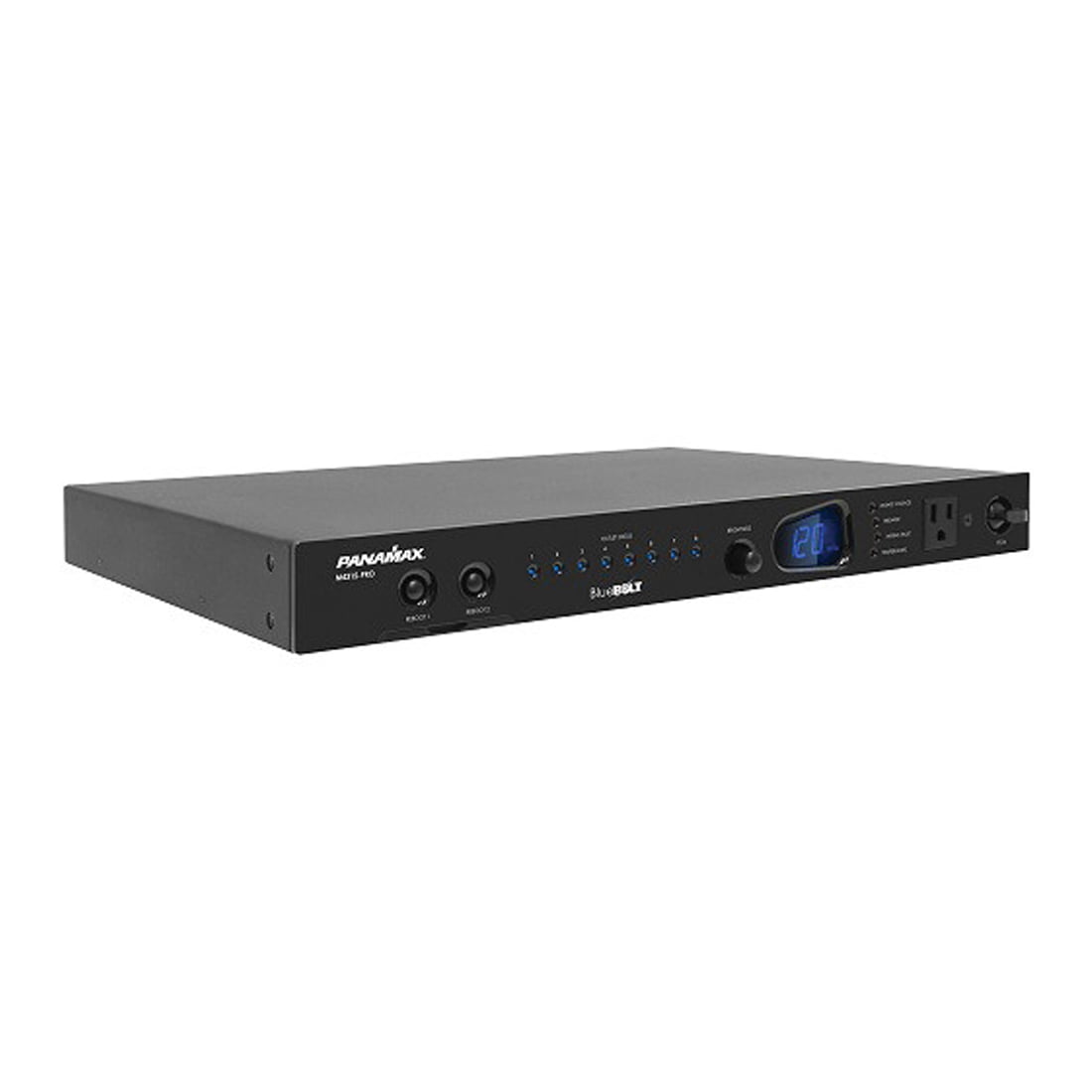

Panamax M4315-PRO BlueBolt Controllable Power Conditioner - 8 Outlets

Product Description

Panamax M4315-PRO BlueBolt Controllable Power Conditioner - 8 Outlets

The Panamax M4315-PRO Power Management with Control System from Panamax is a rack-mountable, power management system that features Panamax's AVM circuit and Linear Filtering Technology ,which provide AC protection and purification.

BlueBOLT Technology

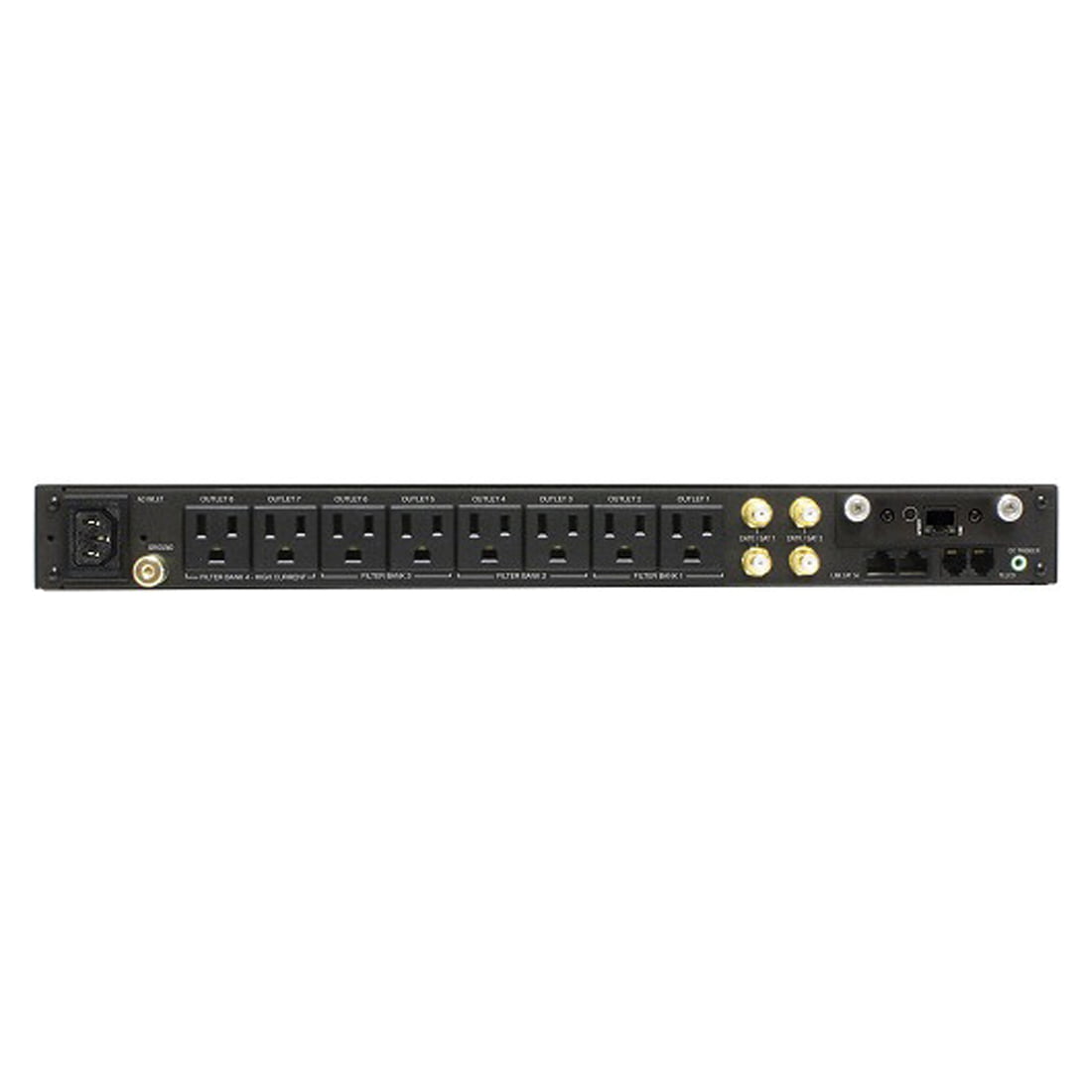

Included is the BlueBOLT-CV1, which provides secure, hosted IP system control and monitoring for the M4315-PRO. The M4315-PRO features Panamax’s revolutionary AVM (Automatic Voltage Monitoring) circuit, and our exclusive Linear Filtering Technology (LiFT). Together, these technologies comprise precisely what our customers have come to expect from Panamax: uncompromised AC protection and purification. Outlets: all eight (8) rear panel outlets are separately controlled. They are grouped into four (4) filter-isolated banks. BlueBOLT™ is included, providing secure, hosted IP system control and monitoring for the M4315-PRO. 1 RU 15 AMP 8 BlueBOLT Programmable Outlets w/Auto Reset, 10Ft IEC Cord

Features :

  • 12V input triggering
  • Circuit breaker/power switch
  • Two front panel programmable reboot buttons
  • Linear Filtration with four isolated outlet banks
  • IP control with BlueBOLT-CV1 and RS-232C cards
  • Volt/amp meter, outlet status, and warning LEDs
  • Removable rack ears with a full depth metal chassis
  • Eight fully controllable/programmable outlets via BlueBOLT-CV1 or RS-232C cards
  • 15 Amp Capacity
  • Detachable 10 ft Power Cord
  • AVM & Protect-or-Disconnect Circuitry

Features & Specs

Power

– Line Voltage : 120 V, 60 Hz
– Isolated Filter Banks : 2
– Voltage Regulation : No
– Outlets Total : 9
– High Current : 2
– Max Total Current : 15 A, 1800 W
– Voltage Protection Rating : UL 1449 3rd Edition (3,000 A): 500 V
– Protection Modes : L-N, L-G, N-G
– Clamping Characteristics : Initial Clamping Level: 200 V Peak, 141 V RMS
– Maximum Energy Dissipation : 2700 J
– Peak Impulse Current : 135,000 amps
– Circuit Catastrophic Surge Circuit : Yes
– Safe Thermal Fusing : Yes
– Auto Reset : Auto-resetting Over-voltage shutoff : 134 VAC ± 2 VAC Auto-resetting Under-voltage shutoff : 100 VAC ± 2 VAC
– EMI / RFI Noise Filtration : Banks 1, 2, 3: 76 dB, 5-250 kHz
– Bank 4 and High Current Outlets : 46 dB, 250 kHz-1 Mhz

Protection

– LAN: Clamping Level : 60 ± 5 V
– Compatibility : 10/100/1000 BASE-T
– Jacks : RJ-45
– Wires Protected : 8 wires
– Telco Fuse-less/Auto-resetting : Yes
– Clamping Level : 260 V
– Capacitance: Approx. 30 pf
– Suppression Modes : metallic and longitudinal
– Connectors : RJ-11
– Lines Protected : 2-wire, pins 4 & 5
– COAX HD 1080 i/p Ready : Yes
– Bidirectional : Yes
– Shielded : Yes
– Clamping Level : 75 V
– Frequency Range : 0 MHz-2.2 GHz
– Insertion Loss : < 0.5 dB
– Connectors : Female "F", gold plated

Physical Characteristics

– Dimensions Overall : 12.25 x 17 x 1.75" (31.11 x 43.18 x 4.44 cm)
– With Rack Ears : 12.25 x 19 x 1.75" (31.11 x 48.26 x 4.44 cm)
– Weight : 12 lb (5.44 kg)

- Power Protection - # of Outlets : 9
