Panamax MD2-TL 2-Outlet Filtered & Surge Protector (MD2TL)

Call to Order: +1 (866) 696-7189
Prefer to chat? Click the chat icon below

Product Description

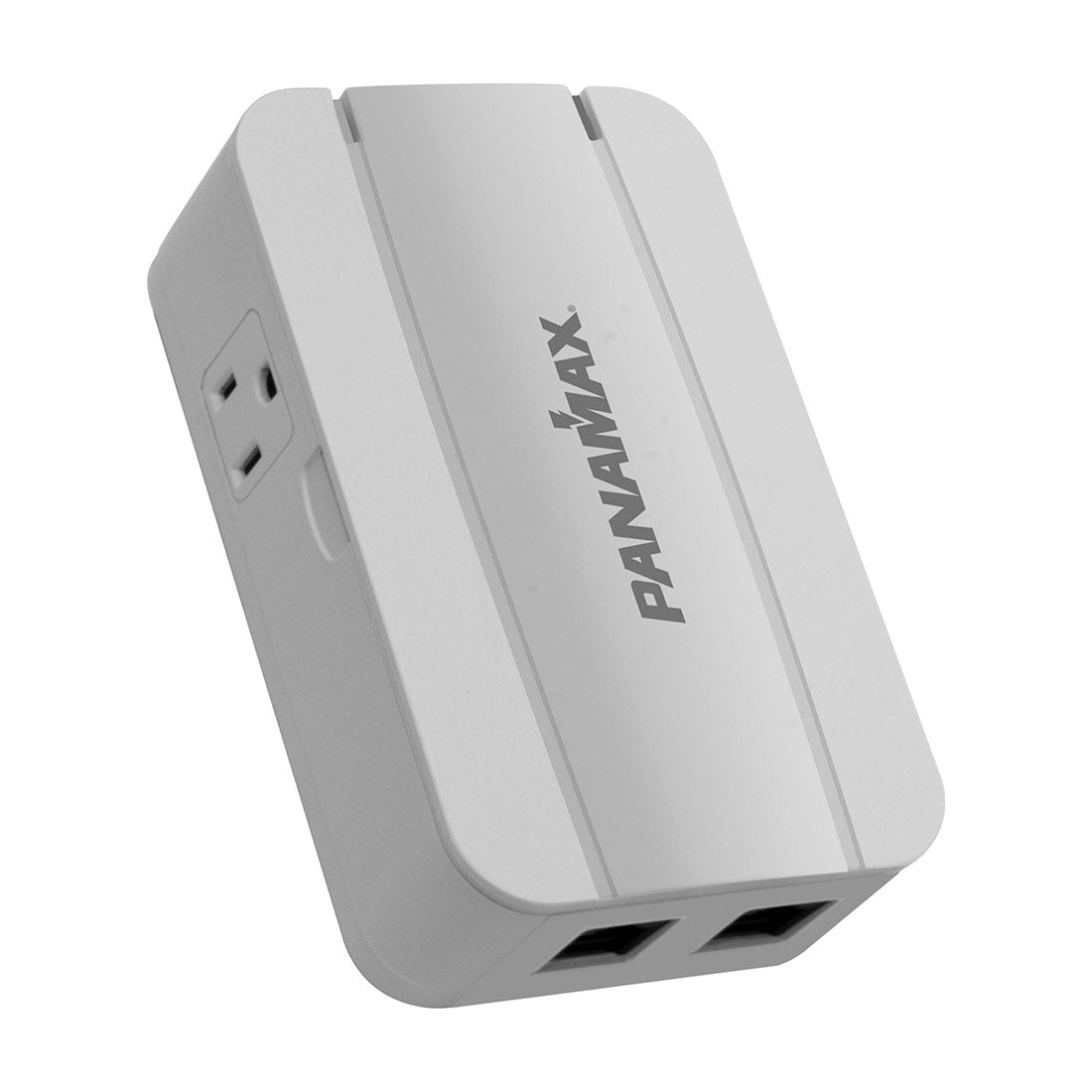

Panamax MD2-TL 2-Outlet Filtered & Surge Protector

-Exclusive Protect or Disconnect™ Circuitry

-Safeguards equipment against all surges. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.

-Noise Filtration Circuit

-EMI/RFI Filtration Circuitry for Clean, Unimpeded Power.

-LAN/Telco Protection

-Protects equipment from electrical surges that travel over low voltage LAN/Tel lines.

-$100,000 Limited Connected Equipment Protection Warranty

Features & Specs

- Voltage Protection Rating (UL 1449 3rd Edition, 3,000A) : L-N 400V, L-G 500V, N-G 500V
- Thermal Fusing : Yes
- Single Pulse Energy Dissipation : 1350 Joules
- Response Time : <1 ns
- Peak Impulse Current : 60,000 A
- Nominal Discharge Current : 3,000 A

LAN Specifications
- Wires Protected : Pins 1, 2, 3, & 6
- Suppression Modes : Differential & Common Ground
- Connectors : RJ-45 Shared with Telco
- Compatibility : 10/100 BASE-T
- Clamping Level : 7V

Telco Specifications
- Wires Protected : 2 wire, 1 pair (4,5)
- Suppression Modes : Metallic & Longitudinal
- Fuseless/Auto-Resetting : Yes
- Connectors : RJ-45 Shared with LAN
- Clamping Level : 260V
- Capacitance : 30 pf (approx.)

Documents

Warranty

Panamax Canada Offers Limited Lifetime Warranty
SKU: MD2-TL UPC: 050616008761

Save $81.01

$54.99
$136.00
Flash Sale Ends:

Covers shipping up to 7% of product value. If costs exceed this, we'll quote before shipping or cancel and refund. Free ShippingFree Shipping |

We guarantee the best price in Canada—before or 30 days after purchase.* Lowest Price GuaranteeLowest Price Guarantee*

Special Order

Final Sale

Call to Order: +1 (866) 696-7189
Prefer to chat? Click the chat icon below

  • EMI/RFI Filtration Circuitry for Clean, Unimpeded Power.
  • Protect-or-Disconnect™ Circuitry
  • In/Out Telco/LAN Connectors.
  • Removable, paintable cover ensures seamless fit with any décor.
  • Two Diagnostic Lights (LED) Power On/Protection OK and Line Fault.
  • Thin Profile – Only 1.5 inches deep.
  • Convenient display feature; turn cover around to hide diagnostic lights.
Phone icon

Call 1-866-696-7189

Call for Expert AdviceCall for Expert Advice
Info icon

Does not apply to special order items.

30-day Return Policy

We guarantee the best price in Canada—before or 30 days after purchase.*

Lowest Price Guarantee*

Product Description

Panamax MD2-TL 2-Outlet Filtered & Surge Protector

-Exclusive Protect or Disconnect™ Circuitry

-Safeguards equipment against all surges. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.

-Noise Filtration Circuit

-EMI/RFI Filtration Circuitry for Clean, Unimpeded Power.

-LAN/Telco Protection

-Protects equipment from electrical surges that travel over low voltage LAN/Tel lines.

-$100,000 Limited Connected Equipment Protection Warranty

Features & Specs

- Voltage Protection Rating (UL 1449 3rd Edition, 3,000A) : L-N 400V, L-G 500V, N-G 500V
- Thermal Fusing : Yes
- Single Pulse Energy Dissipation : 1350 Joules
- Response Time : <1 ns
- Peak Impulse Current : 60,000 A
- Nominal Discharge Current : 3,000 A

LAN Specifications
- Wires Protected : Pins 1, 2, 3, & 6
- Suppression Modes : Differential & Common Ground
- Connectors : RJ-45 Shared with Telco
- Compatibility : 10/100 BASE-T
- Clamping Level : 7V

Telco Specifications
- Wires Protected : 2 wire, 1 pair (4,5)
- Suppression Modes : Metallic & Longitudinal
- Fuseless/Auto-Resetting : Yes
- Connectors : RJ-45 Shared with LAN
- Clamping Level : 260V
- Capacitance : 30 pf (approx.)

Documents

Warranty

Panamax Canada Offers Limited Lifetime Warranty
MD2TL
,
MD2-TL
Panamax MD2-TL 2-Outlet Filtered & Surge Protector

Panamax MD2-TL 2-Outlet Filtered & Surge Protector (MD2TL)

$54.99 $136.00

Key Points

  • EMI/RFI Filtration Circuitry for Clean, Unimpeded Power.
  • Protect-or-Disconnect™ Circuitry
  • In/Out Telco/LAN Connectors.
  • Removable, paintable cover ensures seamless fit with any décor.
  • Two Diagnostic Lights (LED) Power On/Protection OK and Line Fault.
  • Thin Profile – Only 1.5 inches deep.
  • Convenient display feature; turn cover around to hide diagnostic lights.
