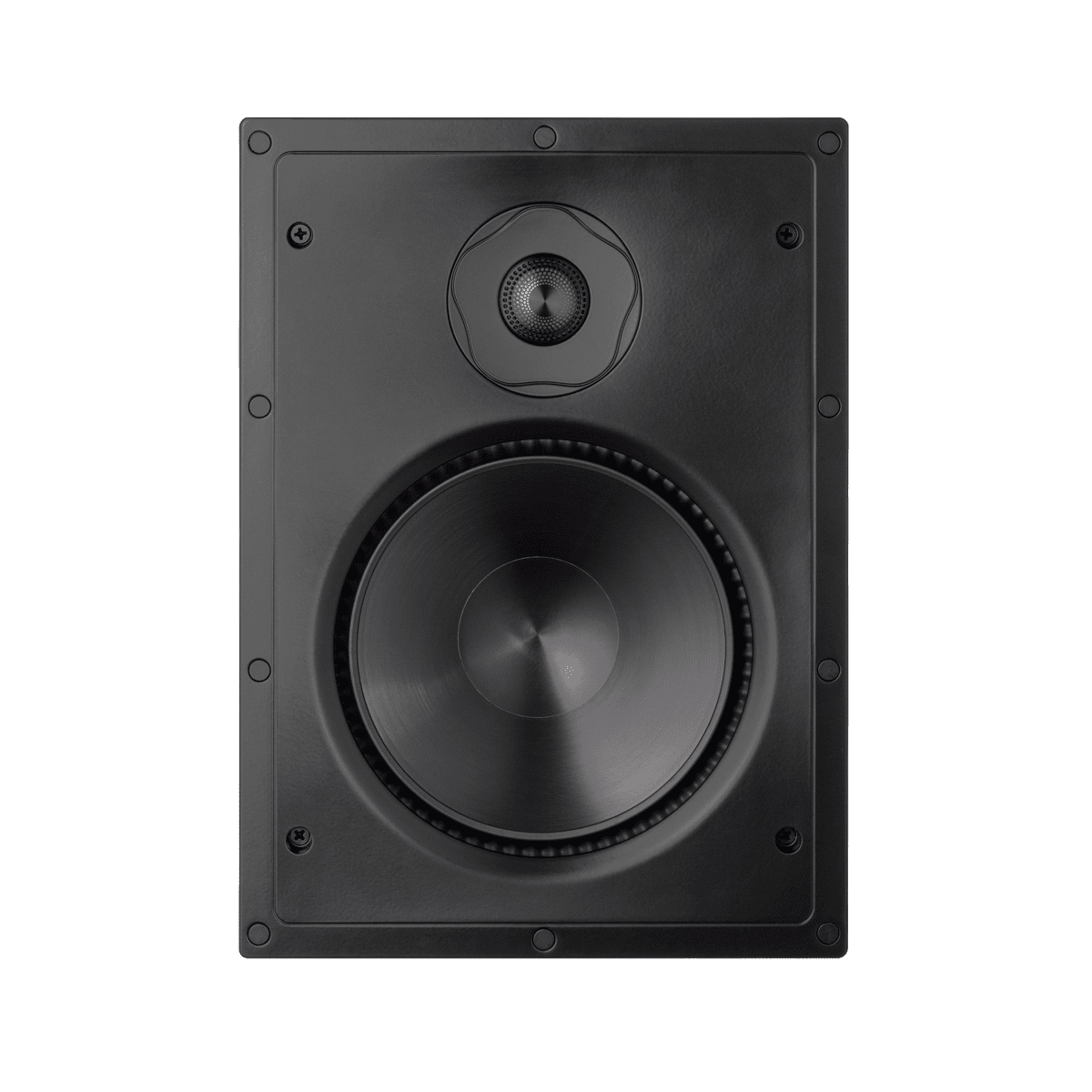

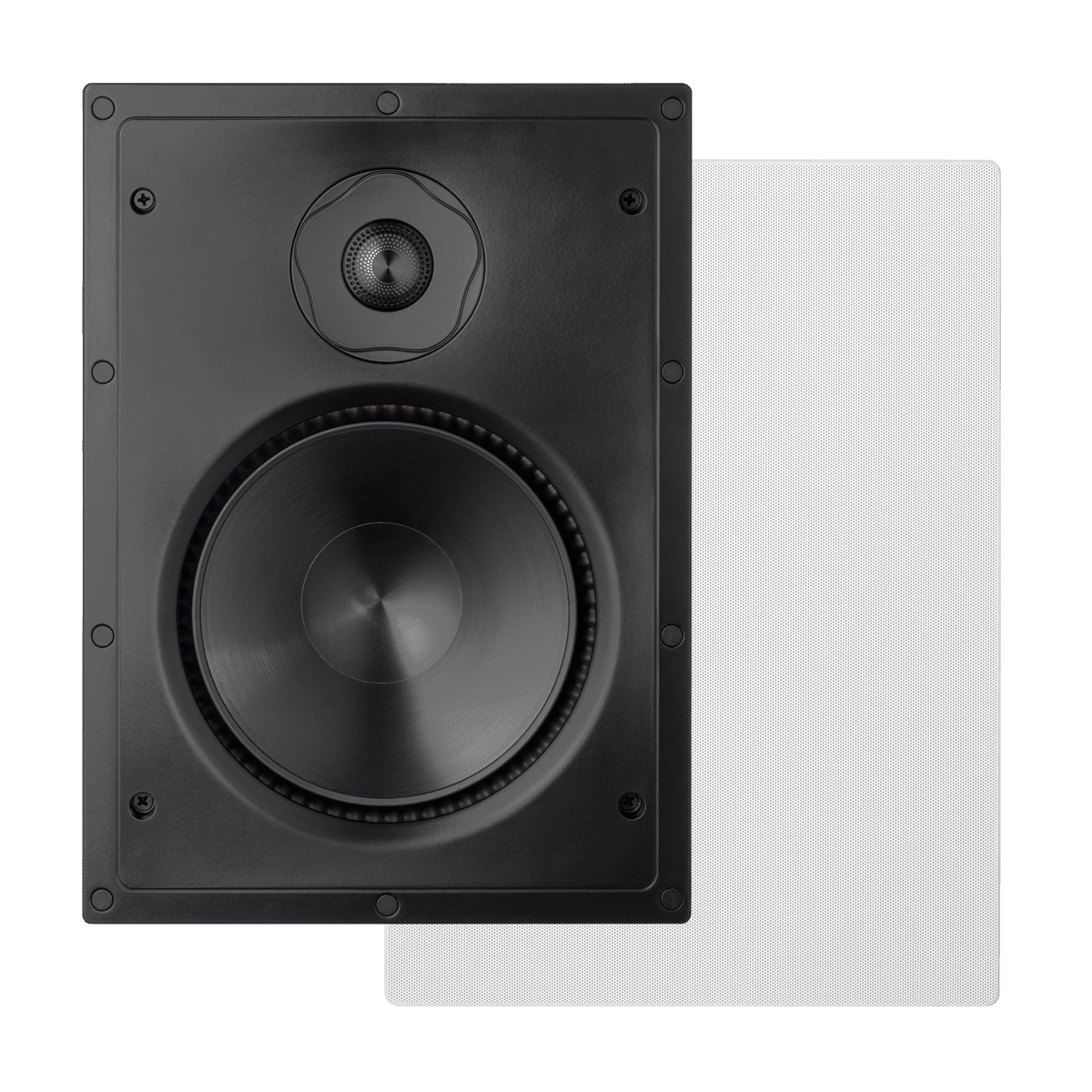

Paradigm CI ELITE E80-IW 8" In-Wall Speaker - Each (OPEN BOX)

Paradigm CI ELITE E80-IW 8" In-Wall Speaker - Each (OPEN BOX)

Paradigm CI ELITE E80-IW is priced and sold as Each

The Paradigm CI ELITE E80-IW delivers detailed sound from a discreet in-wall design, combining an 8" X-PAL™ driver with a 1" X-PAL™ dome tweeter. Priced and sold as each, this open box speaker brings together premium materials, thoughtful driver technology, and a clean, paintable grille for custom audio applications.

Premium In-Wall Speaker Design

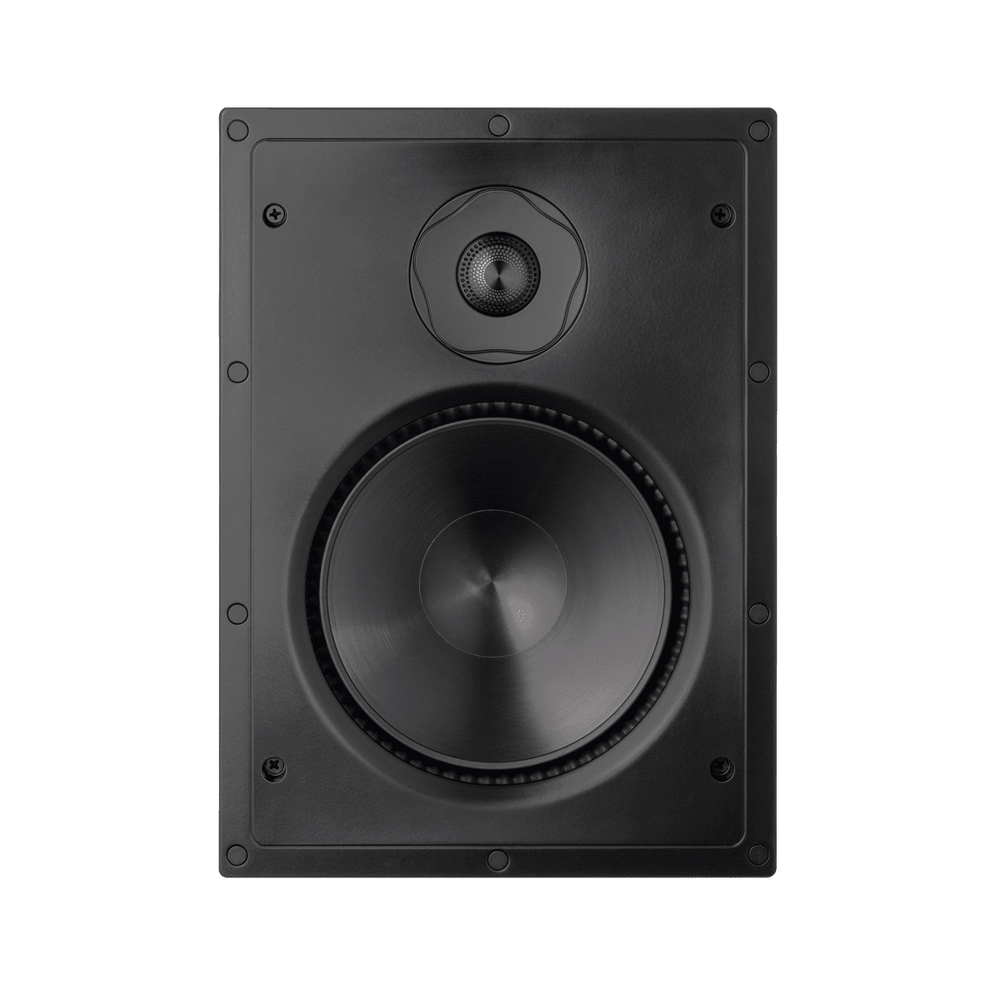

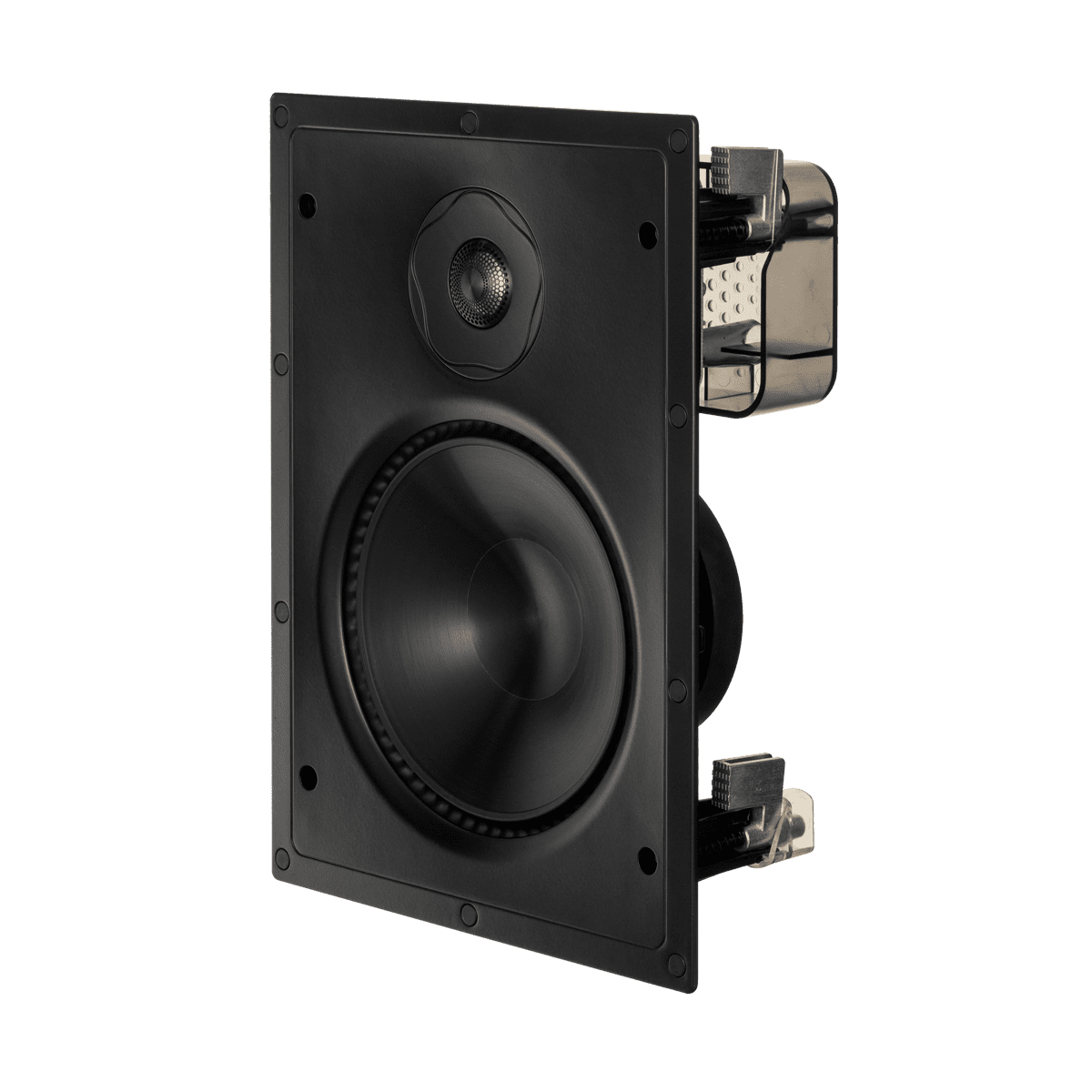

The Paradigm CI ELITE E80-IW features a 2-driver, 2-way design built around a die-cast aluminum baffle and chassis. The SHOCK-MOUNT™ Isolation Mounting System helps separate the speaker from the mounting surface, while the rigid aluminum construction provides strength for the speaker assembly.

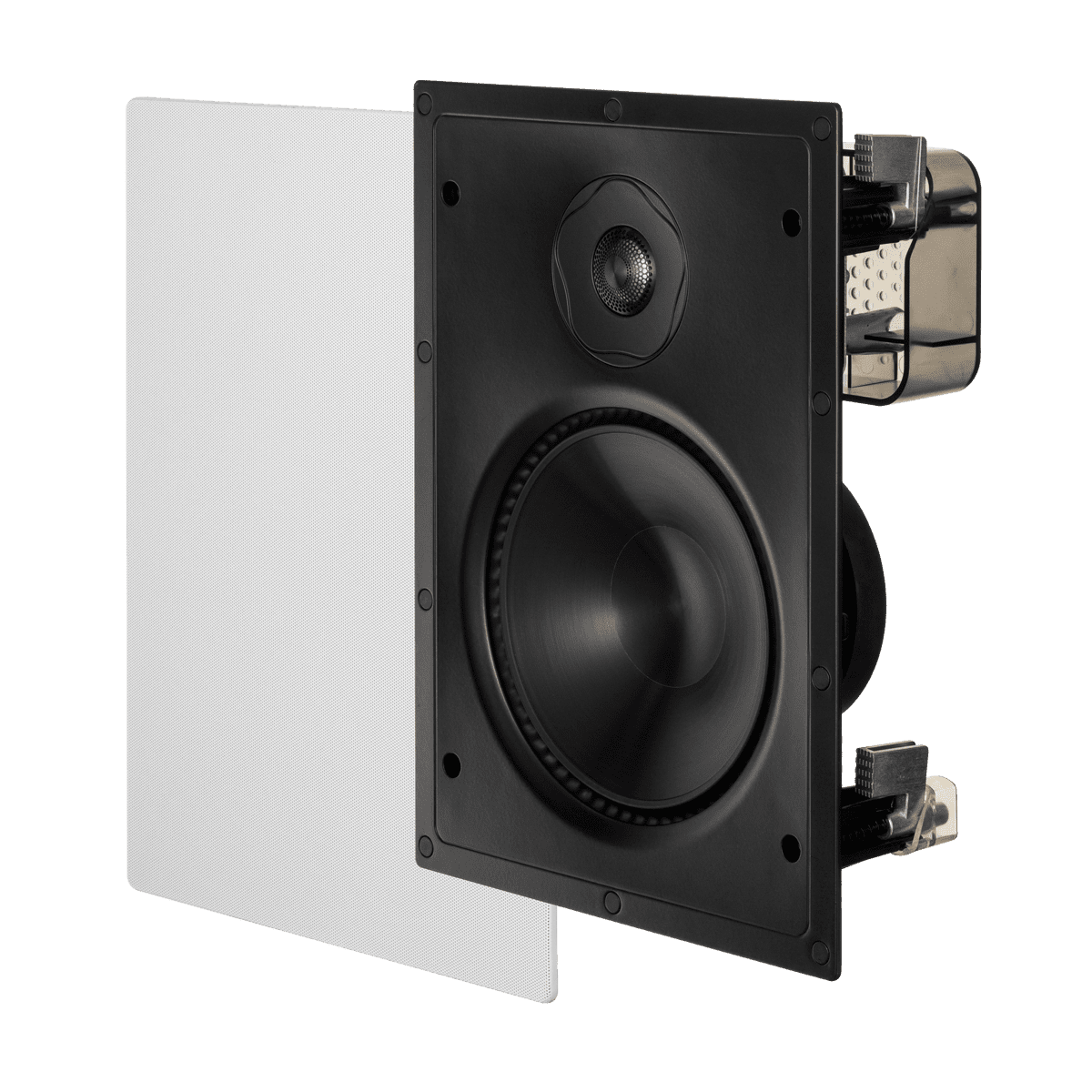

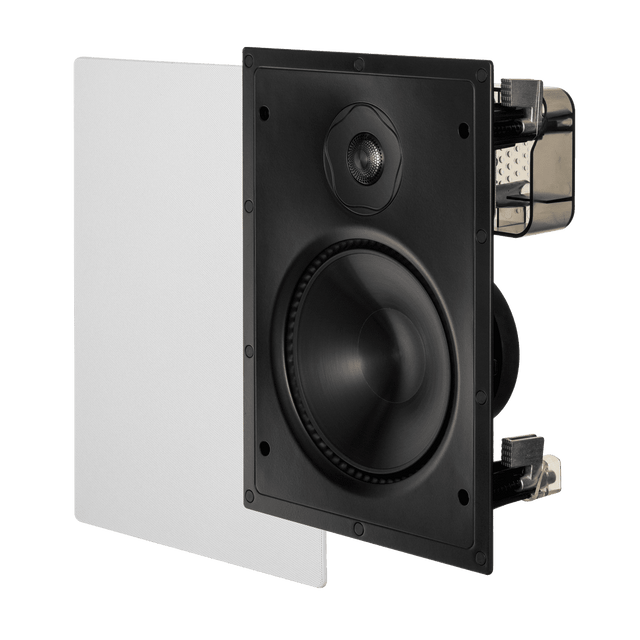

Its white, paintable grille and black speaker give the speaker a subtle appearance once placed in the wall. Magnetically attached grilles use neodymium magnets to hold them firmly in place.

8" X-PAL™ Mid/Bass Driver

The 8" X-PAL™ pure-aluminum mid/bass driver combines lightweight stiffness with consistency to support accurate, smooth sound. Its 1.5" high-temperature voice coil motor is designed for greater power handling and reduced power compression.

The driver also uses an Active Ridge Technology (ART™) surround, which is overmolded directly onto the cone. This design allows greater excursion and provides a 3dB gain in distortion-free output compared with drivers using standard surrounds.

X-PAL™ Tweeter Technology

High frequencies are handled by a 1" X-PAL™ dome tweeter with ferro-fluid damping and cooling. The tweeter incorporates Perforated Phase-Aligning (PPA™) technology, which protects the pure-aluminum dome while helping manage out-of-phase frequencies for extended high-frequency detail.

Reduced Edge Diffraction (RED™) Technology is also built into the design. The irregular edges of the tweeter housing and its off-center placement help reduce interference compared with a conventional tweeter housing mounted directly to the cone.

Frequency Response and Power Handling

The Paradigm CI ELITE E80-IW has an on-axis frequency response of 57 Hz - 22 kHz at ±3 dB, with a 30° off-axis response of 57 Hz - 18 kHz at ±3 dB. Its listed low-frequency extension reaches 33 Hz.

• Sensitivity: 92 dB room / 88 dB anechoic
• Suitable Amplifier Power Range: 15-180 W
• Maximum Input Power: 120 W
• Impedance: Compatible with 8 ohms
• Crossover: 3rd-order electro-acoustic at 2.0 kHz

Rigid Construction and Protection

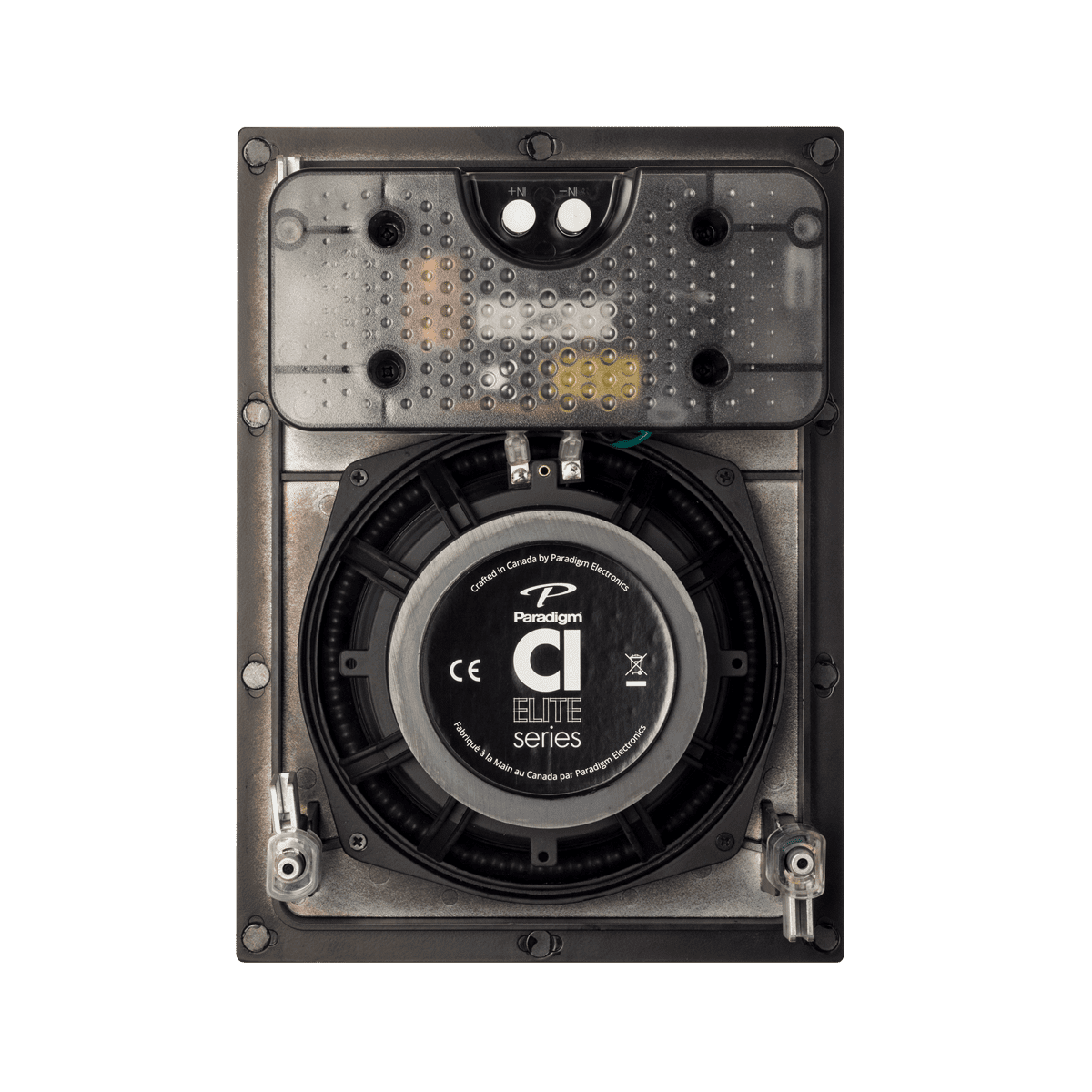

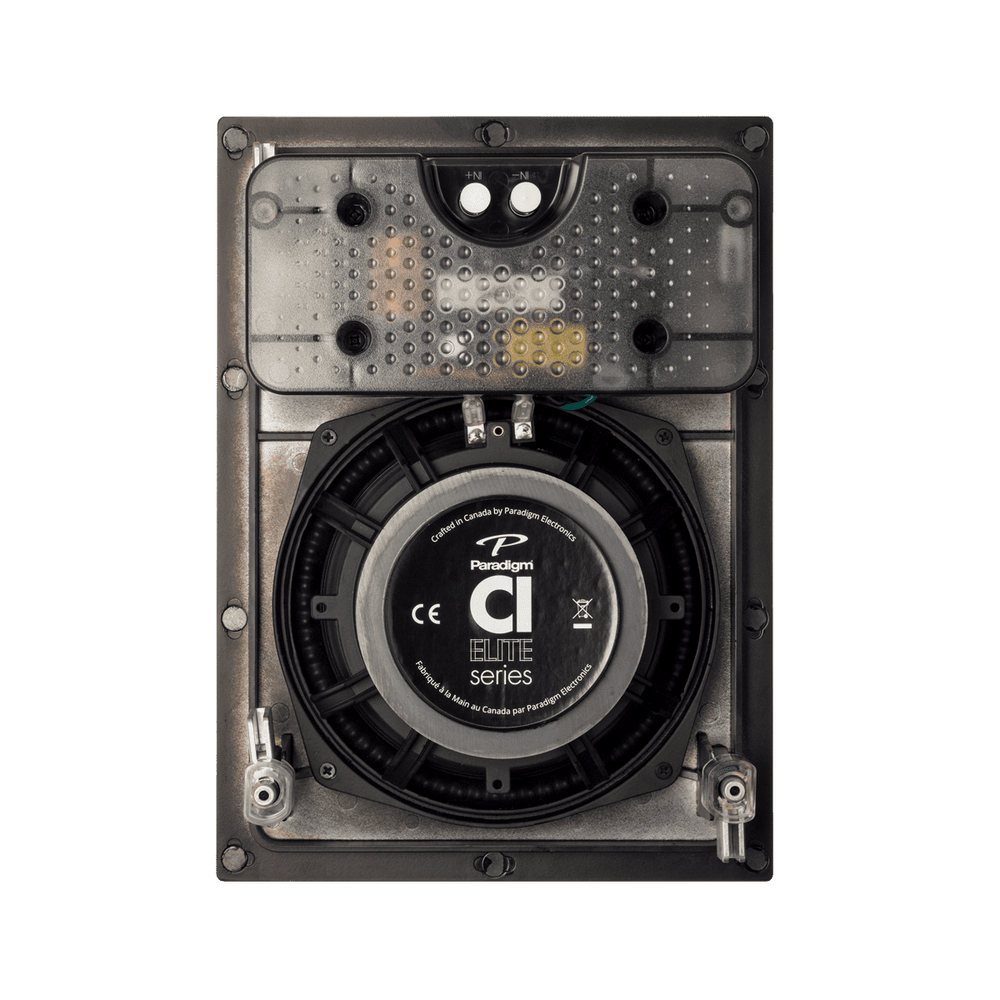

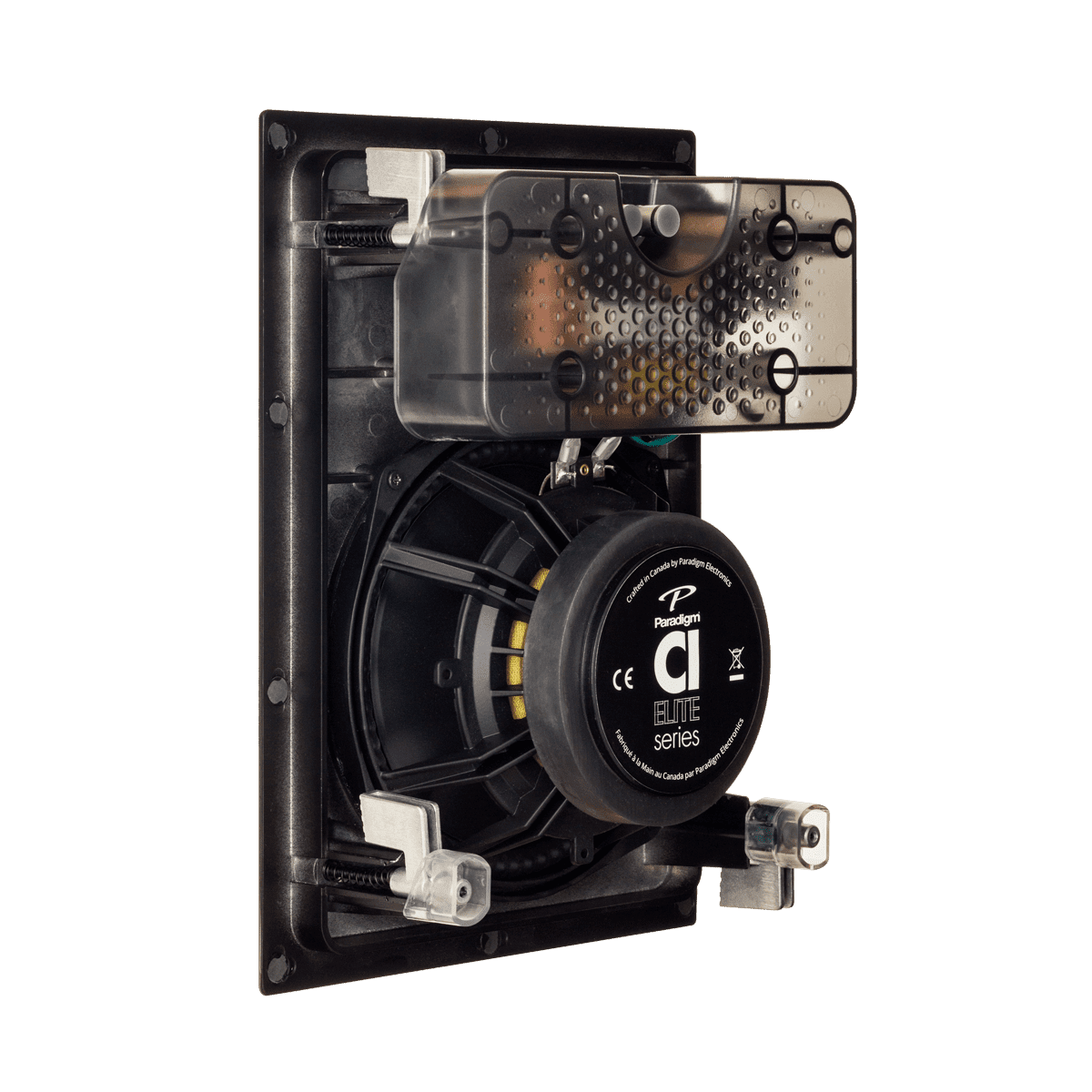

The die-cast aluminum chassis and baffle add rigidity to the speaker, while the rear component shielding protects internal parts from debris. The flat polycarbonate covers are designed to resist warping and make it easier to position the speaker during installation.

Compact In-Wall Dimensions

The speaker measures 12.625" high, 9.25" wide, and 4" deep, with a required mounting depth of 3.375". The cut-out dimensions are 11.56" high by 8.06" wide, making its physical specifications easy to account for when planning an in-wall speaker setup.

• Overall Dimensions: 12.625" Height x 9.25" Width x 4" Depth
• Cut-Out Dimensions: 11.56" Height x 8.06" Width
• Minimum Mounting Depth: 3.375"
• Weight: 8.6 lbs.
• Finish: White, paintable grille, black speaker

A Premium Custom Install Speaker

The CI Elite series is crafted in Canada and combines the technology and grille aesthetics of the CI Pro series with oversized voice coils and X-PAL™ pure-aluminum cone technology. The Paradigm CI ELITE E80-IW brings these features together in an 8" in-wall speaker designed around detailed performance, rigid construction, and a discreet appearance.

With its X-PAL™ drivers, ART™ surround, PPA™ tweeter lens, RED™ technology, and die-cast aluminum construction, the Paradigm CI ELITE E80-IW offers a thoughtfully engineered approach to custom in-wall audio. This open box speaker is priced and sold as each.

FAQs

1. What type of speaker is the Paradigm CI ELITE E80-IW? It is an 8" 2-driver, 2-way in-wall speaker.
2. What size drivers does the Paradigm CI ELITE E80-IW use? It uses an 8" X-PAL™ mid/bass driver and a 1" X-PAL™ dome tweeter.
3. What is the frequency response of the Paradigm CI ELITE E80-IW? Its on-axis response is 57 Hz - 22 kHz at ±3 dB, while its 30° off-axis response is 57 Hz - 18 kHz at ±3 dB.
4. What amplifier power does the Paradigm CI ELITE E80-IW support? The suitable amplifier power range is 15-180 W, with a maximum input power of 120 W.
5. What are the mounting dimensions of the Paradigm CI ELITE E80-IW? It has overall dimensions of 12.625" x 9.25" x 4", with a cut-out of 11.56" x 8.06" and a minimum mounting depth of 3.375".
