Rockford Fosgate P3-2X12-BUNDLE 12" Loaded Subwoofer Enclosure | P500X1BD Mono Amplifier | RFK4X Installation Kit

Rockford Fosgate P3-2X12-BUNDLE 12" Loaded Subwoofer Enclosure | P500X1BD Mono Amplifier | RFK4X Installation Kit

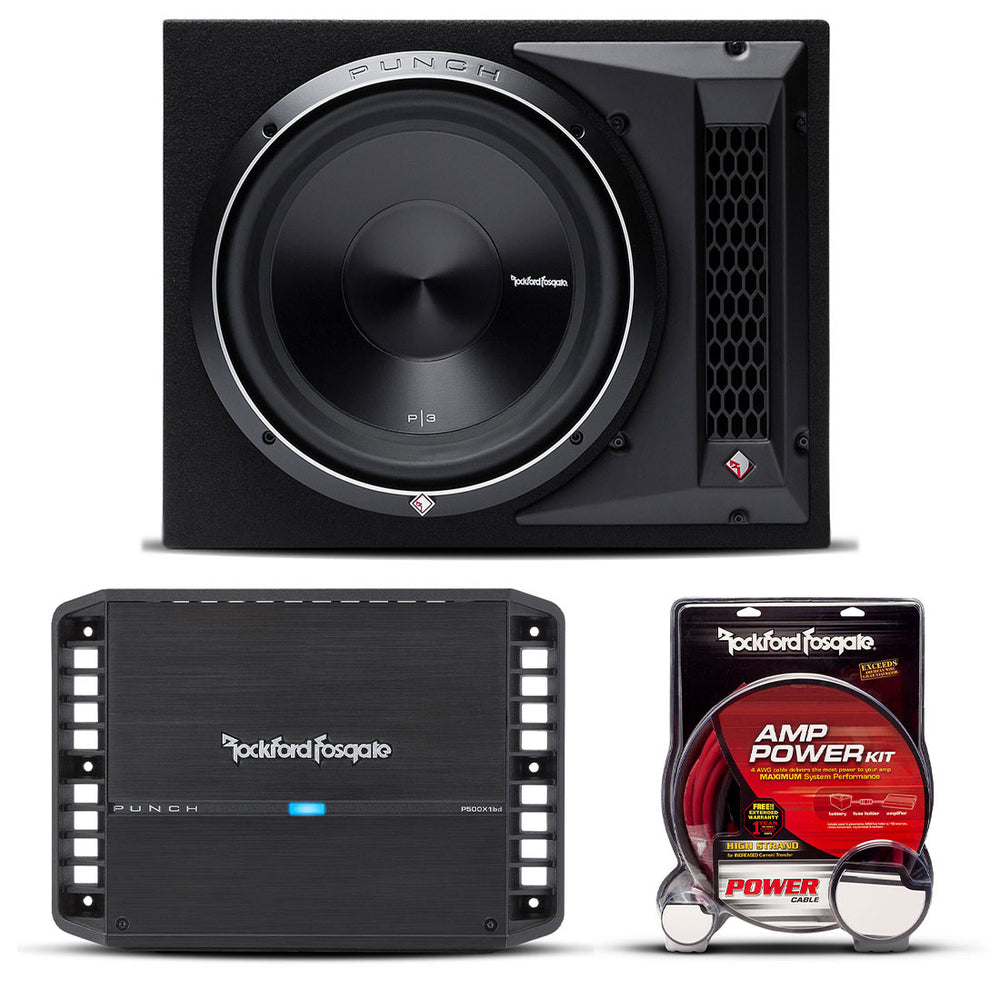

This Bundle Includes:

(1) Rockford Fosgate P3-1X12 Punch Single P3 12" Loaded Enclosure with Subwoofer

(1) Rockford Fosgate P500X1BD Punch 500 Watt Mono Subwoofer Amplifier

(1) Rockford Fosgate RFK4X 4 AWG Complete Amplifier Installation Kit

The P3-1X12 is a single P3 12” vented enclosure with 600 Watts RMS power handling wired to a 1-Ohm load. The enclosure is constructed with 5/8” MDF, covered in high density carpet, and features quick release compression terminals. The most convenient way to get low frequency bass in your system is to drop-in a Punch Loaded enclosure. We’re not talking junk in the trunk, we’re talking the same genuine Punch woofers available separately. Punch Loaded enclosures are constructed with durable 5/8? MDF and tuned by our computer aided design software. P3 Loaded Enclosures feature similar tonal performance as P2 & P1 models, but with higher power handling capacity.

Standout performance

Rockford Fosgate’s P3-1X12 ported enclosure offers the extra power handling and advanced heat dissipation of a Punch P3 12? sub, so you’ll hear impressive, crowd-drawing bass that just won’t quit.

Heat-sink aluminum cone

The enclosure houses a Punch P3 12? sub, with a rigid anodized aluminum cone that holds its shape through heavy play, while staying light and responsive. The aluminum cone acts as a giant heat sink, and works alongside advanced cooling vents to direct heat away from the copper-clad aluminum voice coils. These innovative cooling techniques, plus a heavy-duty motor assembly, let this sub handle up to 600 watts RMS without flinching. The sub’s dual voice coils are wired for a 1-ohm total impedance, so make sure your amp can power this enclosure safely.

Advanced port design

Rugged 5/8? medium-density fiberboard construction means this enclosure will hold strong for fat, heavy bass. Industrial-grade black carpet provides a clean, finished look, and protects your trunk from nicks and scratches. The spring terminals will accept bare wire, pin connectors, or banana plugs. This enclosure uses an advanced port design that promotes generous air movement, while reducing distortion-causing port noise, so you hear louder, deeper bass. Add an amp and some wiring, and feel the thick low end this enclosure adds to your ride.

Rockford Fosgate P500X1BD Punch 500 Watt Mono Subwoofer Amplifier

The Rockford Fosgate P500X1bd is a mono amplifier capable of 500 Watts into a 1-Ohm load. The Class-BD technology produces bass more efficiently over traditional amps, and its frequency response allows it to be optimized for subwoofers. With its super efficient Class-bd circuit topology, the P500X1bd will drop some serious BASS! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.

Big power for your sub or sub system

Rockford Fosgate’s Punch P500X1bd subwoofer amp can produce up to 500 watts RMS, giving you plenty of clean power for your rhythm track. The Rockford FosgateP500X1bd can drive a 1-ohm load, so you can power multiple subs without any trouble. A low-pass filter keeps the high notes away from your sub, while a subsonic filter helps you rein in runaway boom. The Punch bass boost lets you add some of that boom back into the mix when it’s needed.

Easy to set for optimum performance

Once again, Rockford Fosgate steps away from the crowd with their C.L.E.A.N. technology (Calibrated Level Eliminates Audible Noise) — a setup system that ensures your music will sound as clean and powerful as possible. It works like this: play the setup tone on the included test CD, adjust the receiver volume until a red clip light on the amp goes out, then turn the amp gain up until a blue light comes on. It’s that simple — your amplifier is now set to match your receiver’s output. When your receiver reaches maximum clean volume, you’ll get maximum clean power from your Punch amp. At quiet listening levels, you’ll hear less background noise and more of your music.

Keeps an eye on things while playing

If that blue light turns solid red while you’re playing music, the amp’s telling you that your source is distorting and you should turn it down, or risk damage to your gear. The optional PLC2 remote level control also doubles as a clip indicator, so you can see from the front seat if your music’s clipping. The amp’s built-in computer keeps tabs on the output current, ensuring that plunging speaker impedances (they change during play) or even a short circuit won’t hurt anything.

Maintaining coolness raises efficiency and lowers distortion

Rockford Fosgate’s Dynamic Thermal Management system uses forced air to dissipate heat evenly across the amp and out through the high-mass heatsink, efficiently drawing heat away from vital internal parts. Their proprietary MEHSA cooling process maximizes the heat transfer from the MOSFET devices to the heatsink, allowing the heat to escape more readily, so the transistors stay cooler and work better.

Available Wiring Diagrams

Please consult your amplifier owner’s manual for lowest recommended impedance.

Rockford Fosgate RFK4X 4 AWG Complete Amplifier Installation Kit

4 gauge complete power, ground and signal installation kit for a 2-channel amplifier. Kit includes 17 feet of 4 AWG power wire, 3 feet of 4 AWG ground wire, 30 feet of 16 AWG speaker wire, (1) 16 feet twisted pair RCA, Maxi fuse holder and fuse, 20 feet of remote wire, 100 Amp fuse.

RFK4X Features:

• FULL spec cable – meets or exceeds AWG (American Wire Gauge) requirements
• Includes appropriate wire termination hardware
• 16 AWG (1.31mm²) 65 strands
• 4 AWG (21.1mm²) 1,862 strands
• 100% Pure Crystal-Oxygen Free Copper (PC-OFC)

CEA-2015

Rockford Fosgate cables conform to the CEA-2015 industry standard. The standard specifies the exact amount of copper needed to indicate a specific wire diameter or gauge size (8 AWG, 4 AWG, etc). Some manufacturers substitute thicker insulation for copper. With Rockford Fosgate, you get exactly what you pay for.

Includes Power Wire

This amplifier kit includes power wire by including necessary cable for both B(+) and GND(-) connections. Additionally, amplifier kits include remote turn-on power wire. All cables in this kit conform to the CEA-2015 AWG specification.

Includes RCA Cables

This amplifier kit includes RCA patch cables. These are the necessary cables used to transfer low-level signal from the source unit to the amplifier, typically located in the rear of the vehicle.

Includes Speaker Wire

This amplifier kit includes speaker wire. These cables connect the amplifier to the speakers. All wires in this kit conform to the CEA-2015 AWG specification.

Includes Fused Dist.

This amplifier kit includes fused distribution. It utilizes a stand-alone fuse holder that can be installed in a convenient place under the hood.
