Rockford Fosgate P3V2-69C3 Punch P3 6"x9" 3-Way Coaxial Component Speaker System (P3V269C3)

Rockford Fosgate P3V2-69C3 Punch P3 6"x9" 3-Way Coaxial Component Speaker System (P3V269C3)

The Rockford Fosgate P3V2-69C3 is designed for drivers who refuse to compromise between detail, midrange punch, and bass performance. This premium OEM replacement system features a 3-way coaxial component design with three dedicated drivers that work together to reproduce every frequency with outstanding balance and precision. From crisp vocals to hard-hitting bass lines, every note is delivered with clarity and control.

Engineered to Fit Modern Vehicles

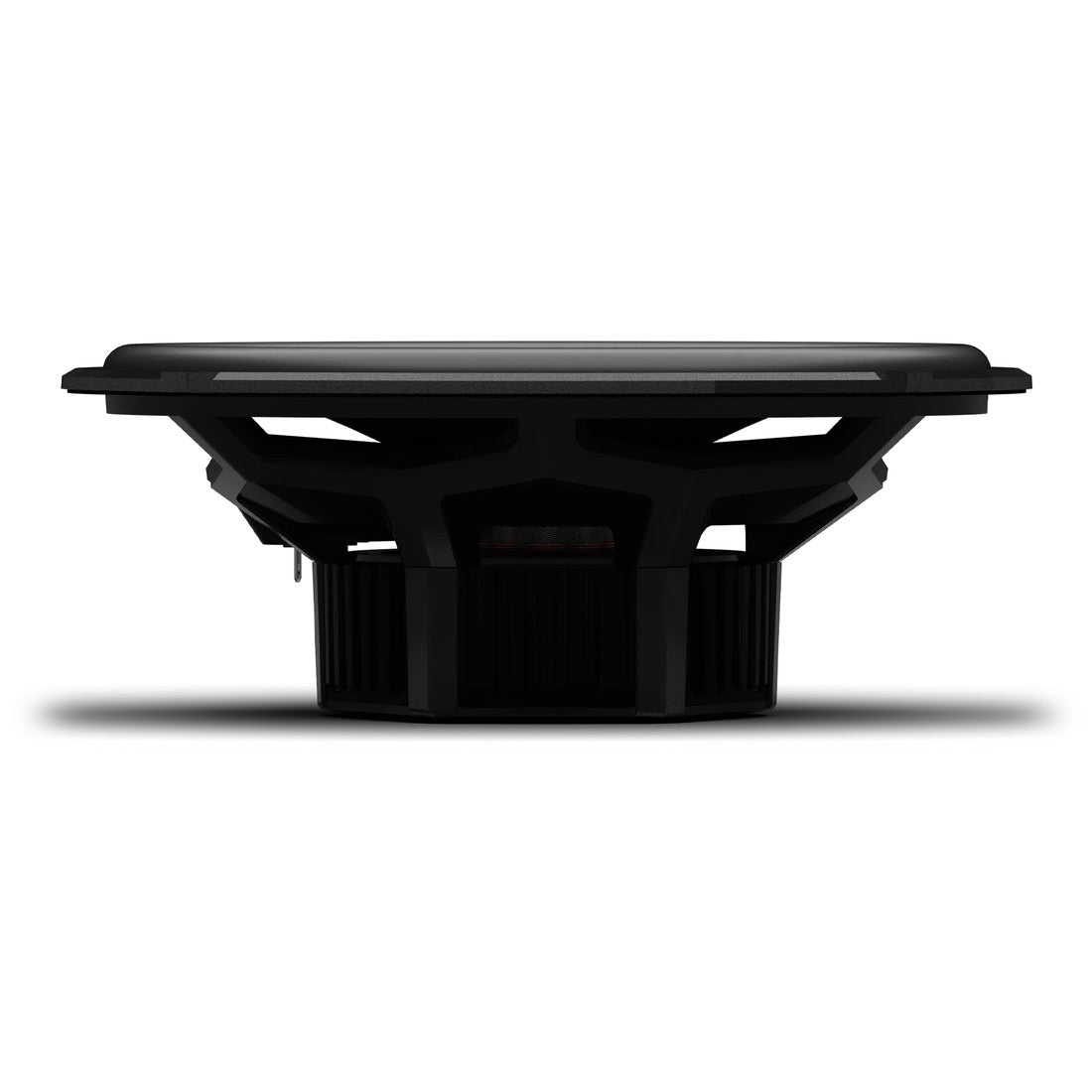

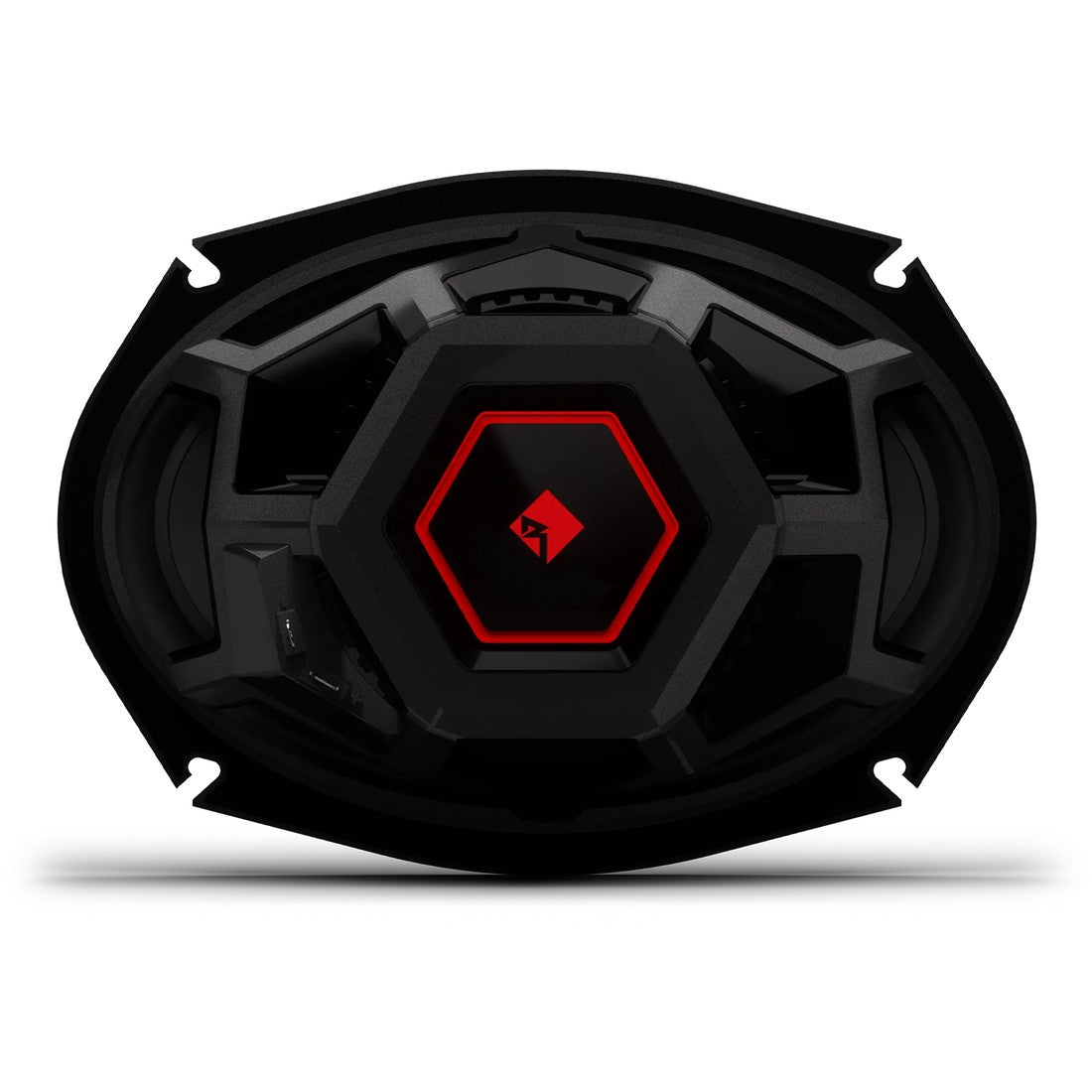

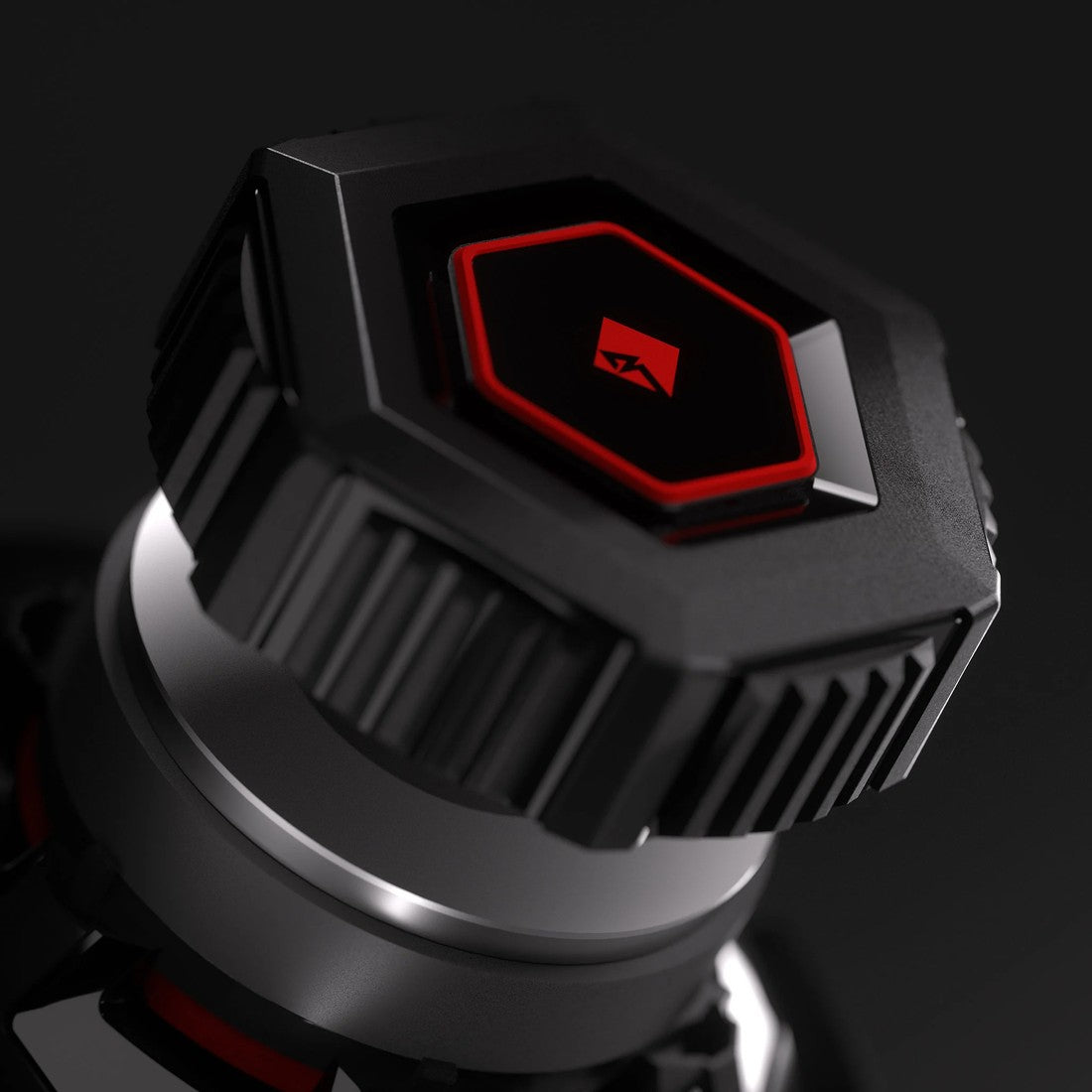

The Rockford Fosgate P3V2-69C3 was developed with modern vehicle integration in mind. Think of it as a speaker system built around your factory locations, not the other way around. A redesigned frame, optimized mounting dimensions, updated mounting holes, and a removable motor cover all contribute to a more seamless OEM-style fit.

Factory mounting flanges offer precise alignment while maintaining the flexibility needed for compatibility with most factory speaker locations. When space is limited, the removable motor cover provides additional clearance for a wider range of applications.

Immersive 3-Way Sound Performance

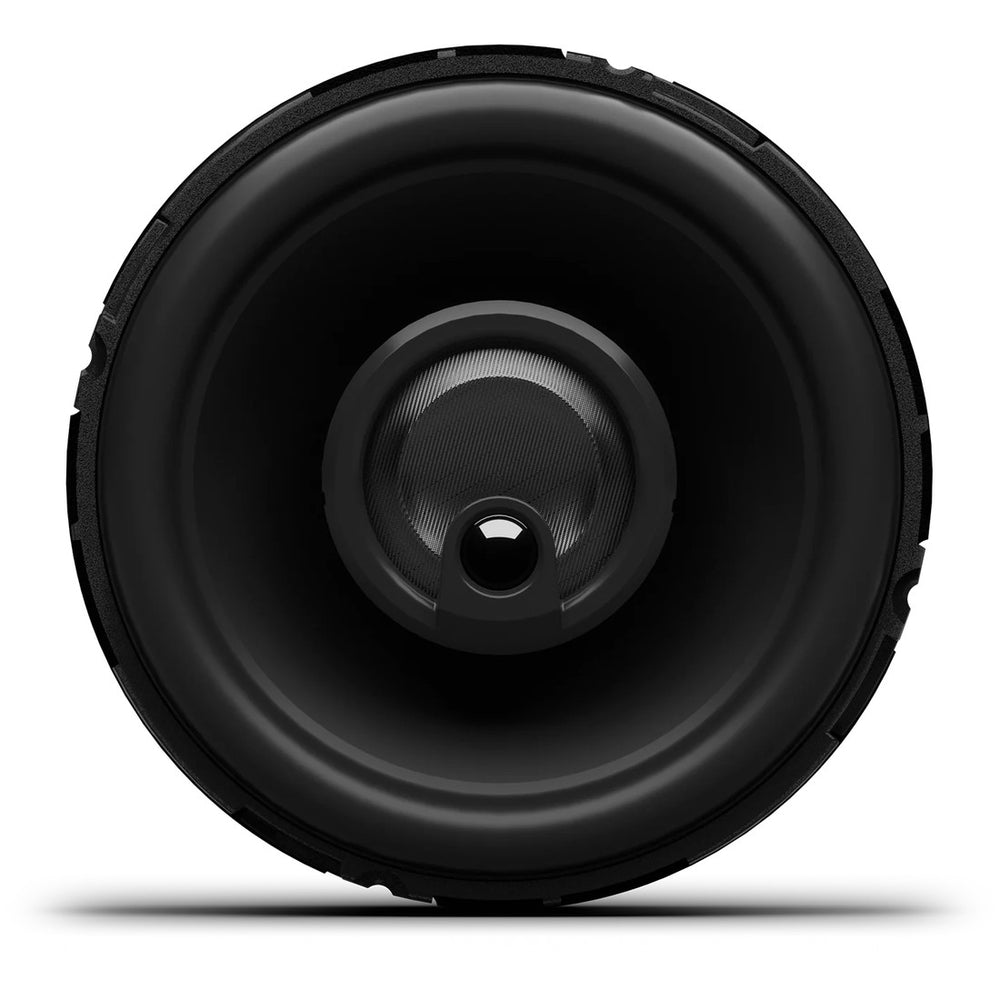

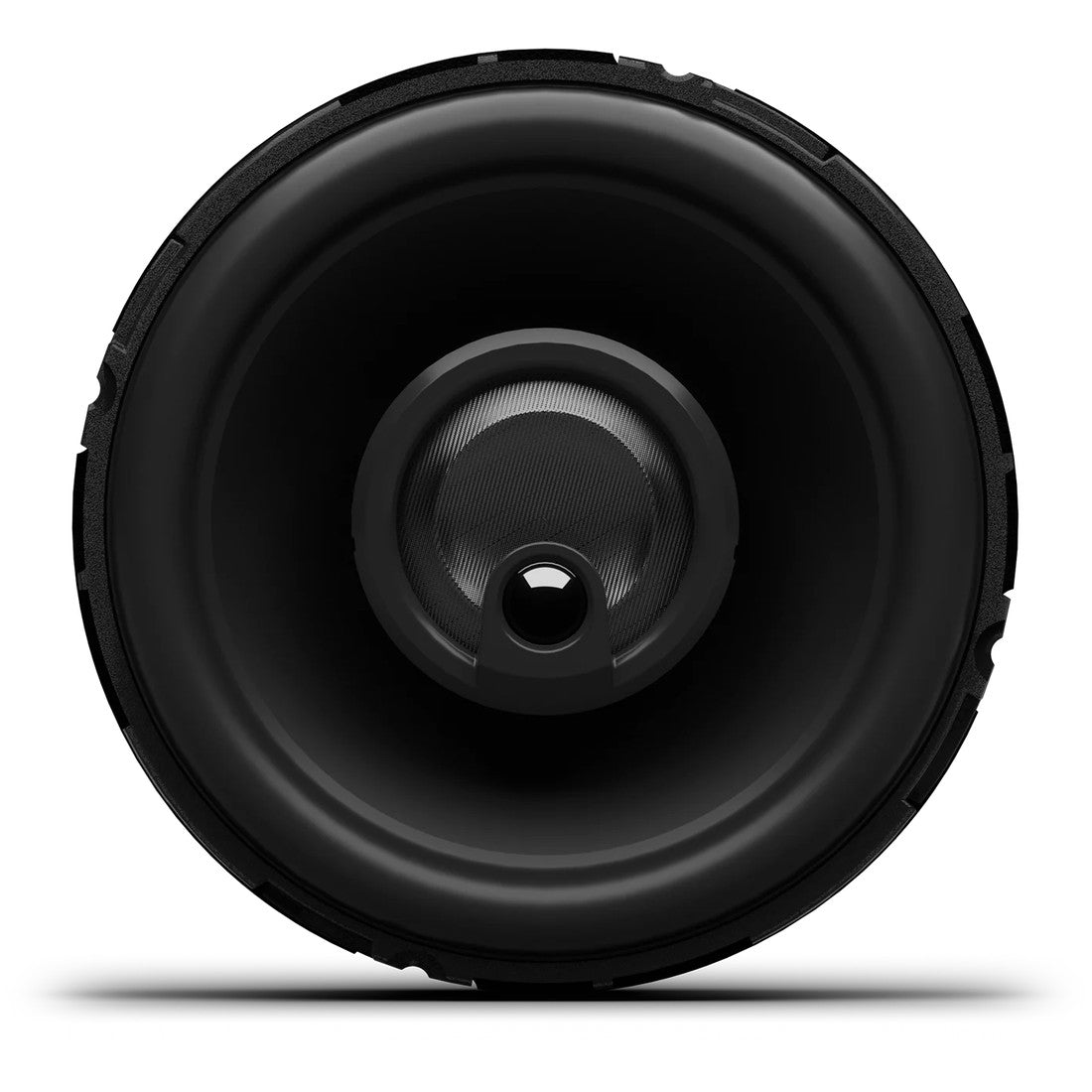

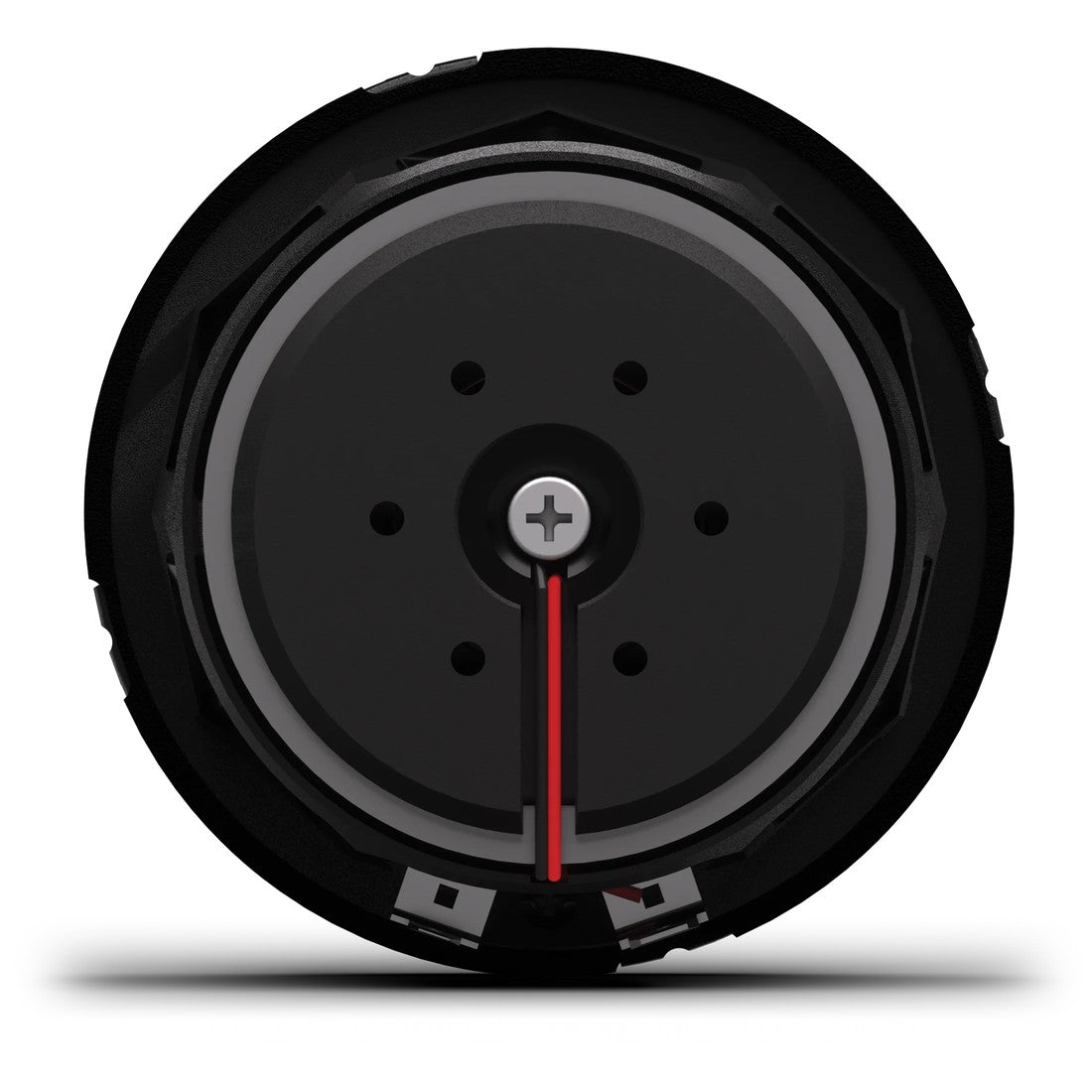

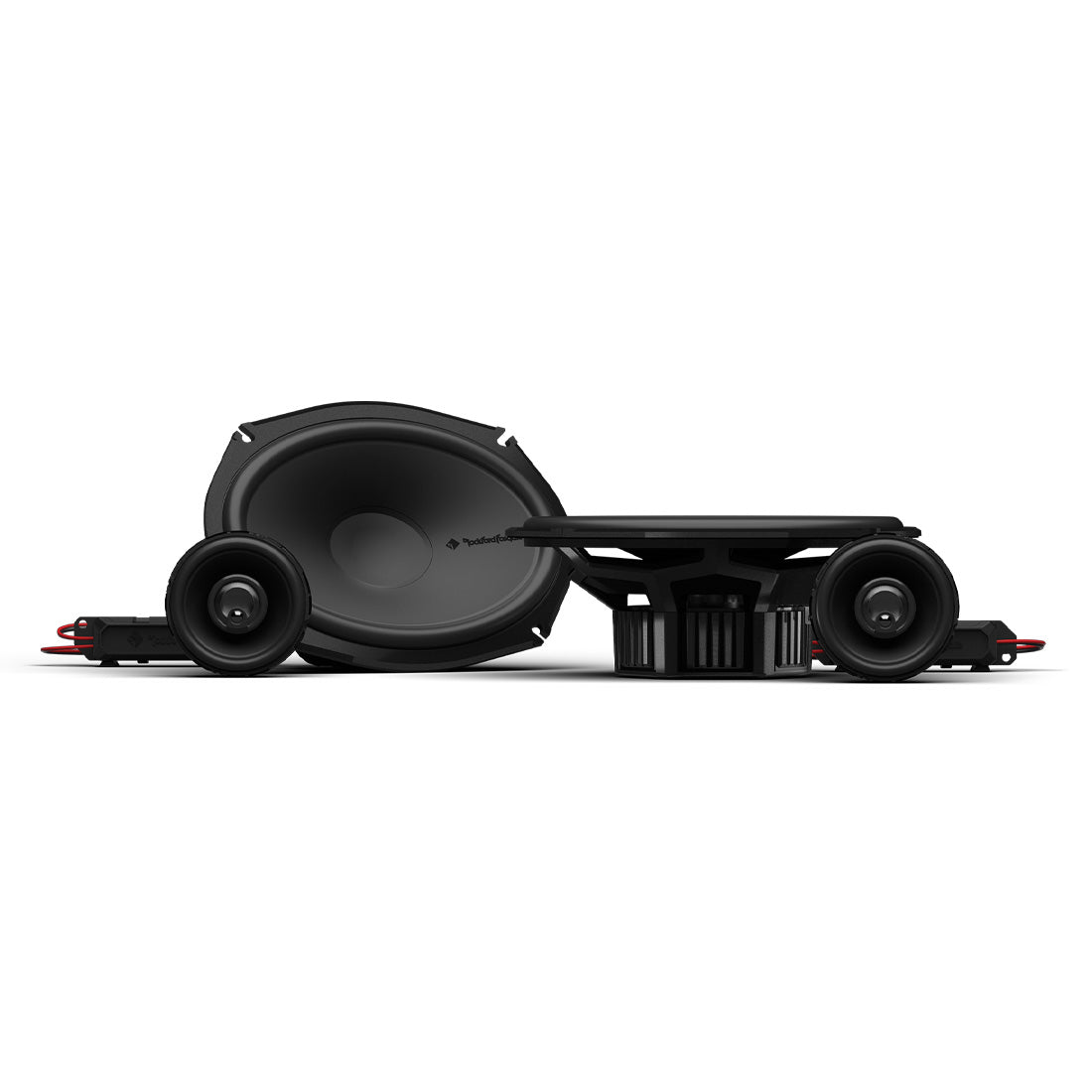

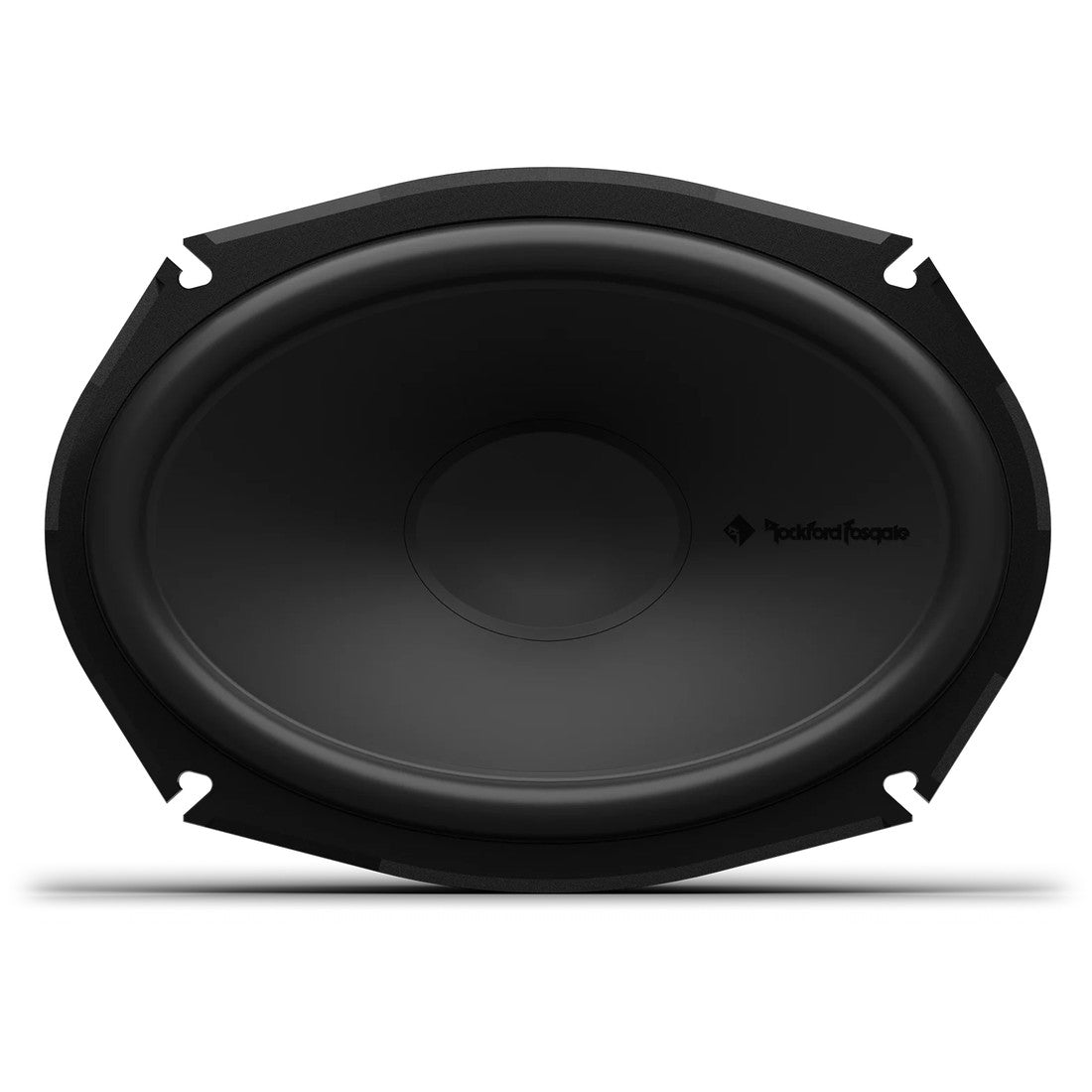

What happens when each frequency gets its own dedicated driver? You hear more of the music. The Rockford Fosgate P3V2-69C3 pairs a 6"x9" woofer with a 3.5" coaxial speaker and a 3/4" Tetolon® inverted dome tweeter to deliver a rich, full-range listening experience.

By assigning highs, mids, and lows to independent drivers, the system produces detailed vocals, dynamic midrange output, and accurate bass response. The inverted dome tweeter further refines the high frequencies, allowing subtle details to remain clean and defined.

Powered for Bigger Output and Deeper Bass

At the core of the Rockford Fosgate P3V2-69C3 is VAST 2.0™ technology, which increases cone area by 25% for greater output and more impactful bass. It's like giving the woofer a bigger canvas to work with, allowing it to move more air and create a stronger low-frequency presence.

With a rating of 75 watts RMS and 150 watts peak power, the system is engineered for loud and controlled performance. An overhung voice coil maintains consistent magnetic flux, helping reduce distortion and preserve sound quality as the volume rises.

A wide frequency response of 49Hz to 25kHz, combined with sensitivity ratings of 89 dB at 1W/1M and 92 dB at 2.83V/1M, ensures balanced and accurate reproduction across the entire audio range.

Built with Premium Materials for Long-Term Reliability

The Rockford Fosgate P3V2-69C3 is constructed using materials chosen for both performance and durability. The 20-40% mica reinforced polypropylene curvilinear cone increases rigidity for improved sonic accuracy, while the Santoprene™ half-roll surround minimizes distortion and delivers excellent fatigue resistance.

A linear Nomex® spider resists tearing under demanding use, and the vented Kapton® voice coil former improves heat dissipation during extended listening sessions. The 15% glass-fiber reinforced PA66 composite basket and high-strength Y35 ferrite motor structure further reinforce the speaker's long-term reliability.

Centrex and ASA UV-resistant materials, combined with vibration-resistant construction, help the speakers withstand the shock and vibration commonly encountered in outdoor and daily-driven vehicles.

Flexible Crossover Design

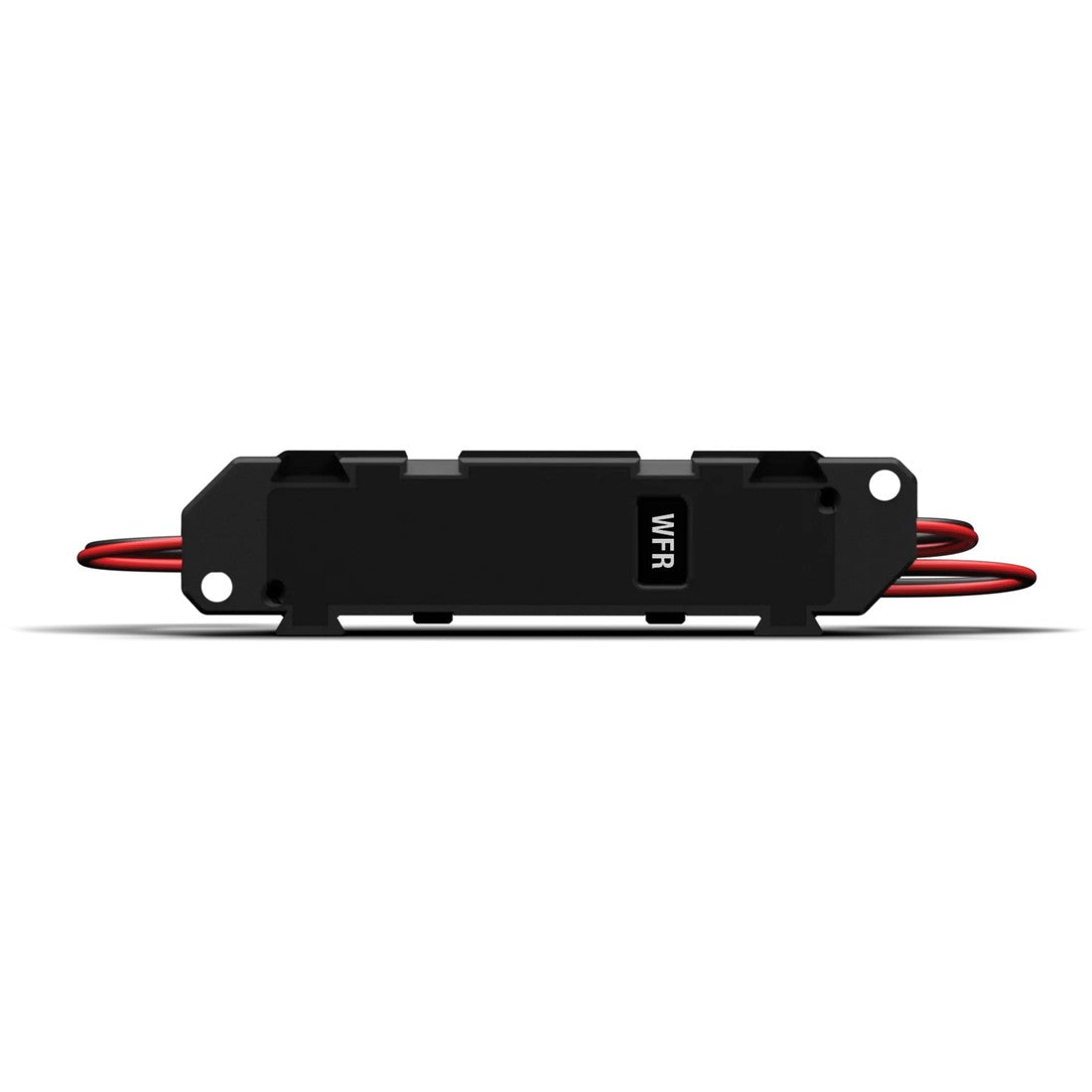

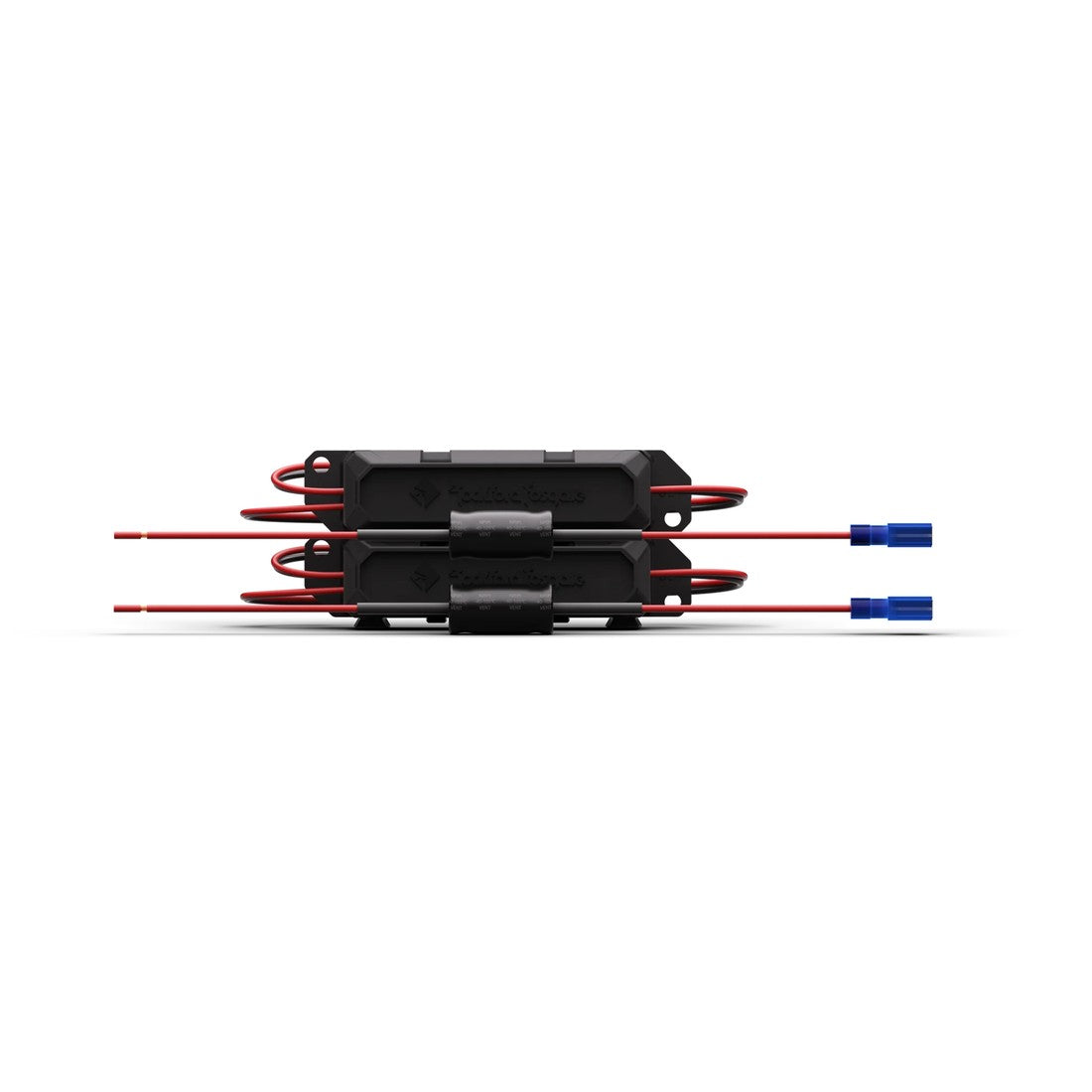

The Multi-Configuration Crossover Chassis (M.C.3) gives the Rockford Fosgate P3V2-69C3 versatile wiring options by allowing the crossover system to separate into individual components. This flexible design lets you route and configure the system according to your vehicle's specific requirements.

• Tweeter High-Pass: 9kHz at 6dB/octave (internal)
• Midrange Bass Blocker: 1,200Hz at 6dB/octave (33µF)
• Woofer Low-Pass: 1.2kHz at 6dB/octave (external)
• ICC+ internal concealed crossover for coaxial operation
• 2-pin micro-Molex crossover connections secured using screws or zip ties

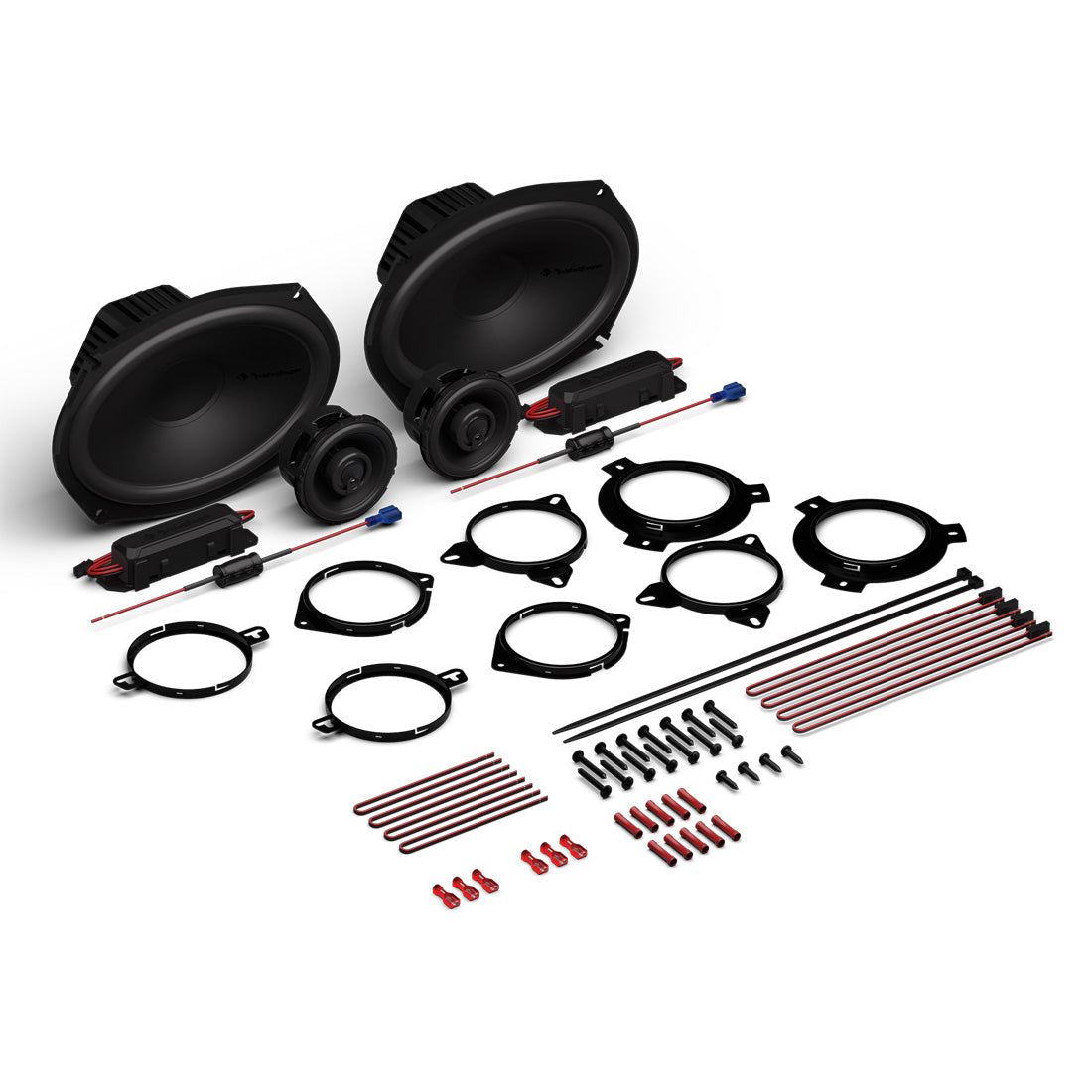

What's Included in the Box?

• (2) 6"x9" 4Ω Speakers
• (2) 3.5" 4Ω Coaxial speakers

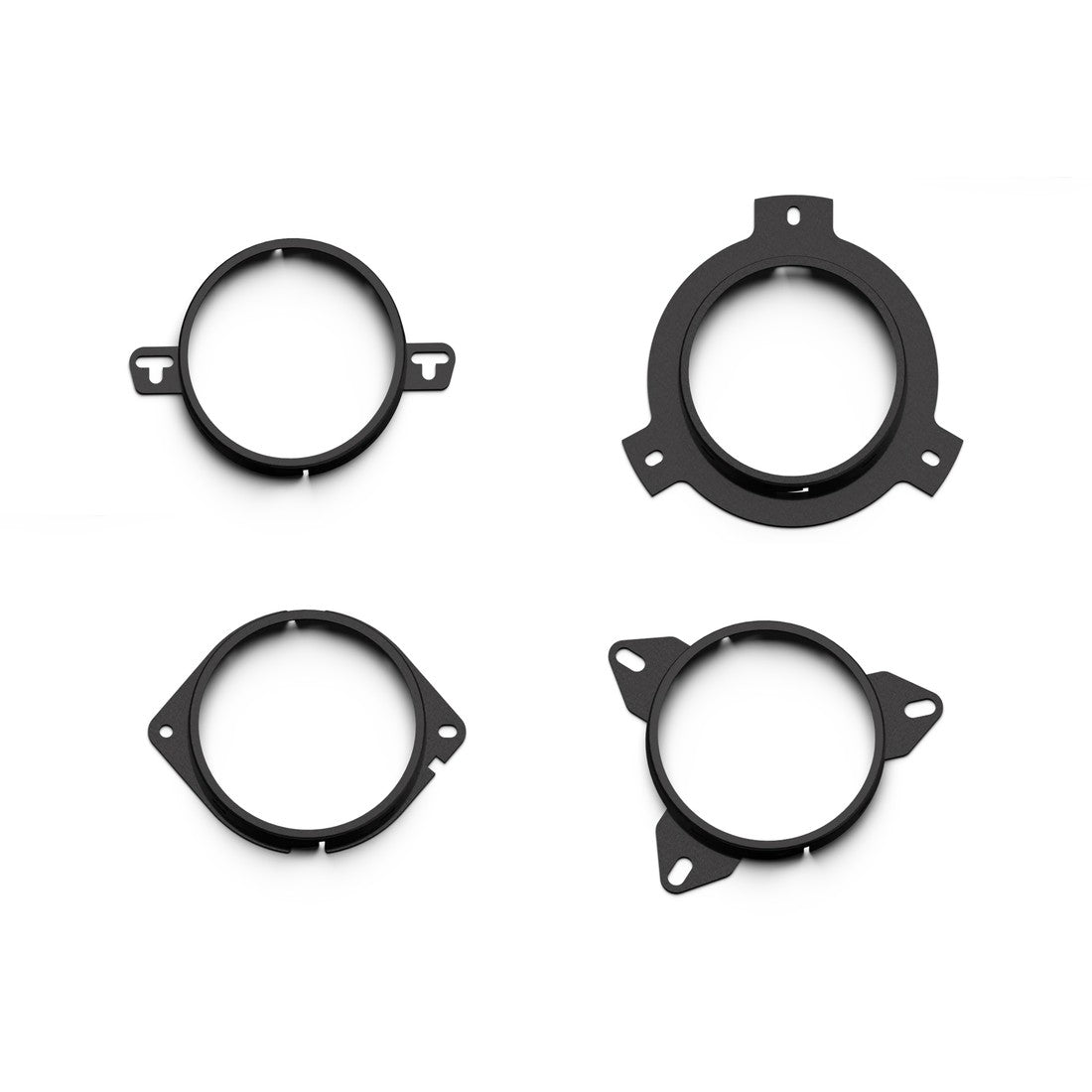

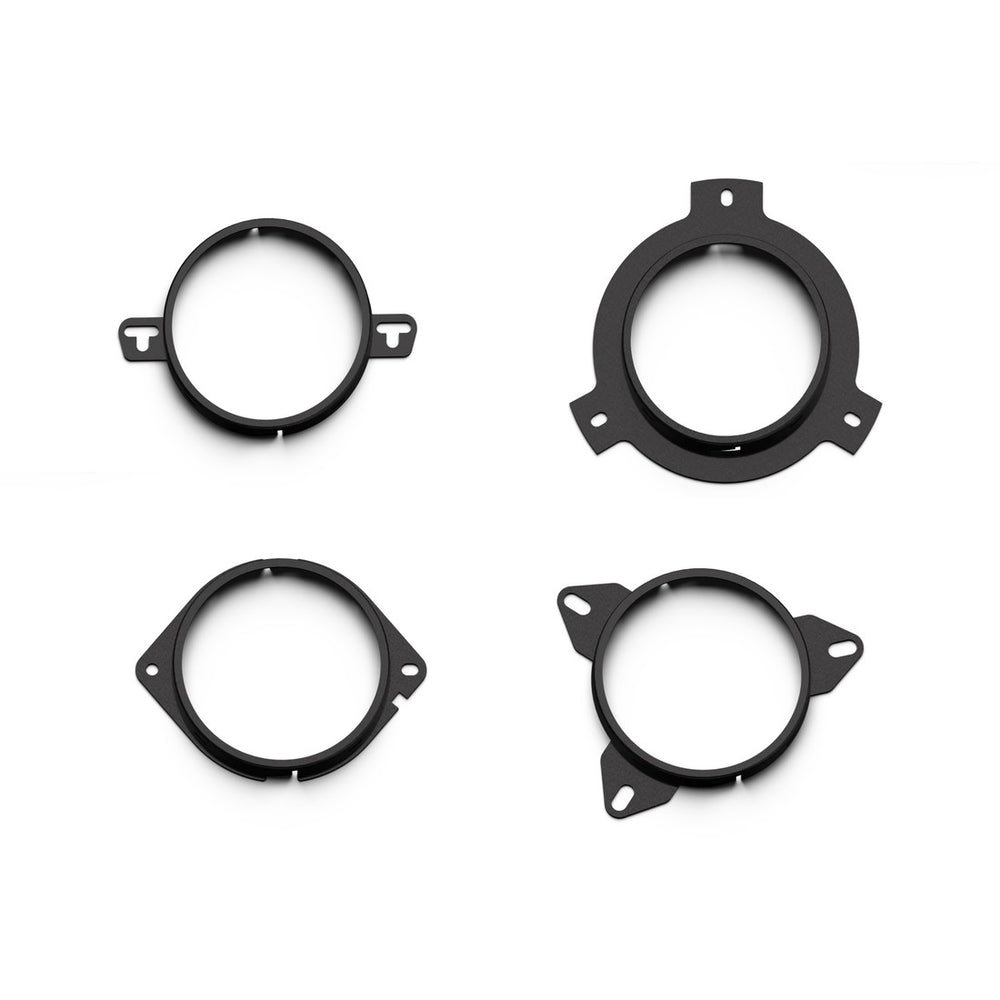

• (2) 3.5" 2-Tab Twist-Lock adaptors (Universal)
• (2) 3.5" 3-Tab Twist-Lock adaptors (Tesla/Mercedes-Benz)
• (2) 3.5" 2-Tab Twist-Lock adaptors (Jeep)
• (2) 3.5" 3-Tab Twist-Lock adaptors (Jeep)
• (1) 3.5" Speaker cutout template
• (1) 6"x9" Speaker cutout template
• (2) 33µF Non-polarized capacitors (bass blockers)
• (2) Passive crossover networks
• (4) 18" Crossover wiring extensions
• Speaker wire, connectors, zip ties, and mounting hardware

Built for Drivers Who Want Complete Sound Control

The Rockford Fosgate P3V2-69C3 blends advanced VAST 2.0™ technology, fitment-focused engineering, durable materials, and flexible crossover options into a premium 3-way coaxial component system. Designed to integrate into modern vehicles and engineered for dependable performance, it delivers the precision, midrange presence, and bass response that serious listeners demand.

FAQs

1. What type of speaker system is the Rockford Fosgate P3V2-69C3? The Rockford Fosgate P3V2-69C3 is a 3-way coaxial component speaker system featuring a 6"x9" woofer, a 3.5" coaxial speaker, and a 3/4" Tetolon® inverted dome tweeter.
2. How much power can the Rockford Fosgate P3V2-69C3 handle? The system is rated at 75 watts RMS and can handle up to 150 watts of peak power.
3. What is the frequency response of the Rockford Fosgate P3V2-69C3? The speakers offer a frequency response of 49Hz to 25kHz for detailed sound reproduction across lows, mids, and highs.
4. Does the Rockford Fosgate P3V2-69C3 include crossover components? Yes. The system includes passive woofer crossovers, bass blockers, and an ICC+ internal concealed crossover design.
5. Are speaker grilles included with the Rockford Fosgate P3V2-69C3? No. Grilles are sold separately, with compatible options including the GS-35, GF-35, and GS-69 grilles.
