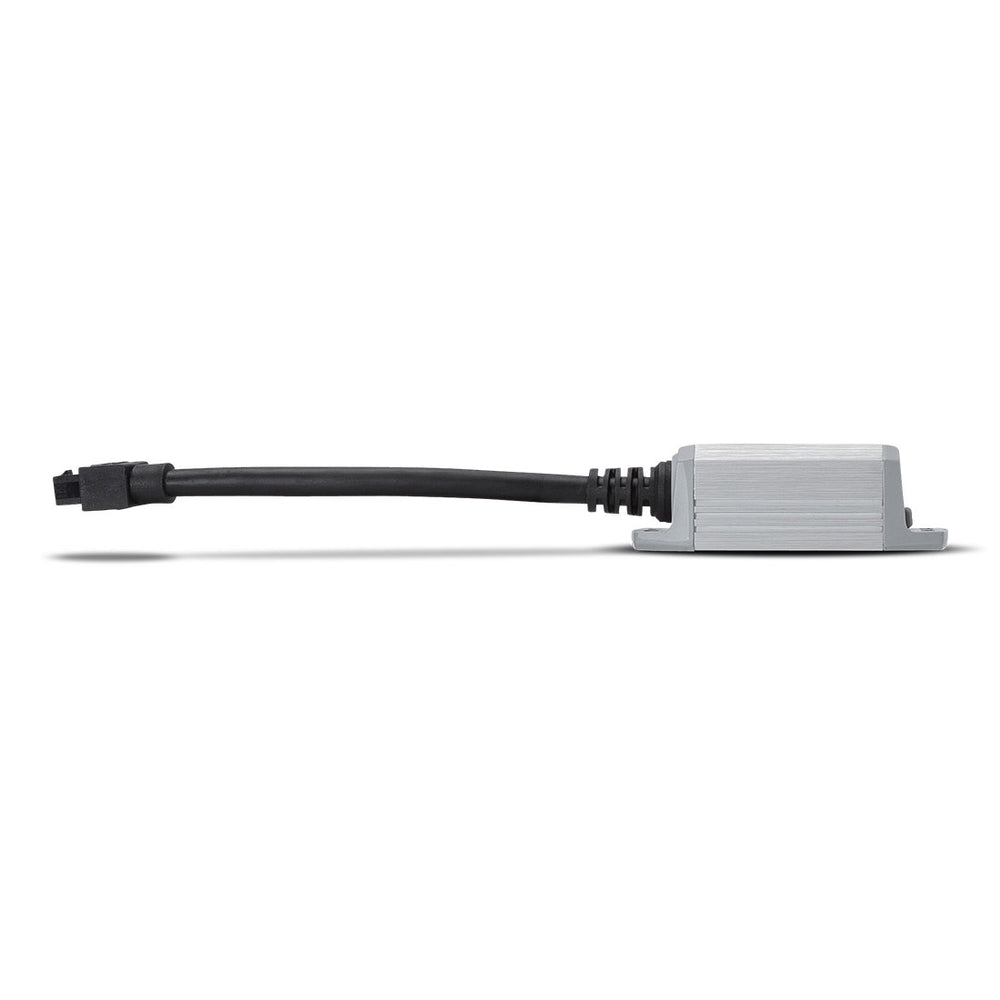

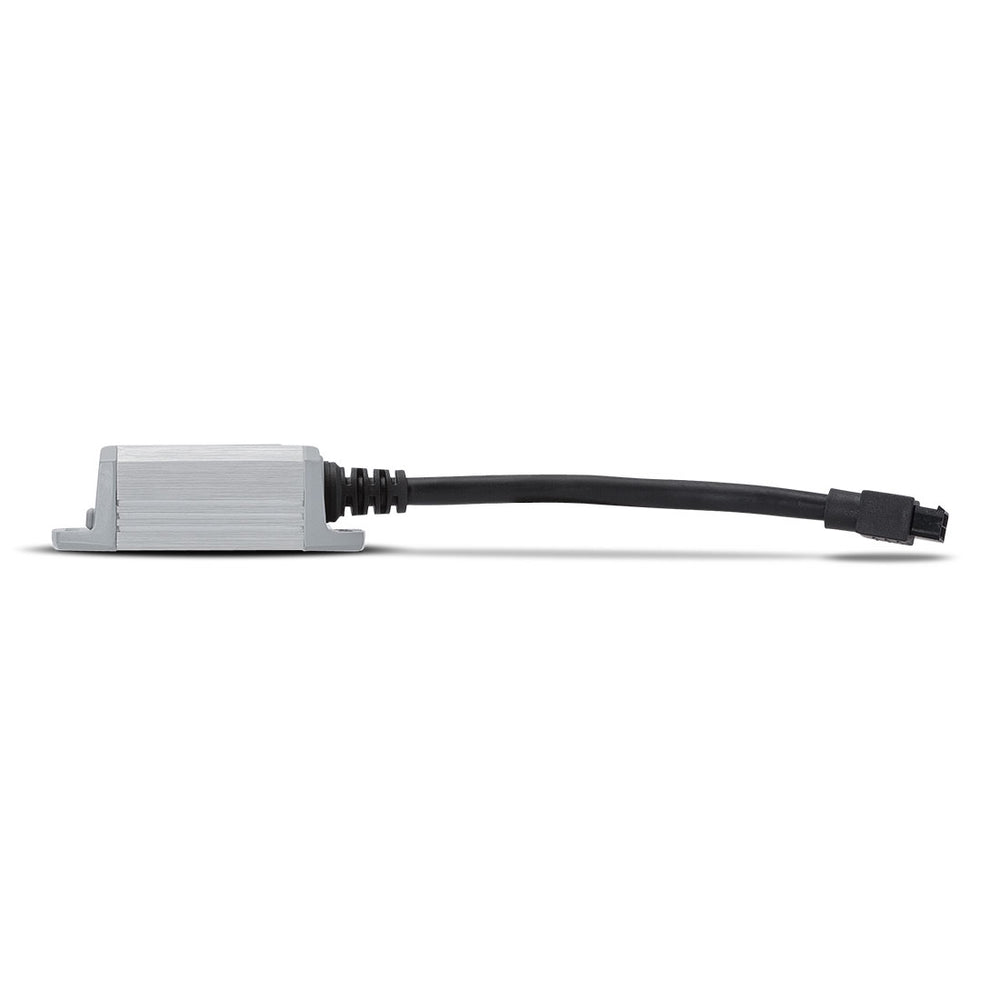

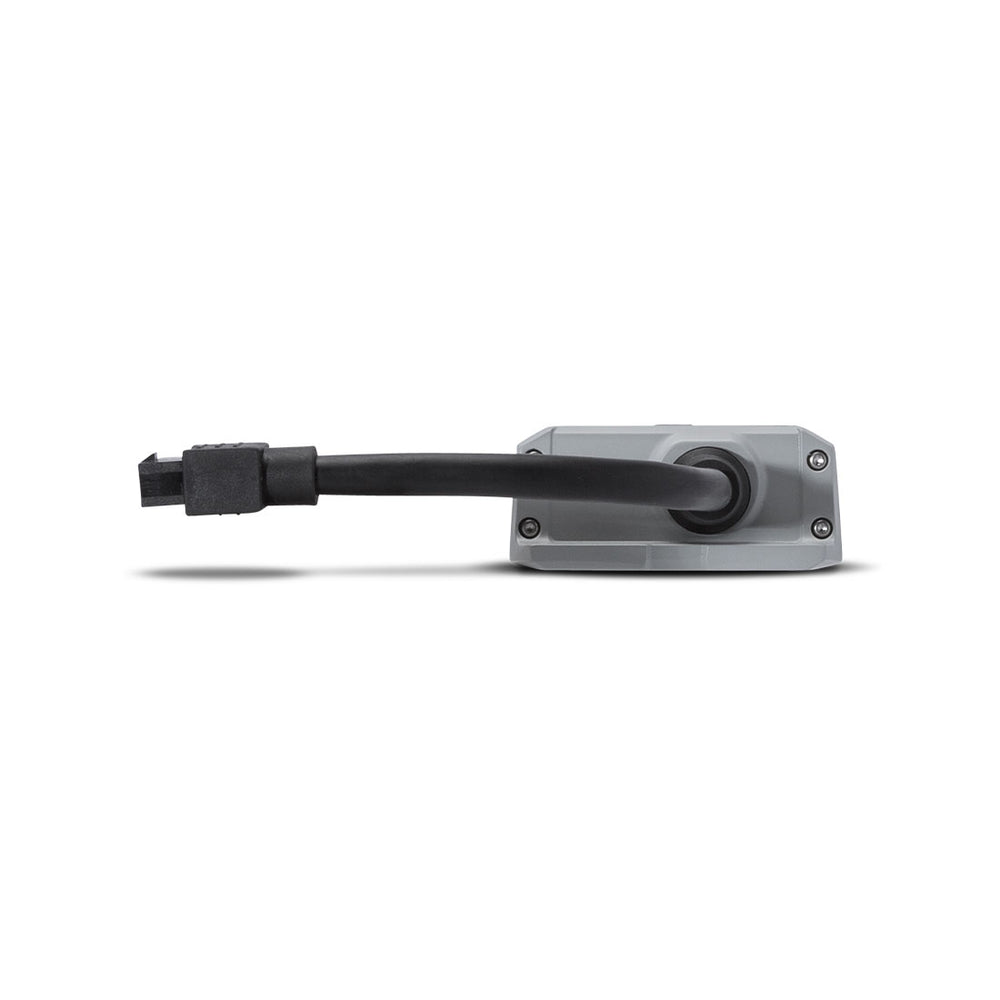

Rockford Fosgate PM100X1 Punch Marine 100 Watt Full-Range Mono Amplifier - Pair

Product Descriptions

Rockford Fosgate PM100X1 Punch Marine 100 Watt Full-Range Mono Amplifier - Pair

The PM100X1 is a 100-watt dynamic power mono amp that works with the DC and AC voltages found on most radio speaker outputs. This design eliminates the need for a B+ cable when connecting to a speaker wire. It also provides a safe load to the radio amp circuit, reducing radio wear and tear. It's perfect for OEM and aftermarket radio integration. Mobile, motorsport, and marine applications are all possible with the conformal-coated PCB.

The PM100X1 amplifier is a one-of-a-kind amplifier that incorporates our patent-pending BTL technology. This single-channel amplifier uses the radio's speaker output to provide not only the audio signal but also the power to run the unit. This is accomplished using a combination of the common DC offset voltage and the audio AC signal itself.

It uses the DC offset voltage for both turn-on and primary amplification power at first. The amplifier begins to share the power load between the DC and AC signals as the volume and output power demand increase. Once a high volume is reached, the AC signal provides the majority of the amplifier's power, which is supplemented by its internal storage bank.

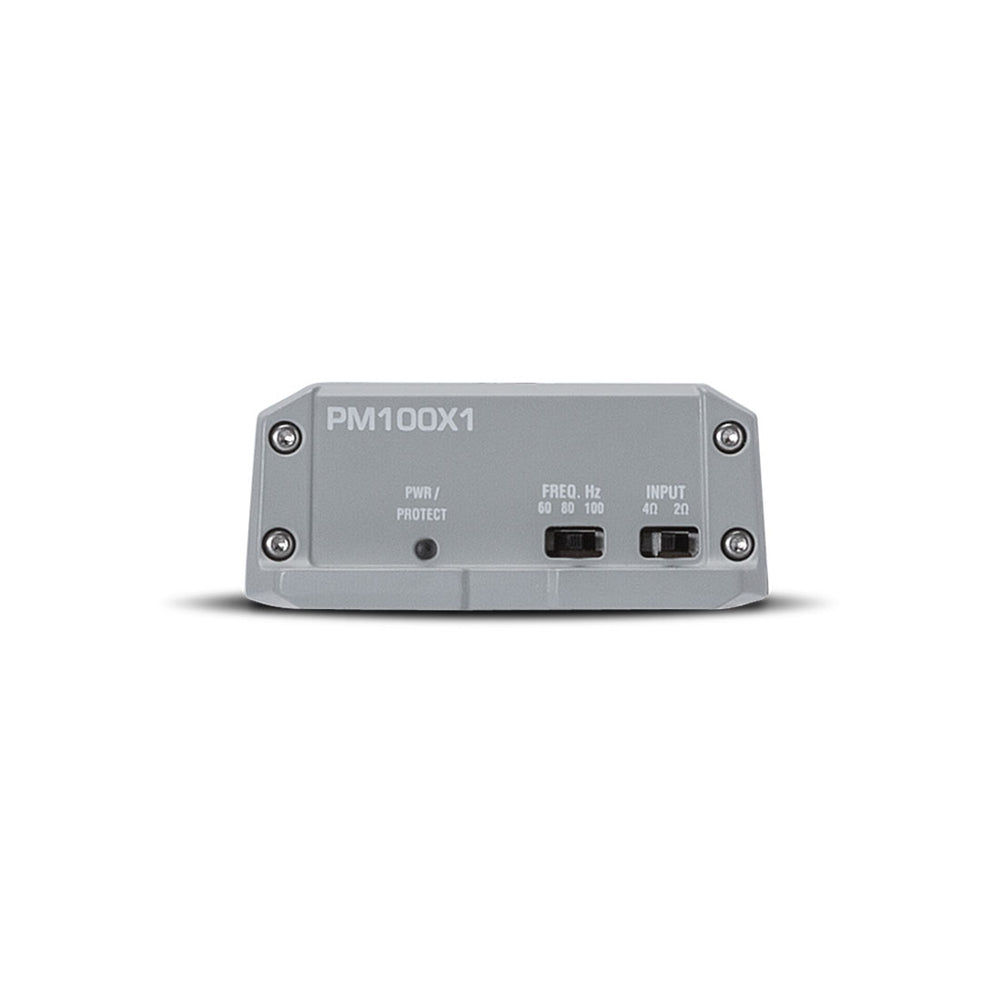

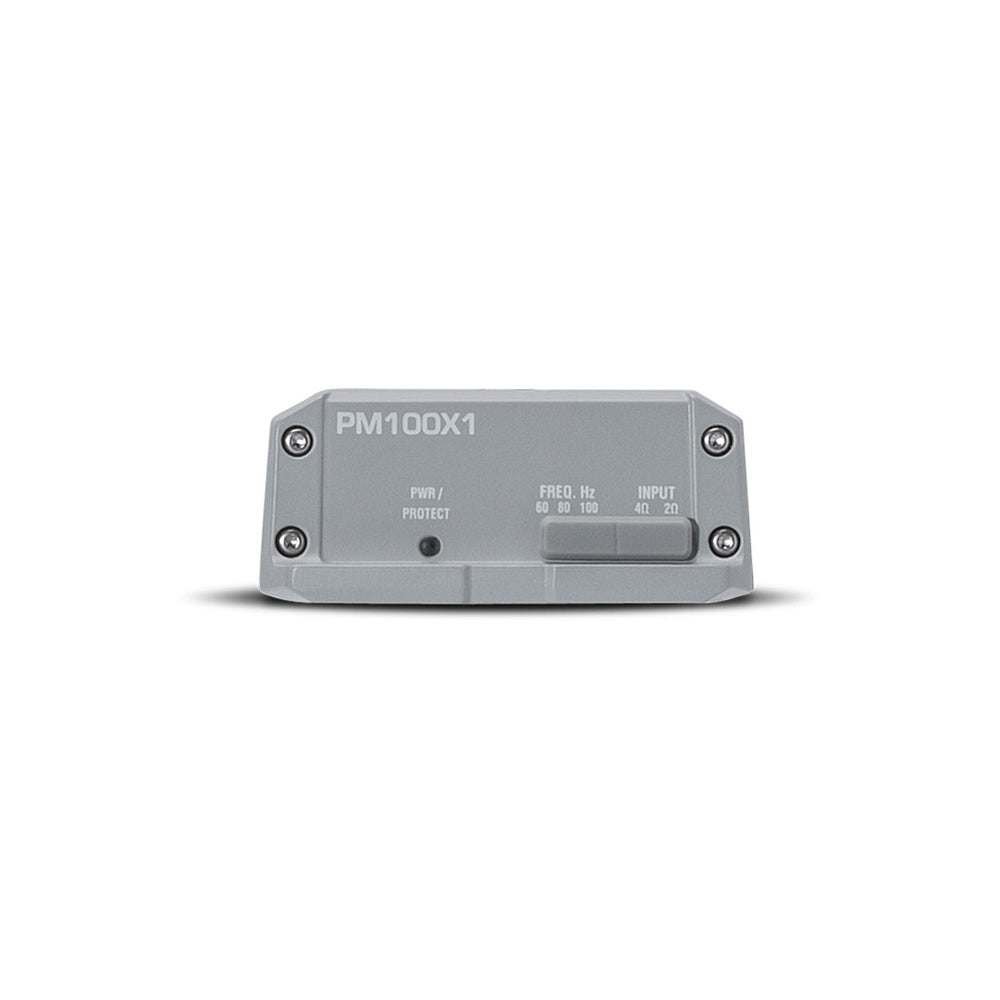

This design enables it to charge its capacitive bank on the AC signal wave's negative side, which is essentially unused power. It also puts no more strain on the radio than a standard 2 or 4-ohm speaker, ensuring that the radio amplifier circuit is protected from low impedance conditions. This design enables the amplifier to be connected to a radio with a rated output of 20 watts and dynamically produce up to 100 watts. A 2/4-ohm input switch is also included to match the amplifier to the radio circuit's output impedance rating. We include a selectable high pass crossover with settings at 60, 80, and 100Hz for speaker protection.

When there isn't enough DC voltage to power the amp at turn on, an extra B+ wire is included, which can be connected to other low-current circuits nearby. Because of this design, the amplifier can be used for OEM or aftermarket upgrades without having to use physically larger amplifiers because they can be hidden in the vehicle's dash or doors. It's also IPX6-rated for installations where moisture is a concern.

PM100X1 Features:

  • Patented BTL Powered "FreeLoad" Technology (US 9,438,181 B1)
  • Current Limited to Protect Head Unit for Both 4 Ohm and 2 Ohm Configurations
  • Harvests both B+ and Audio Signal From Standard Head Unit Speaker Outputs
  • Uses Stored Energy from BTL Amplifier to Produce Dynamic Power of Over 100W
  • High Level Turn On
  • Optional B+ Connection for Non-Standard Speaker Outputs
  • Small Stealth Package that Allows for Anywhere Installation
  • Selectable 4 and 2 Ohm Play
  • 60, 80, and 100 Hz Selectable 12dB/Oct HP Butterworth Crossover

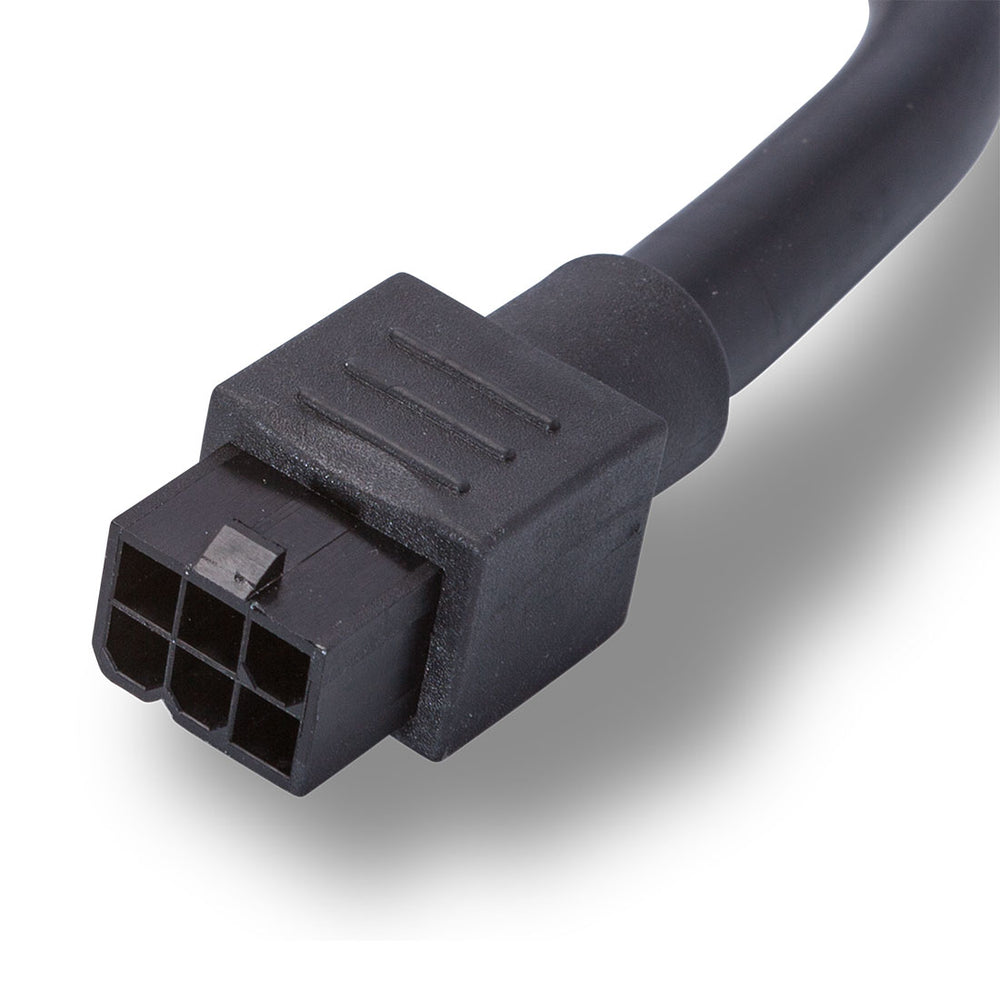

  • Pig Tail Connectivity for Easy Installation
  • Extruded Aluminum Heat Sink
  • Muted turn-on
  • Thermal Protection
  • Short Circuit & Over Voltage Protection
  • Discrete surface mount technology
  • CEA-2006 Compliant & CE Compliant

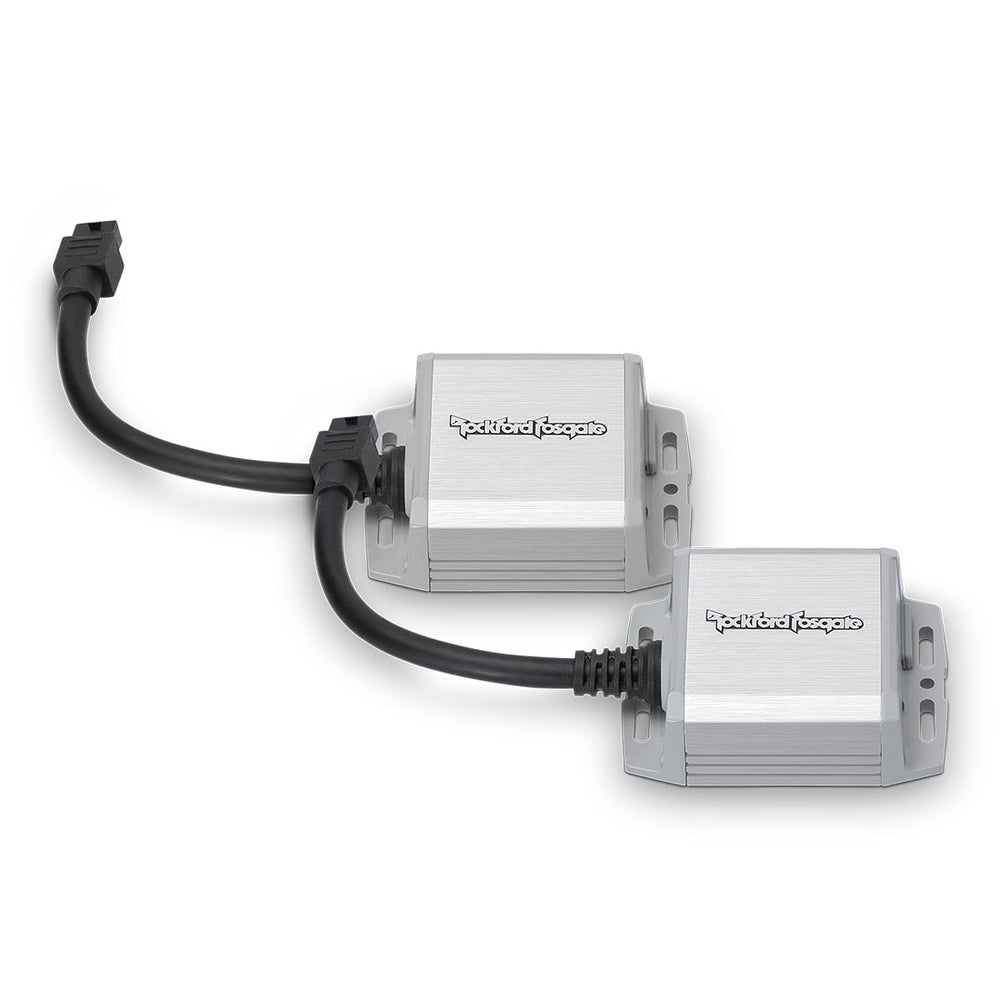

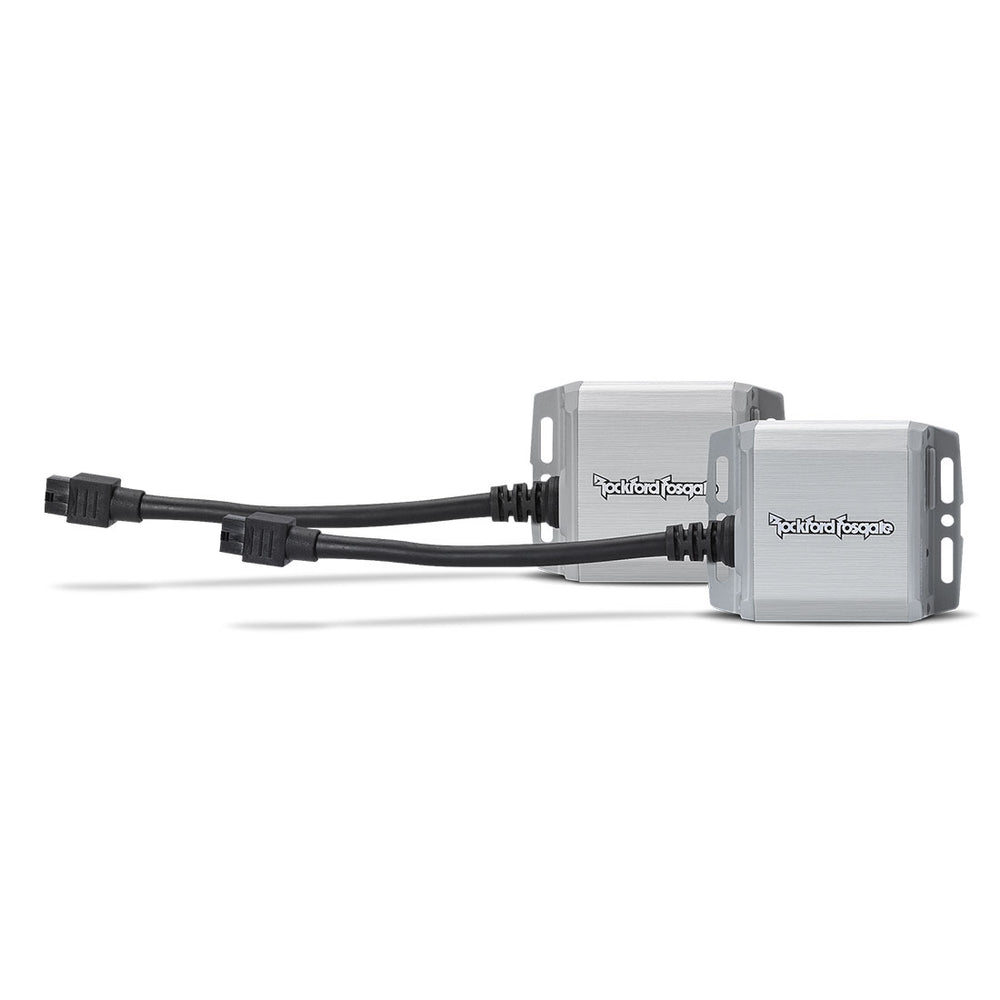

  • Sold in pairs (left/right)

Warranty

Rockford Fosgate 2 Year Limited Warranty

SKU: PM100X1K UPC: 780687345204
