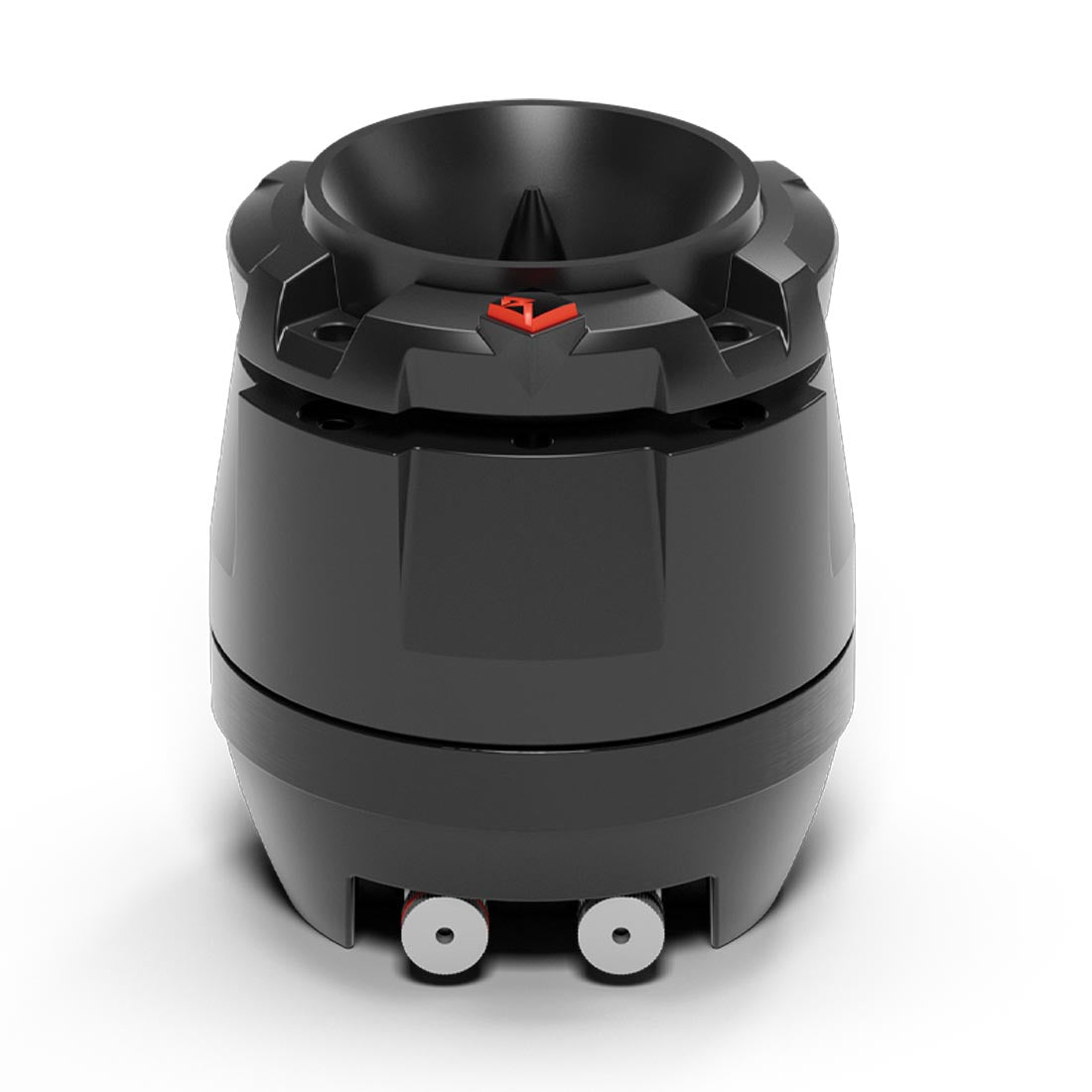

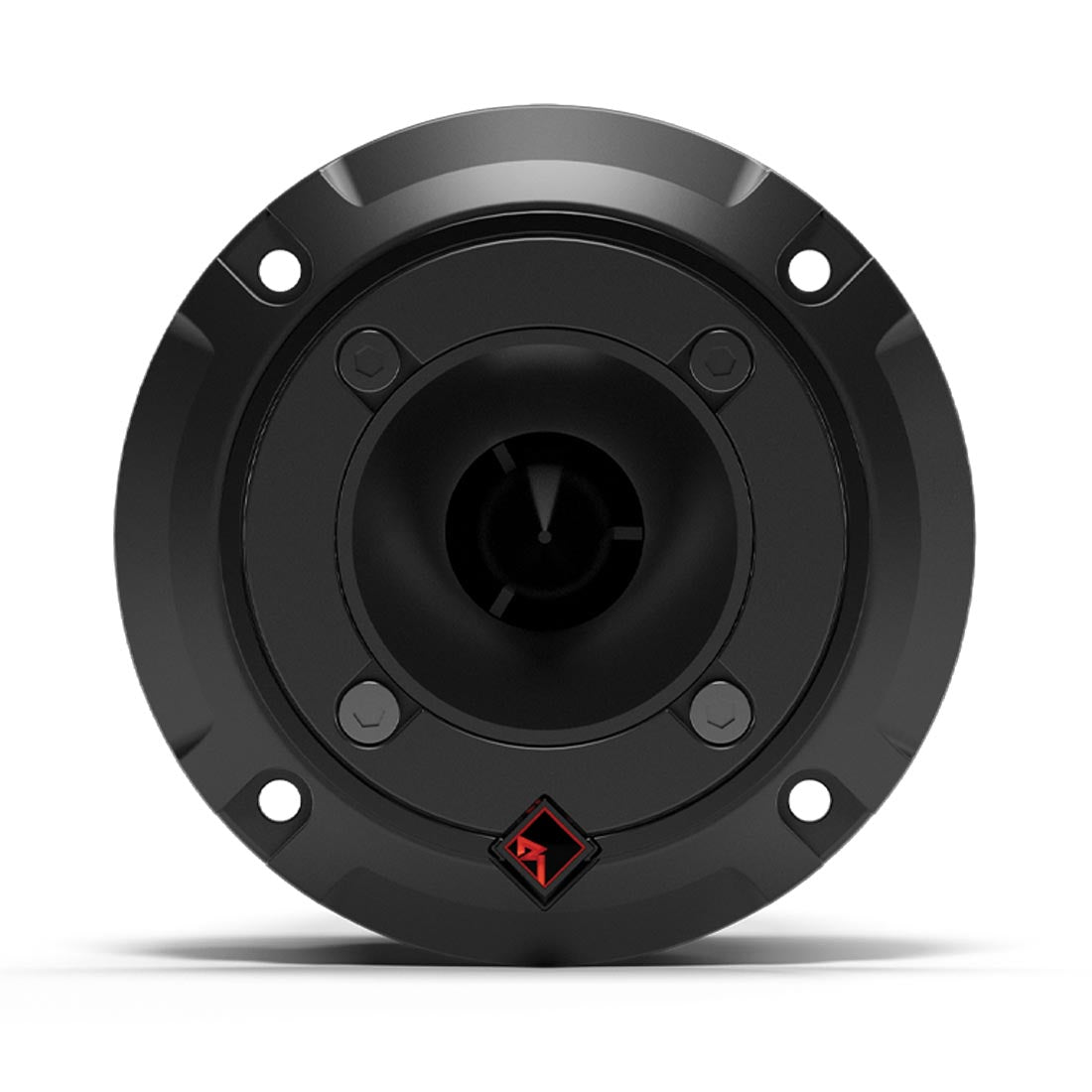

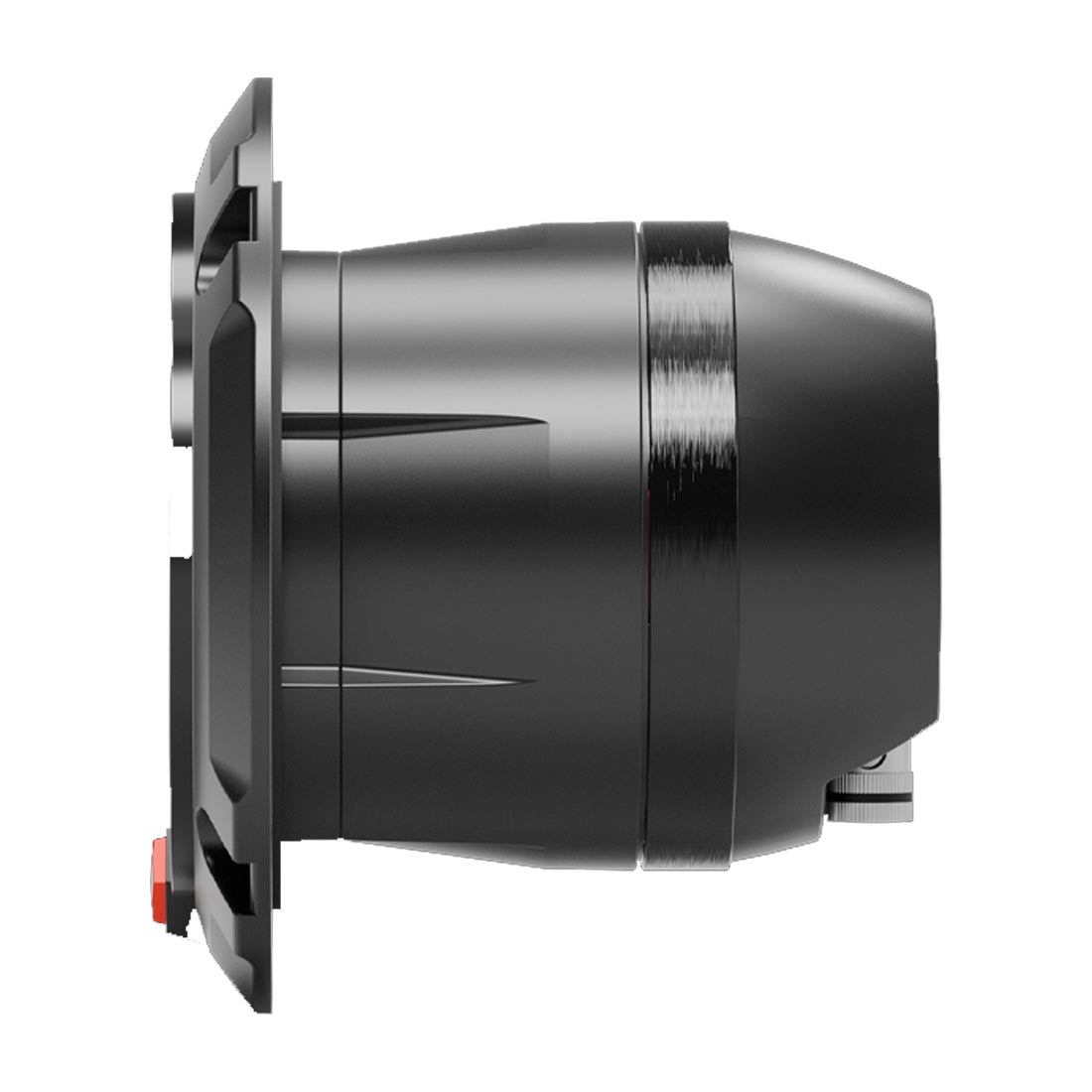

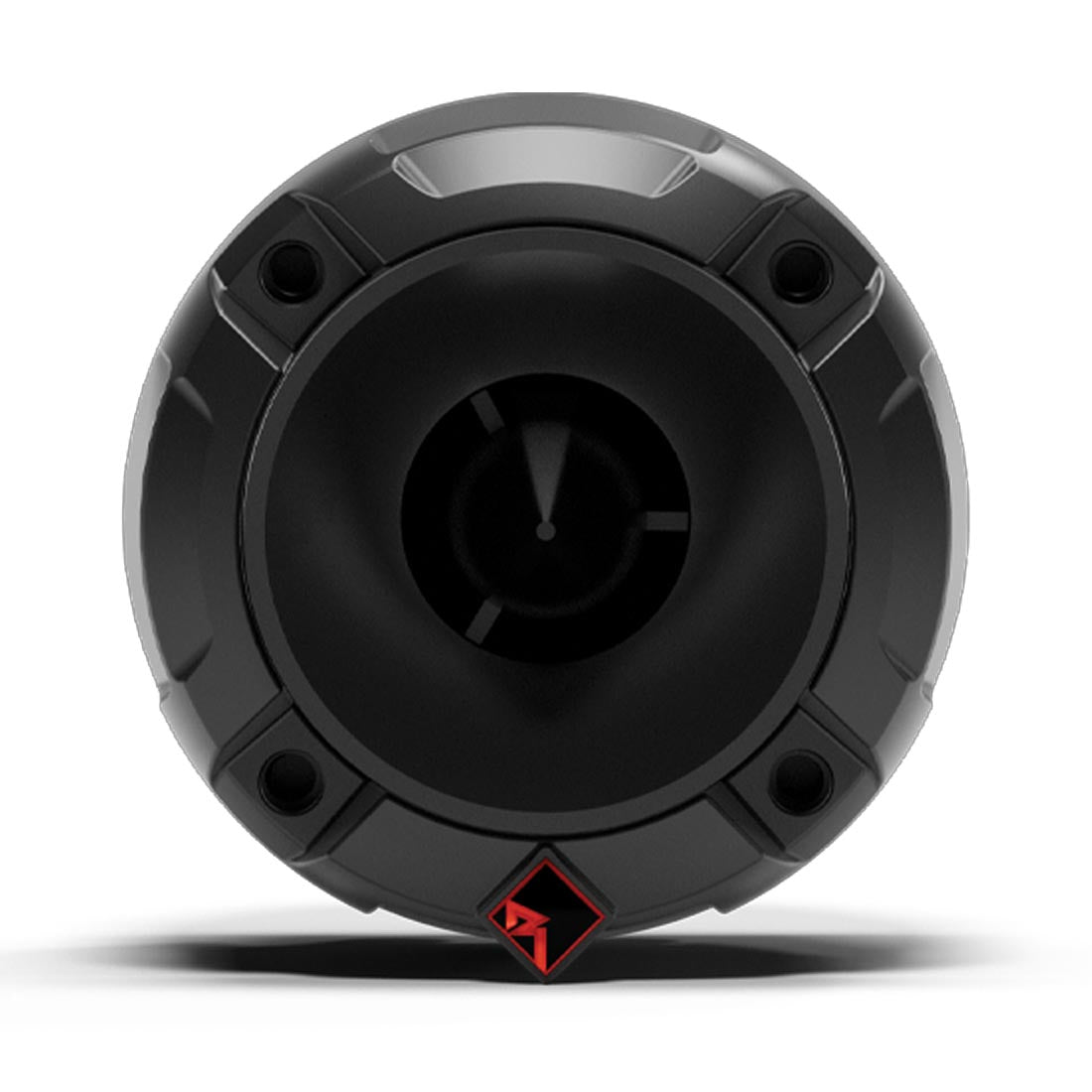

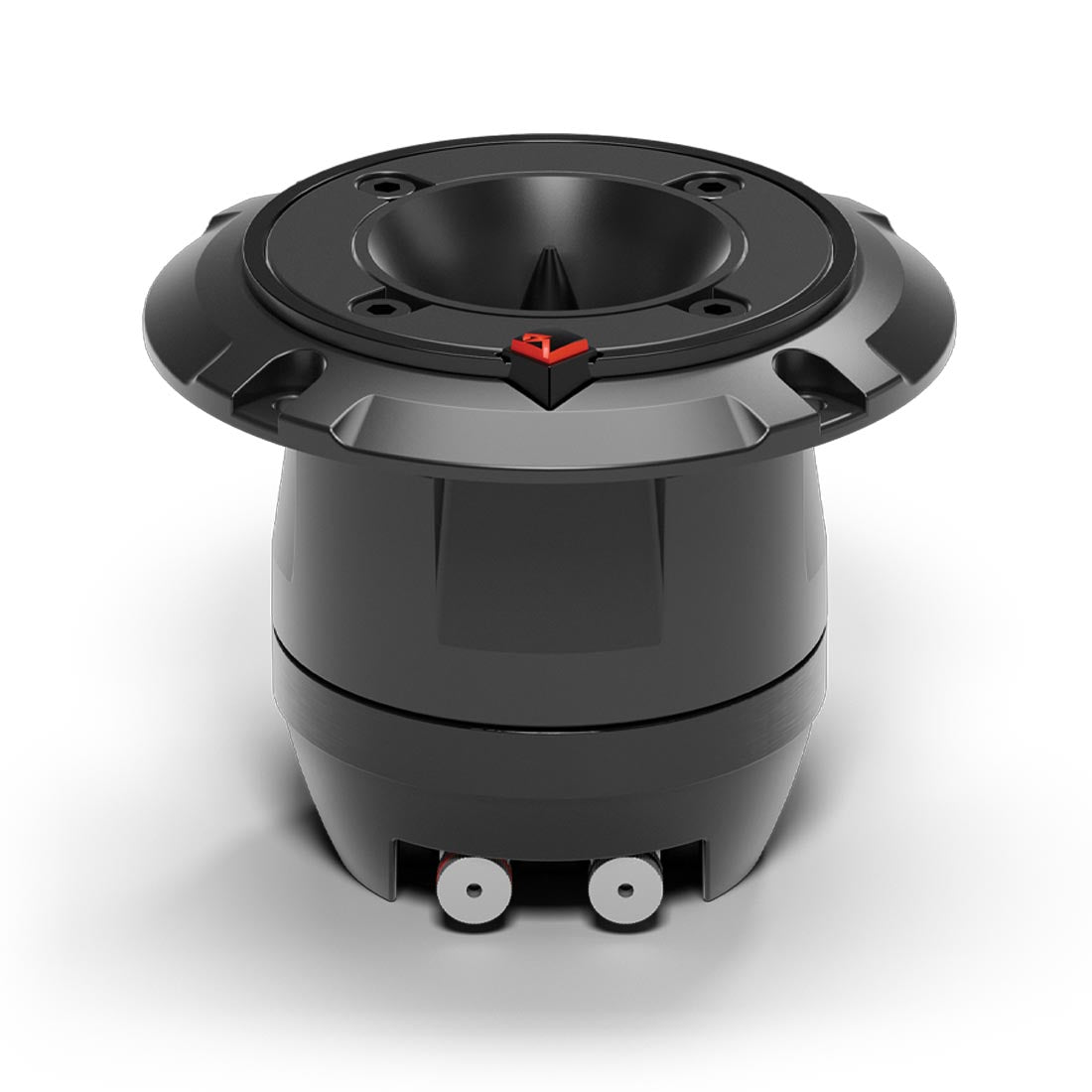

Rockford Fosgate PPROV2-HT Punch Pro 1” 4-Ohm Neodymium Horn Tweeters - Pair
Product Description
Product Description
Rockford Fosgate PPROV2-HT Punch Pro 1” 4-Ohm Neodymium Horn Tweeters - Pair - 2026
The Rockford Fosgate PPROV2-HT is a Punch Pro V2 horn tweeter built for high-SPL audio systems that need serious high-frequency output without taking up much space. With a 1-inch titanium dome design, 4-ohm impedance, and 105 dB sensitivity, it is designed to push crisp, powerful highs in demanding audio environments. Why settle for a tweeter that struggles when the volume climbs?
Built for High-SPL Performance
The PPROV2-HT is purpose-built for extreme SPL performance and long-throw applications. Its compact design combines an aluminum alloy diaphragm, cast aluminum frame, and specialized high-efficiency components to handle demanding audio systems.

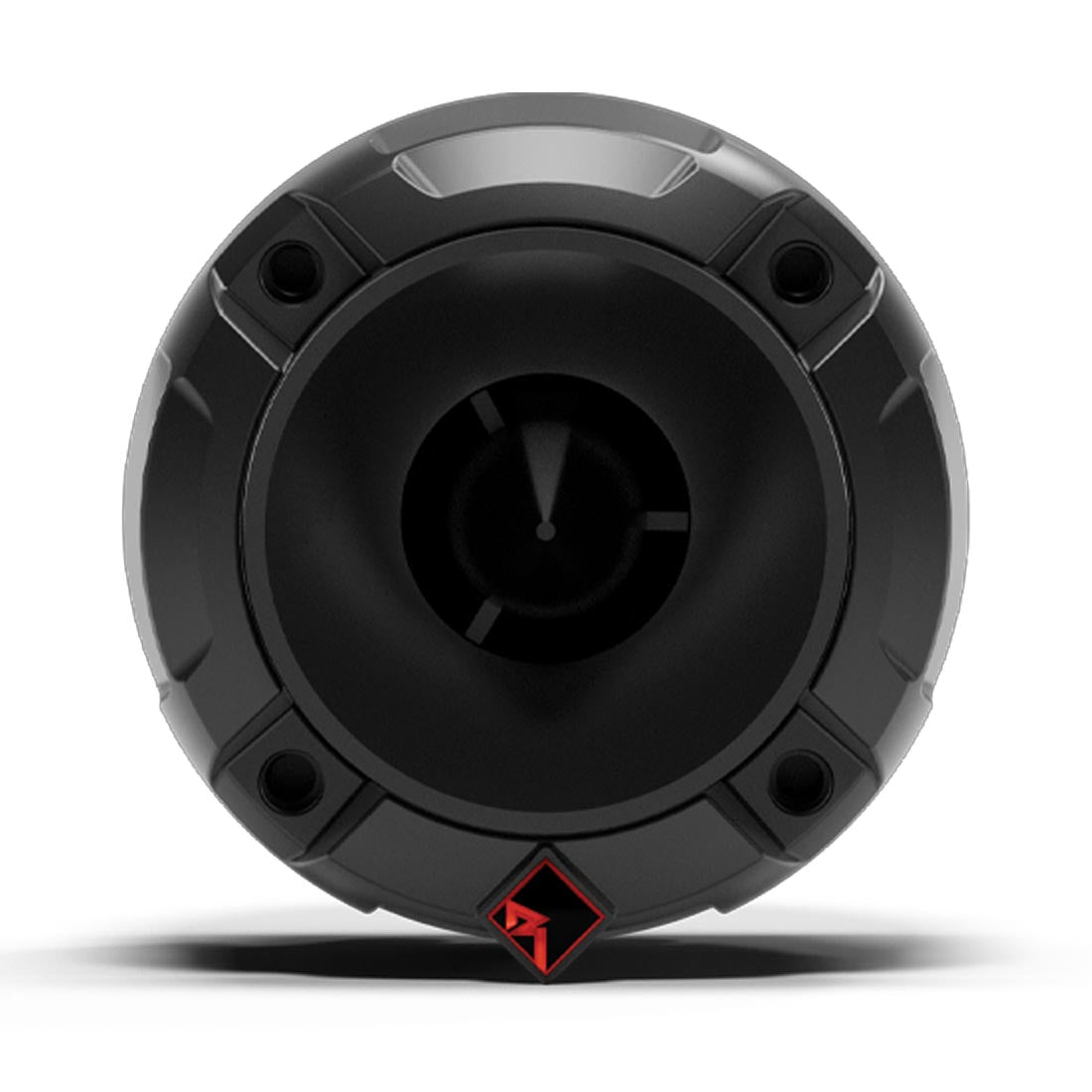

Think of the horn-loaded design as a focused pathway for high-frequency sound. It helps direct the output while the rigid construction provides the foundation needed for consistent performance.
Edge-Driven 1-Inch Tweeter
At the heart of the PPROV2-HT is an ultra-low-mass, edge-driven 1-inch CCA voice coil with a Nomex voice coil former. The inverted dome design is engineered for high-performance audio, helping deliver clarity, precision, and broad sound dispersion.
The aluminum alloy diaphragm contributes to a smooth transient response, while the anodized CNC-machined aluminum phase plug helps with sound dispersion and cooling.
Rugged Aluminum Construction

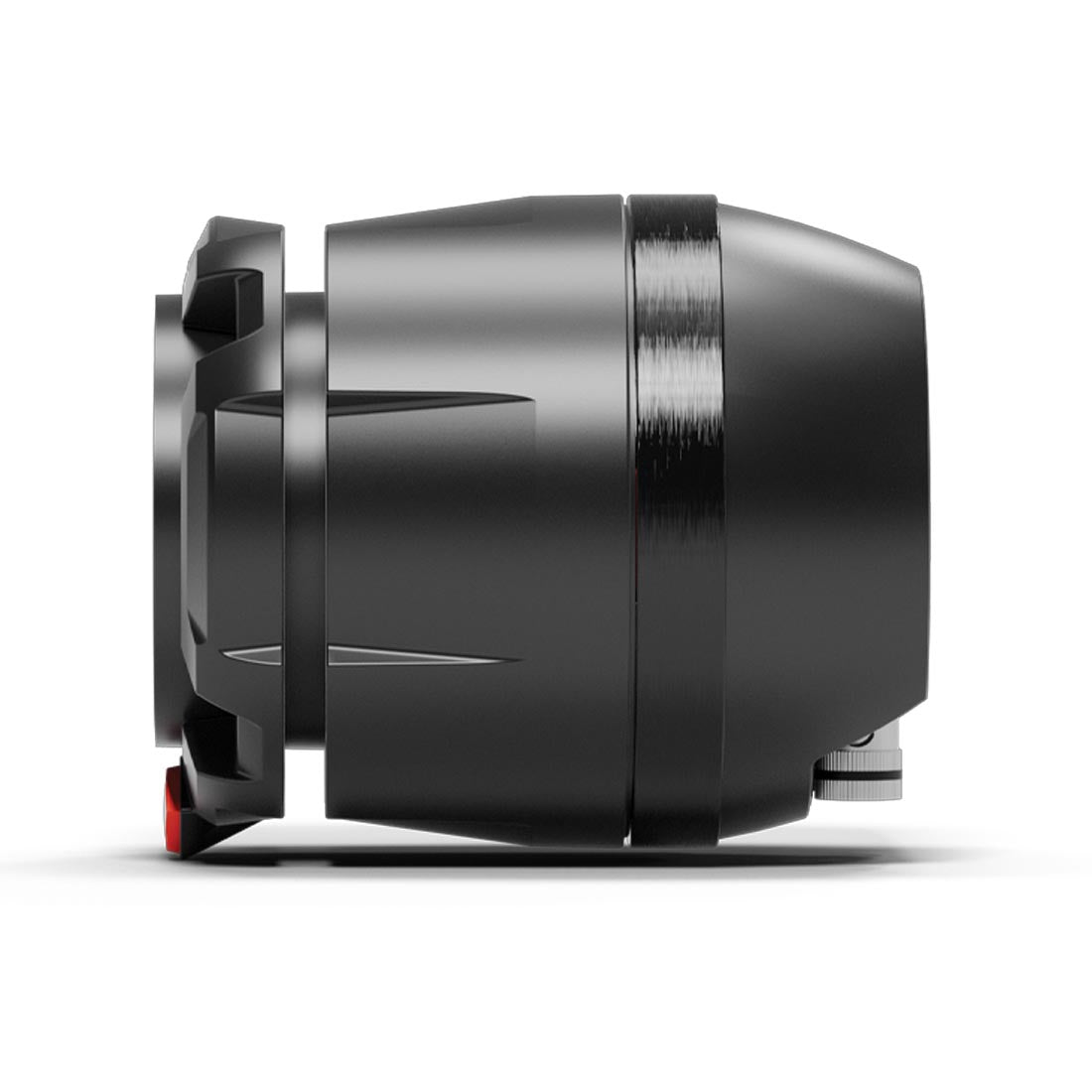

High-output audio demands a solid build, and the PPROV2-HT uses a cast aluminum tweeter frame for rigidity and thermal efficiency. The anodized CNC-machined aluminum phase plug adds another layer of durability while helping manage heat during demanding use.

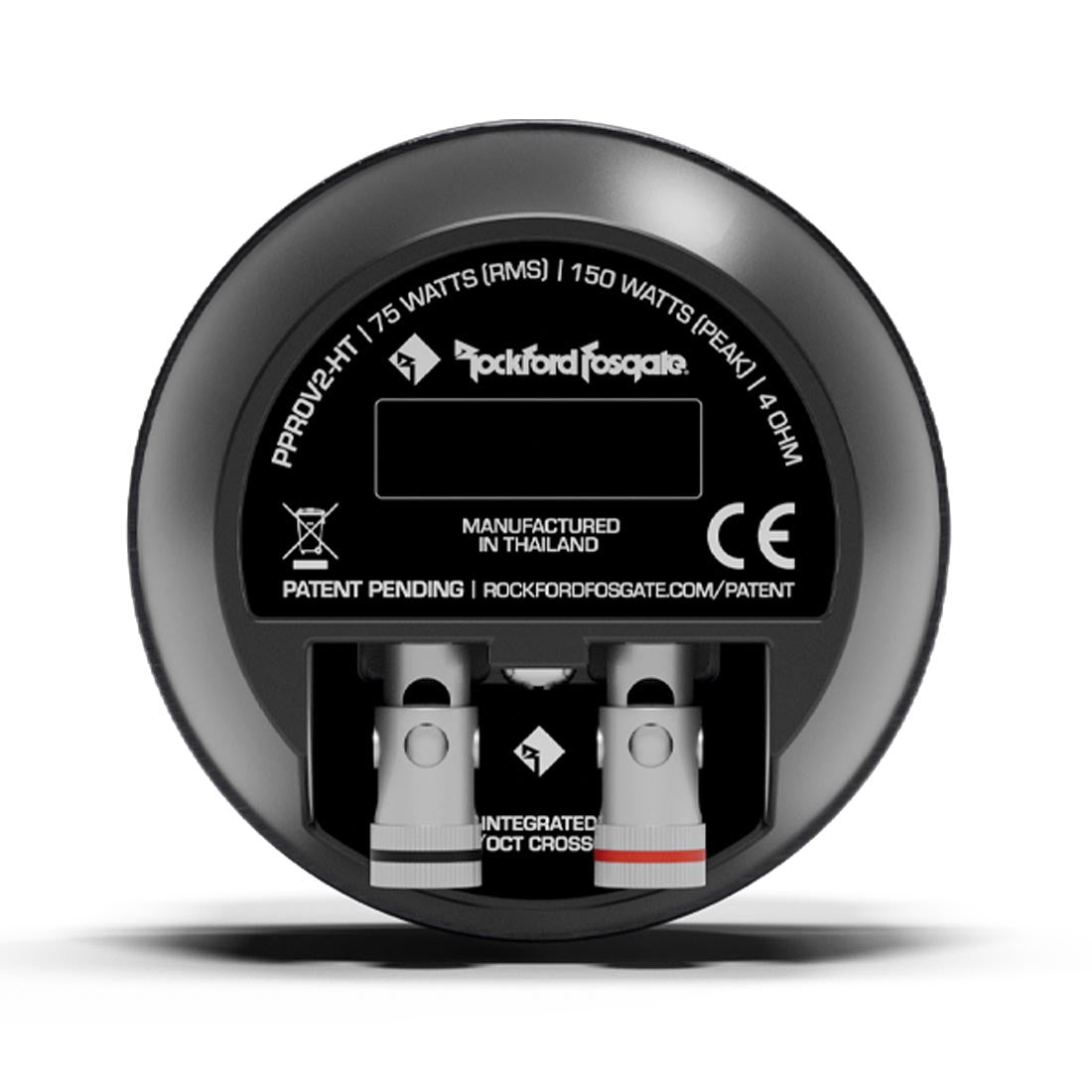

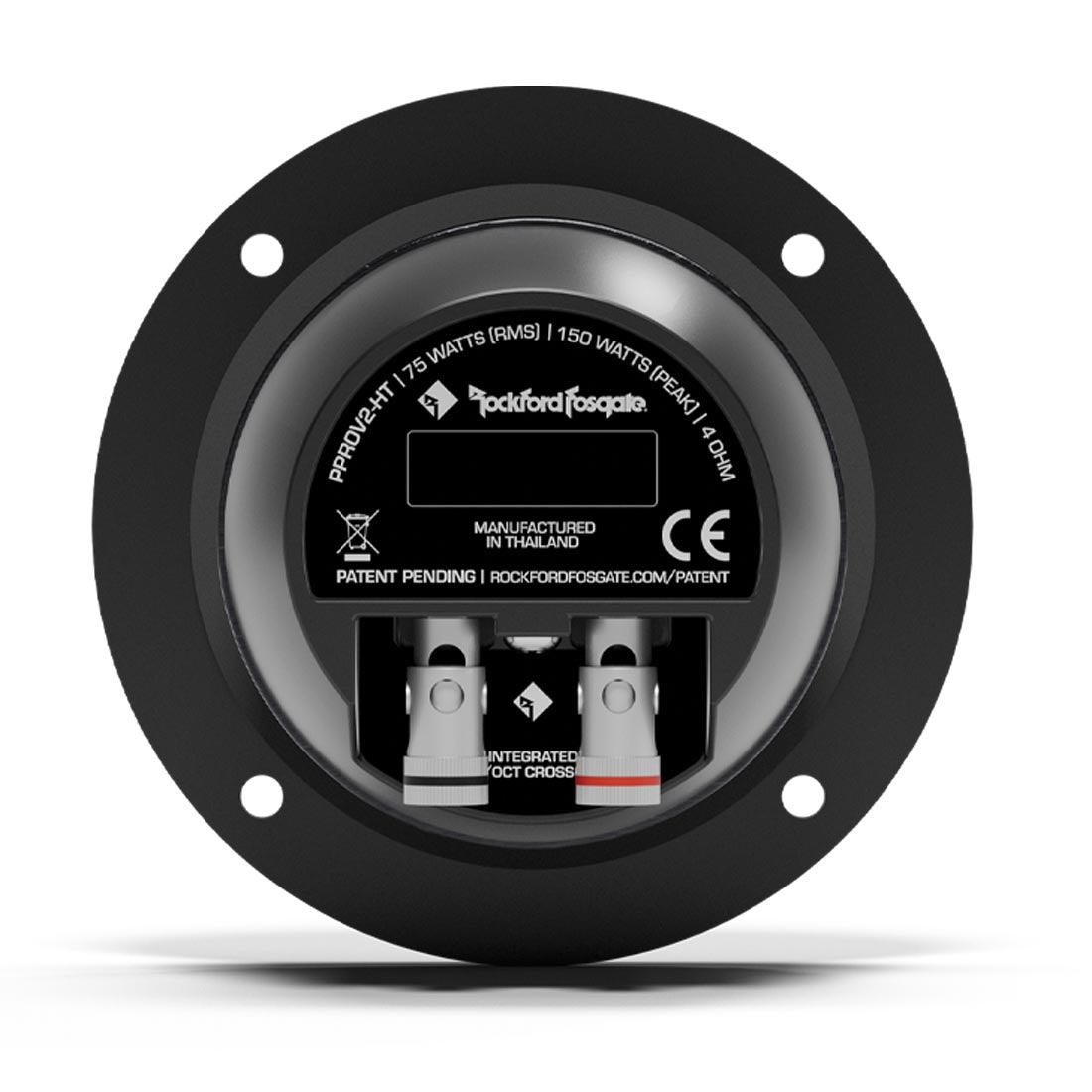

Nickel-plated push pins also make wire insertion and removal straightforward, keeping the connections practical without adding unnecessary complexity.
Integrated Concealed Crossover
The PPROV2-HT features an internal concealed 6 dB/octave high-pass crossover. The crossover is integrated into the tweeter basket, helping maintain a cleaner overall design while providing high-pass filtering.
The crossover frequency is 12 kHz with a 6 dB/octave slope.
High-Frequency Output
With a frequency response of 3 kHz to 20 kHz and a sensitivity of 105 dB at 1W/1M, the PPROV2-HT is designed around efficient, high-output performance. It handles 75 watts RMS and 150 watts peak, giving it the capability to keep up with powerful SPL-oriented systems.
Its 4-ohm nominal impedance and 1-inch voice coil make it a focused choice for systems where strong high-frequency output is a priority.
Flexible Mounting Options

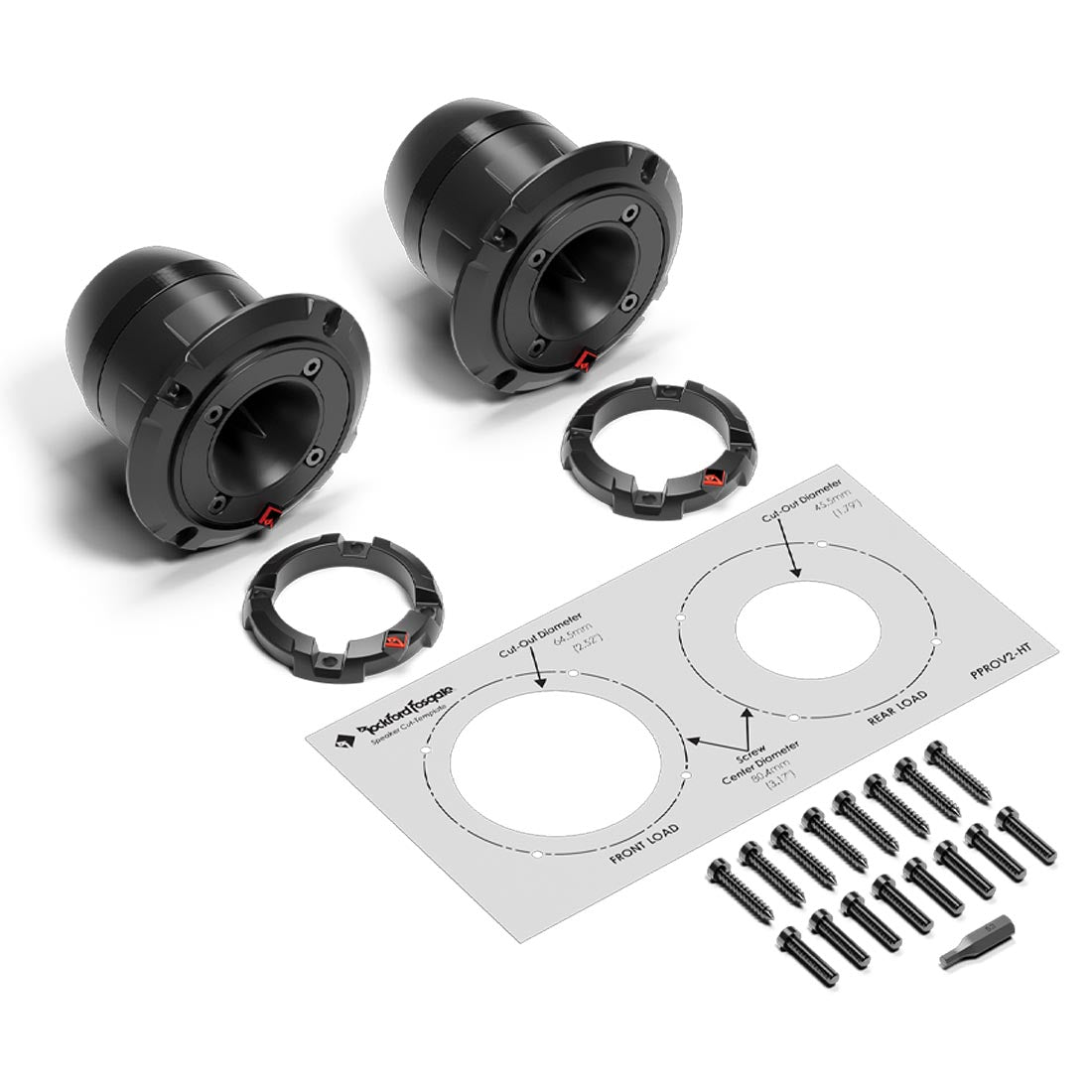

Two mounting bezels are included, giving you compact and standard mounting options. The package also includes a tweeter cutout template and mounting hardware.
The included kit contains two 1-inch 4-ohm tweeters, two front-load trim rings, two rear-load trim rings, eight #8 hex screws, eight M3 hex screws, a 3 mm hex bit, and a cutout template.
CTA-2031 Compliant
The PPROV2-HT is CTA-2031 compliant, with power handling that conforms to CTA-2031 industry standards. It also incorporates vibration-resistant components designed to withstand shock and vibration conditions common with outdoor vehicles.
Takeaway
The Rockford Fosgate PPROV2-HT brings together high sensitivity, a 1-inch edge-driven voice coil, aluminum construction, and horn-loaded output for systems focused on high-SPL performance. With 75 watts RMS power handling, 105 dB sensitivity, a 3 kHz to 20 kHz frequency response, and two mounting options, it is designed to deliver strong, focused high frequencies in a compact package.
FAQs
- What type of tweeter is the Rockford Fosgate PPROV2-HT? The PPROV2-HT is a 1-inch, 4-ohm horn tweeter designed for high-SPL and long-throw applications.
- How much power can the PPROV2-HT handle? It handles 75 watts RMS and 150 watts peak.
- What is the frequency response of the PPROV2-HT? The frequency response is 3 kHz to 20 kHz.
- What is the sensitivity of the Rockford Fosgate PPROV2-HT? The sensitivity is 105 dB at 1W/1M and 108 dB at 2.83V/1M.

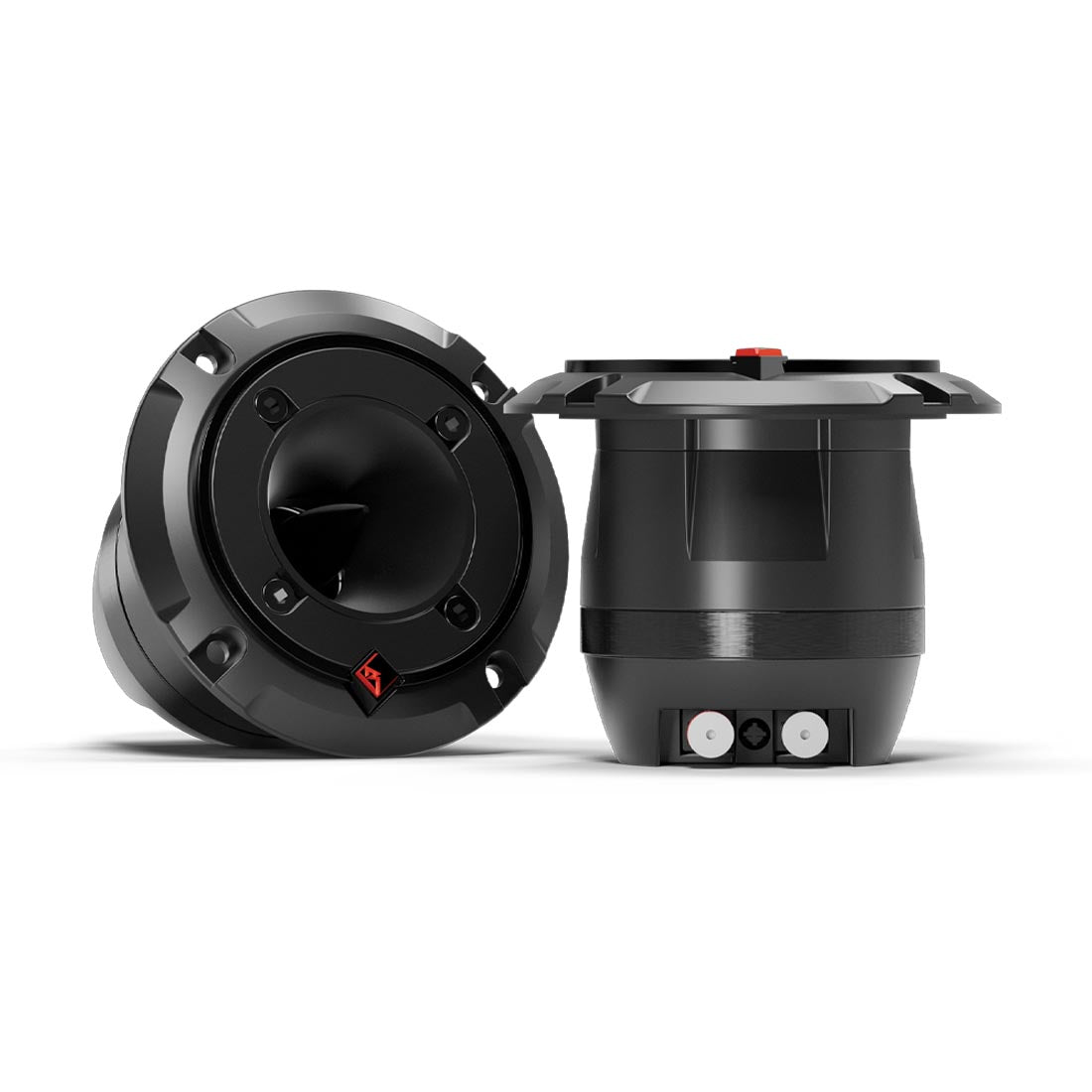

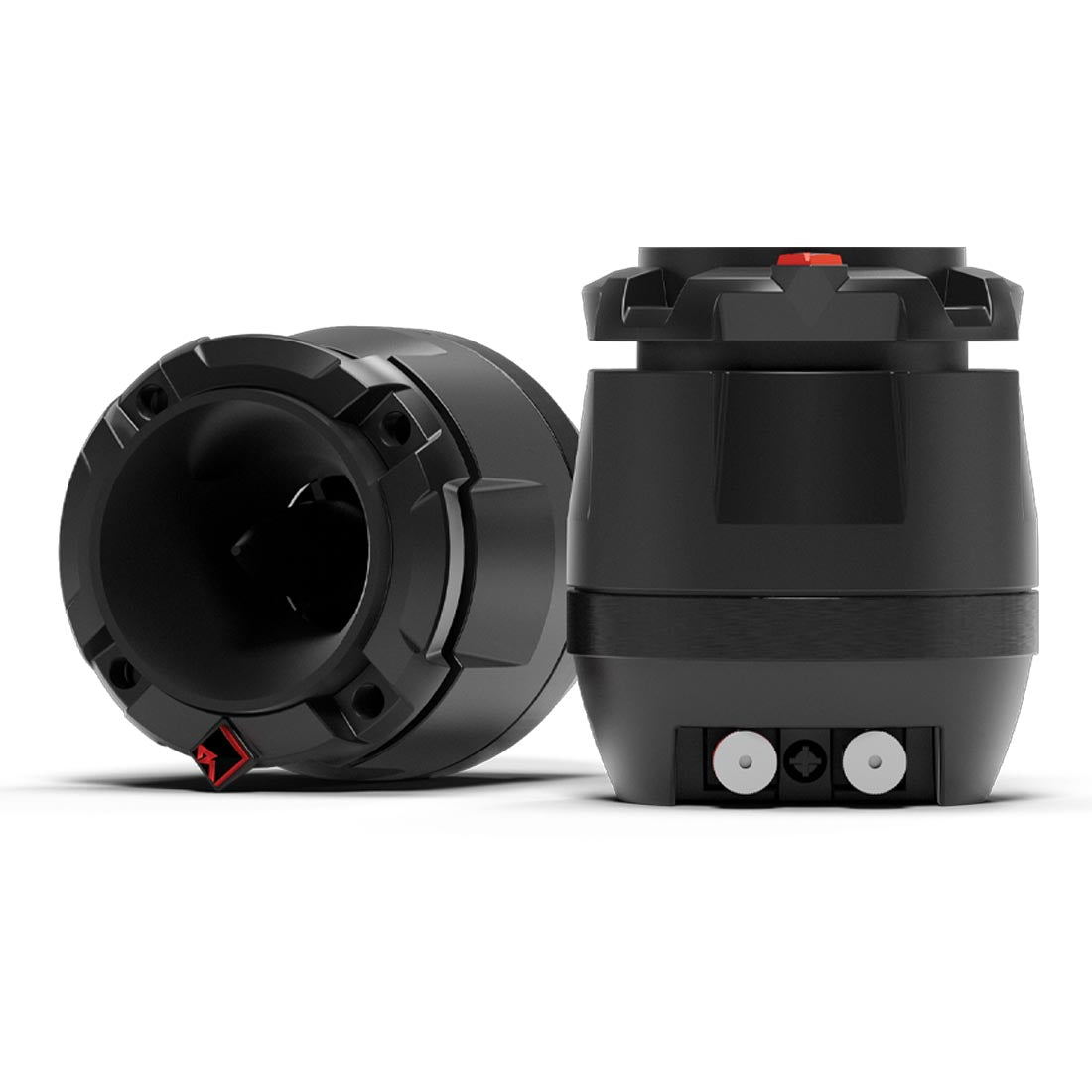

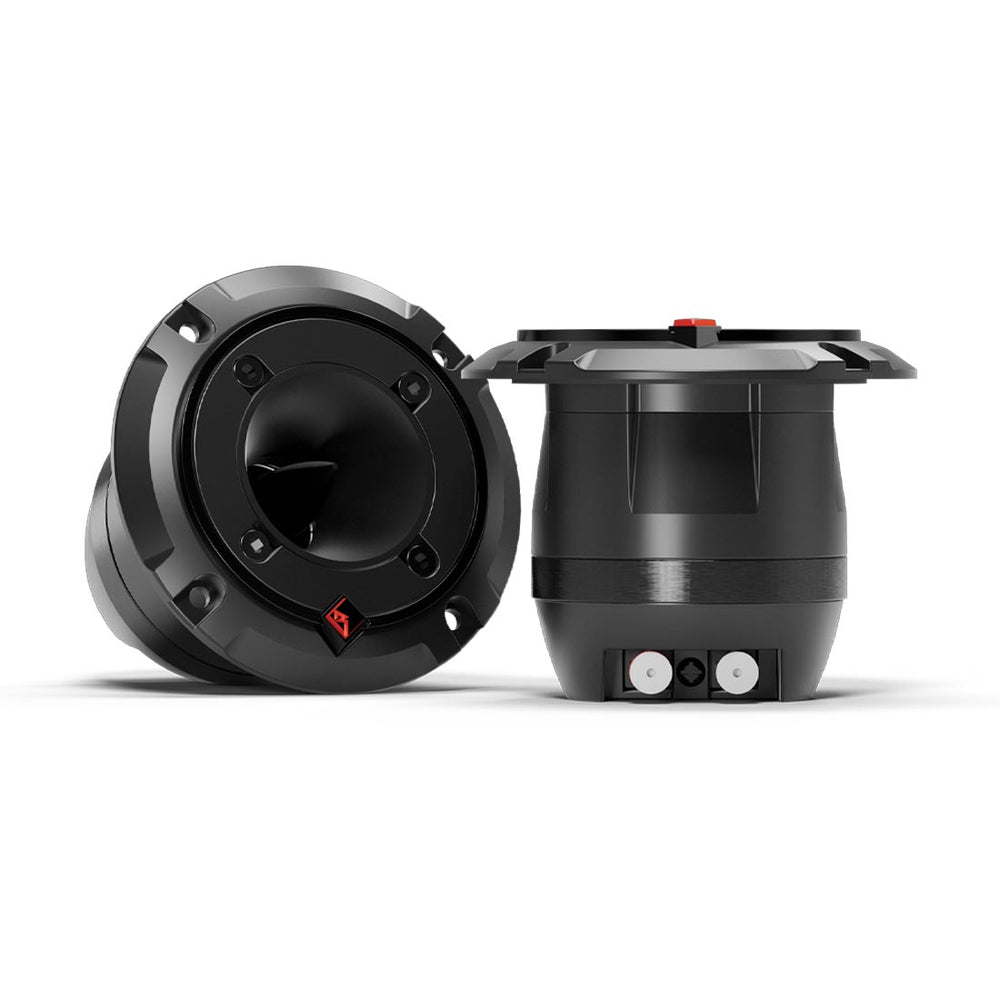

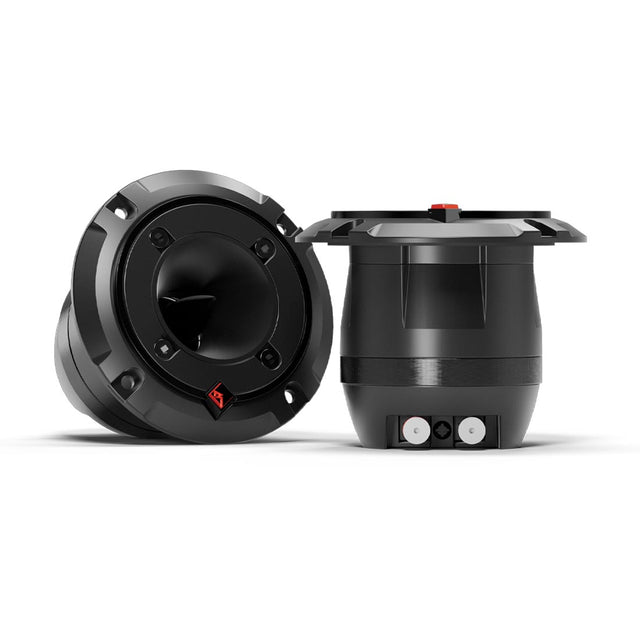

- Does the PPROV2-HT come as a pair? Yes. The PPROV2-HT is sold as a pair and includes two 1-inch 4-ohm tweeters.
