Rockford Fosgate PPROV2-X Punch Pro 4-Ohm Passive Crossovers - Pair - 2026
Rockford Fosgate PPROV2-X passive crossovers are built for high-SPL systems where controlled output matters just as much as raw volume. Designed specifically for 4-ohm speakers, this Punch Pro V2 crossover handles two midrange speakers and one tweeter, giving you a practical way to manage the signal in performance-focused audio builds.
Built for High-SPL Performance
The PPROV2-X is part of the Punch Pro series, a lineup engineered around aggressive output, rugged durability, and high-power performance. It is purpose-built for competition-style vehicles and systems where maximum output is the priority.
With 225W RMS power handling and 450W peak power handling, the crossover is designed to keep up with demanding listening sessions. Think of it as the traffic controller of the speaker system, directing the right frequencies where they need to go.
Precision Low-Pass Filtering
An external 3kHz low-pass crossover provides precise signal control for integrating dual midrange drivers with a tweeter. The 6dB/octave crossover slope helps shape the midrange signal while maintaining controlled performance at higher output levels.
Laminated steel-core inductors provide low-loss, high-current filtering, helping deliver a smooth and controlled midrange response.
Adjustable Tweeter Output
Why settle for one fixed level when your system may need something different? The PPROV2-X features three selectable tweeter attenuation settings: 0dB, -3dB, and -6dB.
This gives you the flexibility to adjust high-frequency output and find the right tonal balance for your particular speaker configuration.
Designed for High-Power Conditions

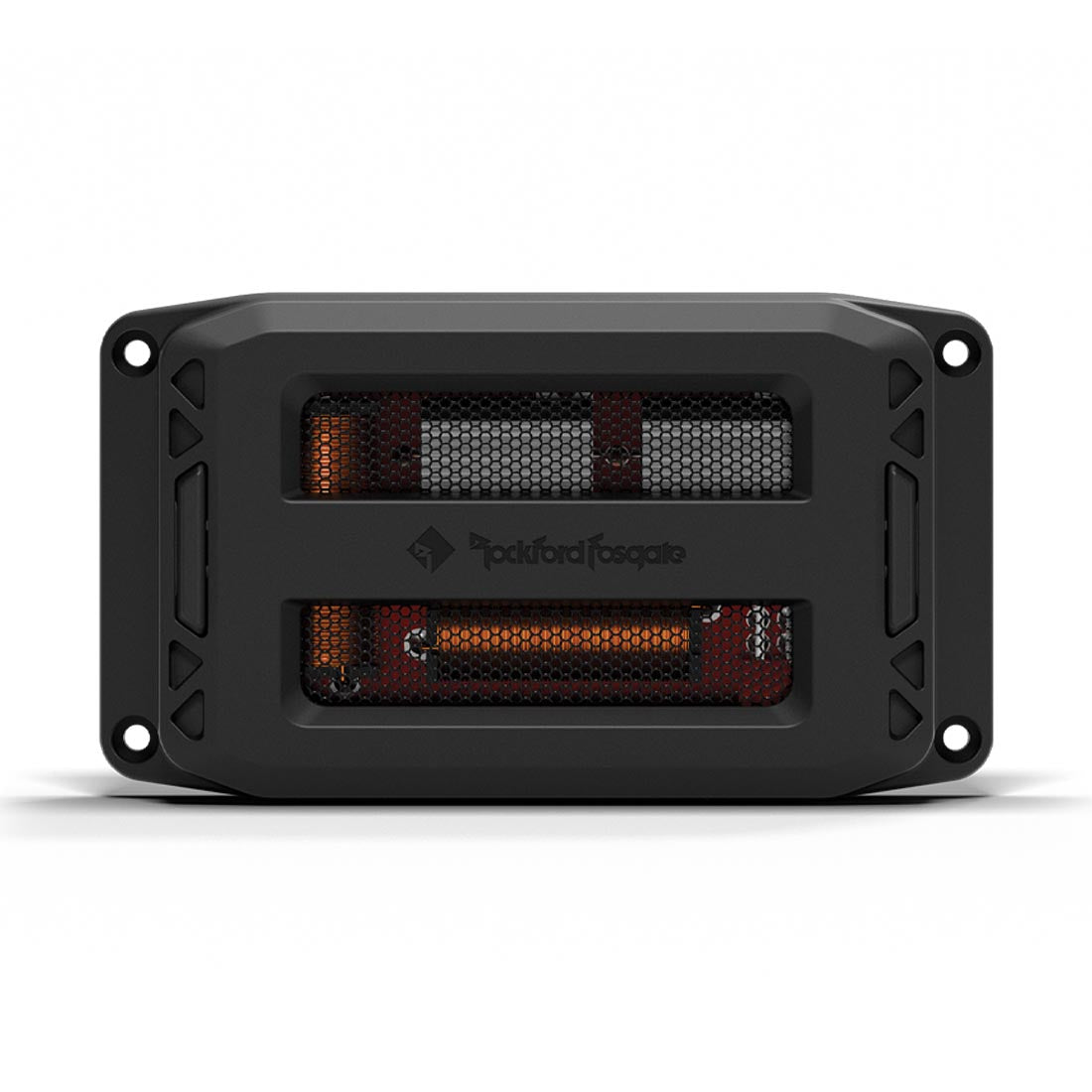

High output can generate serious heat, so the crossover uses several components designed to manage thermal demands. Aluminum-encased ceramic resistors, aluminum heatsinks, and a vented chassis work together to help dissipate heat during extended high-output use.
The removable top cover and thick-trace PCBA also contribute to the crossover's durable construction and electrical integrity.
Simple Speaker Connections

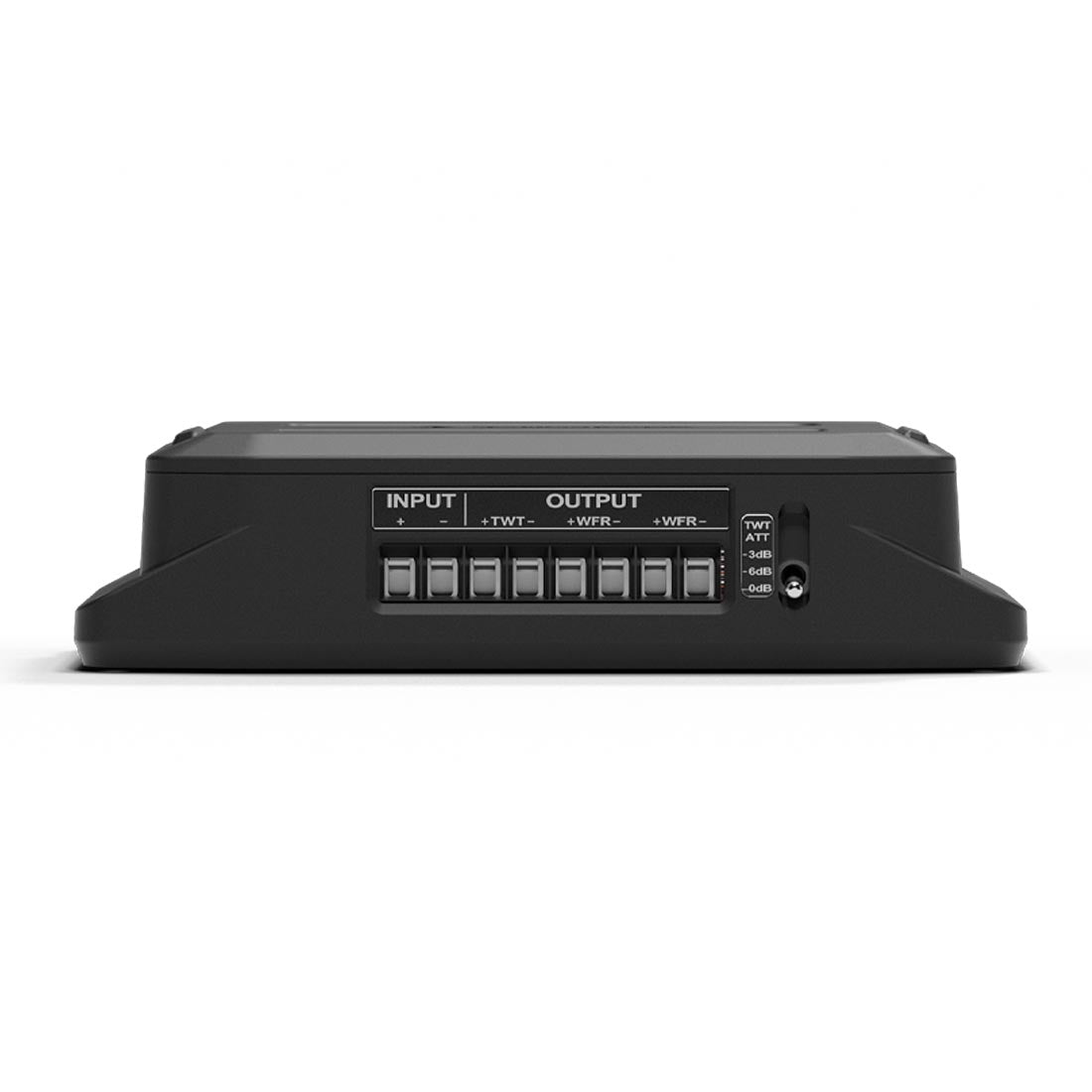

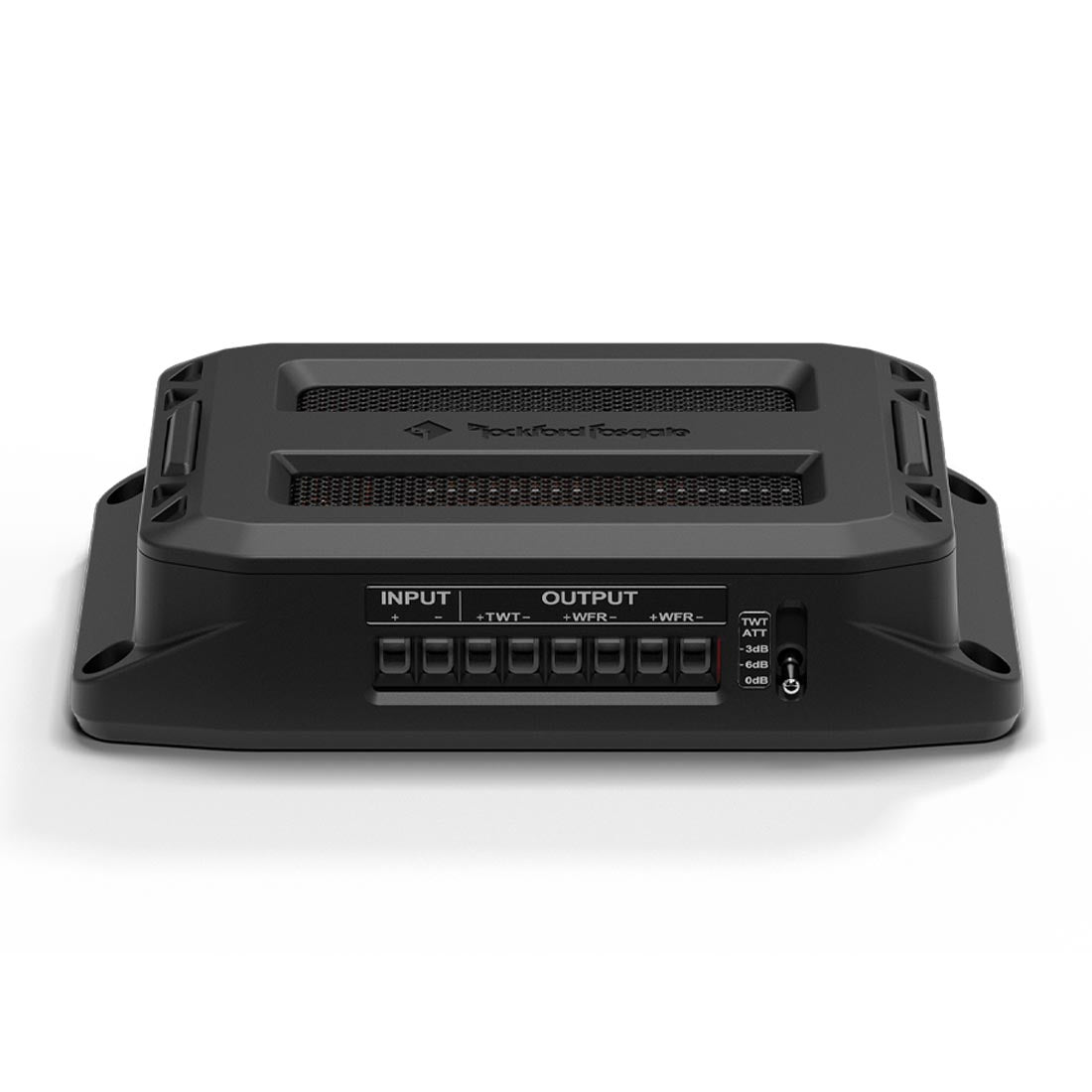

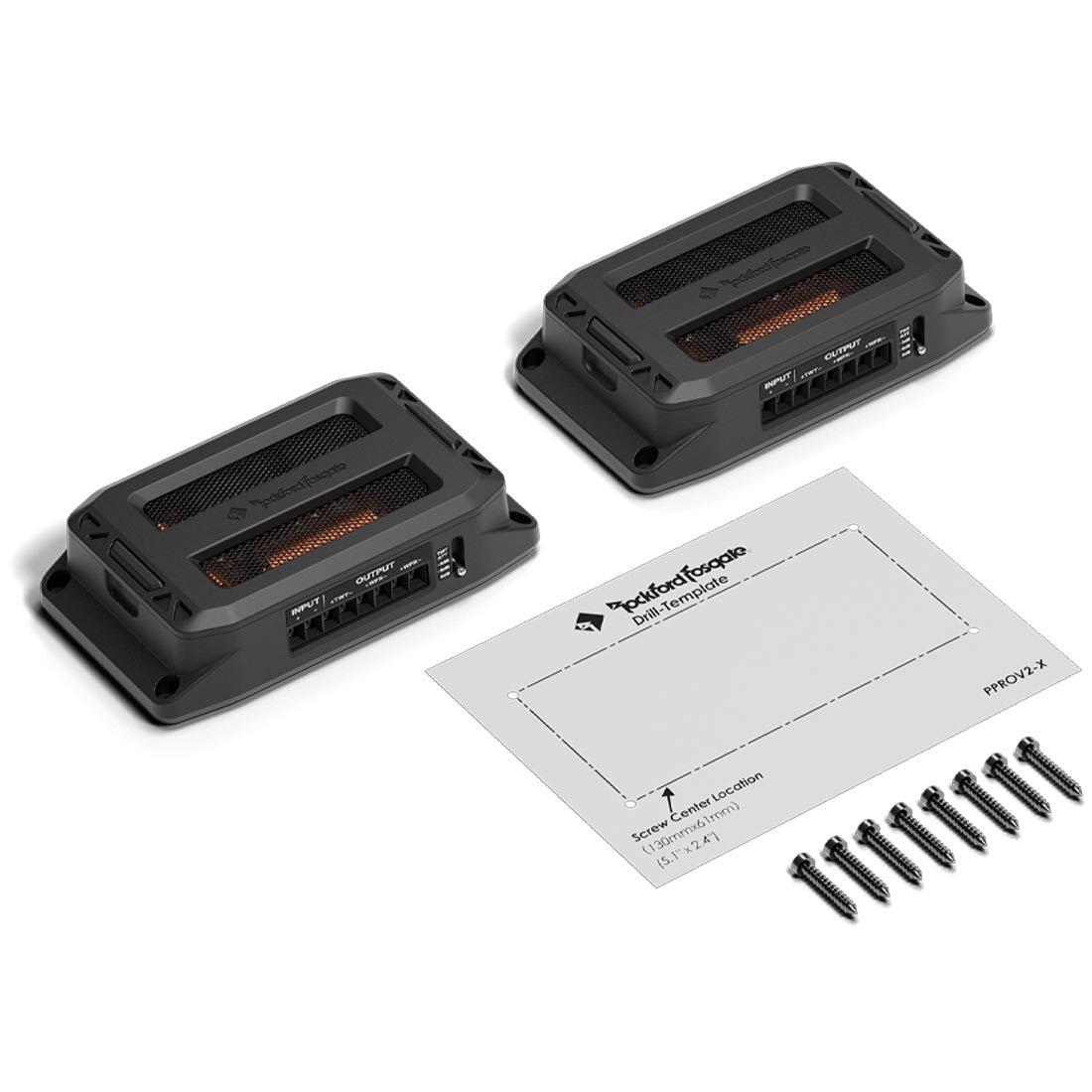

The PPROV2-X uses stereo speaker-level inputs with dual midrange and single tweeter outputs. Compression elevator wire terminals make the input and output connections straightforward, while the included mounting hardware and cutout template help simplify positioning.
Each crossover has a mounting flange measuring 3.16" x 5.57", with 1.37" of front clearance.
A Rugged Crossover for Punch Pro Systems
The Rockford Fosgate PPROV2-X brings together high-power handling, adjustable tweeter attenuation, precision filtering, and rugged construction in a dedicated 4-ohm passive crossover. With support for two midrange speakers and one tweeter, it is purpose-built for Punch Pro systems focused on aggressive SPL performance and dependable output.
Rockford Fosgate PPROV2-X Compatibility
FAQs
- What speakers is the Rockford Fosgate PPROV2-X designed for? It is designed for use with 4-ohm speakers, supporting two midrange speakers and one tweeter.
- How much power can the PPROV2-X handle? It handles 225W RMS and 450W peak power.
- What tweeter attenuation settings are available? You can select between 0dB, -3dB, and -6dB attenuation.
- What is the crossover frequency? The crossover frequency is 3kHz with a 6dB/octave slope.
- How many crossovers are included? The package includes two 4-ohm passive crossovers.
