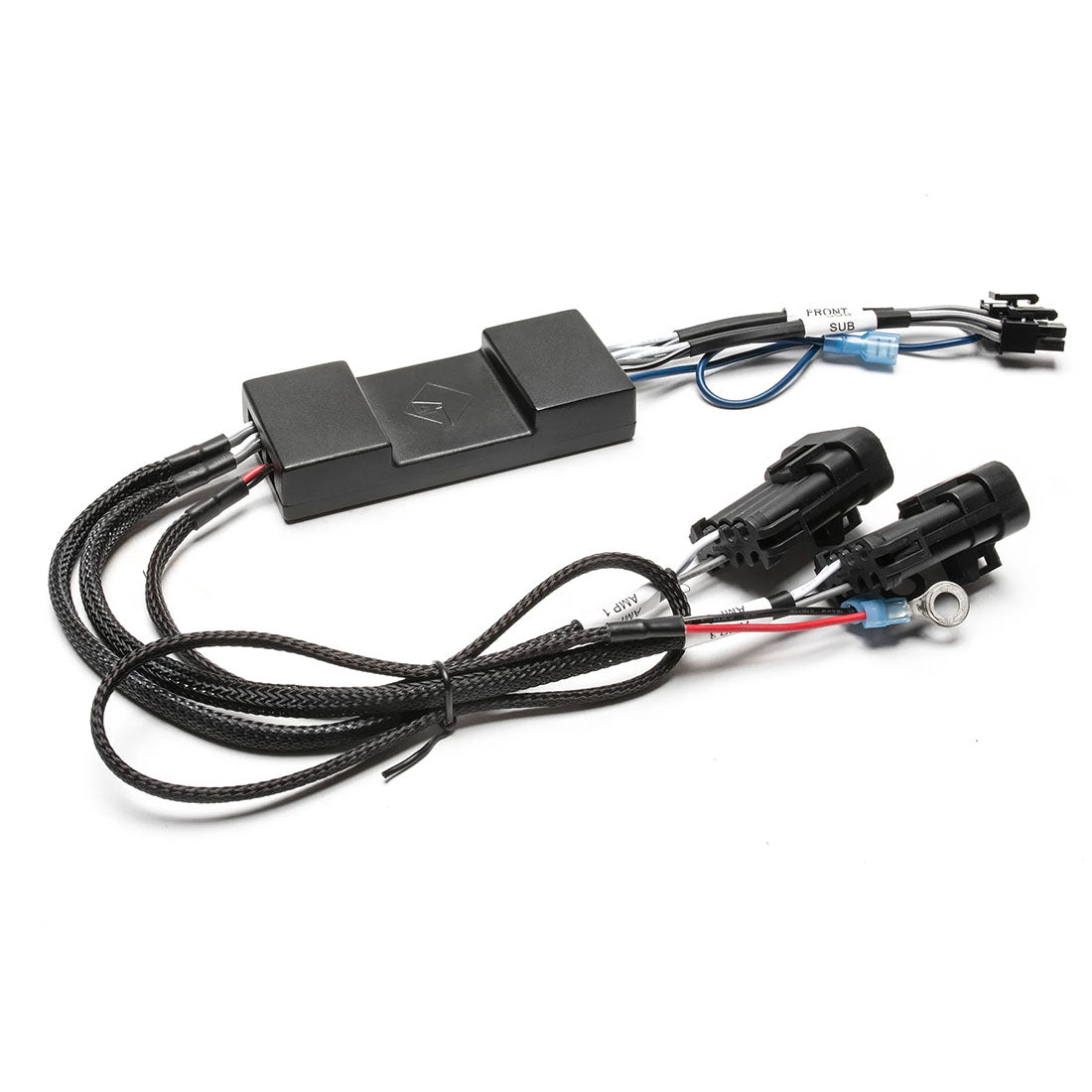

Rockford Fosgate RFPOL-RC34 Ride Command Interface for Stage-3 and Stage-4 Systems

Rockford Fosgate RFPOL-RC34 Ride Command Interface for Stage-3 and Stage-4 Systems

The Rockford Fosgate RFPOL-RC34 is designed to connect Rockford Fosgate amplifiers to a factory Polaris Ride Command source unit while keeping the factory audio system at the center of your setup. Designed for RZR, RANGER, and GENERAL models equipped with Ride Command, this interface taps both front and subwoofer audio signals and sends them to a compatible TM400X4ad amplifier.

Connect Factory Ride Command to Your Audio System

Why replace the factory Ride Command source when you can keep using it? The Rockford Fosgate RFPOL-RC34 retains the factory Ride Command as the audio source while providing the audio signals needed for the amplifier. Its two-part harness connects with the front/rear speaker amplifier and subwoofer amplifier so the correct audio frequencies reach the appropriate speakers.

Built-In Noise Suppression

The RFPOL-RC34 features an active electronic noise suppressor designed to filter electronic noise caused by the DYNAMIX suspension system. It also eliminates pulse-width-modulated noise associated with the DYNAMIX suspension system. Think of it as a filter that helps keep unwanted electrical noise from becoming part of your audio experience.

Use Ride Command Crossovers

The interface allows the audio system to take advantage of the built-in Ride Command crossovers. It utilizes a 100 Hz high-pass filter and 100 Hz low-pass filter to help distribute the appropriate audio frequencies between the front audio and subwoofer channels.

The front channels power the front audio, while the rear channels power the subwoofer. With the two-part harness handling these signals, the Ride Command system can properly direct the correct frequencies to the appropriate speakers.

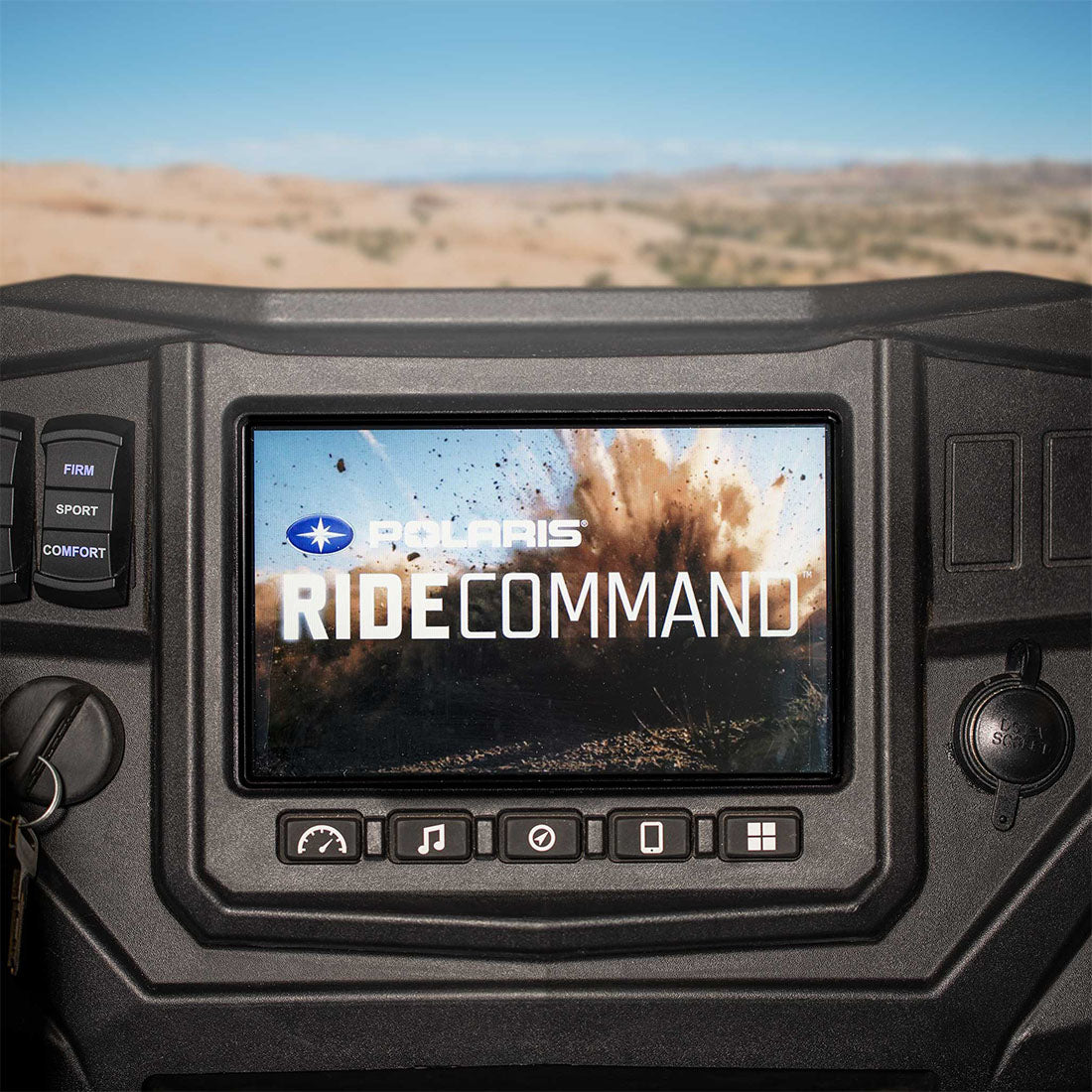

Designed for Polaris Ride Command Systems

The Rockford Fosgate RFPOL-RC34 is designed specifically for RZR, RANGER, and GENERAL vehicles equipped with Ride Command. It is compatible with both 5-button and 7-button Ride Command systems, giving you flexibility across supported factory configurations.

Amplifier Compatibility

The harness plugs exclusively into the Rockford Fosgate TM400X4ad amplifier. The interface also includes a remote-out connection for turning on a Rockford Fosgate amplifier. This keeps the factory Ride Command source while providing the necessary connection between the source unit and compatible amplifier.

Cleaner Audio Signal Distribution

Getting the right signal to the right speaker matters. The Rockford Fosgate RFPOL-RC34 feeds both front and subwoofer audio from Ride Command to the amplifier while using the system's built-in crossovers. The result is a straightforward way to manage front and subwoofer audio signals within a compatible Ride Command system.

The interface also eliminates the turn-on pop associated with the Ride Command unit, adding another useful feature to the signal connection between the factory source and Rockford Fosgate amplifier.

Key Features of the Rockford Fosgate RFPOL-RC34

• Active electronic noise suppressor
• Retains the factory Ride Command as the audio source
• Designed for RZR, RANGER, and GENERAL equipped with Ride Command
• Compatible with both 5-button and 7-button Ride Command systems
• Eliminates pulse-width-modulated noise in the DYNAMIX suspension system
• Eliminates turn-on pop associated with the Ride Command unit
• Feeds front and subwoofer audio from Ride Command to the amplifier
• Utilizes built-in 100 Hz high-pass and 100 Hz low-pass Ride Command crossovers
• Includes remote-out to turn on a Rockford Fosgate amplifier
• Harness plugs exclusively into the TM400X4ad

The Rockford Fosgate RFPOL-RC34 provides a direct way to connect a factory Polaris Ride Command source unit with a compatible Rockford Fosgate amplifier. With front and subwoofer signal handling, active electronic noise suppression, built-in crossover support, and compatibility with both 5-button and 7-button Ride Command systems, it keeps the factory source while helping deliver properly distributed audio signals.

FAQs

1. What is the Rockford Fosgate RFPOL-RC34 designed to do? The Rockford Fosgate RFPOL-RC34 connects Rockford Fosgate amplifiers with a factory Polaris Ride Command source unit and feeds front and subwoofer audio signals to the amplifier.
2. Which vehicles is the RFPOL-RC34 designed for? It is designed for RZR, RANGER, and GENERAL vehicles equipped with Ride Command.
3. Is the RFPOL-RC34 compatible with different Ride Command controls? Yes. It is compatible with both 5-button and 7-button Ride Command systems.
4. What type of noise does the RFPOL-RC34 help eliminate? It uses an active electronic noise suppressor to filter electronic noise caused by the DYNAMIX suspension system and eliminates pulse-width-modulated noise associated with that system.
5. Which amplifier does the RFPOL-RC34 plug into? The harness plugs exclusively into the Rockford Fosgate TM400X4ad amplifier.
