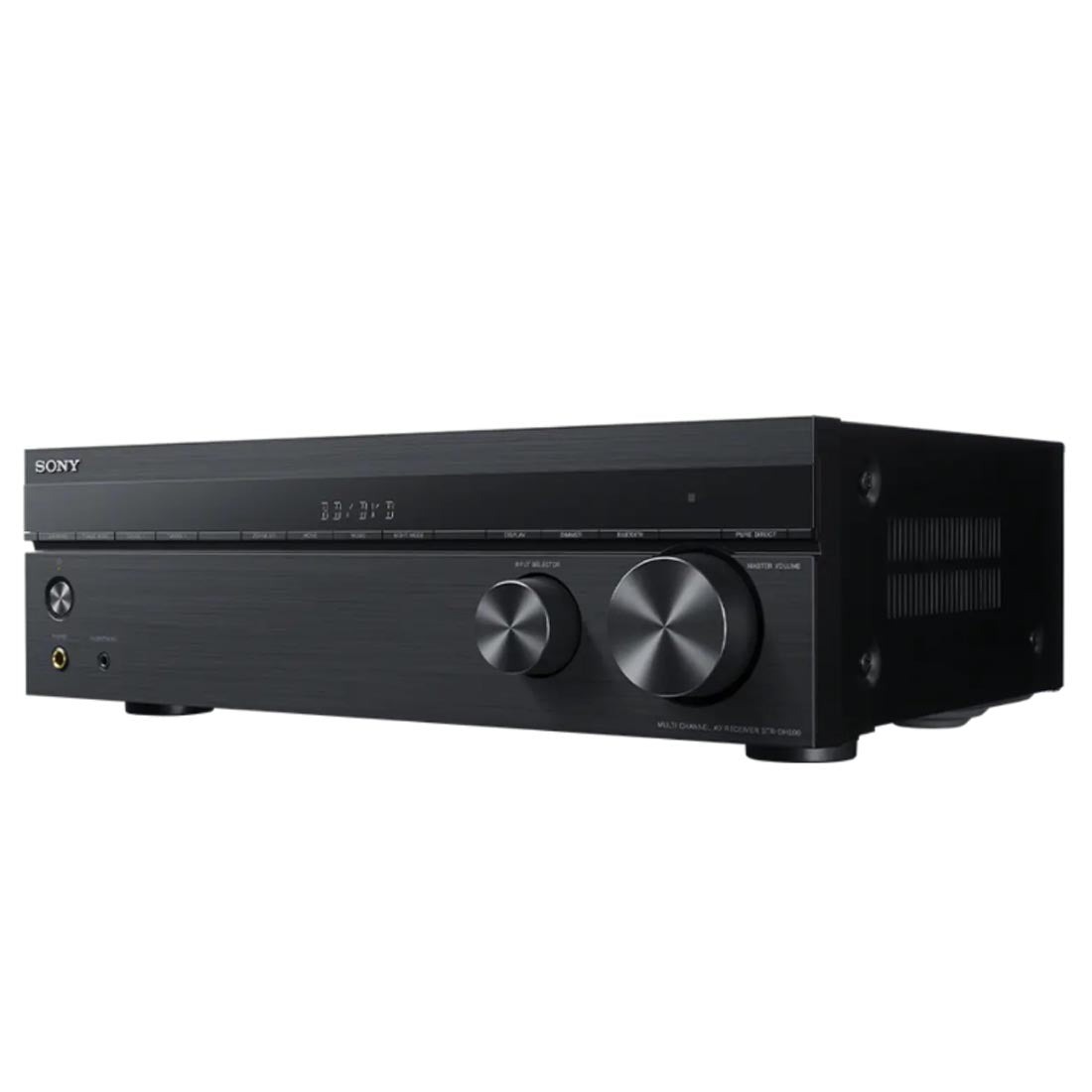

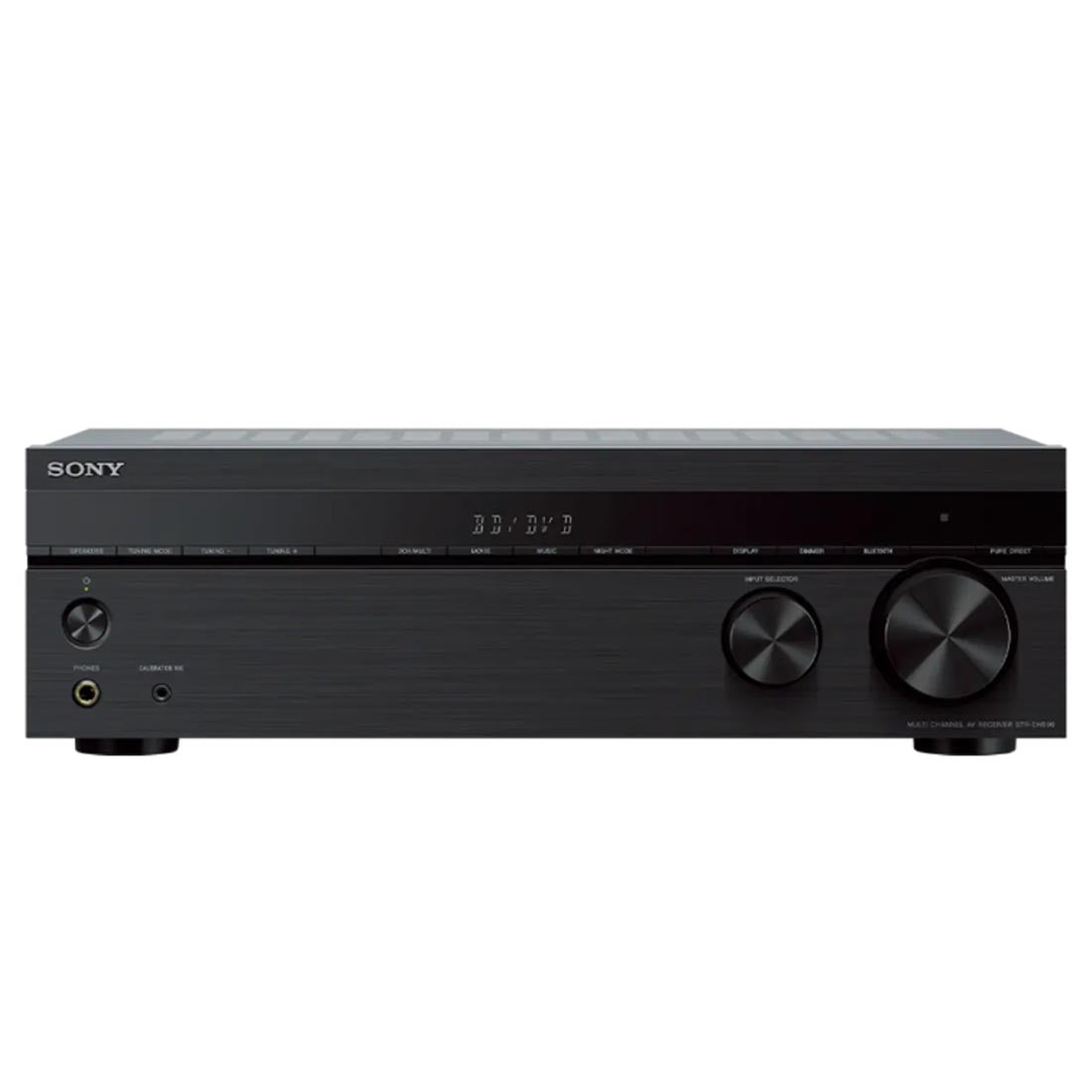

Sony STR-DH590 5.2 Channel Home Theatre AV Receiver (OPEN BOX)

Sony STR-DH590 5.2 Channel Home Theatre AV Receiver (OPEN BOX)

The Sony STR-DH590 brings 4K HDR video and flexible surround sound together in a compact home theatre receiver designed to fit neatly into your entertainment setup. With four HDMI inputs, Bluetooth connectivity, and support for High-Resolution Audio, it gives you an easy way to connect your TV, UHD Blu-ray Disc player, game console, and other devices.

4K HDR Pass-Through for a Clearer Picture

Why compromise your picture quality between the source and your screen? The Sony STR-DH590 supports 4K 60p 4:4:4 pass-through, allowing 4K data to pass through the receiver without compromising image quality. HDCP 2.2 is supported, along with HDR10, HLG, and Dolby Vision.

HDR adds greater contrast and brightness, helping reveal more detail in shadows and highlights while bringing colours to life. The receiver also supports 3D over HDMI and Audio Return Channel.

Flexible Surround Sound

Build your home theatre around a 5.1-channel surround speaker system for an immersive movie experience. For smaller rooms or simpler setups, S-Force PRO Front Surround creates a virtual surround acoustic field using just two speakers, giving you more flexibility without needing a full surround setup.

The Sony STR-DH590 also includes a range of sound fields, including 2ch Stereo, Direct, Multi Ch Stereo, HD-D.C.S., Hall, PLII Movie, Front Surround, Jazz Club, Live Concert, Stadium, Sports, Audio Enhancer, PLII Music, and Headphone 2ch.

Digital Cinema Auto Calibration

Getting your speakers balanced properly can make a big difference. Digital Cinema Auto Calibration (DCAC) automatically optimizes the sound based on where you sit in relation to your speakers, helping you get more from your home cinema system.

Easy Bluetooth Connectivity

Connect your smartphone or tablet through Bluetooth and play your favourite tracks through the receiver. Bluetooth Standby also lets you turn the receiver on directly from a paired smartphone or tablet, making everyday listening more convenient.

High-Resolution Audio Support

The Sony STR-DH590 is compatible with High-Resolution Audio for detailed, studio-quality sound beyond CD quality. DSD decoding is also supported, with DSD using a sampling frequency 64 times that of CD.

Pure Direct sends sound directly to the receiver's amplifier to help preserve signal clarity. The power amplifier uses a glass-epoxy circuit board to reduce vibration and distortion, while the reinforced frame and beam chassis design help reduce external speaker sound pressure.

Designed for Clear, Reliable Performance

Inside, the STR-DH590 uses a large-capacity power transformer, metal framework, and heat sink bracket to protect the circuits and support clearer sound quality. The heat sink is designed to maximize air intake, helping keep the amplifier circuit cool to reduce distortion and increase reliability.

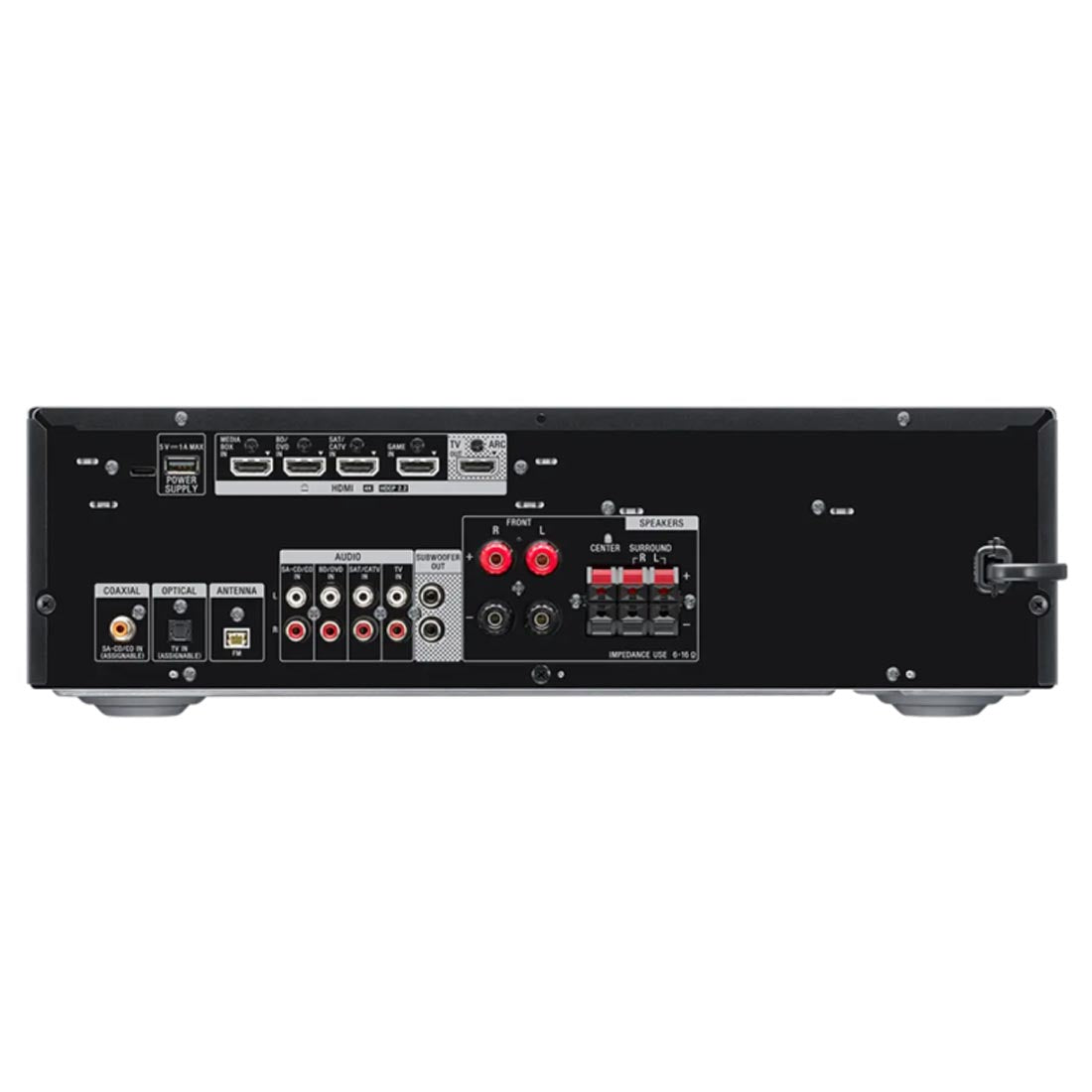

Connect Your Home Entertainment Devices

Four HDMI inputs and one HDMI output make it simple to bring your entertainment sources together. You can connect devices such as a TV, UHD Blu-ray Disc player, and games console, while optical, coaxial, and analogue audio inputs provide additional connection options.

The receiver also includes two subwoofer pre-outs, a headphone output, and a USB connection for power supply only. BRAVIA SYNC provides CEC control for compatible devices.

Compact Design for Your Media Unit

A home theatre receiver doesn't have to take over your entertainment centre. The Sony STR-DH590 has a compact profile measuring 430 x 133 x 297 mm and weighing 7.1 kg, making it easy to fit into a media unit while keeping your connected devices organized.

Built-In FM Tuner

For traditional radio listening, the receiver includes an FM tuner with 30 digital presets. Station names, auto tuning, and direct tuning are also available.

Specifications at a Glance

• Network Features: Bluetooth® Receiver
• A/V SYNC: Yes (Fixed)
• 4K 60p 4:4:4 Support: Yes
• 3D over HDMI: Yes
• Audio Return Channel: Yes
• BRAVIA® SYNC™ (CEC Control): Yes
• HDMI® Pass Through: Yes (HDR10, HLG, Dolby® Vision Compatible)
• FM/AM: Yes/No
• Preset Channel (FM/AM): TTL30 (30 / -)
• Dimensions (W x H x D): 430 x 133 x 297 mm
• Weight: 7.1 kg
• HDMI supporting HDCP2.2 In/Out: 4 / 1
• Audio Input: Opt (1), Coax (1), Analog Audio Input (4)
• Pre Out Subwoofer: 2
• Headphone Output: 1
• USB: For power supply only
• Speaker Output Terminals: Front, Centre, Surround
• GUI: Yes
• Power Requirement: AC 120 V 60 Hz
• Auto Standby: Yes
• TV VOLUME OFFSET: Yes
• Calibration: D.C.A.C., Calibration Mic (Mono)
• Decoding Format for HDMI: DSD, Dolby® Digital, Dolby® Dual Mono, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS, DTS 96 / 24
• Speaker Impedance: 6–16 ohms
• Number of Amp. Channels: 5
• Number of Decodable Channels: 5.1 ch
• Power Output: 145 W (6 ohms, 1 kHz, 1ch THD 0.9%)

A Flexible Home Theatre Hub

The Sony STR-DH590 combines 4K HDR pass-through, 5.1-channel surround sound, Bluetooth connectivity, High-Resolution Audio support, and four HDMI inputs in a compact receiver. Whether you're putting together a dedicated home cinema or looking for a flexible way to connect the devices in your media unit, it brings your video and audio sources together in one place.

FAQs

1. How many HDMI inputs does the Sony STR-DH590 have? It has four HDMI inputs and one HDMI output, with HDMI supporting HDCP 2.2.
2. Does the Sony STR-DH590 support Dolby Vision? Yes, HDMI pass-through is compatible with Dolby Vision, HDR10, and HLG.
3. Can the Sony STR-DH590 create surround sound with two speakers? Yes. S-Force PRO Front Surround creates a virtual surround acoustic field using only two speakers.
4. Does the Sony STR-DH590 have Bluetooth? Yes, it has a Bluetooth receiver and Bluetooth Standby, allowing compatible smartphones or tablets to connect and turn the receiver on.
5. How many speakers can the Sony STR-DH590 power? It has five amplifier channels and supports 5.1-channel decoding, with speaker output terminals for front, centre, and surround speakers.
