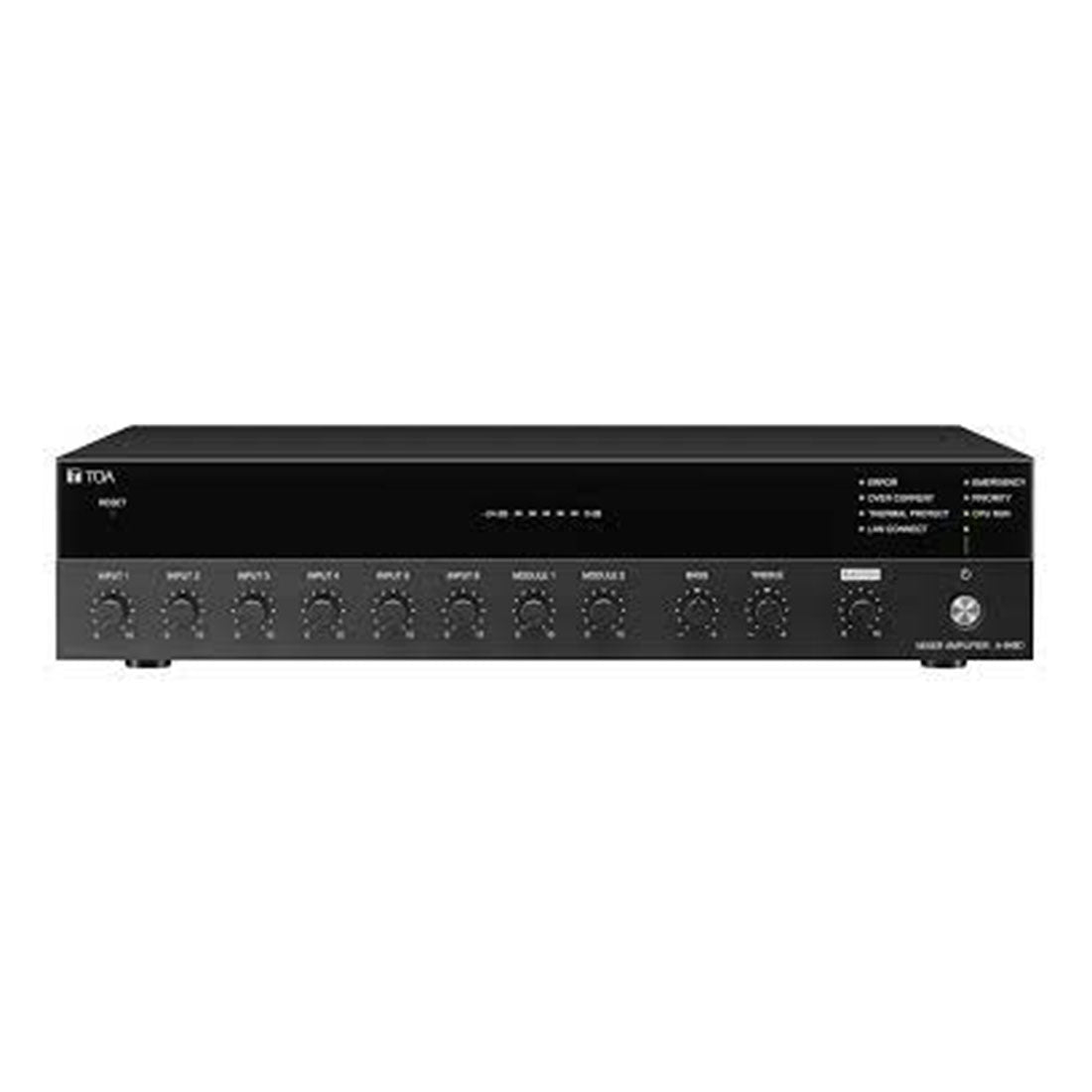

TOA A-812D 3CUE00 800D Series Digital Mixer/Amplifier (A812D 3CUE00)

Product Description

TOA A-812D 3CUE00 800D Series Digital Mixer/Amplifier

The 800D Series mixer amplifier from TOA is a PA amplifier featuring four microphone inputs, two auxiliary inputs, and two slots for 900 Series modules. A PFC circuit is used. Volume control, Priority control, Chime control, and Remote confirmation control are also included. It also has a 2-channel input BUS for AUDIO and DUCK, as well as a signal processing feature. In schools, businesses, and supermarkets, the 800D Series mixing amplifier is perfect for paging announcements and BGM applications.

Specifications:

Power Source: 120 V AC, 60 Hz
Rated Output: 120 W
Power/Current Consumption:

  • 170 W (rated output)
  • 46 W (based on UL62368)
  • 200 mA or less (when power switch is OFF)

Frequency Response: 50 Hz - 20 kHz ±3 dB (1/8 rated output)
Distortion: 1% or less at 1 kHz, rated power (20 kHz LPF (AUX-0025))
Tone Control:

  • Bass: ±10 dB at 100 Hz
  • Treble: ±10 dB at 10 kHz

Signal to Noise Ratio:

  • 88 dB or more (Master volume: min)
  • 76 dB or more (Master volume: max)
  • 55 dB or more (INPUT 1 - 6) (A-weighted)

Audio Input:

  • INPUT 1, 2: -60 dB (*1) (MIC)/-20 dB (*1) (LINE) selectable, 600 Ω, electronically-balanced, removable terminal block (3 pins)
    Note: MIC inputs are equipped with phantom power (24 V DC, ON/OFF switchable).
  • INPUT 3, 4: -60 dB (*1), 600 Ω, electronically-balanced, removable terminal block (3 pins)
    Note: Equipped with phantom power (24 V DC, ON/OFF switchable).
  • INPUT 5, 6: MIC/LINE selectable
    • MIC: -60 dB (*1), 600 Ω, electronically-balanced, removable terminal block (3 pins)
    • LINE: -20 dB (*1), 10 kΩ, unbalanced, RCA pin jack × 2
  • MODULE 1, 2: -20 dB (*1), 10 kΩ
  • PWR AMP IN: 0 dB (*1), 600 Ω, unbalanced, RCA pin jack
    An equalizer or other signal processor connectable between PRE AMP OUT and PWR AMP IN terminals.

(*1) 0 dB = 1 V

Features & Specs

-Power Source: 120 V AC, 60 Hz
-Rated Output: 120 W
-Power/Current Consumption: 170 W (rated output), 46 W (based on UL62368), 200 mA or less (when power switch is OFF)
-Frequency Response: 50 Hz - 20 kHz ±3 dB (1/8 rated output)
-Distortion: 1 % or less at 1 kHz, rated power (20 kHz LPF (AUX-0025))
-Tone Control: Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz
-Signal to Noise Ratio: 88 dB or more (Master volume: min), 76 dB or more (Master volume: max), 55 dB or more (INPUT 1 - 6) (A-weighted)
-Audio Input: INPUT 1, 2: -60 dB (*1) (MIC)/-20 dB (*1) (LINE) selectable, 600 Ω, electronically-balanced, removable terminal block (3 pins) Note - MIC inputs are equipped with phantom power (24 V DC, ON/OFF switchable).
INPUT 3, 4: -60 dB (*1), 600 Ω, electronically-balanced, removable terminal block (3 pins)
Note: Equipped with phantom power (24 V DC, ON/OFF switchable).
INPUT 5, 6: MIC/LINE selectable
MIC: -60 dB (*1), 600 Ω, electronically-balanced, removable terminal block (3 pins)
LINE: -20 dB (*1), 10 kΩ, unbalanced, RCA pin jack × 2
MODULE 1, 2: -20 dB (*1), 10 kΩ
PWR AMP IN: 0 dB (*1), 600 Ω, unbalanced, RCA pin jack
(An equalizer or other signal processor connectable between PRE AMP OUT and PWR AMP
IN terminals)
-Input Bus: INPUT 1 - 4: AUDIO, INPUT 5, 6: AUDIO/DUCK selectable, MODULE 1, 2: AUDIO/DUCK selectable
-Audio Output: SPEAKER OUT: High impedance (70 V line/42 Ω)/Low impedance (4 - 16 Ω) selectable, removable terminal block (3 pins), REC OUT: 0 dB (*1), 600 Ω, unbalanced, RCA pin jack × 2, PRE AMP OUT: 0 dB (*1), 600 Ω, unbalanced, RCA pin jack
-Control Input 4 channels, no-voltage make contact input, open voltage: 35 V DC or less, short-circuit current: 10 mA or less, removable terminal block (4 pins), REMOTE VOLUME: Removable terminal block (4 pins)
-Control Output: POWER REMOTE: Open collector output, withstand voltage: 30 V DC or less, control current: 25 mA or less, removable terminal block (4 pins), EMERGENCY OUT: Open collector output, withstand voltage: 30 V DC or less, control current: 25 mA or less, removable terminal block (4 pins)
-Chime: 1-note, 2-note, or ascending 4-note chime, or None selectable with switch setting
-Indicators: 5-point LED output level meter, Power indicator LED, LAN Connect indicator LED, Priority indicator LED, Emergency indicator LED, Thermal protection indicator LED, Over current protection, indicator LED, CPU RUN indicator LED, Error indicator LED
-Operating Temperature -10 ℃ to +40 ℃ (14 ゜F to 104 ゜F)
-Operating Humidity: 85 %RH or less (no condensation)
-Finish: Panel: ABS resin, black, Case: Surface-treated steel plate, black, paint
-Dimensions: 420 (W) × 96.1 (H) × 313.1 (D) mm (16.54 × 3.78" × 12.33")
-Weight: 5.2 kg (11.46 lb)
-Accessory: Power cord (2 m (6.56 ft)) …1, Audio input removable terminal plug (3.81 mm, 3 pins) …6, Control input removable terminal plug (3.81 mm, 4 pins) …2, Remote control removable terminal plug (3.5 mm, 4 pins) …2, Speaker out removable terminal plug (5 mm, 3 pins) …1, Volume control cover …4, Rack mounting bracket …2, Binding head screw M4 …4, Flat washer …4
-Option: Input transformer: IT-450, Perforated panel: PF-013B

Documents

Warranty

TOA Canada 5 Year Limited Manufacturers Warranty
SKU: A-812D 3CUE00 UPC: 59497273305
$1,605.04
or

Payment as low as

$133.75/mo
Info icon

This monthly payment does not include any applicable tax or interest

Flash Sale Ends:

Covers shipping up to 7% of product value. If costs exceed this, we'll quote before shipping or cancel and refund. Free ShippingFree Shipping |

We guarantee the best price in Canada—before or 30 days after purchase.* Lowest Price GuaranteeLowest Price Guarantee*

Special Order - Ships directly from alternative warehouse, Call 1-866-696-7189 to Inquire

  • Volume control, priority control, chime control, and remote confirmation control
  • 2-channel input BUS for AUDIO and DUCK
  • Perfect for paging announcements and BGM applications
