TOA BA-235 Power Amplifier (BA235)

Product Description

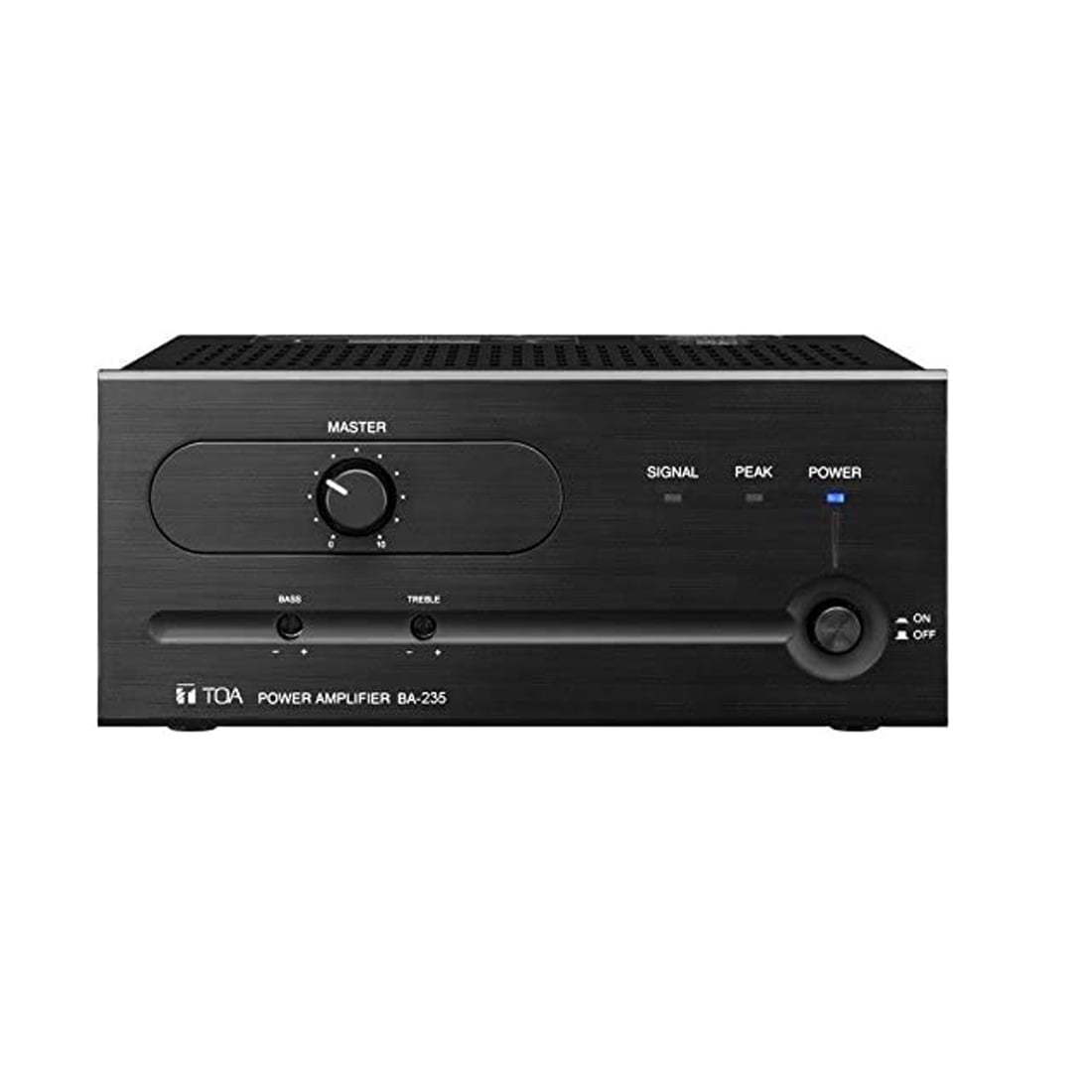

TOA BA-235 Power Amplifier

The TOA BA-235 is a 35 W power amplifier for background music and general announcement. It is suited for use in bars, retail stores, and banquet rooms. When used in conjunction with the optional mixer amplifier BG-220 (20 W) or BG-235 (35 W), 2-channel broadcast can be made The BA-200 Series Power Amplifiers is comprised of two models: BA-235 (35W) and BA-260 (60W). Both models offer a simple and cost-effective solution for adding powered zones to an existing system as well as powering speakers in applications that require a line input from a mix or playback source. Using the perfected amplifier technology and bullet-proof construction that has made TOA an industry standard, the BA-200 Series Power Amplifier is designed to make sound projects affordable, reliable and easy to install. The TOA BA-235 Series Amplifiers are UL/cUL approved, competitively priced and is backed by TOA's 5 year warranty.

TOA BA-235 Features

  • Massive Power supply for high-quality, reliable sound
  • All inputs and outputs on removable Euro-block connections for easier installation
  • 2 models:
  • BA-235 (35W)
  • BA-260 (60W
  • Power outputs available at 4 Ohm, 25V & 70V for more system flexibility
  • Remote Volume port allows wall panel control of level.
  • Dedicated Bass & Treble controls (recessed on front panel) allow independent adjustment for main or remote zones.
  • Line Input level selectable between 0dB & +4dB.
  • Summing RCA input also provided
  • Bridging line output allows signal to be "daisy-chained" from one BA-200 unit to another, giving the capability of multiple zones with separate EQ & Level.
  • Input Signal present, Peak & Power On indicators on front panel.
  • Supplied security cap (YA-920 x 1) for volume knob to prevent unauthorized adjustment.
  • Thermal and overload protection
  • Optional Rack-mount kits for single unit (MB-25B-BK), or dual (MB-25B-J)
  • UL/CUL Approved
  • 5 Year Warranty

Features & Specs

Specification
Power Source 120 V AC, 60 Hz
Rated Output 35 W
Power Consumption 90 W (rated output), 52 W (based on cULus standards)
Frequency Response 50 Hz - 20 kHz
Total Harmonic Distortion 0.5 % or less, at 1 kHz, rated output
Input Line In: 0 dB*/+4 dB* (selectable), 10 kΩ, unbalanced, removable terminal block or RCA jack
Output
Speaker: 4 Ω, 25 V (18 Ω) and 70 V (140 Ω), balanced, removable terminal block

Bridge: parallel in Line in, removable terminal block

Output Regulation 2 dB or less, no load to full load (1 kHz)
S/N Ratio 80 dB or more (Band Pass: 20 Hz - 20 kHz, Tone Controls: Centered)
Tone Control Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz
Control Master gain control, Bass tone control, Treble tone control, Input Level selector switch, Remote Volume control, Power ON/OFF switch
Indicator Power LED, Signal LED, Peak LED
Operating temperature 0 ℃ to +35 ℃ (32 ゜F to 95 ゜F)
Operating Humidity 35 % to 80 %RH (no condensation)
Finish
Panel: ABS resin, black

Case: Steel plate, black, paint

Documents

Warranty

TOA Canada 5 Year Limited Manufacturers Warranty
SKU: BA-235 UPC: 59497218900
$343.26
or

Payment as low as

$28.60/mo
Info icon

This monthly payment does not include any applicable tax or interest

Flash Sale Ends:

Covers shipping up to 7% of product value. If costs exceed this, we'll quote before shipping or cancel and refund. Free ShippingFree Shipping |

We guarantee the best price in Canada—before or 30 days after purchase.* Lowest Price GuaranteeLowest Price Guarantee*

Special Order - Ships directly from alternative warehouse, ships in approximately 4-5 business days

  • Massive Power Supply
  • All Inputs & Outputs on Removable Euro-Block connections
  • Thermal & Overload Protection
Sign up to get notified when it's in stock!

Remember to select the correct model if there are multiple options.

Call for Expert Help

*Quantities may be limited. First come first served. Gibbys Electronic Supermarket does not guarantee a notification when the product is in stock. By signing up, you agree to subscribe to our newsletters, receive marketing emails or be contacted by Gibbys Electronic Supermarket. You also agree to Gibbys' Terms & Conditions.

Phone icon

Call 1-866-696-7189

Call for Expert AdviceCall for Expert Advice
Info icon

Does not apply to special order items.

30-day Return Policy

We guarantee the best price in Canada—before or 30 days after purchase.*

Lowest Price Guarantee*

Product Description

TOA BA-235 Power Amplifier

The TOA BA-235 is a 35 W power amplifier for background music and general announcement. It is suited for use in bars, retail stores, and banquet rooms. When used in conjunction with the optional mixer amplifier BG-220 (20 W) or BG-235 (35 W), 2-channel broadcast can be made The BA-200 Series Power Amplifiers is comprised of two models: BA-235 (35W) and BA-260 (60W). Both models offer a simple and cost-effective solution for adding powered zones to an existing system as well as powering speakers in applications that require a line input from a mix or playback source. Using the perfected amplifier technology and bullet-proof construction that has made TOA an industry standard, the BA-200 Series Power Amplifier is designed to make sound projects affordable, reliable and easy to install. The TOA BA-235 Series Amplifiers are UL/cUL approved, competitively priced and is backed by TOA's 5 year warranty.

TOA BA-235 Features

  • Massive Power supply for high-quality, reliable sound
  • All inputs and outputs on removable Euro-block connections for easier installation
  • 2 models:
  • BA-235 (35W)
  • BA-260 (60W
  • Power outputs available at 4 Ohm, 25V & 70V for more system flexibility
  • Remote Volume port allows wall panel control of level.
  • Dedicated Bass & Treble controls (recessed on front panel) allow independent adjustment for main or remote zones.
  • Line Input level selectable between 0dB & +4dB.
  • Summing RCA input also provided
  • Bridging line output allows signal to be "daisy-chained" from one BA-200 unit to another, giving the capability of multiple zones with separate EQ & Level.
  • Input Signal present, Peak & Power On indicators on front panel.
  • Supplied security cap (YA-920 x 1) for volume knob to prevent unauthorized adjustment.
  • Thermal and overload protection
  • Optional Rack-mount kits for single unit (MB-25B-BK), or dual (MB-25B-J)
  • UL/CUL Approved
  • 5 Year Warranty

Features & Specs

Specification
Power Source 120 V AC, 60 Hz
Rated Output 35 W
Power Consumption 90 W (rated output), 52 W (based on cULus standards)
Frequency Response 50 Hz - 20 kHz
Total Harmonic Distortion 0.5 % or less, at 1 kHz, rated output
Input Line In: 0 dB*/+4 dB* (selectable), 10 kΩ, unbalanced, removable terminal block or RCA jack
Output
Speaker: 4 Ω, 25 V (18 Ω) and 70 V (140 Ω), balanced, removable terminal block

Bridge: parallel in Line in, removable terminal block

Output Regulation 2 dB or less, no load to full load (1 kHz)
S/N Ratio 80 dB or more (Band Pass: 20 Hz - 20 kHz, Tone Controls: Centered)
Tone Control Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz
Control Master gain control, Bass tone control, Treble tone control, Input Level selector switch, Remote Volume control, Power ON/OFF switch
Indicator Power LED, Signal LED, Peak LED
Operating temperature 0 ℃ to +35 ℃ (32 ゜F to 95 ゜F)
Operating Humidity 35 % to 80 %RH (no condensation)
Finish
Panel: ABS resin, black

Case: Steel plate, black, paint

Documents

Warranty

TOA Canada 5 Year Limited Manufacturers Warranty
