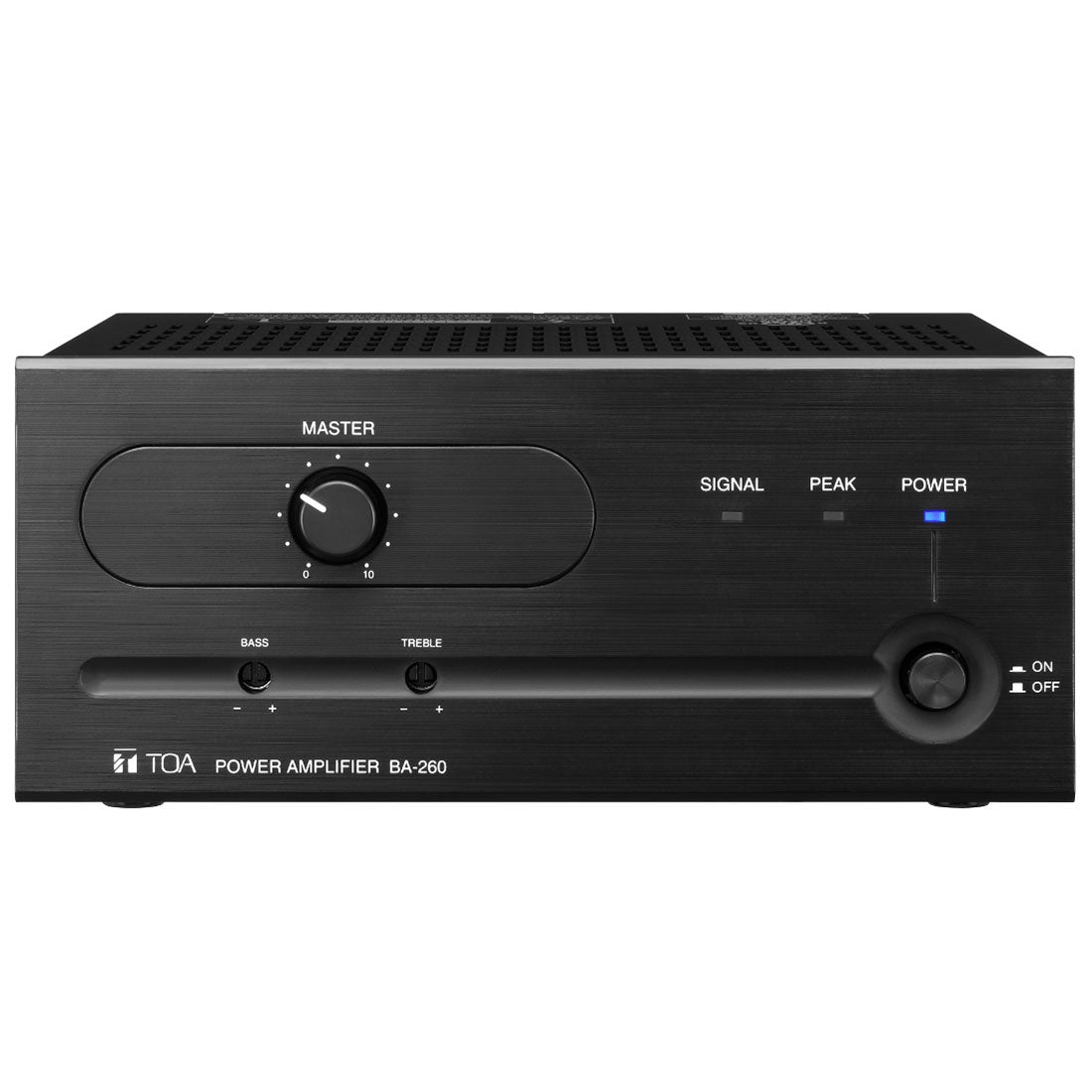

TOA BA-260 1-Input Mixer/Amplifier

TOA BA-260 1-Input Mixer/Amplifier

The TOA BA-260 is a 60 W power amplifier for general announcements and background music. Bars, retail businesses and banquet halls can all be benefitted from it. It is possible to broadcast in two channels when using the optional mixer amplifiers BG-220 (20 W) or BG-235 (35 W)

Features

• Uses a single audio source for simple BGM applications without the need for paging or MOH
• Master volume control via remote
• Line input through RCA pin jack

Specifications

• Power Source: 120 V AC, 60 Hz
• Rated Output: 60 W
• Power Consumption: 130 W (rated output), 66 W (based on cULus standards)
• Frequency Response: 50 Hz - 20 kHz
• Total Harmonic Distortion: 0.5 % or less, at 1 kHz, rated output
• Input Line In: 0 dB*/+4 dB* (selectable), 10 k?, unbalanced, removable terminal block or RCA jack
• Output Speaker: 4 ?, 25 V (10 ?) and 70 V (83 ?), balanced, removable terminal block
• Bridge: parallel in Line in, removable terminal block
• Output Regulation: 2 dB or less, no load to full load (1 kHz)
• S/N Ratio: 80 dB or more (Band Pass: 20 Hz - 20 kHz, Tone Controls: Centered)
• Tone Control: Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz
• Control: Master gain control, Bass tone control, Treble tone control, Input Level selector switch, Remote Volume control, Power ON/OFF switch
• Indicator: Power LED, Signal LED, Peak LED
• Operating temperature: 0 ? to +35 ? (32 ?F to 95 ?F)
• Operating Humidity: 35 % to 80 %RH (no condensation)
• Finish: Panel: ABS resin, black, Case: Steel plate, black, paint
• Dimensions: 210 (W) × 94.3 (H) × 265 (D) mm (8.27" × 3.71" ×10.43")
• Weight: 4.6 kg (10.14 lb)
• Accessory: Volume control cover: YA-920 ……1, Removable terminal plug (2 pins) ……3, Removable terminal plug (4 pins) ……1
• Option: Rack mounting bracket: MB-25B-BK, MB-25B-J
