TOA D-001R Line Input Module with DSP (D001R)

Product Description

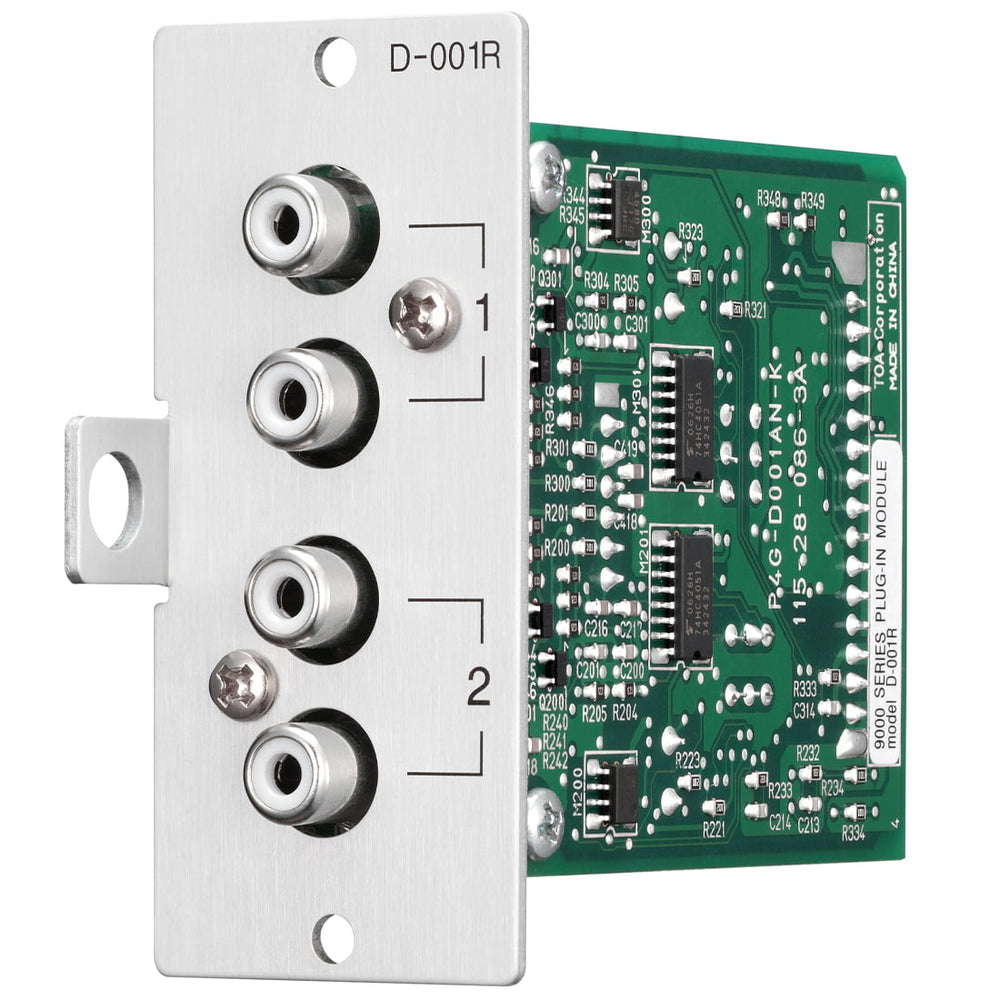

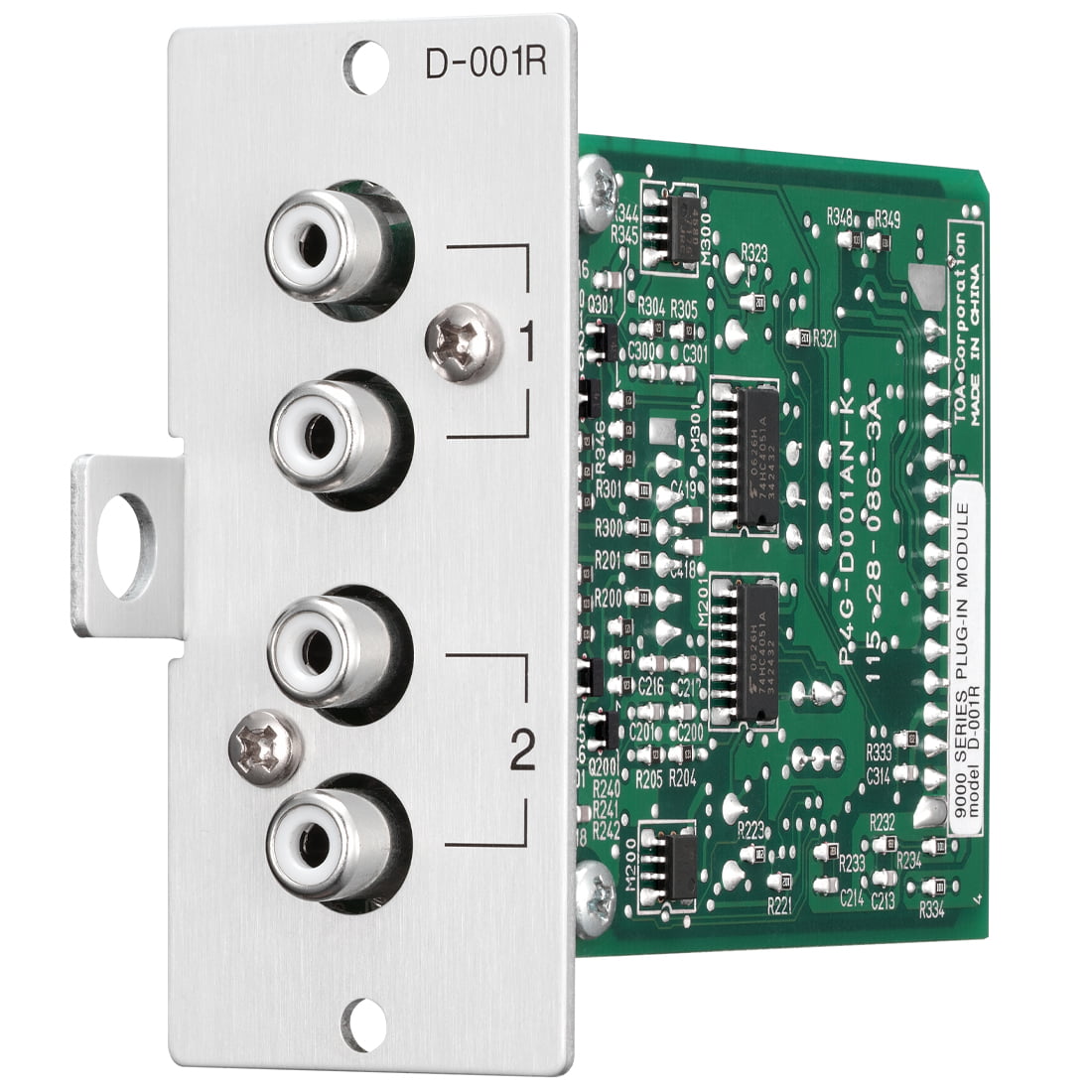

TOA D-001R Line Input Module with DSP

The TOA D-001R is a line input plug-in module designed for use with the 9000 Series amplifiers. It has 2-channel unbalanced inputs of RCA jacks. Input signals to both channels are mixed together. The TOA D-001R can process effect for TONE/EQ/COMPRESSOR to two inputs independently. 2-channel input module for two stereo sources that are internally mixed to one mono signal each. Adjustable sensitivity range from mic level to line level. High fidelity 24-bit A/D-converter and extremely low distortion. Built-in digital signal processing (DSP) with treble and bass tone control, high and low pass filters and 10 parametric equalizers. Compressor with 5 predefined settings for ease of use. Loudness can be optionally activated. Connection via two supplied removable 3-pin screw terminals.

Features & Specs

-Power Source +24 V DC, -24 V DC, +6 V DC
-Current Consumption 20 mA (at +24 V DC), 20 mA (at -24 V DC), 60 mA (at +6 V DC)
-Input 2 channels, 2RCA/ch mixed, 10 kΩ, unbalanced, RCA pin jack
-Input Sensitivity -60, -54, -48, -42, -36, -30, -24, -18, -10 dB* (selectable)
-Frequency Response 20 Hz - 20 kHz, +1, -3 dB
-Total Harmonic Distortion + N 0.008 % (at 1 kHz, 20 Hz - 20 kHz BPF, Input sensitivity: -10 dB)
-S/N Ratio 70 dB or more (at 20 Hz - 20 kHz BPF, Input short, Input sensitivity: -10 dB)
-Cross Talk 75 dB or more (at 20 kHz, Input sensitivity: -10 dB)
-A/D Converter 24 bit ADC
-Sampling Frequency 48 kHz
-Tone Control Bass: ±12 dB (at 100 Hz) | Treble: ±12 dB (at 10 kHz)
-Parametric Equalizer 10 bands, Frequency: 20 Hz - 20 kHz, 31 points, Variable range: ±12 dB, Q: 0.3 - 5
-High-pass Filter -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
-Low-pass Filter -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
-Compressor Depth: 1 - 5
-Operating Temperature -10 ℃ to +40 ℃ (14 ゜F to 104 ゜F)
-Finish Panel: Aluminum, hair-line
-Dimensions 35 (W) × 78 (H) × 91.5 (D) mm (1.38" x 3.07" x 3.6")
-Weight 90 g (0.2 lb)
-Accessory Module mounting screw …2

Documents

Warranty

TOA Canada 5 Year Limited Manufacturers Warranty
SKU: D-001R UPC: 5949721543
$248.86
Flash Sale Ends:

Covers shipping up to 7% of product value. If costs exceed this, we'll quote before shipping or cancel and refund. Free ShippingFree Shipping |

We guarantee the best price in Canada—before or 30 days after purchase.* Lowest Price GuaranteeLowest Price Guarantee*

Special Order - Ships directly from alternative warehouse, Call 1-866-696-7189 to Inquire

  • Two RCA phone inputs per channel provides stereo summing
  • Digital Signal Processing
    - 10-band parametric EQ
    - Bass / treble, loudness
    - High pass / low pass filters, compressor
  • Max. 4 modules / chassis
