TOA D-001T Dual Mic / Line Input Module with DSP (D001T)

Product Description

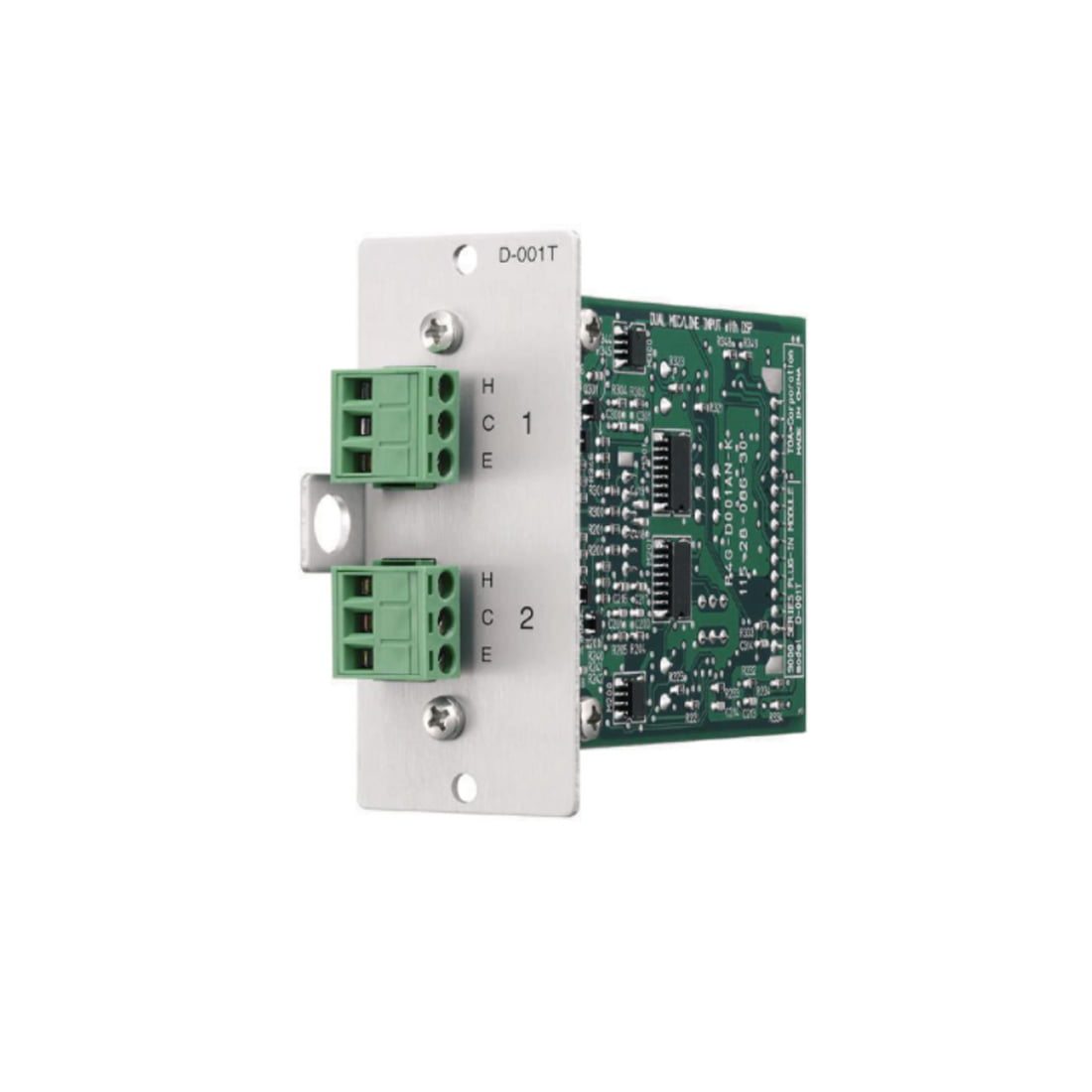

TOA D-001T Dual Mic / Line Input Module with DSP

The D-001T is a plug-in module designed for use with the 9000 Series amplifiers and can provide two independent balanced inputs. The D-001T can handle signals ranging from microphone level to line level by controlling their input sensitivity in 9 increments from -60 dB to -10 dB. Phantom power (+24 V) can be supplied for condenser microphone use. The D-001T can process effect for TONE/EQ/COMPRESSOR to two inputs independently.

Features & Specs

Specifications:

  • Power Source: +24 V DC, -24 V DC, +6 V DC
  • Current Consumption: 60mA to 75mA (@+6V DC)
  • Input:
  • Input Sensitivity:
  • Frequency Response: 20 Hz - 20 kHz, +1, -3 dB
  • Total Harmonic Distortion + N:
  • Input Equivalent Noise:
  • S/N Ratio:
  • Cross Talk:
  • CMRR:
  • A/D Converter: 24 bit ADC
  • Sampling Frequency: 48 kHz
  • Tone Control:
  • Parametric Equalizer:
  • High-pass Filter:
  • Low-pass Filter:
  • Compressor:
  • Phantom Power: +24 V DC
  • Operating Temperature: -10 ℃ to +40 ℃
  • Finish:
  • Dimensions: 35 (W) × 78 (H) × 91.5 (D) mm
  • Weight: 84 g
  • Accessory:

Documents

Warranty

TOA Canada 5 Year Limited Manufacturers Warranty
SKU: D-001T UPC: 641125236761
$248.86
Flash Sale Ends:

Covers shipping up to 7% of product value. If costs exceed this, we'll quote before shipping or cancel and refund. Free ShippingFree Shipping |

We guarantee the best price in Canada—before or 30 days after purchase.* Lowest Price GuaranteeLowest Price Guarantee*

Special Order - Ships directly from alternative warehouse, Call 1-866-696-7189 to Inquire

  • 2 balanced mic / line Inputs
  • Adjustable sensitivity (-60 ... -10 dB, 9-steps)
  • Phantom power (24 V DC)
  • Removable terminal block
