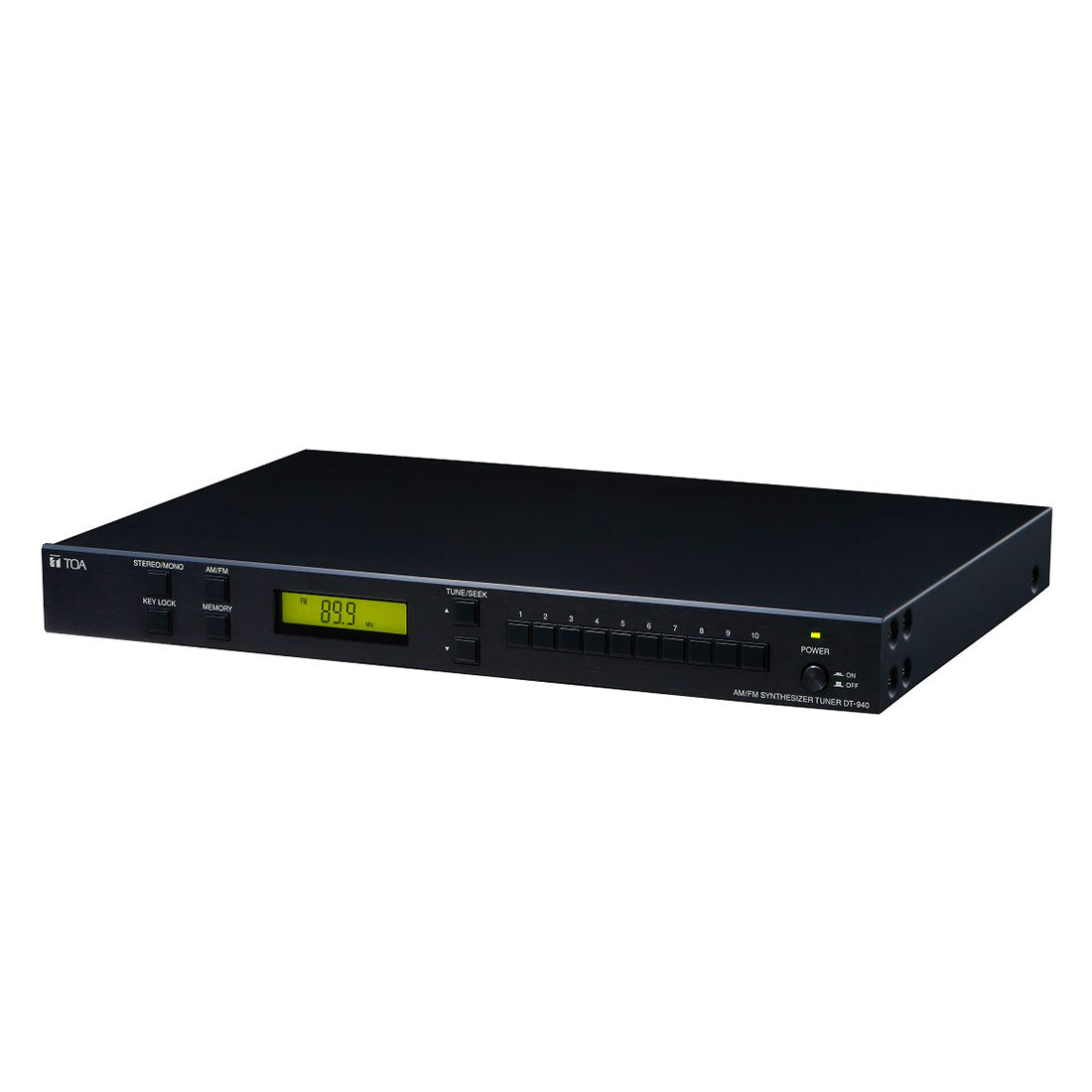

TOA DT-940 Synthesizer Tuner

TOA DT-940 Synthesizer Tuner

The TOA DT-940 is an AM/FM radio tuner. 20 AM and FM reception channels can be kept in memory and recalled with a single key press. The optional MB-15B Rack Mounting Bracket allows the machine to be installed on an EIA equipment rack.

Specifications

• Power Source: 120 V AC
• Power Consumption: 60 mA (when AC adapter (accessory) is used)
• Receiving Frequency: FM: 87.9 - 107.9 MHz (100 kHz step), AM: 520 - 1710 kHz (10 kHz step)
• Antenna Input: FM: 75 ? (unbalanced) AM: Loop antenna (balanced)/external antenna (unbalanced)
• Audio Output: Stereo: -15 dB (*1) Monaural: -10 dB (*1)
• Channels of Memory: 20 channels for AM
• Operating Temperature: 0 ? to +40 ? (32 ?F to 104 ?F)
• Operating Humidity: 90 %RH or less (no condensation)
• Finish: Panel: Aluminum (hair-line finish) Case: Pre-coated steel plate
• Dimensions: 420 (W) × 50.8 (H) × 295.2 (D) mm (16.54 × 2" × 11.62)
• Weight: 2.9 kg (6.39 lb)
• Accessory: AC adapter (1.5 m (4.92 ft)) …1
• Option: Rack mounting bracket: MB-15B
