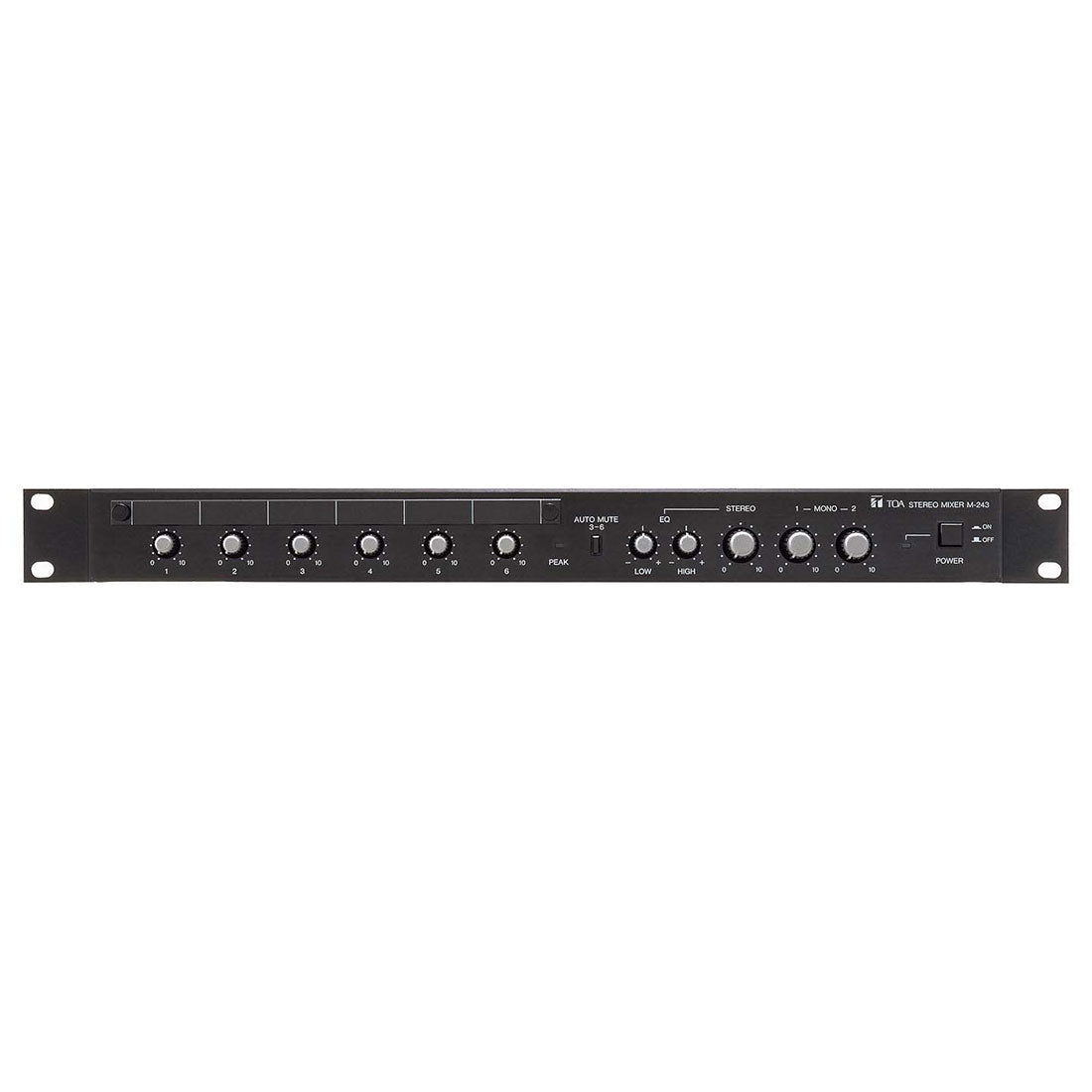

TOA M-243 Stereo Mixer

TOA M-243 Stereo Mixer

The M-243 is a stereo mixer that can be mounted in a 19" rack and has two monaural inputs, four stereo inputs, one stereo output, and two monaural outputs.

Specifications

• Power Source: AC mains
• Power Consumption: 10 W (120 V AC version) 12 W (220 - 240 V AC version)
• Monaural Input: Line: -10 dB*, 10 k?, unbalanced, phone jack, Mic: -60 dB*, 1 k?, balanced, XLR3-pin connector, Mic (Pad): -40 dB*, 1 k?, balanced, XLR3-pin connector
• Stereo Input: (L, R) -10 dB*, 10 k?, unbalanced, RCA jack
• Auxiliary Stereo Input: +4 dB*, 50 k?, unbalanced, phone jack
• Stereo Output (L, R): +4 dB*, 1 k?, unbalanced, phone jack
• Monaural Output (1, 2): +4 dB*, 1 k?, unbalanced, RCA jack
• REC Output (L, R): -10 dB*, 1 k?, unbalanced, RCA jack
• Frequency Response: 20 - 20,000 Hz (+1, -2 dB)
• T.H.D.: 0.01 % or less (1,000 Hz, rated input/output)
• Noise Level (IHF-A): When all volume controls are in minimum position.
• Stereo Output (L, R): -105 dB* or less, Monaural Output (1, 2): -98 dB* or less, When the stereo, monaural (1, 2) are in maximum position., Stereo Output (L, R): -94 dB* or less, Monaural Output (1, 2): -95 dB* or less
• Finish: Front Panel : Alumite, black, Case : Steel, black
• Dimensions: 483 (W) × 46 (H) × 301.8 (D) mm (19.02" × 1.81" × 11.88")
• Weight: 3.8 kg (8.38 lb)
• Accessory: Rack mounting screw - 4, Rubber foot - 4, Knob (blue, small) - 2, Knob (red, small) - 2, Knob (blue, large) - 1, Knob (red, large) - 1
