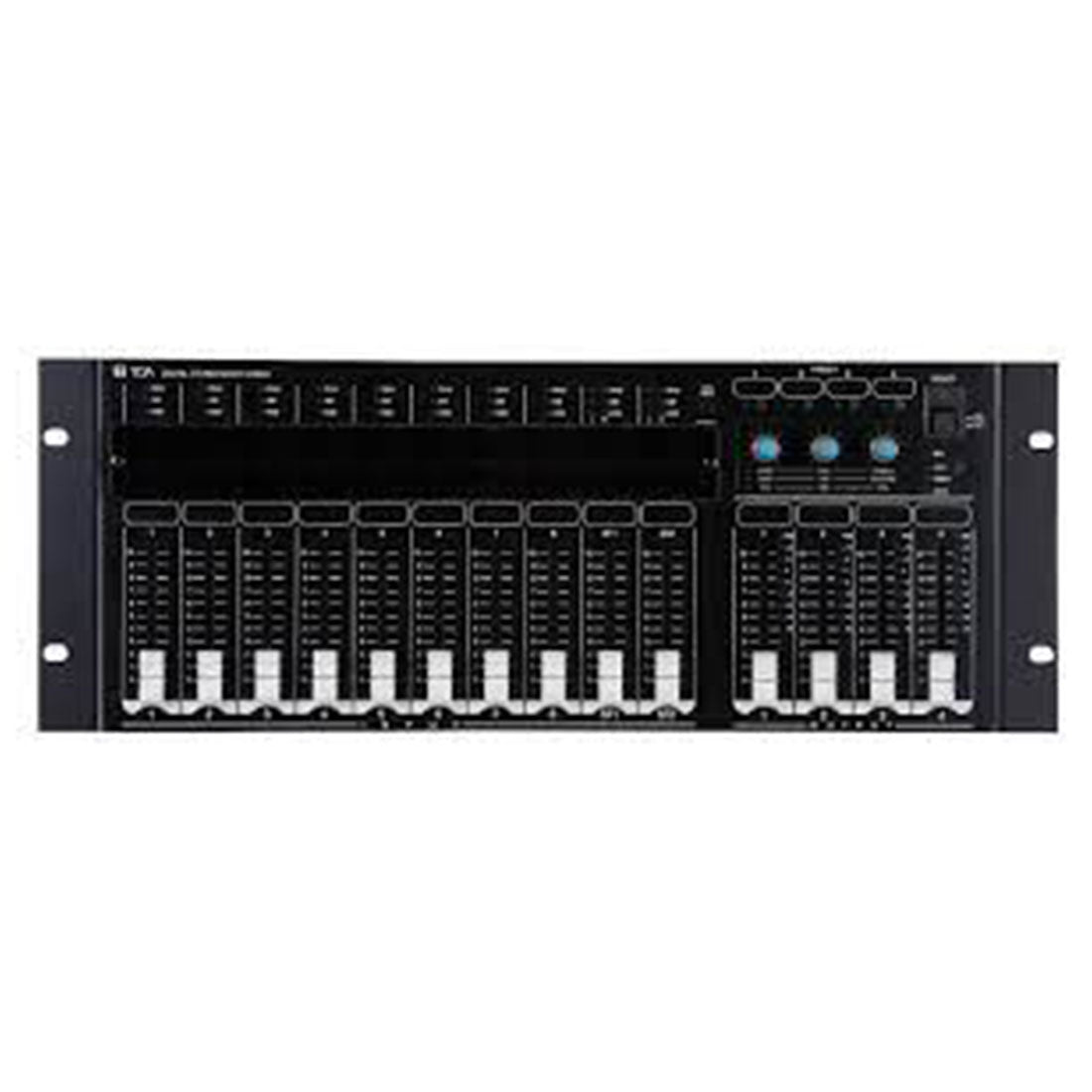

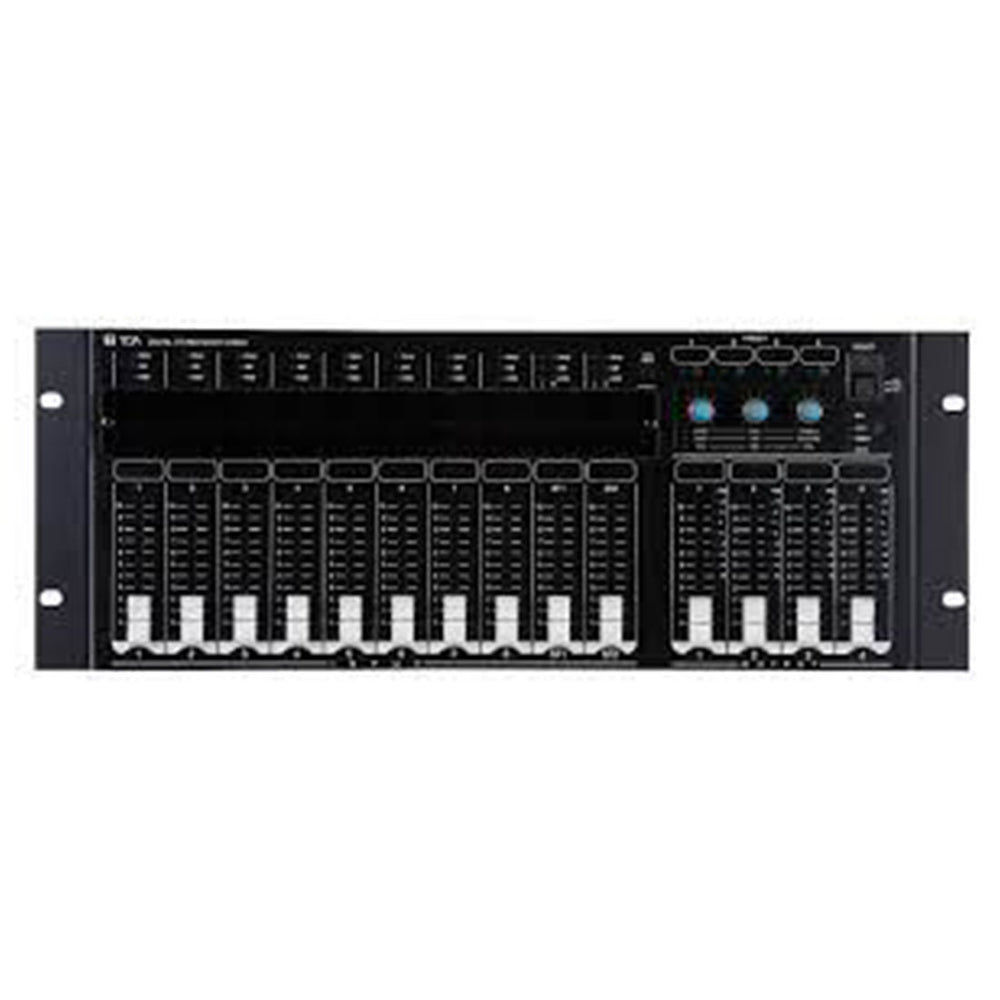

TOA M-864D Digital Stereo Mixer (M864D CU)

Product Description

TOA M-864D Digital Stereo Mixer

The M-864D is a four-unit rack-mountable digital stereo mixer with eight monoaural mic/line input channels, seven stereo input channels, four bus-assignable monoaural output channels, and six output channels, including one stereo recording output channel. It has digital signal processing features such an equaliser, an automatic stereo input mute function, automatic resonance control (ARC(*1)), as well as feedback suppressor and feedback suppressor functions. Advanced acoustic correction can be carried out automatically without the need for acoustic measuring equipment. The M-864D may be used without a PC thanks to its 14 analogue volume faders and 14 different function setting buttons. However, a connected PC or an optional remote control panel can also be used to operate it. It can be fixed to a component rack that meets EIA standards. By evaluating the intrinsic acoustic properties of an architectural space and automatically creating an appropriate equalisation curve, the Automatic Resonance Control function enhances sound clarity. Version 2.4.0 of the PC settings program is used. This setting program updates the M-864D's firmware. The M-864D Digital Audio Mixer from TOA is visualized and controlled via a remote iPad GUI app. This app shows and controls audio levels, preset memory selection, channel on/off state, and input/output channel faders. For subsequent recall, settings can be stored as memory presets. For the M-864D to communicate with the iPad, it must be linked to a wireless router.

Features & Specs

Power Source: 100-120 V AC, 60 Hz
Power Consumption: 30 W
Frequency Response: 20 Hz - 20 kHz, ±1 dB
Sampling Frequency: 48 kHz
Dynamic Range: 100 dB or more
Distortion: 0.03 % or less, 1 kHz, +4 dB(*2) input/output, 20 Hz - 20 kHz BPF
Crosstalk: -80 dB or less, 1 kHz

Input: Monaural input, 8 channels, removable terminal block (3P) Phantom power (+24 V DC, 10 mA, ON/OFF switchable for each channel) Gain setting (settable for each channel) :PAD ON Gain min., +4 dB(*2) (max. +24 dB(*2)), 10 kΩ, electronically-balanced Gain max., -14 dB(*2) (max. +6 dB(*2)), 10 kΩ, electronically-balanced :PAD OFF Gain min., -10 dB(*2) (max. +10 dB(*2)), 7 kΩ, electronically-balanced Gain max., -56 dB(*2) (max. -36 dB(*2)), 7 kΩ, electronically-balanced - Stereo Input (L, R), 7 channels (1-A, 1-B, 1-C, 2-A, 2-B, 2-C, front-mounted input) RCA jack (stereo mini jack provided on the front panel): -10 dB(*2) (max. +10 dB(*2)), 10 kΩ " Trim gain for each individual channel: - to 0 dB (except front-mounted input) ※ 1-A (L), 1-B (L), and 1-C (L) are mixed after passing through each trim gain circuit (the same applies to R channel) ※ 2-A (L), 2-B (L), and 2-C (L) are mixed with front-mounted input after passing " through each trim gain circuit (the same applies to R channel)

Output: Output, 4 channels, +4 dB(*2) (max. +24 dB(*2)), applicable load 600 Ω or more, electronically-balanced, removable terminal block (3P) REC OUT (L, R): -10 dB(*2) (max. +10 dB(*2)), applicable load 1 kΩ or more, RCA jack - Gain is adjustable

AD Converter: 24 bits
DA Converter: 24 bits
Preset Memory: 16

Documents

Warranty

TOA Canada 5 Year Limited Manufacturers Warranty
SKU: M-864D CU
$4,163.98
or

Payment as low as

$346.99/mo
Info icon

This monthly payment does not include any applicable tax or interest

Flash Sale Ends:

Covers shipping up to 7% of product value. If costs exceed this, we'll quote before shipping or cancel and refund. Free ShippingFree Shipping |

We guarantee the best price in Canada—before or 30 days after purchase.* Lowest Price GuaranteeLowest Price Guarantee*

Special Order

  • Eight monoaural mic/line input channels, seven stereo input channels, four bus-assignable monoaural output channels and six output channels
  • May be used without a PC thanks to its 14 analogue volume faders and 14 different function setting buttons
  • Visualised and controlled via a remote iPad GUI app
