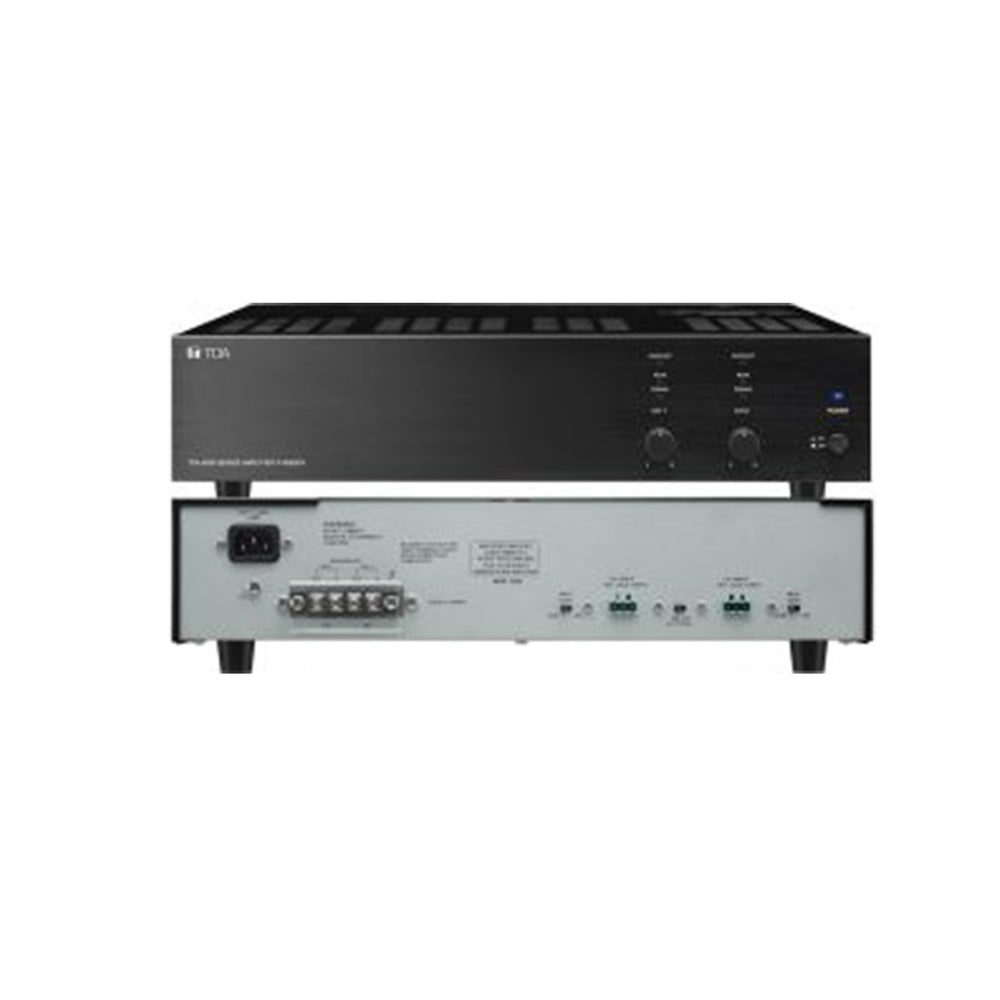

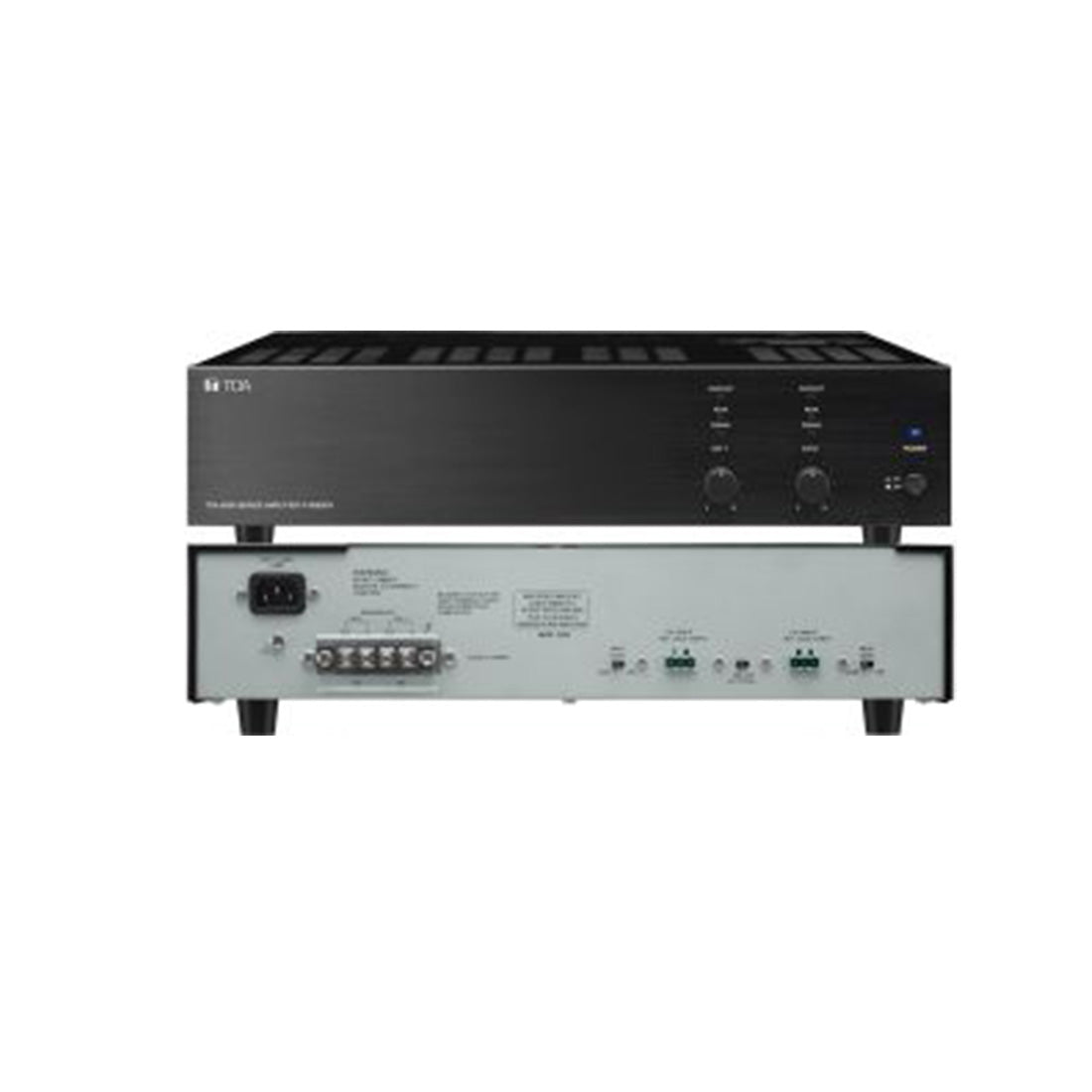

TOA P-9060DH 9000 Series Amplifier (P9060DH CU)

Product Description

TOA P-9060DH 9000 Series Amplifier

The P-9060DH Power Amplifier is a 2-channel amplifier with a 60 W x 2 output that produces a 70-volt line. It has a wide range of applications because it can be used as a standalone amplifier in addition to TOA's 9000 series power amplifier.

P-9060DH Specifications

  • Power Source: 120 V AC, 60 Hz
  • Power Consumption: 225 W (rated output), 106 W (UL60065)
  • Output: Speaker output CH 1, CH 2: 60 W, 83 ? × 2, BTL output (70 V line), M4 screw terminal, distance between barriers: 9 mm (0.35")
  • Input: CH 1, CH 2 input: -20 dB* or 0 dB* (switchable), 10 k?, electronically-balanced, removable terminal block - CH 1 mode ON/OFF switch (ON: CH 1 to All ch, OFF: Each ch)
  • Power Band Width: 20 - 20k Hz, 0.08% T.H.D.
  • Frequency Response: 20 - 20k Hz (+1, -3 dB)
  • S/N Ratio: At Input short, 20 - 20k Hz, Input level switch in 0 dB* position - Output volume min.: 105 dB, Output volume max.: 97 dB
  • Total Harmonic Distortion: 0.008% (22 kHz LPF, 1 kHz, rated output, input level switch in 0 dB* position)
  • Function: Output disconnected for approx. 5 s after switching power on.
  • Air Cooling: Forced air cooling (Fan speed: varies depending on the temperature.)
  • Operating Temperature: -10? to +40? (14?F to 104?F)
  • Operating Humidity: 35% to 80% RH (no condensation)
  • Finish: Front panel: Aluminum, hair-line, black - Case: SECC, black, paint
  • Dimensions: 420 (W) × 107.6 (H) × 406 (D) mm (16.54" × 4.24" × 15.98")
  • Weight: 8.2 kg (18.08 lb)
  • Accessory: Power cord (2 m (6.56 ft)) - 1, Volume control cover (YA-920) - 2, Rack mount bracket - 2, Bracket mounting screw (M4 × 16) - 4, Removable terminal plug (3 pins) - 2, Terminal cover - 1, Terminal cover mounting screw (M4 × 8) - 2

Features & Specs

Power Source: 120 V AC, 60 Hz
Power Consumption: 225 W (rated output), 106 W (UL60065)
Output: Speaker output CH 1, CH 2: 60 W, 83 Ω × 2, BTL output (70 V line), M4 screw terminal, distance between barriers: 9 mm (0.35")
Input: CH 1, CH 2 input: -20 dB* or 0 dB* (switchable), 10 kΩ, electronically-balanced, removable terminal block - CH 1 mode ON/OFF switch (ON: CH 1 to All ch, OFF: Each ch)
Power Band Width: 20 - 20k Hz, 0.08% T.H.D.
Frequency Response: 20 - 20k Hz (+1, -3 dB)
S/N Ratio: At Input short, 20 - 20k Hz, Input level switch in 0 dB* position - Output volume min.: 105 dB, Output volume max.: 97 dB
Total Harmonic Distortion: 0.008% (22 kHz LPF, 1 kHz, rated output, input level switch in 0 dB* position)
Function: Output disconnected for approx. 5 s after switching power on.
Air Cooling: Forced air cooling (Fan speed: varies depending on the temperature.)
Operating Temperature: -10℃ to +40℃ (14゜F to 104゜F)
Operating Humidity: 35% to 80% RH (no condensation)
Finish: Front panel: Aluminum, hair-line, black - Case: SECC, black, paint
Dimensions: 420 (W) × 107.6 (H) × 406 (D) mm (16.54" × 4.24" × 15.98")
Weight: 8.2 kg (18.08 lb)
Accessory: Power cord (2 m (6.56 ft)) - 1, Volume control cover (YA-920) - 2, Rack mount bracket - 2, Bracket mounting screw (M4 × 16) - 4, Removable terminal plug (3 pins) - 2, Terminal cover - 1, Terminal cover mounting screw (M4 × 8) - 2

Documents

Warranty

TOA Canada 5 Year Limited Manufacturers Warranty
SKU: P-9060DH CU
$1,429.95
or

Payment as low as

$119.16/mo
Info icon

This monthly payment does not include any applicable tax or interest

Flash Sale Ends:

Covers shipping up to 7% of product value. If costs exceed this, we'll quote before shipping or cancel and refund. Free ShippingFree Shipping |

We guarantee the best price in Canada—before or 30 days after purchase.* Lowest Price GuaranteeLowest Price Guarantee*

Special Order

  • Power Source: 120 V AC, 60 Hz
  • Power Consumption: 225 W (rated output), 106 W (UL60065)
  • Frequency Response: 20 - 20k Hz (+1, -3 dB)
Sign up to get notified when it's in stock!

Remember to select the correct model if there are multiple options.

Call for Expert Help

*Quantities may be limited. First come first served. Gibbys Electronic Supermarket does not guarantee a notification when the product is in stock. By signing up, you agree to subscribe to our newsletters, receive marketing emails or be contacted by Gibbys Electronic Supermarket. You also agree to Gibbys' Terms & Conditions.

Phone icon

Call 1-866-696-7189

Call for Expert AdviceCall for Expert Advice
Info icon

Does not apply to special order items.

30-day Return Policy

We guarantee the best price in Canada—before or 30 days after purchase.*

Lowest Price Guarantee*

Product Description

TOA P-9060DH 9000 Series Amplifier

The P-9060DH Power Amplifier is a 2-channel amplifier with a 60 W x 2 output that produces a 70-volt line. It has a wide range of applications because it can be used as a standalone amplifier in addition to TOA's 9000 series power amplifier.

P-9060DH Specifications

  • Power Source: 120 V AC, 60 Hz
  • Power Consumption: 225 W (rated output), 106 W (UL60065)
  • Output: Speaker output CH 1, CH 2: 60 W, 83 ? × 2, BTL output (70 V line), M4 screw terminal, distance between barriers: 9 mm (0.35")
  • Input: CH 1, CH 2 input: -20 dB* or 0 dB* (switchable), 10 k?, electronically-balanced, removable terminal block - CH 1 mode ON/OFF switch (ON: CH 1 to All ch, OFF: Each ch)
  • Power Band Width: 20 - 20k Hz, 0.08% T.H.D.
  • Frequency Response: 20 - 20k Hz (+1, -3 dB)
  • S/N Ratio: At Input short, 20 - 20k Hz, Input level switch in 0 dB* position - Output volume min.: 105 dB, Output volume max.: 97 dB
  • Total Harmonic Distortion: 0.008% (22 kHz LPF, 1 kHz, rated output, input level switch in 0 dB* position)
  • Function: Output disconnected for approx. 5 s after switching power on.
  • Air Cooling: Forced air cooling (Fan speed: varies depending on the temperature.)
  • Operating Temperature: -10? to +40? (14?F to 104?F)
  • Operating Humidity: 35% to 80% RH (no condensation)
  • Finish: Front panel: Aluminum, hair-line, black - Case: SECC, black, paint
  • Dimensions: 420 (W) × 107.6 (H) × 406 (D) mm (16.54" × 4.24" × 15.98")
  • Weight: 8.2 kg (18.08 lb)
  • Accessory: Power cord (2 m (6.56 ft)) - 1, Volume control cover (YA-920) - 2, Rack mount bracket - 2, Bracket mounting screw (M4 × 16) - 4, Removable terminal plug (3 pins) - 2, Terminal cover - 1, Terminal cover mounting screw (M4 × 8) - 2

Features & Specs

Power Source: 120 V AC, 60 Hz
Power Consumption: 225 W (rated output), 106 W (UL60065)
Output: Speaker output CH 1, CH 2: 60 W, 83 Ω × 2, BTL output (70 V line), M4 screw terminal, distance between barriers: 9 mm (0.35")
Input: CH 1, CH 2 input: -20 dB* or 0 dB* (switchable), 10 kΩ, electronically-balanced, removable terminal block - CH 1 mode ON/OFF switch (ON: CH 1 to All ch, OFF: Each ch)
Power Band Width: 20 - 20k Hz, 0.08% T.H.D.
Frequency Response: 20 - 20k Hz (+1, -3 dB)
S/N Ratio: At Input short, 20 - 20k Hz, Input level switch in 0 dB* position - Output volume min.: 105 dB, Output volume max.: 97 dB
Total Harmonic Distortion: 0.008% (22 kHz LPF, 1 kHz, rated output, input level switch in 0 dB* position)
Function: Output disconnected for approx. 5 s after switching power on.
Air Cooling: Forced air cooling (Fan speed: varies depending on the temperature.)
Operating Temperature: -10℃ to +40℃ (14゜F to 104゜F)
Operating Humidity: 35% to 80% RH (no condensation)
Finish: Front panel: Aluminum, hair-line, black - Case: SECC, black, paint
Dimensions: 420 (W) × 107.6 (H) × 406 (D) mm (16.54" × 4.24" × 15.98")
Weight: 8.2 kg (18.08 lb)
Accessory: Power cord (2 m (6.56 ft)) - 1, Volume control cover (YA-920) - 2, Rack mount bracket - 2, Bracket mounting screw (M4 × 16) - 4, Removable terminal plug (3 pins) - 2, Terminal cover - 1, Terminal cover mounting screw (M4 × 8) - 2

Documents

Warranty

TOA Canada 5 Year Limited Manufacturers Warranty
