TOA PE-604BU 60W Pendant Speaker - Black (PE604BU)
Product Description
Product Description

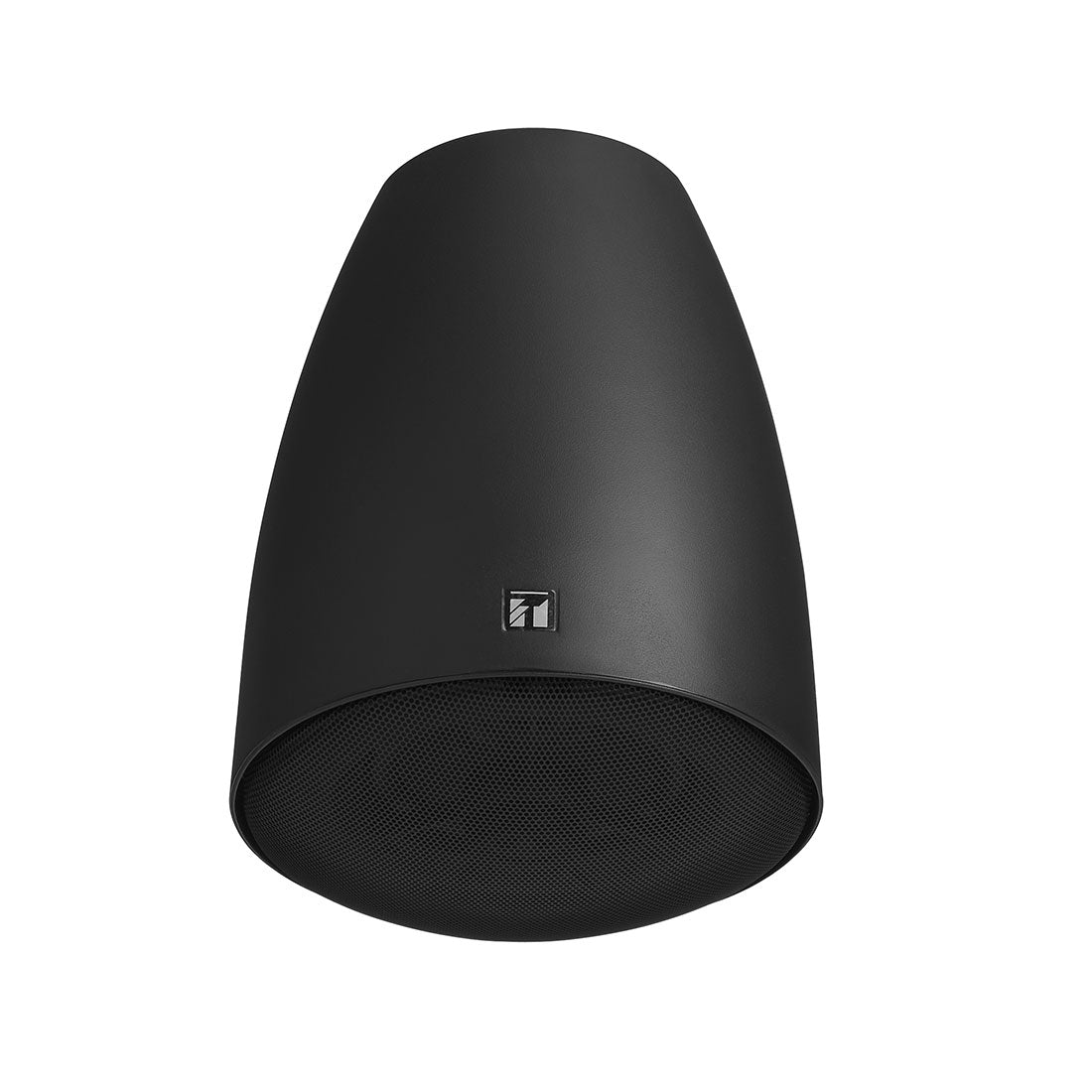

TOA PE-604BU 60W Pendant Speaker - Black
The PE-604BU is a pendant speaker created for installations suspended from a ceiling. The speaker can be suspended from tall ceilings thanks to a directly attached 5 m (16.4 ft) hanging cable. High-impedance (100 V, 70 V, and 25 V) and low-impedance (8 ) lines are used to drive the PE-604BU. The upper side of the speaker allows for simple adjustment of the input power (impedance). The PE-604BU is approved to UL 1480 UUMW and ULC-S541 standards. The speaker mounting height adjustment will be made easier by using the GRIPPLE(R) hangers that are included.
Features
- Very light and elegantly styled
- Motivated by contemporary lighting fixtures
- Perfect for BGM and announcements
- 8, 25V, 70V, and 100V operation
- A rotary switch located on the speaker's top allows for simple adjustment of input impedance
- For a quicker, simpler and more secure installation, this speaker cable already has GRIPPLE® hanging wire and safety wire attached
Specifications
- Enclosure: Bass-reflex type
- Rated Input: 60 W (100 V, 70 V line, 8 ?), 7.5 W (25 V line)
- Rated Impedance: 100 V line: 170 ? (60 W), 330 ? (30 W), 670 ? (15 W), 3.3 k? (3 W) 70 V line: 83 ? (60 W), 170 ? (30 W), 330 ? (15 W), 670 ? (7.5 W), 3.3 k? (1.5 W) 25 V line: 83 ? (7.5 W), 170 ? (3.7 W), 330 ? (1.9 W), 670 ? (0.9 W), 3.3 k? (0.2 W)
- Low impedance: 8 ?
- Sensitivity: 90 dB (1 W, 1 m) (330 Hz - 3.3 kHz, pink noise)
- Frequency Response: 110 Hz - 20 kHz (-10 dB)
- Speaker Component: 12 cm (5") cone-type + balanced dome-tweeter (coaxial)
- UL Code: UL 1480 UUMW, ULC-S541
- Operating Temperature: -10 ? to +50 ? (14 ?F to 122 ?F)
- Finish: Enclosure: ABS resin, black, Grille: Surface-treated steel plate mesh, black, paint
- Dimensions: ?186 × 275 (H) mm (?7.32" × 10.83") (unit only)
- Weight: 2.9 kg (6.39 lb) (unit only)
- Accessory: GRIPPLE No.1 - 1, GRIPPLE No.2 - 1, Release key (for GRIPPLE ) - 1, Safety wire (?1.5 mm (?0.06")) - 1, Hanging wire (?2 mm (?0.08")) - 1, Speaker Cable (4-core FPL listed cable 4.6 m (15.09 ft)) - 1
- GRIPPLE No.1 and No.2 are hangers for suspending the speaker
