TOA Q-RM9012 Remote Microphone (QRM9012)

Product Description

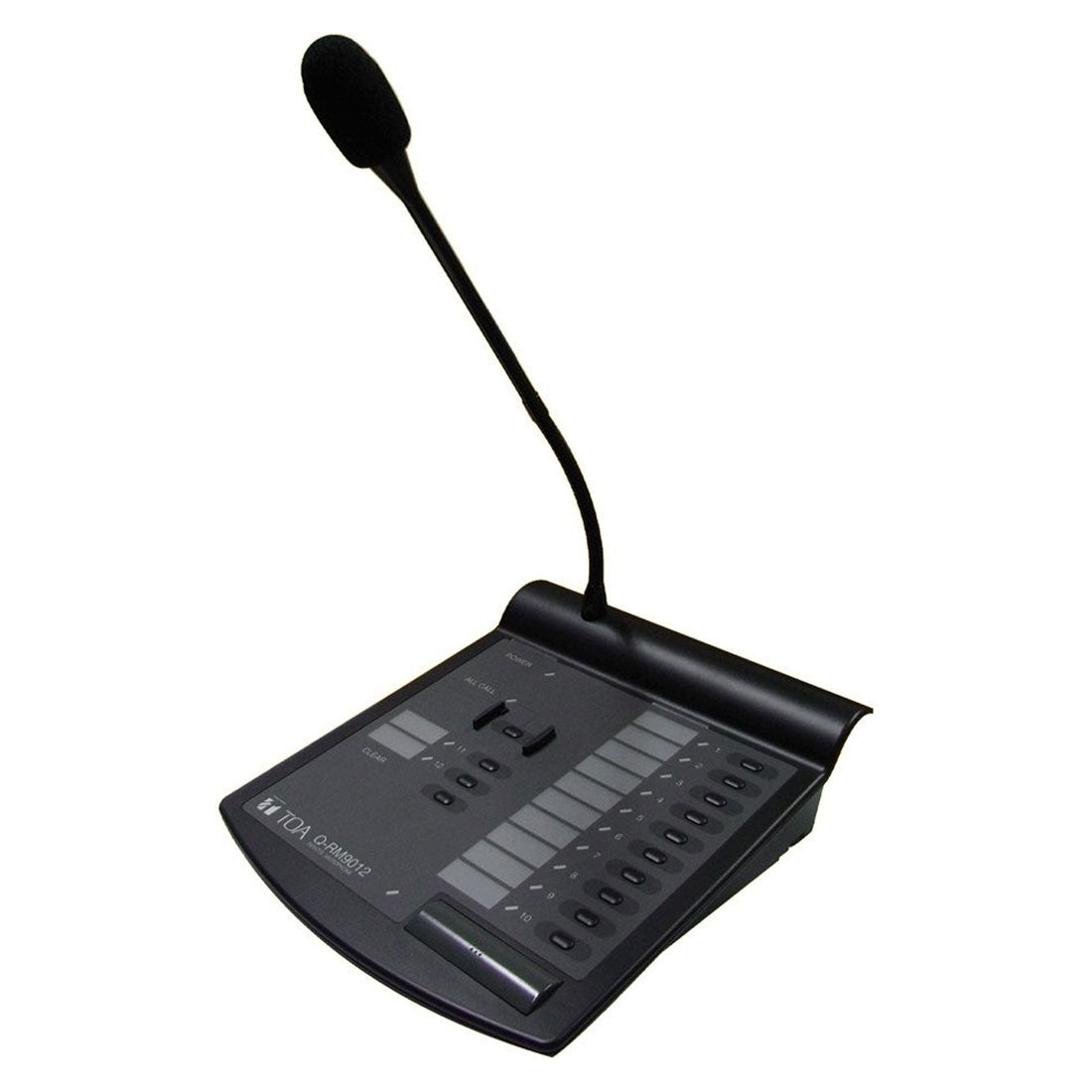

TOA Q-RM9012 Remote Microphone

The Q-RM9012 is a remote microphone used with mixer amplifiers from the 9000M2 Series or other paging devices. To start or stop the paging, output consists of up to 12 contact closures and a balanced audio signal. DC 24V power supply is needed for this device.

Q-RM9012 Specifications

  • Power Source: 24 V DC from AC adaptor AD-246 or the equivalent
  • Power Consumption: 80mA or less
  • Audio Output: 0 dB*, 600? transformer balanced, RJ45 connector
  • Distortion: 1% or less
  • Frequency Response: 100-20,000Hz
  • S/N Ratio: 60dB or more
  • Microphone: Unidirectional electret condenser microphone
  • Control Output: 12 channels, open collector output, withstand voltage: 27V DC, control current: max. 50 mA, (2) RJ45 connectors
  • Number of Keys: 12 zone selection keys, all call key, cancel key, talk key
  • Volume Control: Microphone volume control
  • Operating Temperature: -10°C to +40°C (14°F to 104°F)
  • Finish: ABS resin, black
  • Dimensions: 190 (W) x 76.5 (H) x 215 (D) mm (7.48" x 3.01" x 8.46") (Gooseneck microphone excluded)
  • Q-RM9012 Weight: 750g (1.65 lbs)
  • Option: AC- Adaptor: AD-246

Features & Specs

Power Source: 24 V DC from AC adaptor AD-246 or the equivalent
Power Consumption: 80mA or less
Audio Output: 0 dB*, 600Ω transformer balanced, RJ45 connector
Distortion: 1% or less
Frequency Response: 100-20,000Hz
S/N Ratio: 60dB or more
Microphone: Unidirectional electret condenser microphone
Control Output: 12 channels, open collector output, withstand voltage: 27V DC, control current: max. 50 mA, (2) RJ45 connectors
Number of Keys: 12 zone selection keys, all call key, cancel key, talk key
Volume Control: Microphone volume control
Operating Temperature: -10°C to +40°C (14°F to 104°F)
Finish: ABS resin, black
Dimensions: 190 (W) x 76.5 (H) x 215 (D) mm (7.48" x 3.01" x 8.46") (Gooseneck microphone excluded)
Weight: 750g (1.65 lbs)
Option: AC- Adaptor: AD-246

Documents

Warranty

TOA Canada 5 Year Limited Manufacturers Warranty
SKU: Q-RM9012
$551.25
