TOA RC-001T Remote Control Module (RC001T)

Product Description

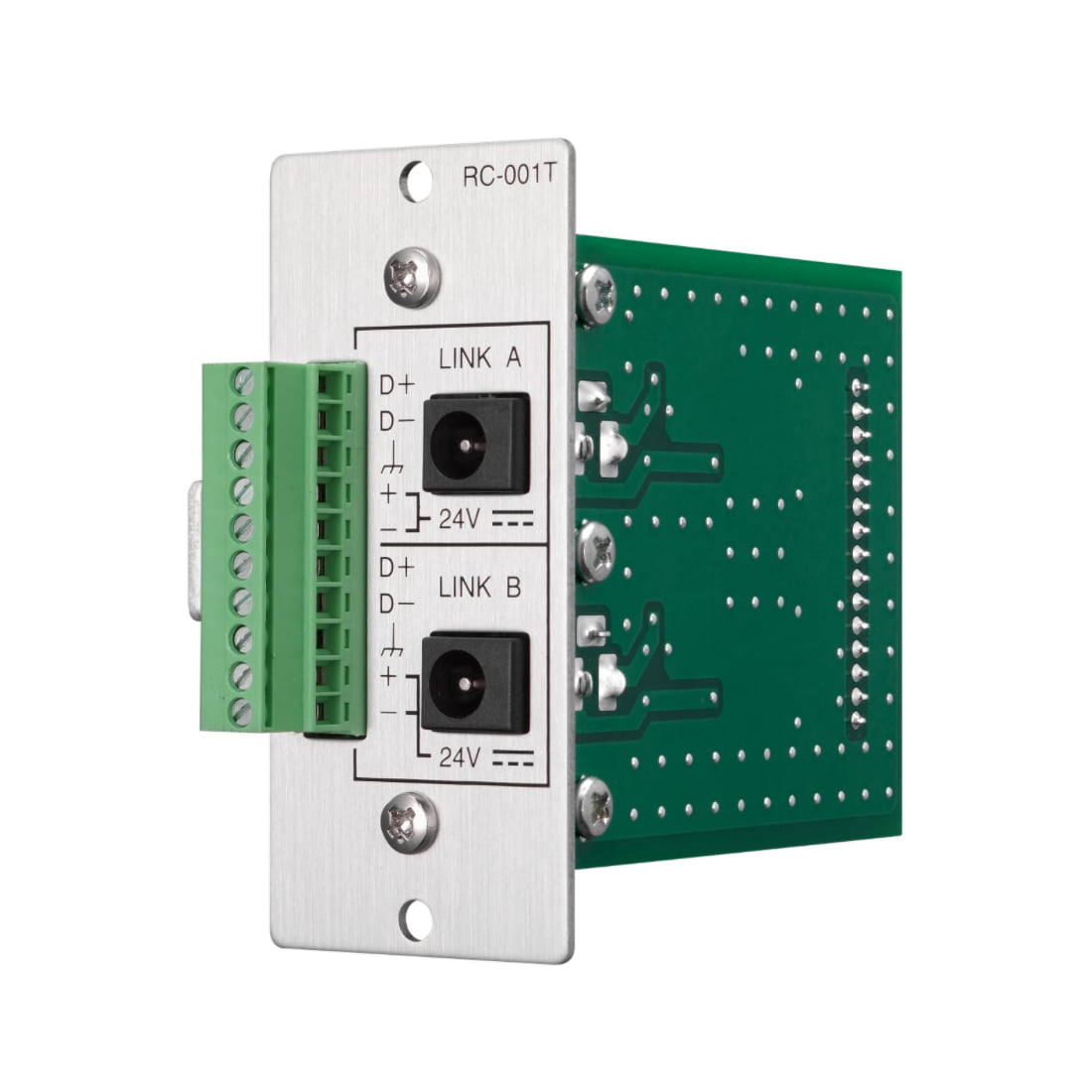

TOA RC-001T Remote Control Module

The RC-001T is an interface module to connect between the 9000M2 Series amplifier and the ZM-9011, ZM-9012, ZM-9013, or ZM-9014 Remote control panel of data communication type. Up to 16 remote control panels can be connected to the RC-001T.

  • Power Source 6 V DC
  • Current Consumption 30 mA or less
  • Terminal Removable terminal block (10 pins)
  • Power Input 24 V DC input × 2
    • (Applicable AC adapter: AD-246 (option), power supply to Remote Control Panels)
    • Adaptable DC plug: 9.5 (L) × 5.5 (OD) × 2.1 (ID) mm (0.37" × 0.22" × 0.08")
  • Connection Cable Shielded CPEV cable (paired data line and paired power line) or
  • Category 5 twisted pair cable for LAN (CAT5-STP)
  • Maximum Cable Distance 800 m (874.89 yd) in total
  • Connectable Number of Remote Control Panels Maximum 16 units (2 link connectors used)
  • Operating Temperature -10 ? to +40 ? (14 ?F to 104 ?F)
  • Operating Humidity 35 % to 80 %RH (no condensation)
  • Finish Panel: Aluminum, hair-line
  • Dimensions 35 (W) × 78 (H) × 91.5 (D) mm (1.38" × 3.07" × 3.6")
  • Weight 80 g (0.18 lb)
  • Accessory Module mounting screw …2, Removable terminal plug (10 pins) …1

Features & Specs

-Power Source 6 V DC
-Current Consumption 30 mA or less
-Terminal Removable terminal block (10 pins)

Power Input 24 V DC input × 2:

-(Applicable AC adapter: AD-246 (option), power supply to Remote Control Panels)
-Adaptable DC plug: 9.5 (L) × 5.5 (OD) × 2.1 (ID) mm (0.37" × 0.22" × 0.08")

-Connection Cable Shielded CPEV cable (paired data line and paired power line) or
-Category 5 twisted pair cable for LAN (CAT5-STP)
-Maximum Cable Distance 800 m (874.89 yd) in total
-Connectable Number of Remote Control Panels Maximum 16 units (2 link connectors used)
-Operating Temperature -10 ℃ to +40 ℃ (14 ゜F to 104 ゜F)
-Operating Humidity 35 % to 80 %RH (no condensation)
-Finish Panel: Aluminum, hair-line
-Dimensions 35 (W) × 78 (H) × 91.5 (D) mm (1.38" × 3.07" × 3.6")
-Weight 80 g (0.18 lb)
-Accessory Module mounting screw …2, Removable terminal plug (10 pins) …1

Documents

Warranty

TOA Canada 5 Year Limited Manufacturers Warranty
SKU: RC-001T UPC: 5949721825
$391.01
or

Payment as low as

$32.58/mo
Info icon

This monthly payment does not include any applicable tax or interest

Flash Sale Ends:

Covers shipping up to 7% of product value. If costs exceed this, we'll quote before shipping or cancel and refund. Free ShippingFree Shipping |

We guarantee the best price in Canada—before or 30 days after purchase.* Lowest Price GuaranteeLowest Price Guarantee*

Special Order - Ships directly from alternative warehouse, Call 1-866-696-7189 to Inquire

  • Up to 16 Remote Control Panels Can Be Connected
  • Removable Terminal Block
  • For 9000M2 Series Amplifiers
