TOA WD-5800 Wireless Antenna Distributor (WD5800 3CUD00)
Product Description
Product Description

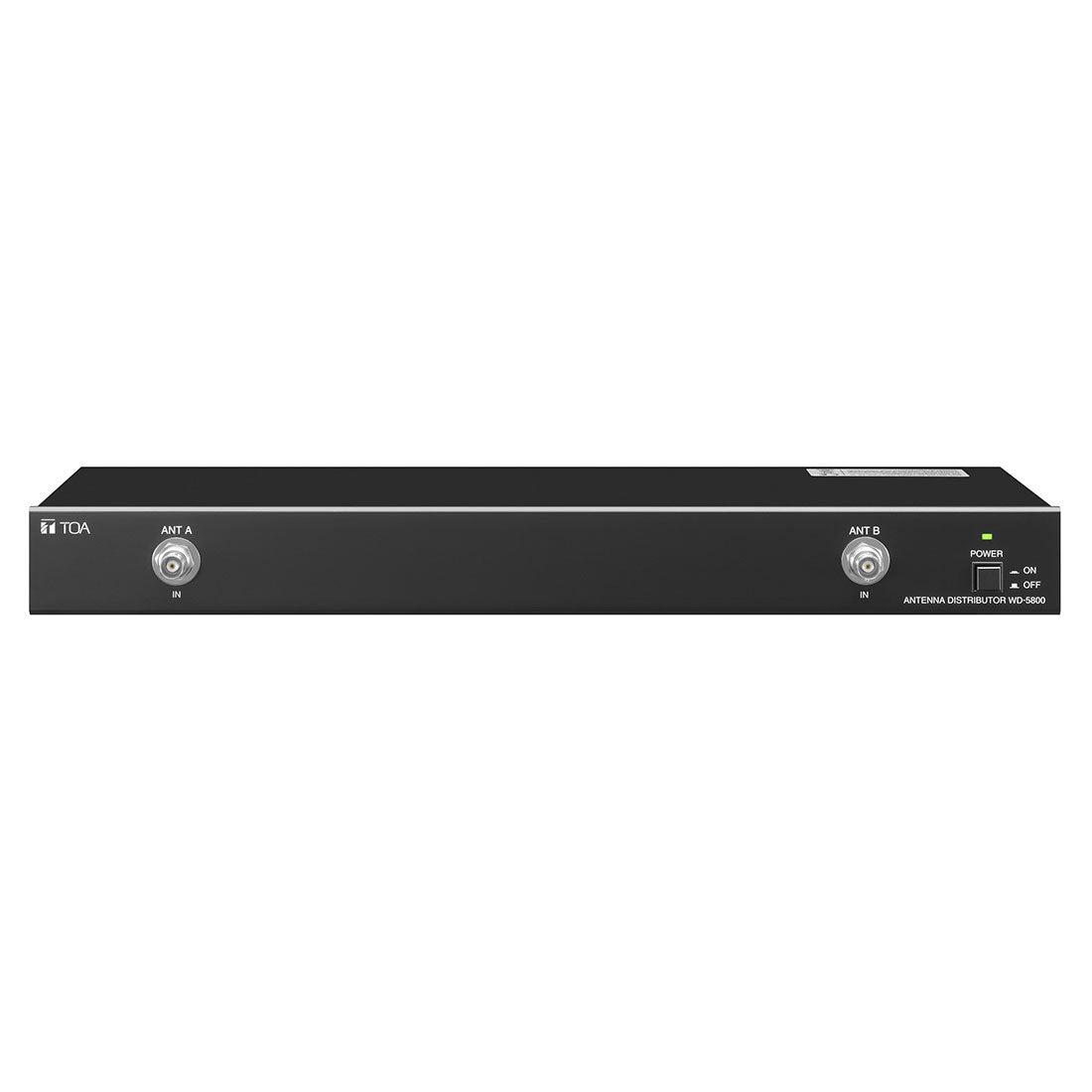

TOA WD-5800 Wireless Antenna Distributor
The TOA Wireless antenna distributor WD-5800 is intended to be utilized in conjunction with VHF/UHFband system. It has two channels for distribution, which combine two input signals and send them to four outputs. There are four DC power distribution outputs on the WD-5800 as well.
WD-5800 Specifications
- Power Source: AC mains (supplied AC adapter must be used)
- Power Consumption: 25 W or less
- Current Consumption: 1.6 A (12 - 15 V DC)
- Frequency Range: VHF/UHF
- Antenna Input: 2 inputs per distribution channel (front × 1, rear × 1), 75 ?, BNC (phantom power for antenna)
- Antenna Output: 4 outputs per distribution channel, 75 ?, BNC
- DC Power Supply: 4 outputs (each output: 12 V DC/250 mA) (Output voltage of this unit depends on that of AC adapters.)
- Indicator: Power lamp
- Operating Temperature: -10 ? to +50 ? (14 ?F to 122 ?F)
- Operating Humidity: 30 % to 85 %RH (no condensation)
- Finish Panel: Aluminum, black, paint, Case: Steel, black, paint
- Dimensions: 420 (W) x 44 (H) x 214 (D) mm (16.54"x 1.73" x 8.43")
- WD-5800 weight: 2 kg (4.41 lb)
- Accessory: AC adapter (*1) …1, Power cord (2 m (6.56 ft)) (*1) …1, DC cable …4, Rubber foot …4, Option Rack mounting bracket: MB-15B
