TOA WM-2100 Portable Transmitter (WM2100)
Product Description
Product Description

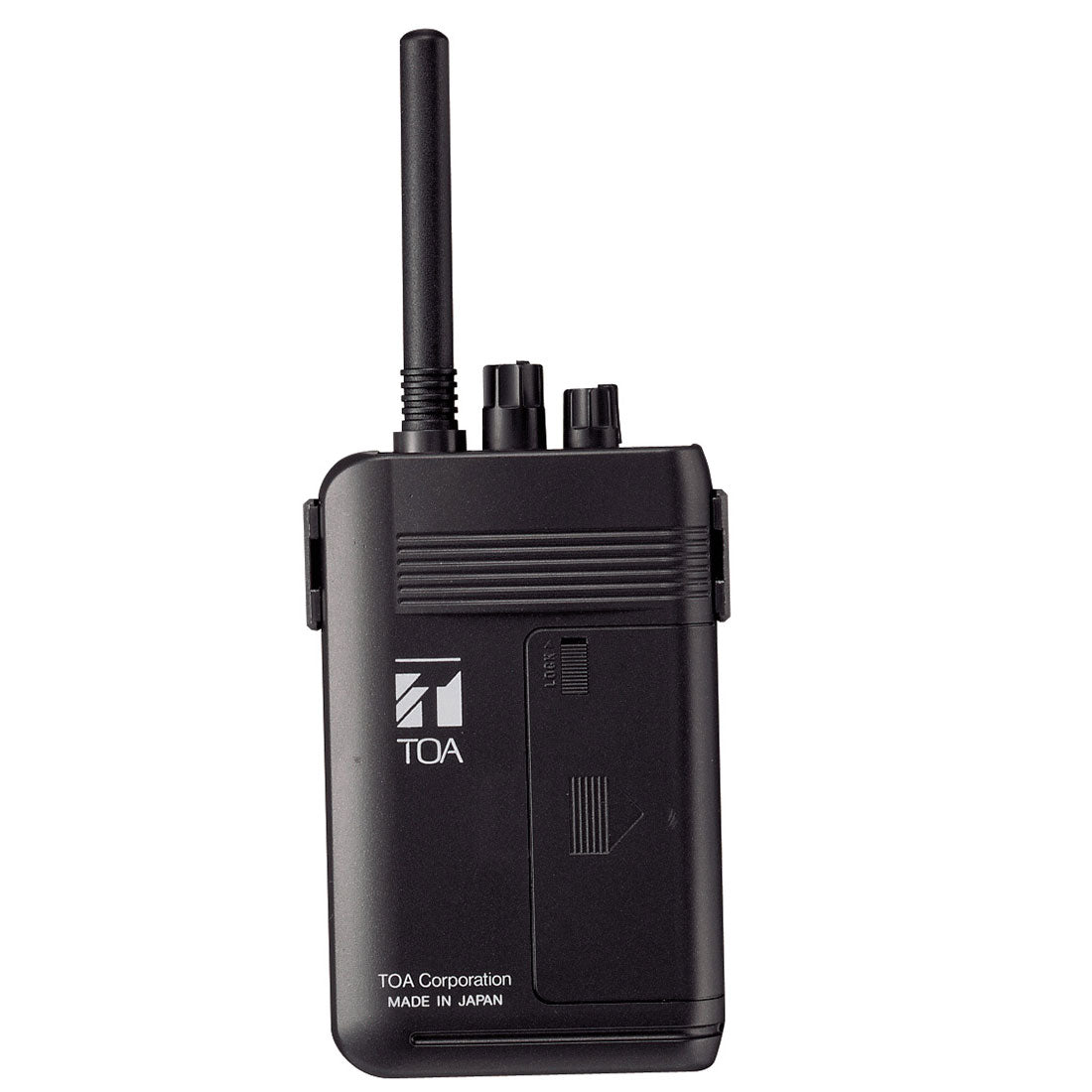

TOA WM-2100 Portable Transmitter
The WM-2100 from TOA is a portable transmitter made to work with radio frequencies in the 470 MHz band. It is necessary to use an optional microphone (Not included with the device).
Specifications
- Power Source: 1.5 V DC (Battery)
- Modulation: Frequency modulation
- Transmitting Frequencies: 470 MHz band (5 ch) (470.075, 470.150, 470.375, 470.625, 470.725 MHz)
- RF Carrier Power: 2 mW
- Oscillator: PLL synthesizer
- Frequency Response: 200 Hz - 5 kHz (Portable transmitter ? Potable receiver)
- Pre-emphasis: 50 ?s
- Input Level: -50 dB* (sensitivity Hi)/-44 dB* (sensitivity Lo)
- Battery Life: 18 hours (alkaline)
- Battery: LR6 (1.5 V) × 1
- Operation Temperature: -10 ? to +40 ?
- Finish: Resin, dark gray
- Dimensions: 62 (W) × 163.6 (H) × 32.5 (D) mm
- Weight: 115 g (battery included)
- Accessory: Neck strap - 1
