TOA WM-2110 01US Desktop Transmitter (WM2110 01US)

Product Description

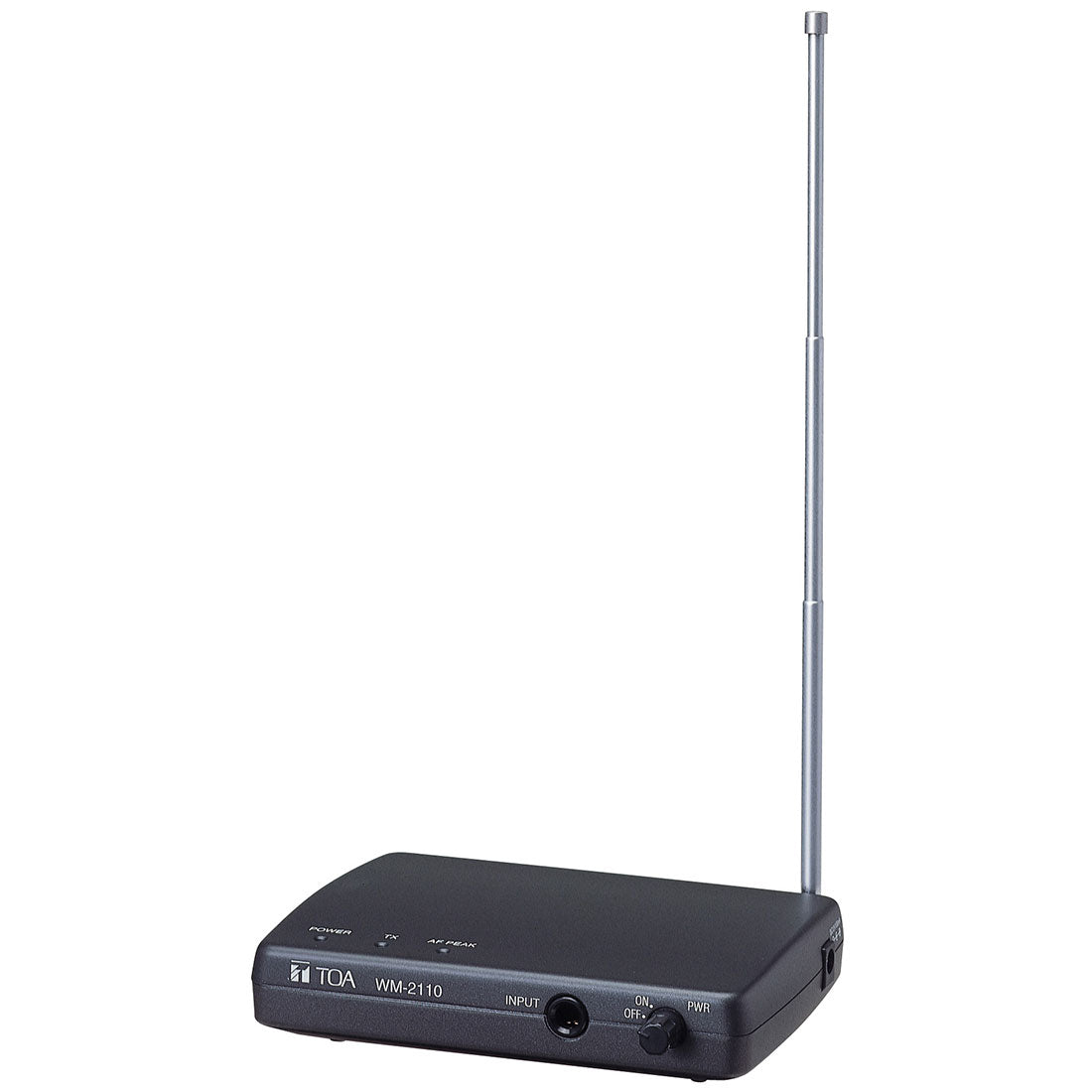

TOA WM-2110 01US Desktop Transmitter

The TOA's WM-2110 is a desk-top transmitter and is made to utilise radio transmissions in the 470 MHz range.

Specifications

  • Power Source: 120 V AC, 60 Hz
  • Power Consumption: 3 W
  • Modulation: Frequency modulation
  • Transmitting Frequencies: 470 MHz band (5 ch) (470.075, 470.150, 470.375, 470.625, 470.725 MHz)
  • RF Carrier Power: 5 mW
  • Oscillator: PLL synthesizer
  • Frequency Response: 150 - 6,000 Hz (Desk-top transmitter ? Potable receiver)
  • Pre-emphasis: 50 ?s
  • Input Level: Standard input: -54 dB*/-60 dB*/-66 dB* (Mic), -12 dB*/-18 dB*/-24 dB* (Line)
  • Maximum input: -30 dB*/-36 dB*/-42 dB* (Mic), +12 dB*/+6 dB*/0 dB* (Line) - Mic/Line selection, 600 ?, unbalanced, phone jack
  • Remote Input: Make contact input: Release voltage: 2 V DC, short-circuit current: 0.2 mA, loop resistance: under 100 ?, Remote control mode: Transmit radio signal when at make
  • Operation Temperature: -10? to +40?
  • Finish: ABS Resin, dark gray
  • Dimensions: 140 (W) × 31 (H) × 119.5 (D) mm
  • Weight: 270 g
  • Accessory: AC-DC adapter (1.8 m)…1, Screw driver…1, 3-pole phone plug cord (2 m) - 1

Features & Specs

  • Power Source: 120 V AC, 60 Hz
  • Power Consumption: 3 W
  • Modulation: Frequency modulation
  • Transmitting Frequencies: 470 MHz band (5 ch) (470.075, 470.150, 470.375, 470.625, 470.725 MHz)
  • RF Carrier Power: 5 mW
  • Oscillator: PLL synthesizer
  • Frequency Response: 150 - 6,000 Hz (Desk-top transmitter → Potable receiver)
  • Pre-emphasis: 50 μs
  • Input Level: Standard input: -54 dB*/-60 dB*/-66 dB* (Mic), -12 dB*/-18 dB*/-24 dB* (Line)
  • Maximum input: -30 dB*/-36 dB*/-42 dB* (Mic), +12 dB*/+6 dB*/0 dB* (Line) - Mic/Line selection, 600 Ω, unbalanced, phone jack
  • Remote Input: Make contact input: Release voltage: 2 V DC, short-circuit current: 0.2 mA, loop resistance: under 100 Ω, Remote control mode: Transmit radio signal when at make
  • Operation Temperature: -10℃ to +40℃
  • Finish: ABS Resin, dark gray
  • Dimensions: 140 (W) × 31 (H) × 119.5 (D) mm
  • Weight: 270 g
  • Accessory: AC-DC adapter (1.8 m)…1, Screw driver…1, 3-pole phone plug cord (2 m) - 1

Documents

Warranty

TOA Canada 5 Year Limited Manufacturers Warranty
SKU: WM-2110 01US
$986.83
