TOA WM-5225 Handheld Speech Microphone (WM5225A M1D00)
Product Description
Product Description

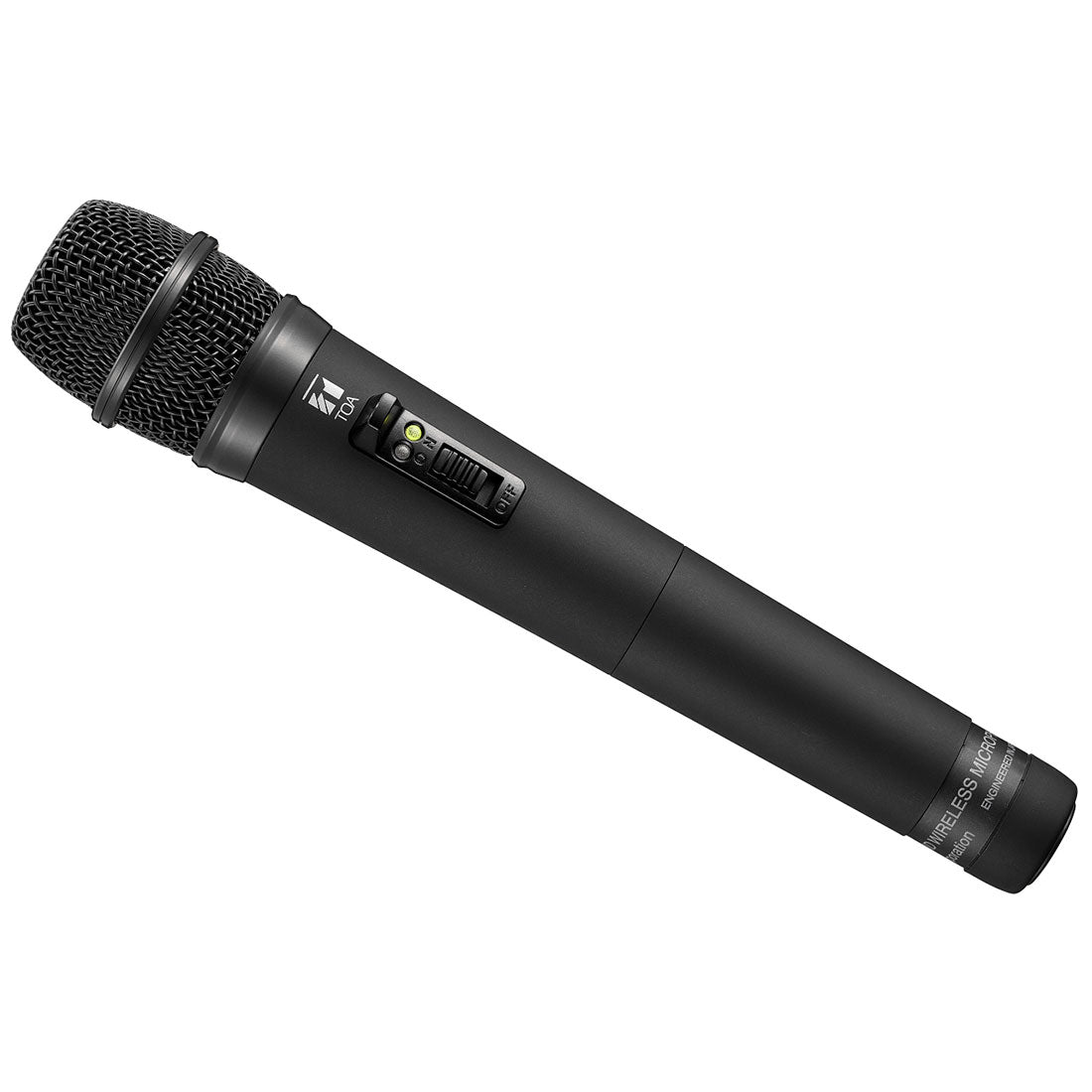

TOA WM-5225 Handheld Speech Microphone
The TOA WM-5225 features an unidirectional electret condenser cardioid microphone element with 64 selectable channels. The ON/OFF switch prevents the microphone from rolling and contains a WB-2000 rechargeable battery or single AA battery operation for a compact and lightweight body. This microphone has a built-in antenna and has a low-battery indicator. (Sufficient power/Green, Low battery/Dimming green, Empty/Red)
WM-5225 Features
- Cardioid unidirectional electret microphone element
- 64 channels with options
- Input level maximum: 126 dB SPL
- Dynamic range: at least 95 dB
- Stops the microphone from rolling via an ON/OFF switch.
- Operation using a WB-2000 rechargeable battery or a single AA battery for a small and light body. (Sufficient power/Green, Low battery/Dimming green, Empty/Red) Low-battery Indicator
- Integrated antenna
WM-5225 Specifications
- Microphone Element: Electret condenser microphone unit: Unidirectional
- Modulation: Frequency modulation
- Frequency Range: 576 - 937.5 MHz*
- Channel Selectable: 64 channels (the number of channels may differ from country to country)
- RF Carrier Power: Less than 50 mW (Factory preset 10 mW ERP)
- Tone Frequency: 32.768 kHz
- Oscillator: PLL synthesized
- Maximum Input Level: 126 dB SPL
- Maximum Deviation: ±40 kHz
- Audio Frequency Response: 100 Hz - 15 kHz
- Dynamic Range: 95 dB or more (with WT-5800)
- Battery: WB-2000 rechargeable battery (option) or AA alkaline dry cell battery
- Battery Life: Approx. 13 h (when the WB-2000 rechargeable battery is used), Approx. 10 h (when the alkaline battery is used)
- Indicator: Power/Battery lamps
- Antenna Built-in type
- Operating Temperature: -10 ? to +50 ? (14 ?F to 122 ?F) (except battery)
- Operating Humidity: 30 % to 85 %RH (no condensation)
- Finish: Resin
- Dimensions: ?43.6 x 231.5 mm (?1.72 × 9.11)
- Weight: 180 g (0.4 lb) (with battery)
- Accessory: Microphone holder W3/8 (Stand adapter W5/8" >> W3/8) - 1, Screw driver - 1
- Option: Battery charger: BC-5000-2, Ni-MH battery: WB-2000-2 (containing 2 pieces)
