TOA WS-5325H Wireless Kit (WS5325H H01US)

Product Description

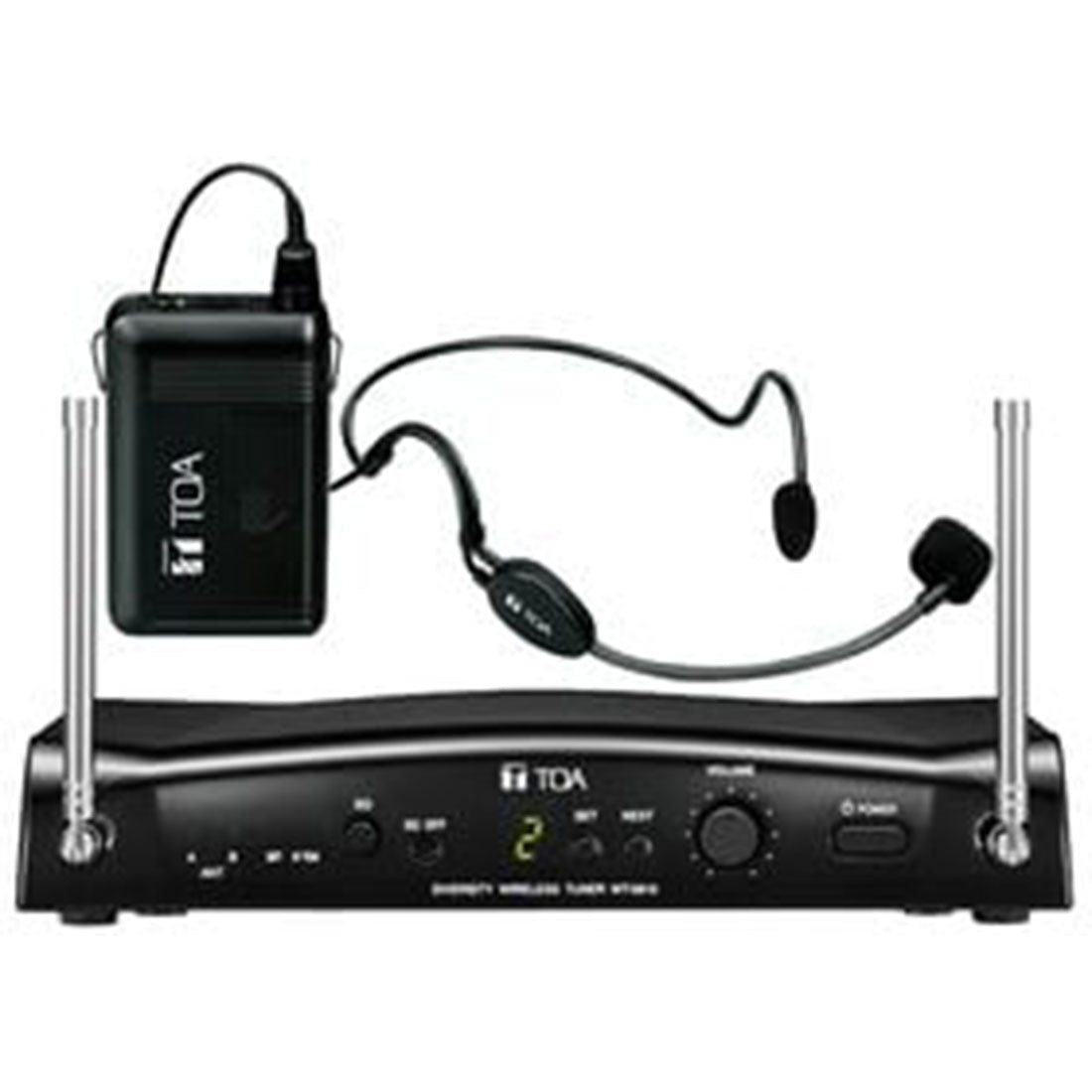

TOA WS-5325H Wireless Kit

The TOA WS-5325H includes a wireless transmitter WM-5325, a headset microphone WH-4000H, and a diversity wireless tuner WT-5810. The WM-5325 wireless transmitter has been manufactured for use with a UHF system. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission. The WH-4000H employs an electret condenser microphone element and has been designed for use in speech reinforcement applications. The WT-5810 is a PLL-synthesizer controlled double superhetrodyne diversity tuner designed to be used with a UHF wireless system. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise.

Features & Specs

Wireless Transmitter
Modulation Frequency modulation
Channel Selectable 64 channels (the number of channels may differ from country to country)
RF Carrier Power 50 mW or less
Oscillator PLL synthesized
Maximum Input Level -14 dB to -29 dB (*3) (Audio level control: Min. to Max.)
Battery WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option) or
AA alkaline dry cell battery
Battery Life Approx. 13 h (when the WB-2000 rechargeable battery is used)
Approx. 10 h (when the alkaline battery is used)
Indicator Power/Battery lamps
Antenna Built-in type
Finish Resin, coating
Dimensions 62 (W) × 102.5 (H) × 23 (D) mm (2.44 × 4.04″ × 0.91″)”
Weight 90 g (0.2 lb) (with battery)

Headset Microphone
Microphone Element Electret condenser type: Unidirectional
Sensitivity -66 dB ±3 dB (0 dB = 1 V/0.1 Pa, 1 kHz)
Cord Length 1.3 m (4.27 ft)
Finish Frame: Stainless, black (silicon rubber), Gooseneck: Black (shrink tube)
Weight 50 g (0.11 lb) (cable included)

Wireless Tuner
Power Source AC mains (supplied AC adapter must be used)
Power Consumption 130 mA (12 V DC)
Channel Selectable 16 channels
Receiving System Double super-heterodyne
Diversity System Space diversity
Mixing Output MIC: -60 dB (*3), 600 Ω, balanced, XLR-3-32 type connector
LINE: -20 dB (*3), 600 Ω, unbalanced, phone jack
Mixing Input -20 dB (*3), 10 kΩ, unbalanced, phone jack
Antenna Whip antenna
Receiving Sensitivity 90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation)
Squelch Sensitivity 16 – 40 dBμV variable
Squelch System Using together of noise SQ, carrier SQ and tone SQ
Indicator ANT A/B, Audio (peak), Battery alarm, Channel number
Channel Check Usable frequencies scanning
Signal to Noise Ratio 104 dB or more (A-weight, unbalanced output)
Harmonic Distortion 1 % or less (typical)
Frequency Response 100 Hz – 15 kHz, ±3 dB
Finish Resin, black
Dimensions 206 (W) × 40.6 (H) × 152.7 (D) mm (8.11 × 1.6″ × 6.01″) (excluding antenna)”
Weight 590 g (1.3 lb)

Documents

Warranty

TOA Canada 5 Year Limited Manufacturers Warranty
SKU: WS-5325H H01US
$1,095.74
or

Payment as low as

$91.31/mo
Info icon

This monthly payment does not include any applicable tax or interest

Flash Sale Ends:

Covers shipping up to 7% of product value. If costs exceed this, we'll quote before shipping or cancel and refund. Free ShippingFree Shipping |

We guarantee the best price in Canada—before or 30 days after purchase.* Lowest Price GuaranteeLowest Price Guarantee*

Special Order

  • Product Composition: Wireless transmitter WM-5325, Headset microphone WH-4000H, Diversity wireless tuner WT-5810
  • Tone Frequency: 32.768 kHz
  • Operating Temperature: -10 °C to +50 °C (14 °F to 122 °F)
  • Included Accessories: AC Adapter, Screw driver, Storage case, Neck strap
  • Wireless Beltpack
Sign up to get notified when it's in stock!

Remember to select the correct model if there are multiple options.

Call for Expert Help

*Quantities may be limited. First come first served. Gibbys Electronic Supermarket does not guarantee a notification when the product is in stock. By signing up, you agree to subscribe to our newsletters, receive marketing emails or be contacted by Gibbys Electronic Supermarket. You also agree to Gibbys' Terms & Conditions.

Phone icon

Call 1-866-696-7189

Call for Expert AdviceCall for Expert Advice
Info icon

Does not apply to special order items.

30-day Return Policy

We guarantee the best price in Canada—before or 30 days after purchase.*

Lowest Price Guarantee*

Product Description

TOA WS-5325H Wireless Kit

The TOA WS-5325H includes a wireless transmitter WM-5325, a headset microphone WH-4000H, and a diversity wireless tuner WT-5810. The WM-5325 wireless transmitter has been manufactured for use with a UHF system. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission. The WH-4000H employs an electret condenser microphone element and has been designed for use in speech reinforcement applications. The WT-5810 is a PLL-synthesizer controlled double superhetrodyne diversity tuner designed to be used with a UHF wireless system. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise.

Features & Specs

Wireless Transmitter
Modulation Frequency modulation
Channel Selectable 64 channels (the number of channels may differ from country to country)
RF Carrier Power 50 mW or less
Oscillator PLL synthesized
Maximum Input Level -14 dB to -29 dB (*3) (Audio level control: Min. to Max.)
Battery WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option) or
AA alkaline dry cell battery
Battery Life Approx. 13 h (when the WB-2000 rechargeable battery is used)
Approx. 10 h (when the alkaline battery is used)
Indicator Power/Battery lamps
Antenna Built-in type
Finish Resin, coating
Dimensions 62 (W) × 102.5 (H) × 23 (D) mm (2.44 × 4.04″ × 0.91″)”
Weight 90 g (0.2 lb) (with battery)

Headset Microphone
Microphone Element Electret condenser type: Unidirectional
Sensitivity -66 dB ±3 dB (0 dB = 1 V/0.1 Pa, 1 kHz)
Cord Length 1.3 m (4.27 ft)
Finish Frame: Stainless, black (silicon rubber), Gooseneck: Black (shrink tube)
Weight 50 g (0.11 lb) (cable included)

Wireless Tuner
Power Source AC mains (supplied AC adapter must be used)
Power Consumption 130 mA (12 V DC)
Channel Selectable 16 channels
Receiving System Double super-heterodyne
Diversity System Space diversity
Mixing Output MIC: -60 dB (*3), 600 Ω, balanced, XLR-3-32 type connector
LINE: -20 dB (*3), 600 Ω, unbalanced, phone jack
Mixing Input -20 dB (*3), 10 kΩ, unbalanced, phone jack
Antenna Whip antenna
Receiving Sensitivity 90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation)
Squelch Sensitivity 16 – 40 dBμV variable
Squelch System Using together of noise SQ, carrier SQ and tone SQ
Indicator ANT A/B, Audio (peak), Battery alarm, Channel number
Channel Check Usable frequencies scanning
Signal to Noise Ratio 104 dB or more (A-weight, unbalanced output)
Harmonic Distortion 1 % or less (typical)
Frequency Response 100 Hz – 15 kHz, ±3 dB
Finish Resin, black
Dimensions 206 (W) × 40.6 (H) × 152.7 (D) mm (8.11 × 1.6″ × 6.01″) (excluding antenna)”
Weight 590 g (1.3 lb)

Documents

Warranty

TOA Canada 5 Year Limited Manufacturers Warranty
