TOA YW-4500 UHF Wireless Antenna Mount (YW4500)
Product Description
Product Description

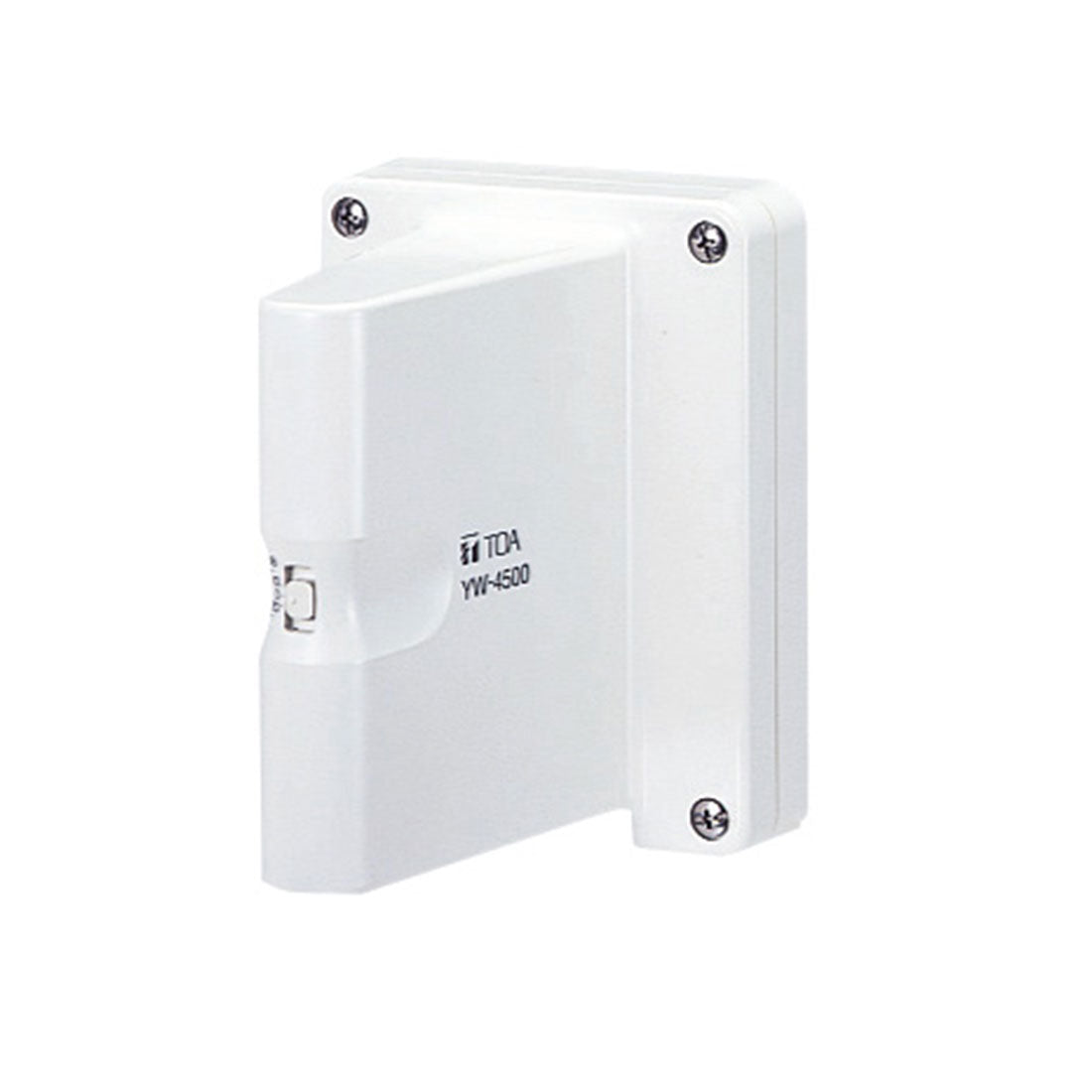

TOA YW-4500 UHF Wireless Antenna Mount
For use in UHF band wireless systems, the wireless antenna YW-4500 was designed. With a built-in RF signal amplifier, cable loss can be mitigated. The TOA YW-4500 is a dipole antenna for installation within doors and has 75 impedance coaxial cable.
Specifications
- Power Source: 7 - 12 V DC (supplied from amplifier or tuner)
- Current Consumption: 15 mA or less
- Receiving Frequency: 550 - 932 MHz, UHF
- Dipole Ratio Relative Gain: 8 dB or more (780 MHz)
- VSWR: 3.0 or less
- Output Impedance: 75 ?
- Mounting Hole Pitch: 83.5 mm (dimensions for wiring box)
- Operating Temperature: -10 %%dC to +50 %%dC
- Operating Humidity: 30 % to 85 %RH (no condensation)
- Finish: AES resin, off-white
- Dimensions: 105 (W) × 140 (H) × 126 (D) mm
- Weight: 270 g
- Accessory: M3.5 screw for wiring box…2, Tapping screw (M4) for wooden wall…2, RG-6/U or RG-11/U sleeve…1
