TOA ZM-104A Impedance Meter (ZM104A)

Product Description

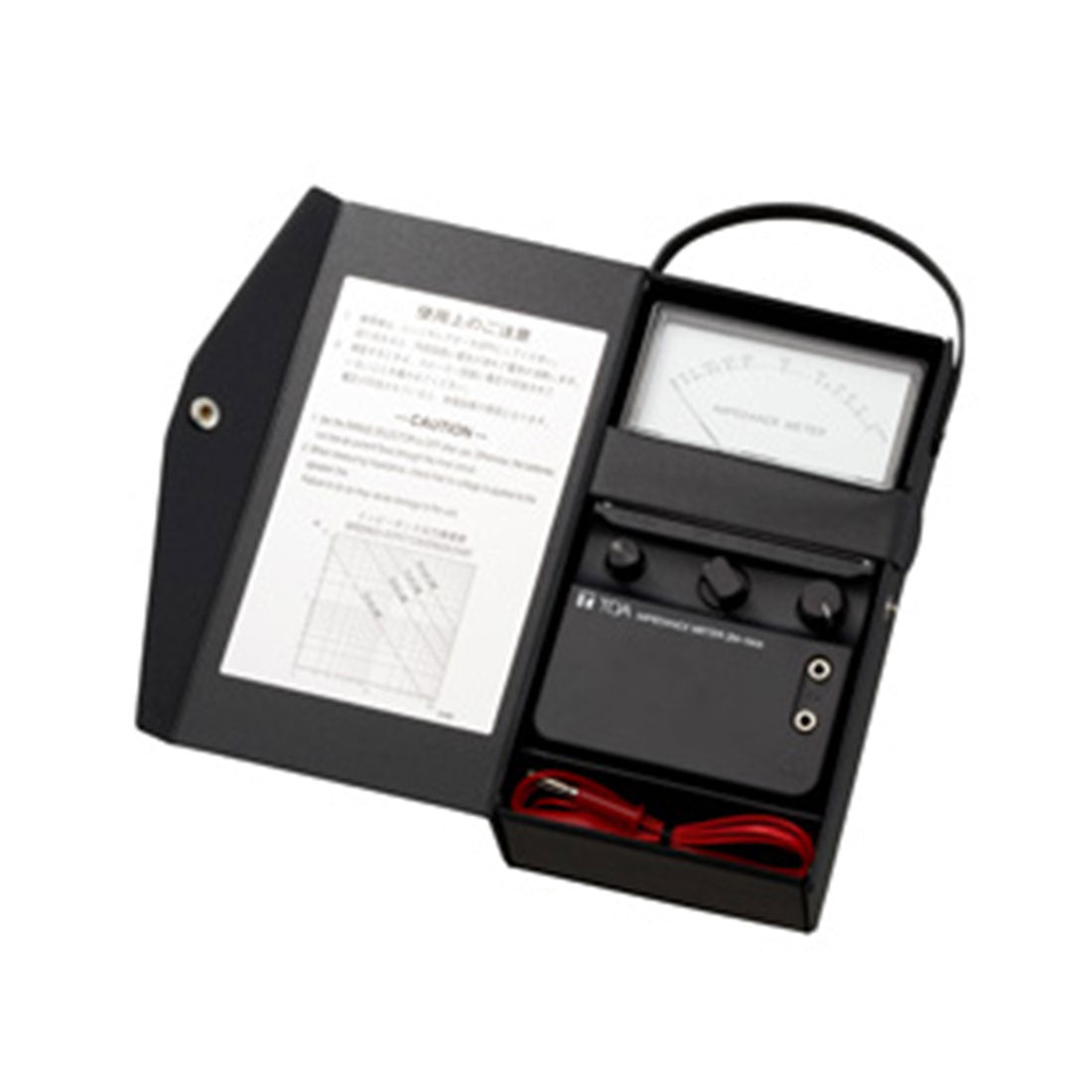

TOA ZM-104A Impedance Meter

Similar to how a circuit tester measures resistance, the ZM-104A Impedance Meter makes it simple to determine the impedance of speaker lines.

Specifications

  • Power Source: R6 × 4 (1.5 V DC × 4)
  • Current Consumption: 39 mA
  • Reading: Direct reading meter, unit: ?
  • Measurement Range: × 1 range: 5 ? - 1 k? × 10 range: 50 ? - 10 k? × 100 range: 500 ? - 100 k?
  • Accuracy: ±10 %
  • Oscillation Frequency: 1 kHz, ±10 %
  • Battery Life When Continuously Used: × 1 range: 30 h, × 10 range and × 100 range: 60 h
  • Operating Temperature: -5 ? to +40 ? (23 ?F to 104 ?F)
  • Dimensions: 120 (W) × 220 (H) × 63 (D) mm (4.72" × 8.66" × 2.48") (carrying case), 110 (W) × 180 (H) × 58 (D) mm (4.33" × 7.09" × 2.28") (unit only)
  • Finish: ABS resin, black
  • Weight: 700 g (1.54 lb) (including carring case, without batteries)
  • Accessory: Test leads …1 set
  • Measurement Category: CAT I

Features & Specs

Power Source: R6 × 4 (1.5 V DC × 4)
Current Consumption: 39 mA
Reading: Direct reading meter, unit: Ω
Measurement Range: × 1 range: 5 Ω - 1 kΩ × 10 range: 50 Ω - 10 kΩ × 100 range: 500 Ω - 100 kΩ
Accuracy: ±10 %
Oscillation Frequency: 1 kHz, ±10 %
Battery Life When Continuously Used: × 1 range: 30 h, × 10 range and × 100 range: 60 h
Operating Temperature: -5 ℃ to +40 ℃ (23 ゜F to 104 ゜F)
Dimensions: 120 (W) × 220 (H) × 63 (D) mm (4.72" × 8.66" × 2.48") (carrying case), 110 (W) × 180 (H) × 58 (D) mm (4.33" × 7.09" × 2.28") (unit only)
Finish: ABS resin, black
Weight: 700 g (1.54 lb) (including carring case, without batteries)
Accessory: Test leads …1 set
Measurement Category: CAT I

Documents

Warranty

TOA Canada 5 Year Limited Manufacturers Warranty
