TOA ZM-9014 Remote Control Panel (ZM9014)
Product Description
Product Description

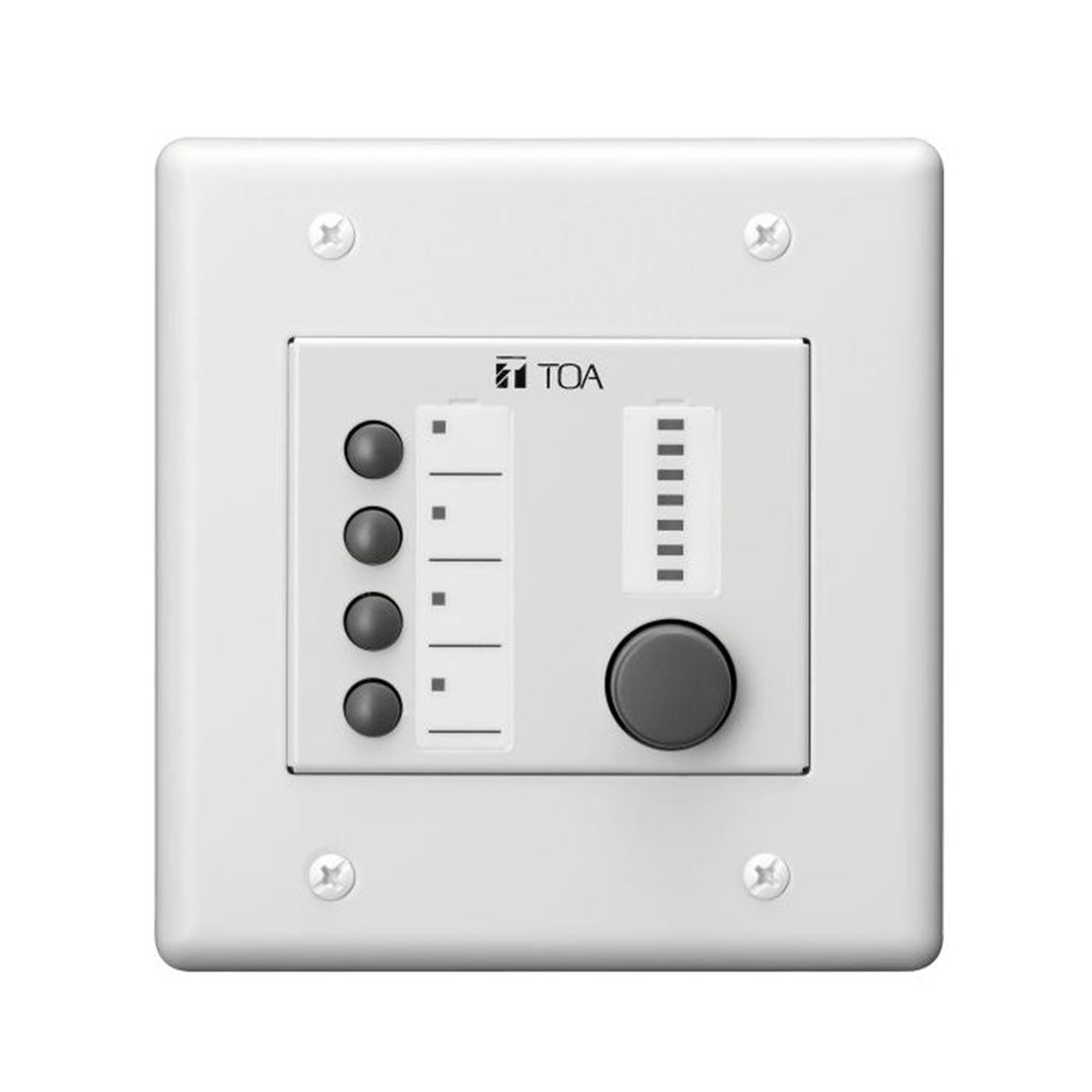

TOA ZM-9014 Remote Control Panel
The ZM-9014 is a wall-mounted remote control panel with 4 buttons and 1 volume control knob that is only intended for use with the 9000M2 Series amplifier or M-864D. It works with either the M-864D or the RC-001T Remote control module. It can be put in a wall-mounted 2-gang electrical box that is American standard.
ZM-9014 Features
- The Xpoint settings (on/off, select), paging activation, scene activation and relay activation are all controlled by four assignable buttons, each with an LED status indicator
- Rotating ID assignment on the box
Specifications
- ZM-9014 Power Source: 24 V DC (supplied from RC-001T or M-864D)
- Current Consumption: 50 mA or less
- Terminal: Removable terminal block (10 pins)
- Connection Cable: Shielded CPEV cable (paired data line and paired power line) or Category 5 twisted pair cable for LAN (CAT5-STP)
- Operating Section: 4 function buttons, 1 volume control
- Indicator: 4 function indicators (green LEDs), Level indicators (green LEDs)
- Operating Temperature: 0 ? to +40 ? (32 ?F to 104 ?F)
- Operating Humidity: 35 % to 80 %RH (no condensation)
- Finish: Surface-treated steel plate, white, paint
- Dimensions: 120 (W) × 127 (H) × 58.5 (D) mm (4.72" × 5" × 2.3")
- Weight: 374 g (0.82 lb)
- Accessory: Box mounting screw (No.6-32UNC × 30) …4, Box mounting screw (M4 × 30) …4, Panel mounting screw …4, Removable terminal plug (10 pins) …1
