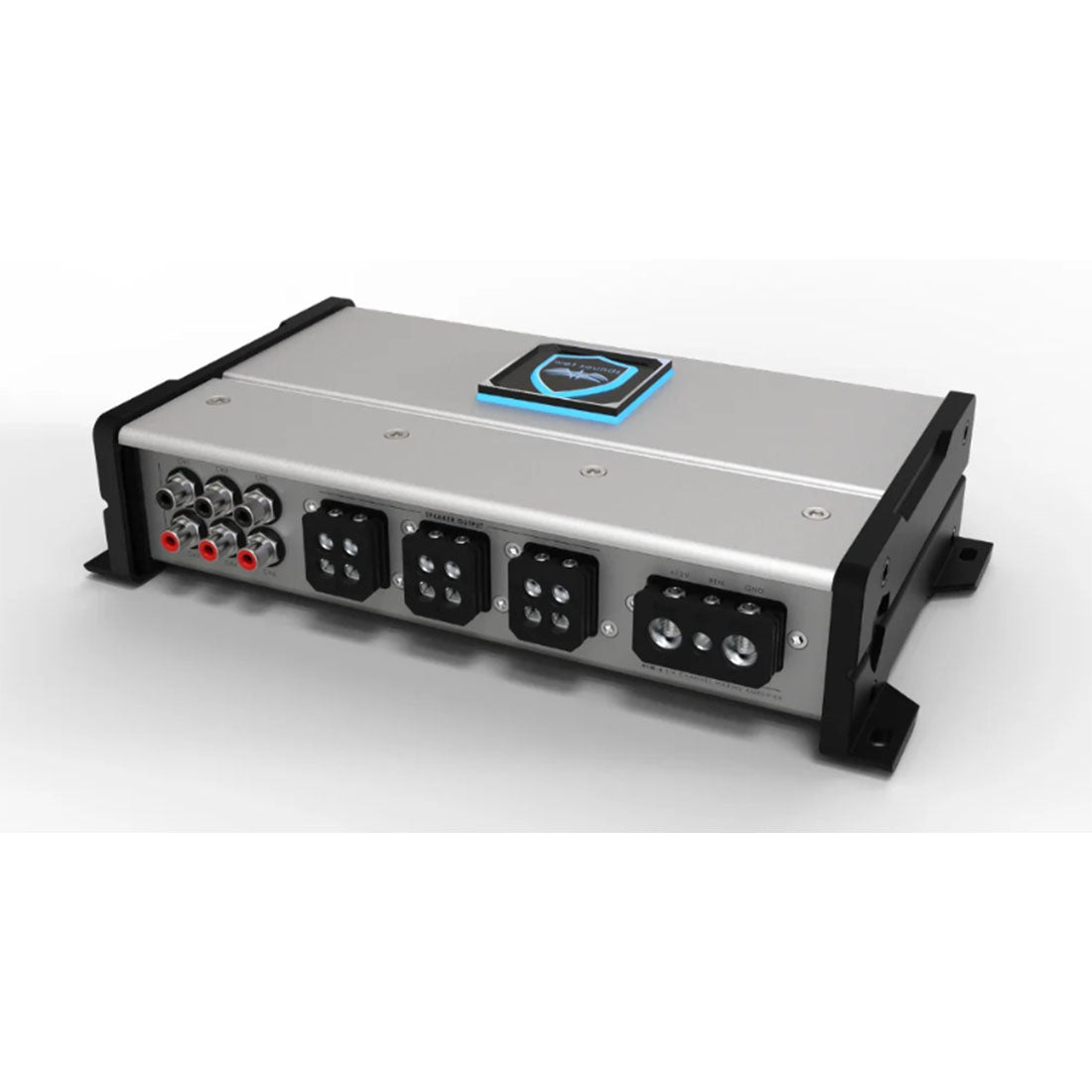

Wet Sounds HTM-6 Full-Range Class-D 6-Channel Marine Amplifier

Wet Sounds HTM-6 Full-Range Class-D 6-Channel Marine Amplifier

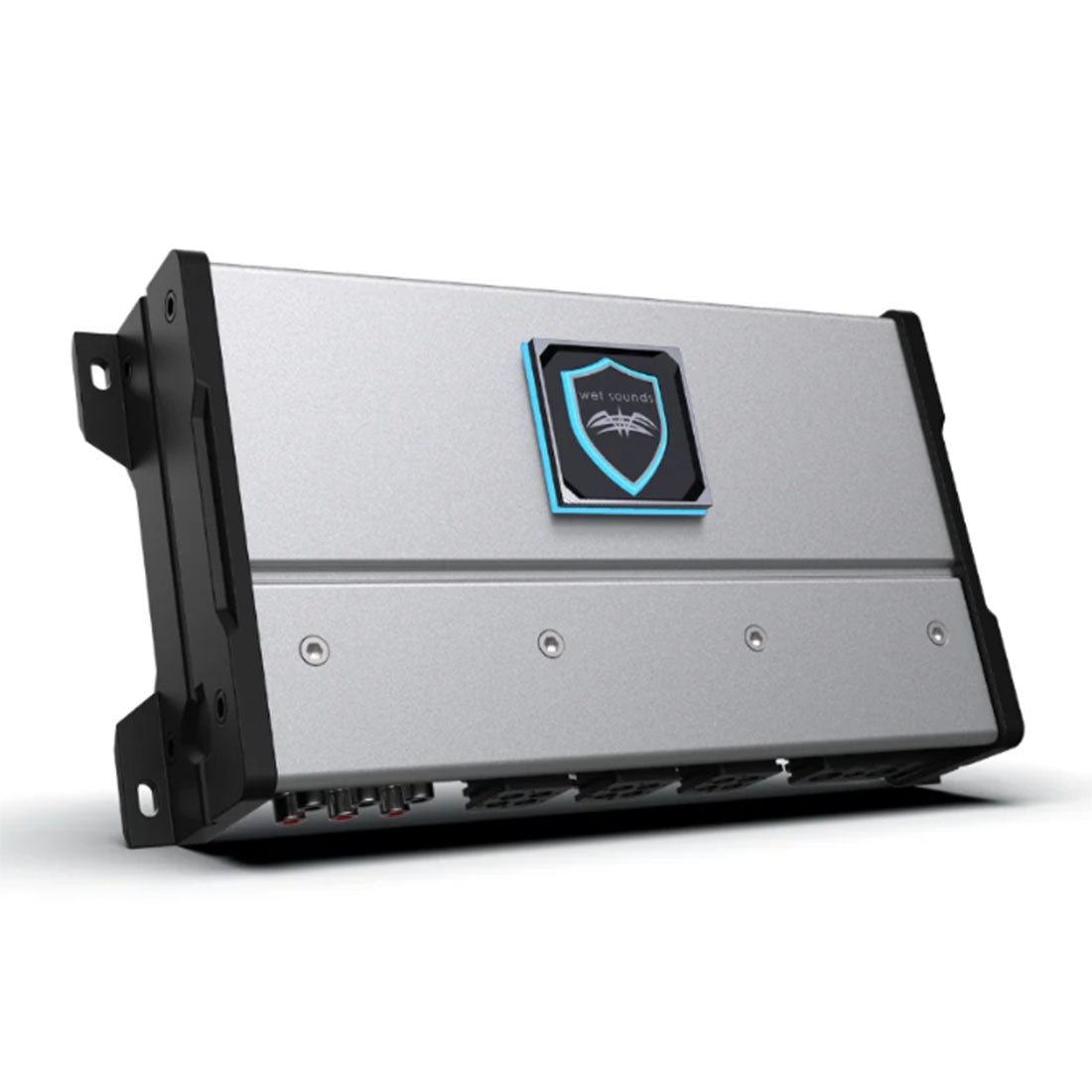

The Wet Sounds HTM-6 is a 6-channel Class-D marine amplifier built for demanding audio applications where you want strong power in a compact package. It delivers up to 150 watts RMS × 6 at 2 ohms and can produce 300 watts RMS × 3 when bridged at 4 ohms. With full-range capability, flexible crossover controls, and an IPX5 rating, it gives you a versatile foundation for a powerful marine audio system.

Six Channels of Powerful Audio

The Wet Sounds HTM-6 gives you six channels to work with, making it a practical choice for powering multiple speakers from a single amplifier. It produces 85 watts RMS × 6 at 4 ohms stereo and 150 watts RMS × 6 at 2 ohms stereo.

Need even more output from selected channels? The HTM-6 can be bridged to deliver 300 watts RMS × 3 at 4 ohms. That flexibility makes the amplifier adaptable to different audio system configurations.

Full-Range Audio Performance

The HTM-6 features full-range audio capability with a frequency response of 20 Hz to 20 kHz at -3 dB. It is designed to handle the broad range of frequencies in your audio system while providing the power needed for demanding applications.

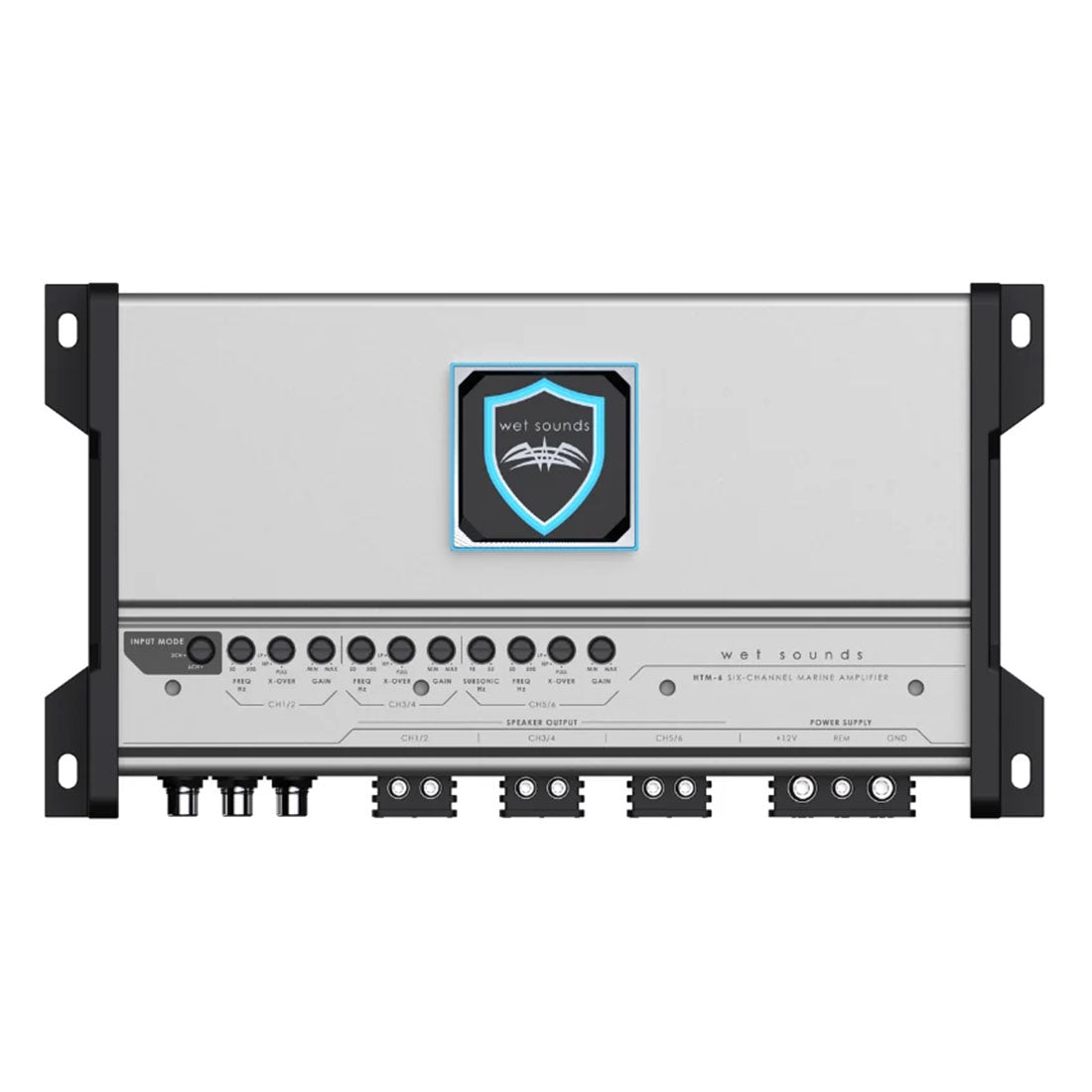

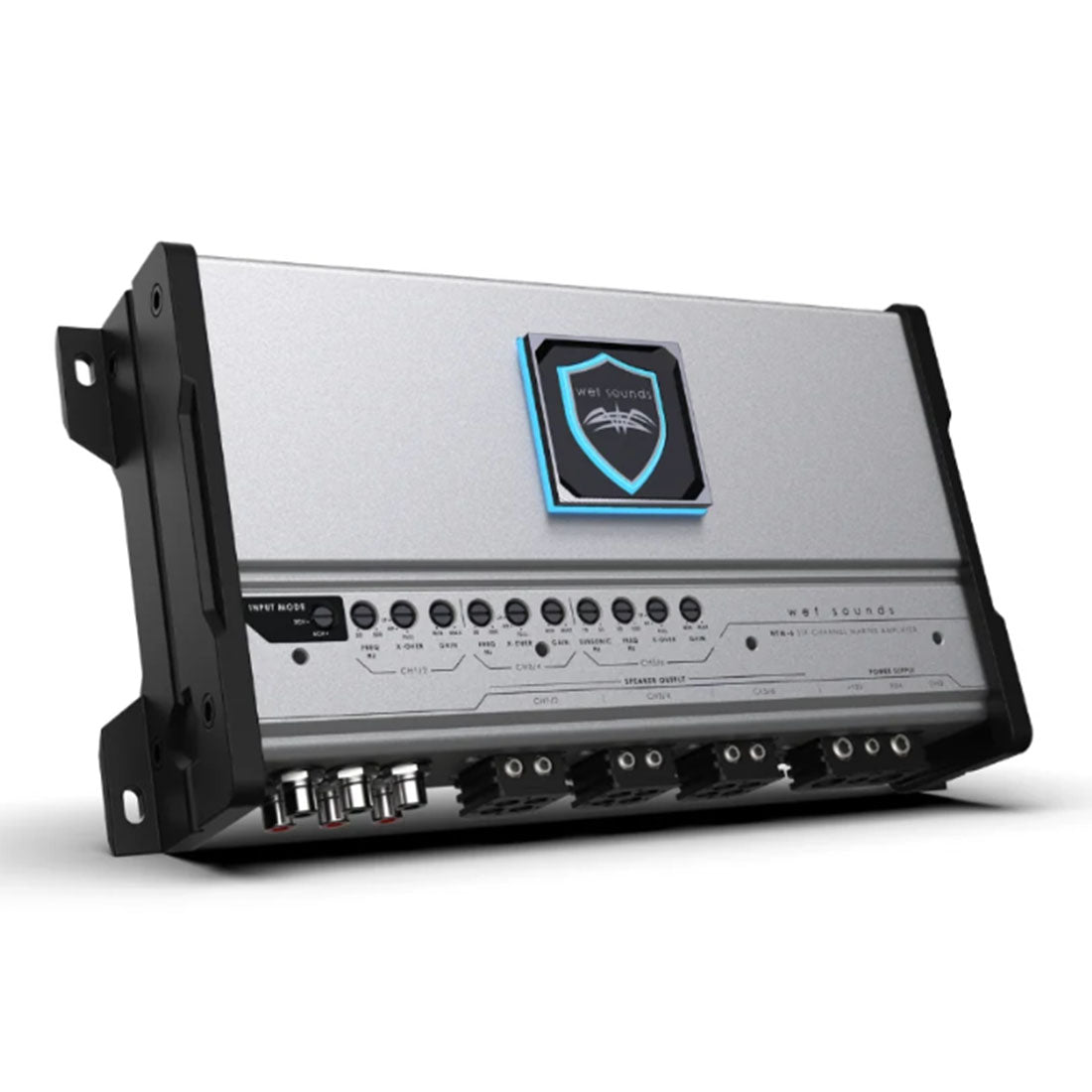

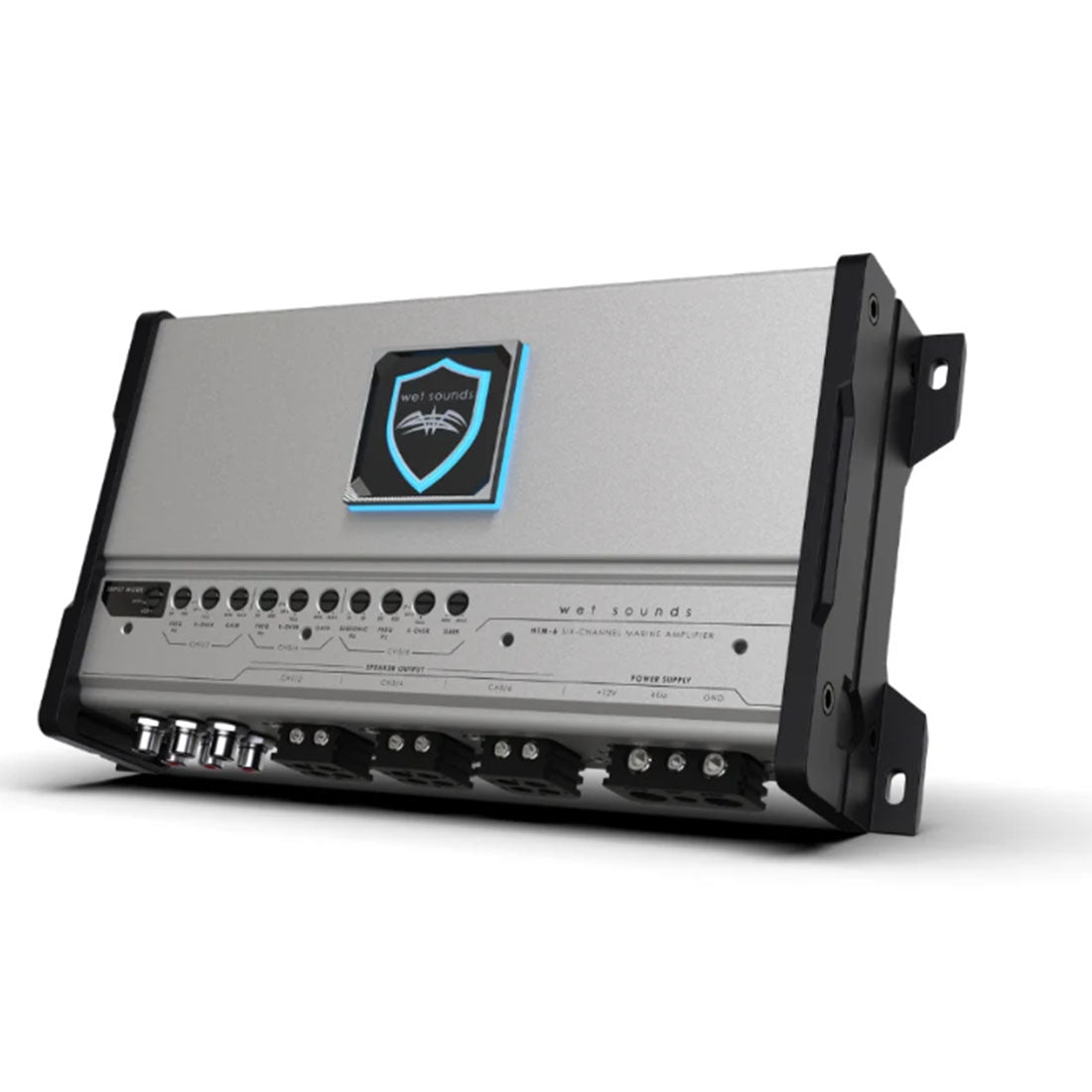

Selectable Full, HP, and LP crossover modes give you additional control over the amplifier's output. The adjustable crossover range runs from 50 Hz to 500 Hz, so you can tailor its operation to your system instead of relying on a one-size-fits-all setup.

Flexible Filtering and Input Sensitivity

The amplifier features an input sensitivity range of 350 mVrms to 6 Vrms, giving you flexible input capability. Channels 5/6 also feature a subsonic filter with an adjustable range of 10 Hz to 55 Hz.

With multiple crossover options and adjustable filtering, the HTM-6 works more like a control center for your audio system than simply a source of power.

Compact Class-D Design

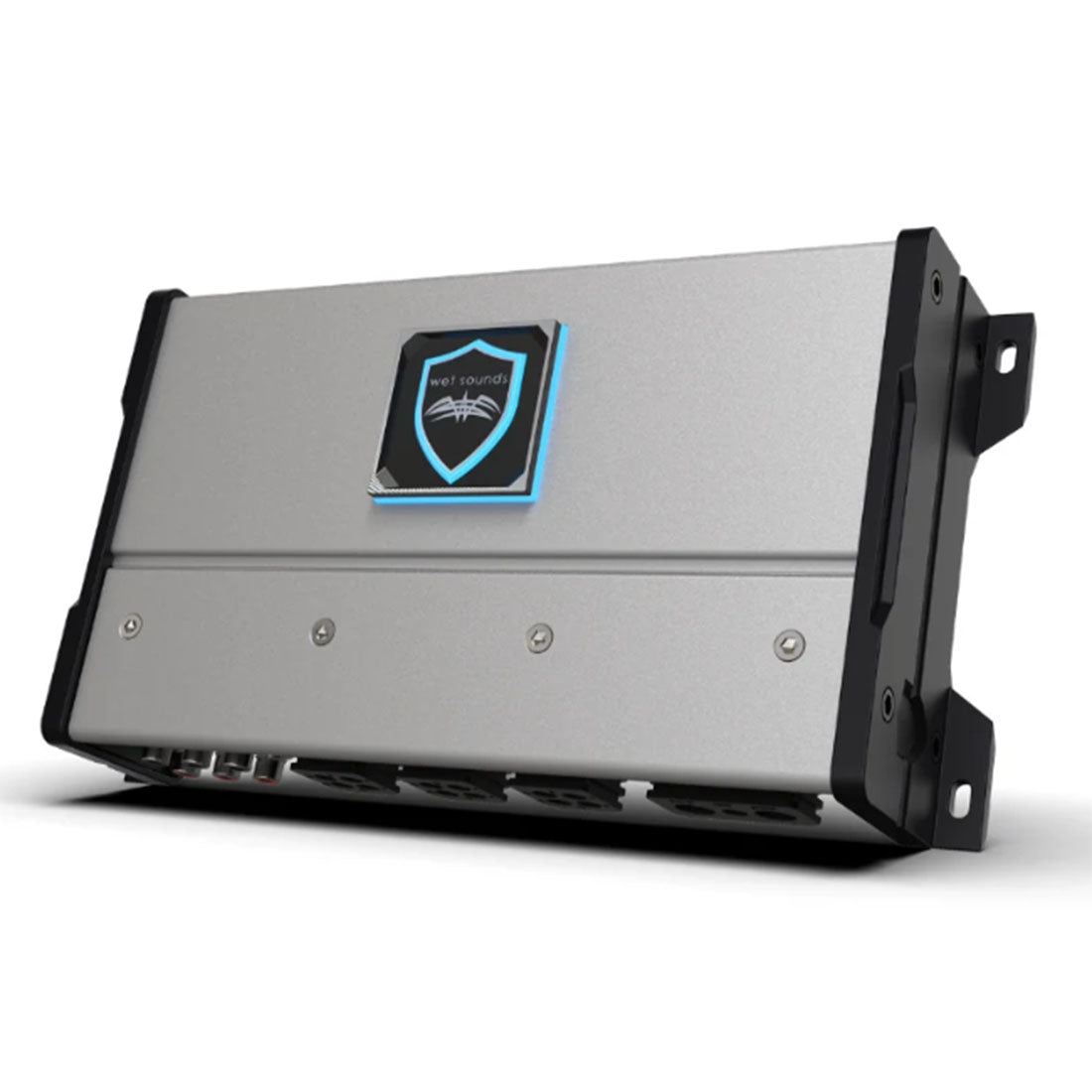

Wet Sounds designed the HTM Series around Class-D power supply technology, packing substantial output into a compact chassis. The HTM-6 has a reduced height compared with previous HTX models, helping it fit into tighter spaces without sacrificing its six-channel design.

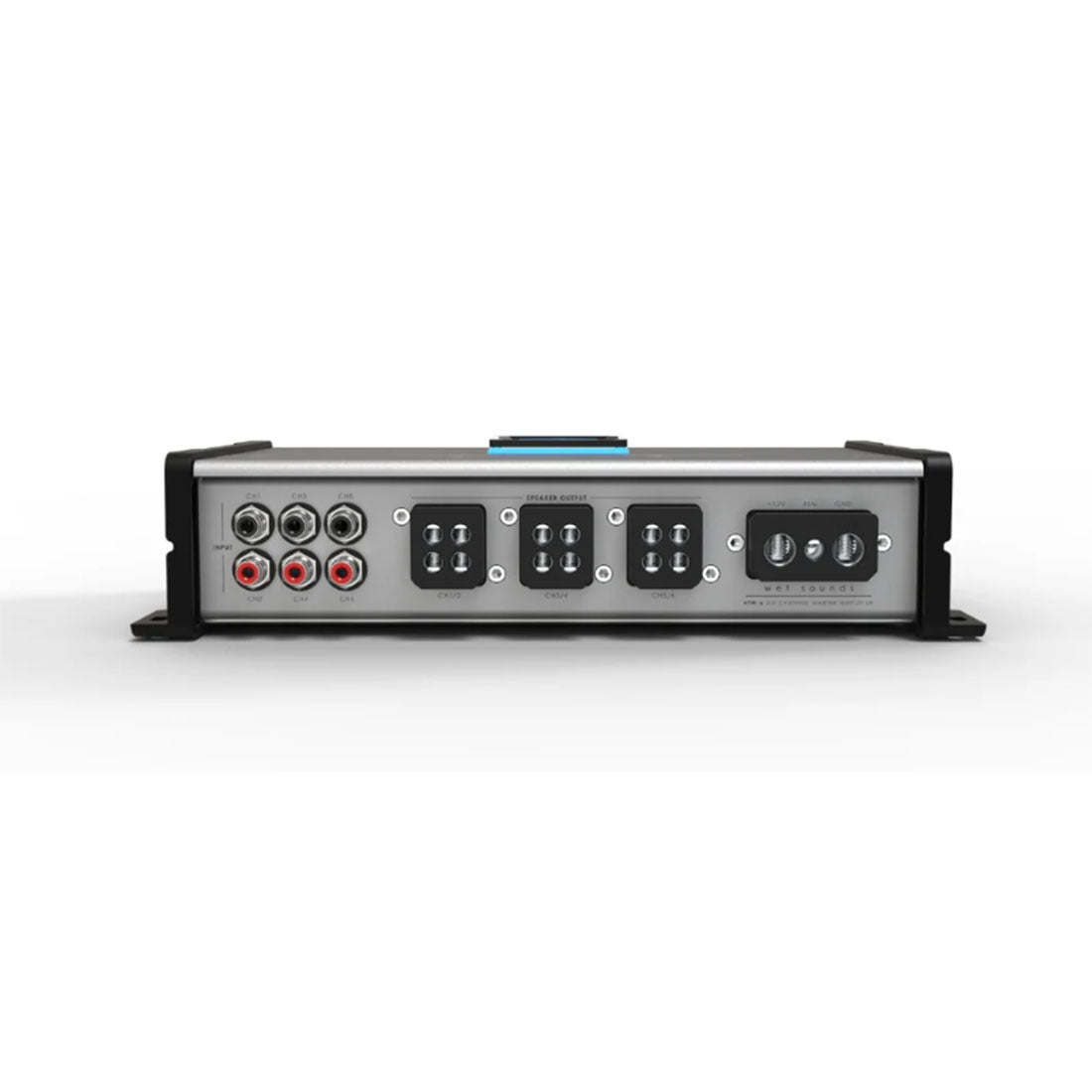

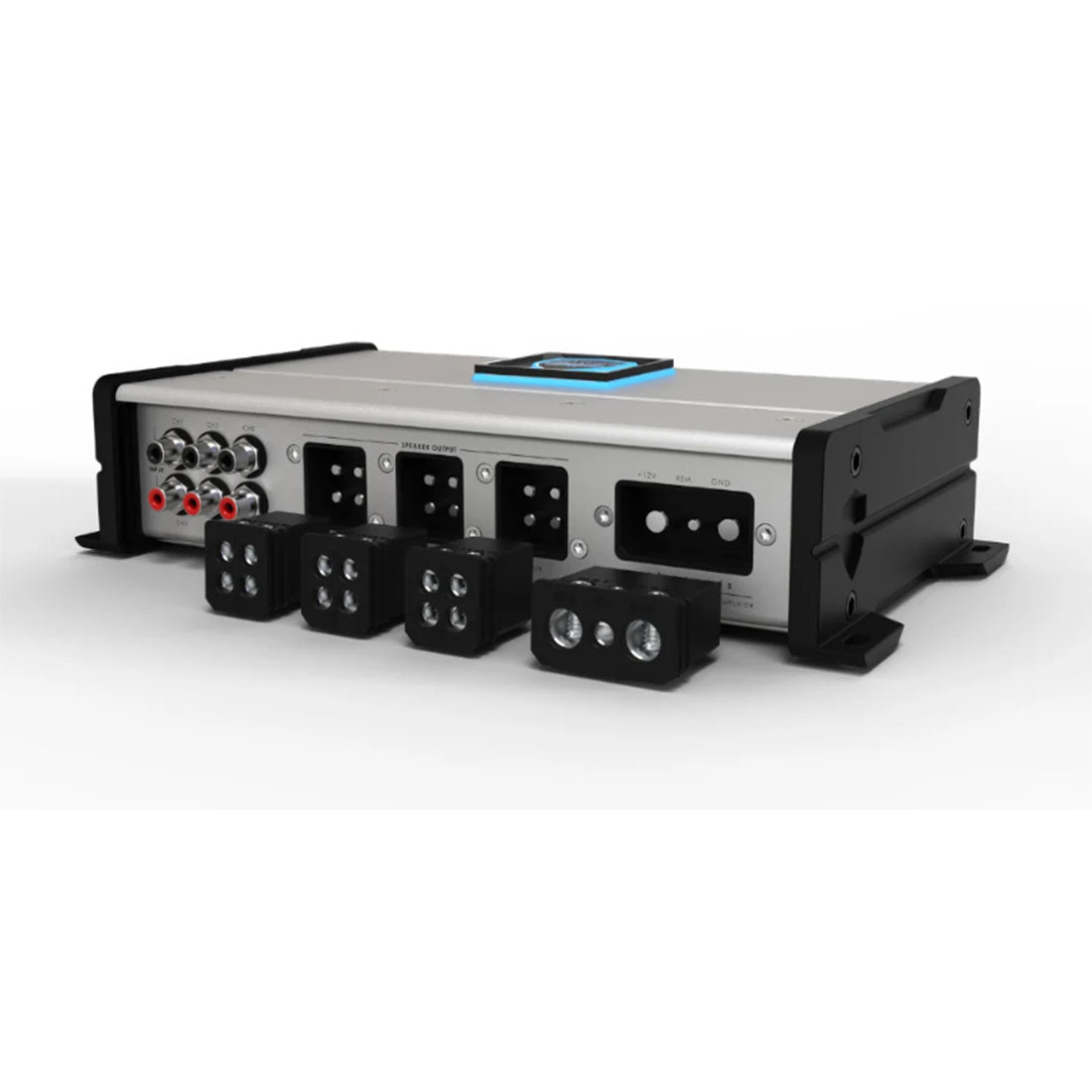

The removable power and speaker connectors provide convenient access, while optional mounting feet allow the amplifier to be elevated from the mounting surface. The badge can also be positioned horizontally or vertically, giving you added flexibility when mounting the unit.

Built for Marine Applications

The Wet Sounds HTM-6 carries an IPX5 rating, making it suited to applications where protection against water exposure is important. The HTM Series also features thermal overload protection to help handle demanding operating conditions.

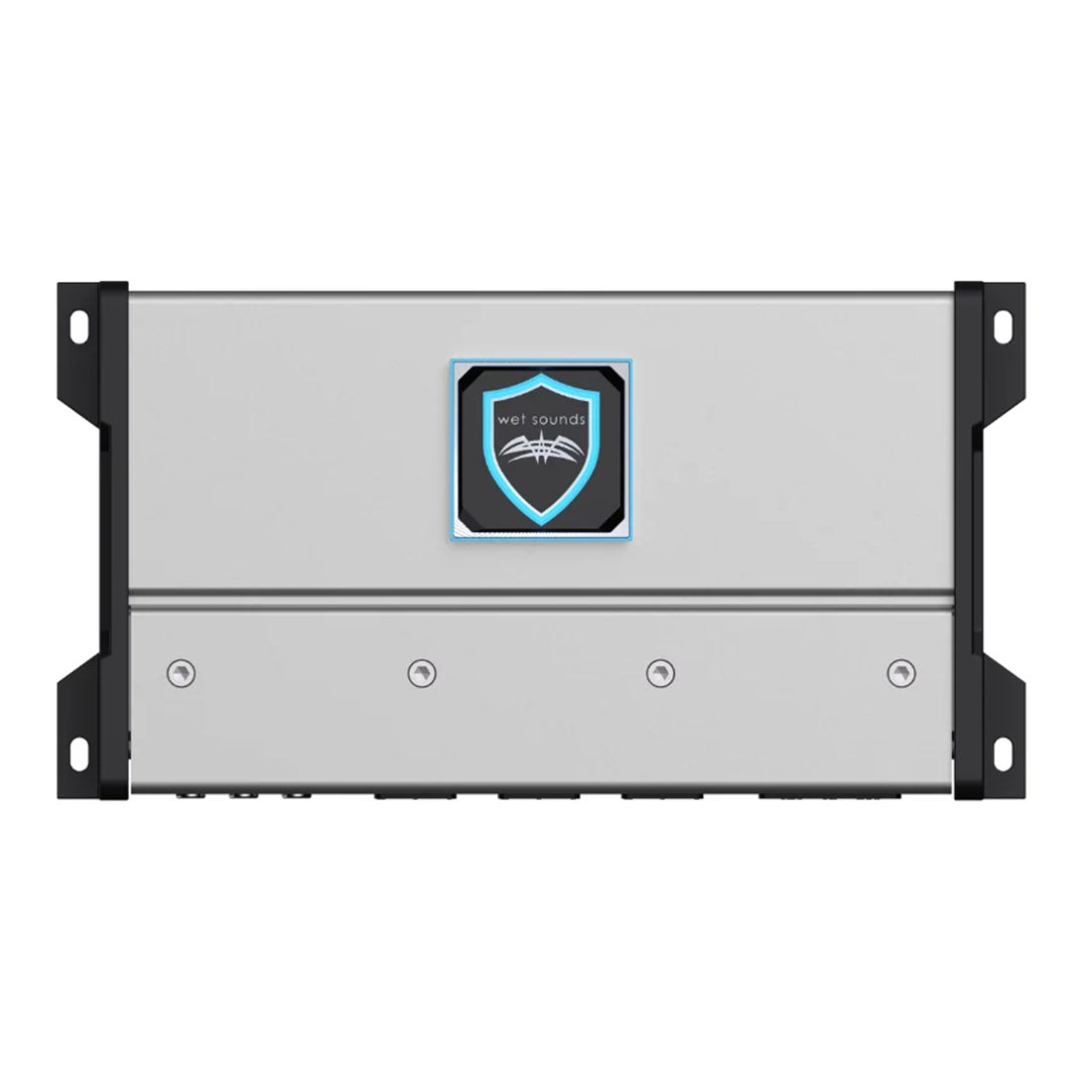

A blue LED back-lit badge indicates power status while adding a clean visual detail to the compact chassis. It's a small touch, but it makes checking the amplifier's status quick and easy.

Wet Sounds HTM-6 Specifications

• Channels: 6
• RMS Power @ 4 Ohm Stereo: 85W × 6
• RMS Power @ 2 Ohm Stereo: 150W × 6
• RMS Power @ 4 Ohm Bridged: 300W × 3
• Adjustable X-Over Range: 50 Hz – 500 Hz
• Signal-to-Noise Ratio: 95 dB
• Frequency Response (-3 dB): 20 Hz – 20 kHz
• Input Sensitivity: 350 mVrms – 6 Vrms
• Subsonic: 10 Hz – 55 Hz (CH. 5/6)
• Selectable Crossover: Full / HP / LP
• IP Rating: IPX5

A Flexible Six-Channel Marine Amplifier

The Wet Sounds HTM-6 combines six channels of Class-D amplification with full-range audio capability, flexible crossover controls, compact dimensions, and an IPX5-rated design. With up to 150 watts RMS × 6 at 2 ohms or 300 watts RMS × 3 when bridged at 4 ohms, it offers plenty of flexibility for building a powerful marine audio system while keeping the amplifier compact.

Frequently Asked Questions

1. How many channels does the Wet Sounds HTM-6 have? The amplifier has six channels.
2. How much power does the HTM-6 produce at 2 ohms? It produces 150 watts RMS × 6 at 2 ohms stereo.
3. Can the Wet Sounds HTM-6 be bridged? Yes. It can produce 300 watts RMS × 3 at 4 ohms when bridged.
4. What crossover settings are available on the HTM-6? The amplifier offers Full, HP, and LP crossover settings with an adjustable range of 50 Hz to 500 Hz.
5. What is the subsonic filter range? The subsonic filter on channels 5/6 has an adjustable range of 10 Hz to 55 Hz.
