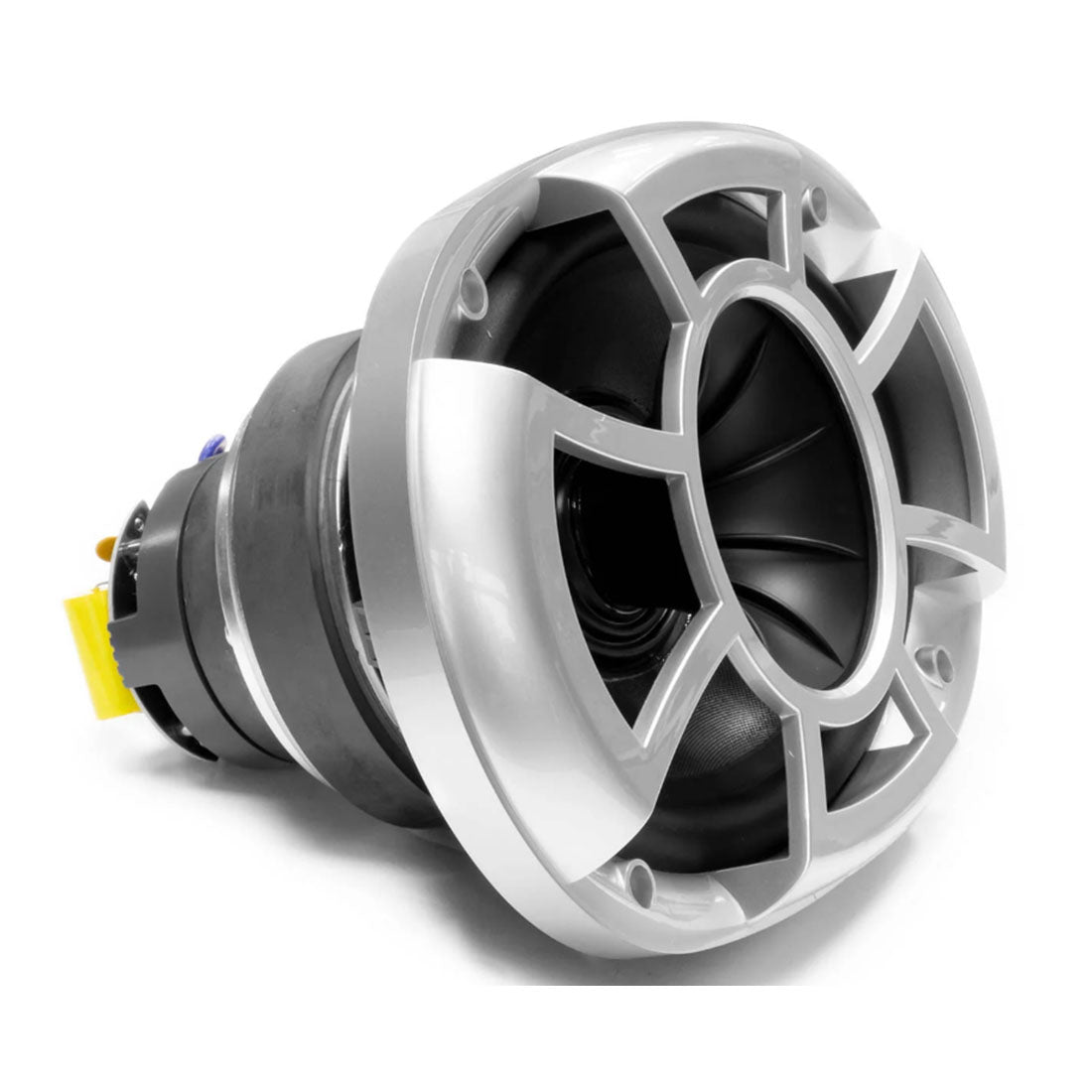

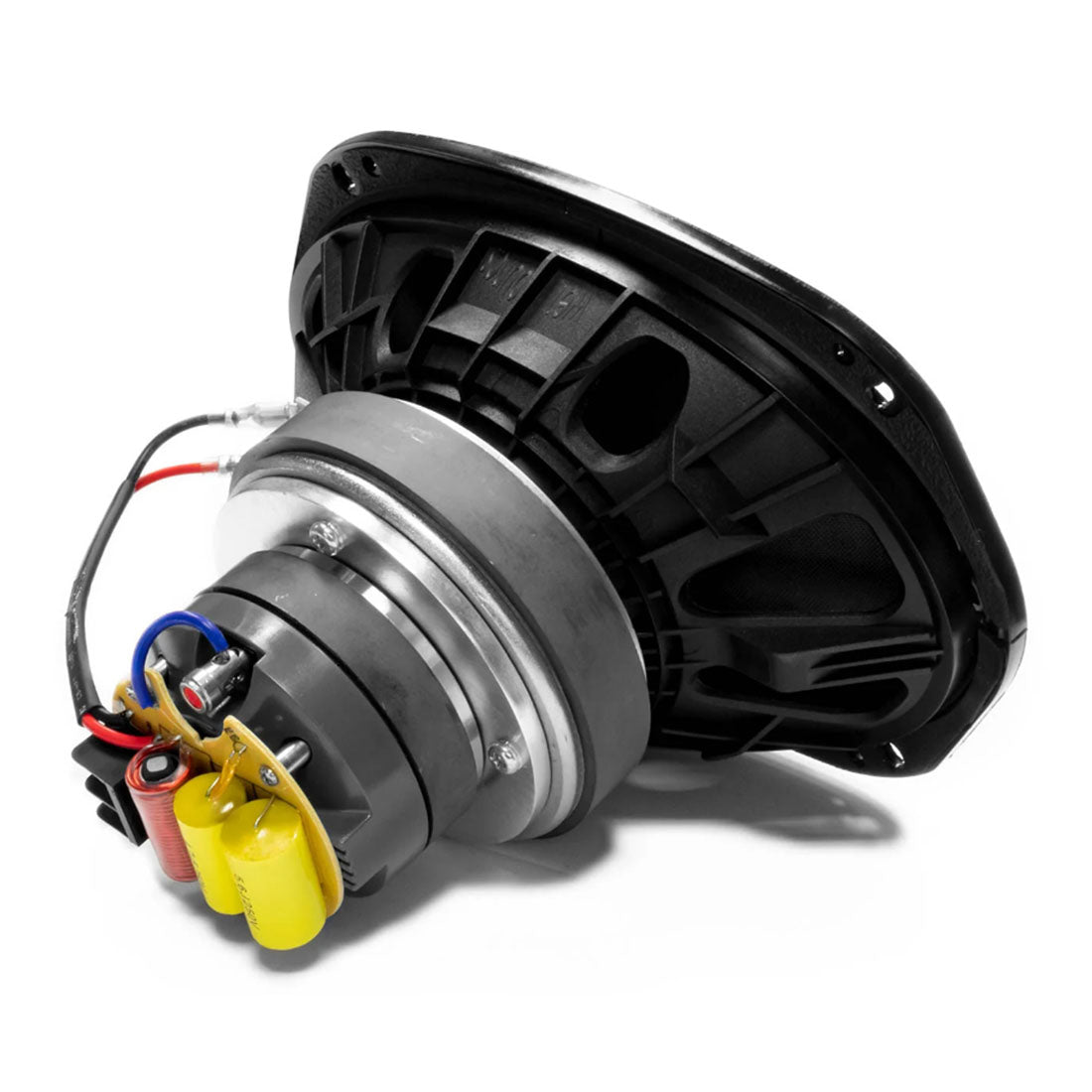

Wet Sounds REV696-RS 6" x 9" 4-Ohm Pro-Axial Marine Speakers - Silver - Pair

Wet Sounds REV696-RS 6x9" Pro-Axial Marine Speakers - Silver - Pair

Wet Sounds REV696-RS speakers are built for high-output marine audio systems where clear projection and reliable performance matter. Designed as part of the Revolution Series, this 6x9" Pro-Axial speaker combines a 6x9 EFG cone woofer with a coaxially mounted titanium diaphragm compression driver to deliver strong output across demanding open-air environments.

The Wet Sounds REV696-RS is a raw driver designed for wakeboard tower enclosures that accept 6x9" speakers. If you already have a compatible tower enclosure, this speaker provides a way to bring Revolution Series performance into an existing setup without changing the speaker format.

High-Output Pro-Axial Performance

The REV696-RS uses a Pro-Axial driver configuration designed around projection and efficiency. Its coaxially mounted titanium diaphragm high-output horn-loaded compression driver handles high frequencies, while the 6x9 EFG cone woofer with polyurethane surround produces the mid-bass response.

Why settle for a conventional speaker when open-air environments demand projection? The Pro-Axial design focuses the speaker's components around high-output performance, making it well suited to marine and wakeboard tower applications.

Designed for Wakeboard Tower Enclosures

The Wet Sounds REV696-RS is specifically designed as a raw driver for wakeboard tower enclosures built around a 6x9" speaker format. This gives owners of compatible enclosures the option to upgrade to Revolution Series performance while maintaining the existing speaker size.

With a 6.75" mounting depth with crossover and 5.50" without crossover, the REV696-RS provides the dimensions needed for compatible enclosure applications. The speaker has an 8.47" x 5.59" hole cutout requirement.

Built for Marine Environments

Marine audio equipment has to deal with more than just music. The REV696-RS is engineered for demanding marine environments where moisture, vibration, UV exposure, and other harsh conditions can affect equipment over time.

The Revolution Series combines marine-focused construction with advanced acoustic engineering and three-dimensional computer-aided design. The result is a speaker built around consistent performance in the open-air conditions common to wake and marine applications.

Power and Frequency Response

The REV696-RS is rated at 150W RMS and 300W peak power with a 4-ohm impedance. Its stated frequency response ranges from 20Hz to 20kHz, while its sensitivity is rated at 90dB at 1 watt/1 meter.

The combination gives the speaker a broad stated frequency range and a design focused on high-output marine audio. The 6x9 EFG cone woofer handles the mid-bass while the Pro-Axial compression driver delivers the high-frequency portion.

Wet Sounds REV696-RS Specifications

• Series: REV
• Speaker Size: 6x9"
• RMS Power: 150W
• Peak Power: 300W
• Impedance: 4 Ohms
• Frequency Response: 20Hz - 20kHz
• Sensitivity: 90dB at 1W/1m
• High Frequency: Pro-Axial Driver with coaxially mounted titanium diaphragm high-output horn-loaded compression driver
• Mid Bass: 6x9 EFG cone woofer with polyurethane surround
• Diameter: 10.26" with grille (260.40 mm)
• Hole Cut Out: 8.47" x 5.59" (215mm x 142mm)
• Mounting Depth with Crossover: 6.75" (171.45mm)
• Mounting Depth without Crossover: 5.50" (142.24mm)
• Sealed Box: N/A
• Weight: 7 lbs (3.17 kg)
• Quantity: Pair

Made for High-Noise Marine Applications

The Wet Sounds REV696-RS is designed around the demands of open-air marine audio, where sound needs to perform alongside the noise of the water and surrounding environment. Its Revolution Series engineering combines the 6x9 EFG woofer with the Pro-Axial high-frequency driver to create a purpose-built marine speaker.

For compatible wakeboard tower enclosures, the REV696-RS offers a 6x9 raw driver format with 150W RMS power, 300W peak power, and a 20Hz to 20kHz frequency response. It brings together high-output performance, marine-focused construction, and a design made specifically for demanding tower applications.

Frequently Asked Questions

1. What size speaker is the Wet Sounds REV696-RS? The REV696-RS is a 6x9" Pro-Axial marine speaker.
2. How much power does the REV696-RS handle? It is rated for 150W RMS and 300W peak power.
3. What is the impedance of the REV696-RS? The speaker has a 4-ohm impedance.
4. What type of high-frequency driver does the REV696-RS use? It uses a coaxially mounted titanium diaphragm high-output horn-loaded compression driver.
5. What is included with the REV696-RS? The REV696-RS is sold as a pair of 6x9" Pro-Axial raw drivers.
