Wet Sounds STXMICRO-1 Compact Class-D Monoblock Marine Amplifier

Wet Sounds STXMICRO-1 Compact Class-D Monoblock Marine Amplifier

Wet Sounds STXMICRO-1 is a compact monoblock amplifier designed to deliver powerful subwoofer performance in marine and powersports applications. Its Class-D design combines high output with an ultra-compact footprint, making it well suited for systems where available space is limited.

Compact Power for Subwoofers

The Wet Sounds STXMICRO-1 delivers 600W x 1 at 1 ohm, 420W x 1 at 2 ohms, and 250W x 1 at 4 ohms. That gives you substantial low-frequency power without requiring a large amplifier chassis. Need serious bass in a tight space? The compact design makes it easier to fit powerful amplification into ATV, UTV, marine, and other powersports systems.

Sealed Construction for Harsh Environments

The Wet Sounds STXMICRO-1 uses a fully sealed die-cast aluminum chassis designed to protect the amplifier against water and dirt intrusion. With an IP67 rating and construction designed for extreme environments, it is built for applications where moisture, dirt, and vibration can be part of the equation.

Ultra-Compact Chassis

The Wet Sounds STXMICRO-1 measures just 9.25 inches long, 4 inches wide, and 1.5 inches high. Its compact footprint allows it to fit into limited spaces behind panels, under seats, or inside storage compartments. Think of it as a small power source that takes up very little real estate while still delivering substantial subwoofer output.

Simple Signal Integration

The Wet Sounds STXMICRO-1 features a 3.5mm signal input designed to work with Wet Sounds Bluetooth controllers such as the BTVCC or connect directly to most smartphone headphone outputs. This provides a straightforward way to integrate the amplifier into different audio system configurations.

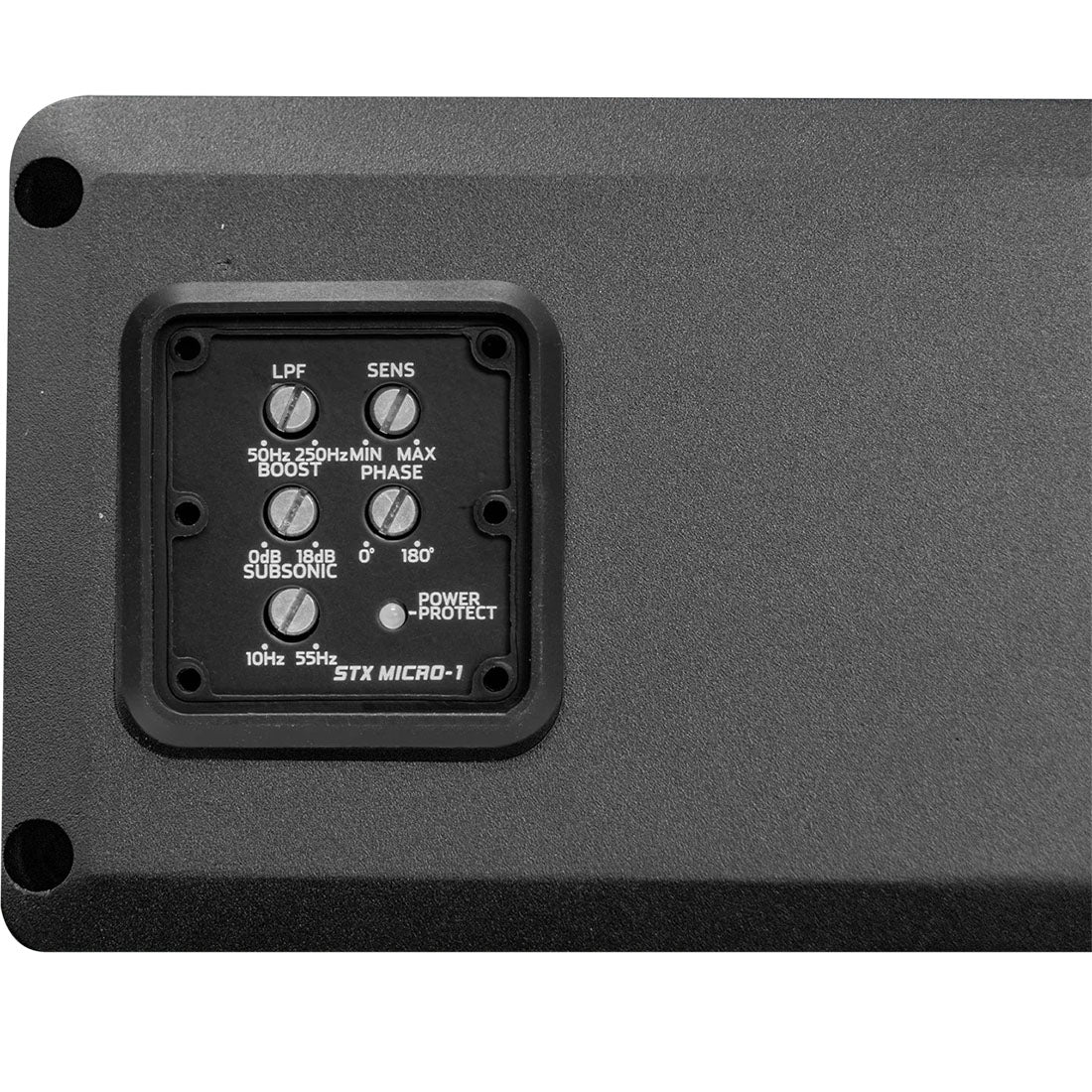

Adjustable Bass Control

The Wet Sounds STXMICRO-1 gives you control over the low-frequency portion of your system with fully variable bass boost and an adjustable low-pass crossover. These controls let you fine-tune the amplifier to match your subwoofer setup and listening preferences. Why leave your bass response fixed when you can adjust it to suit your system?

Efficient Class-D Performance

The Class-D design provides high-efficiency operation while supporting thermal stability and consistent output. With a frequency response of 10Hz - 250Hz, the amplifier is purpose-built for low-frequency performance and subwoofer applications.

Specifications

• Amplifier Type: Class-D Monoblock
• Channels: Monoblock
• Power Output @ 1Ω: 600W x 1
• Power Output @ 2Ω: 420W x 1
• Power Output @ 4Ω: 250W x 1
• S/N Ratio @ 1 Watt: > 95dB
• Frequency Response: 10Hz - 250Hz
• Total Harmonic Distortion: 0.19%
• Input Sensitivity Range: 150mV - 7V
• Input Connection: 3.5mm Signal Input
• IP Rating: IP67
• Dimensions: 9.25" L x 4" W x 1.5" H

Marine and Powersports Applications

The Wet Sounds STXMICRO-1 is designed for marine, ATV, UTV, and powersports applications where space and environmental durability are important. Its sealed chassis, compact dimensions, and high-output monoblock design make it a practical fit for systems that need substantial subwoofer power without a bulky amplifier.

The Wet Sounds STXMICRO-1 packs 600W of power at 1 ohm into a chassis measuring only 9.25 inches long by 4 inches wide by 1.5 inches high. With sealed die-cast aluminum construction, IP67 protection, adjustable bass boost, and a low-pass crossover, it combines compact size with dedicated low-frequency performance for demanding marine and powersports audio systems.

FAQs

1. How much power does the Wet Sounds STXMICRO-1 produce? The amplifier produces 600W x 1 at 1 ohm, 420W x 1 at 2 ohms, and 250W x 1 at 4 ohms.
2. What type of amplifier is the Wet Sounds STXMICRO-1? It is a Class-D monoblock amplifier designed for subwoofer applications.
3. What is the frequency response of the Wet Sounds STXMICRO-1? The amplifier has a frequency response of 10Hz - 250Hz.
4. What does the IP67 rating mean for the Wet Sounds STXMICRO-1? The STXMICRO-1 has an IP67 rating and uses a fully sealed die-cast aluminum chassis designed to resist water and dirt intrusion.
5. What are the dimensions of the Wet Sounds STXMICRO-1? The amplifier measures 9.25 inches long, 4 inches wide, and 1.5 inches high.
