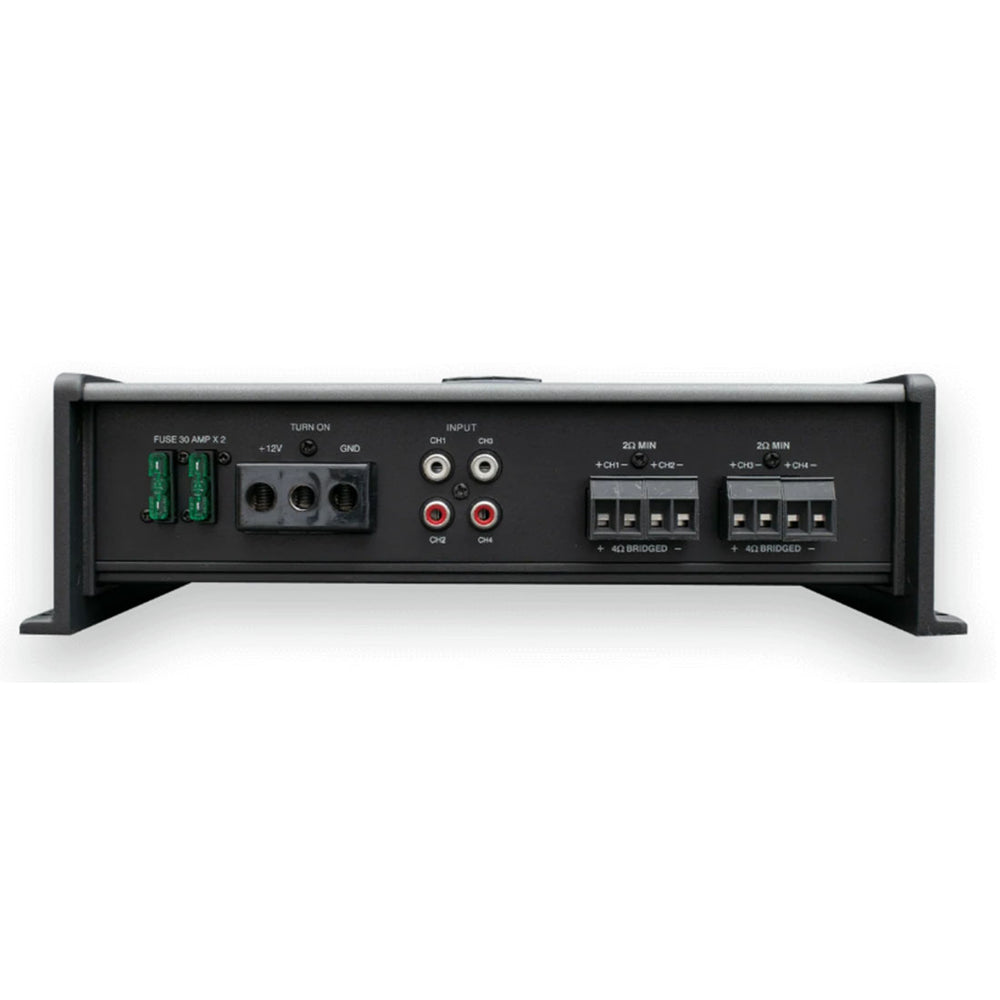

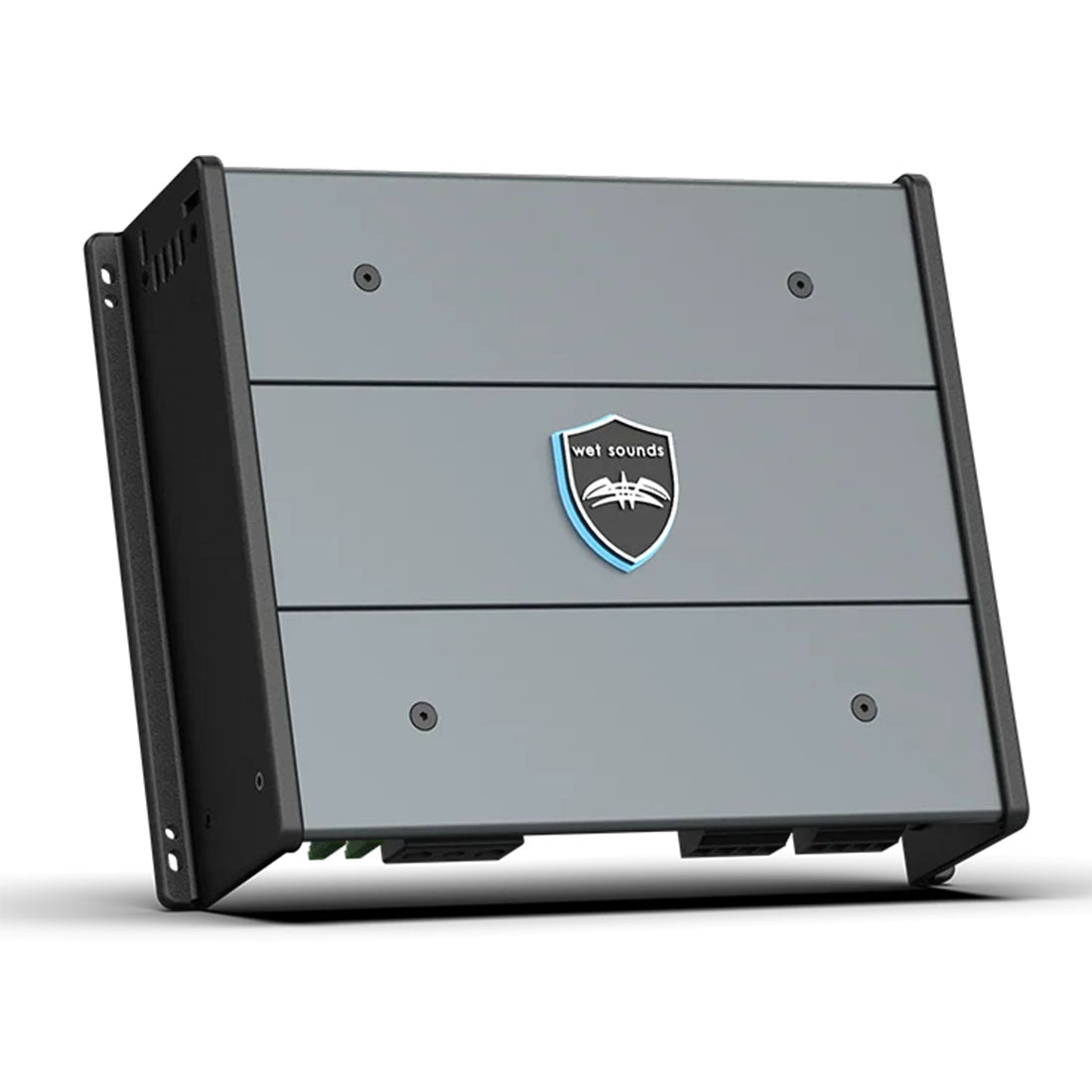

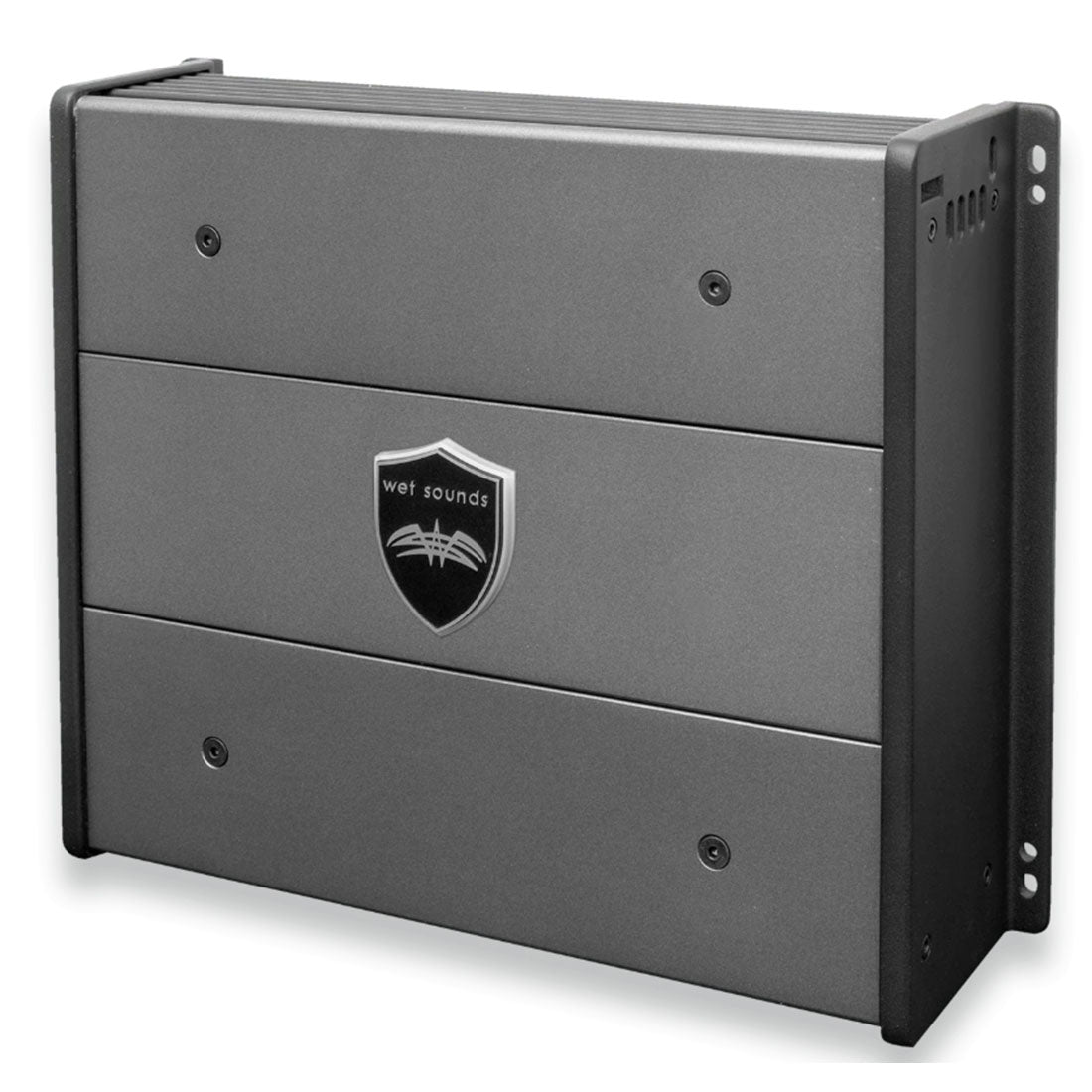

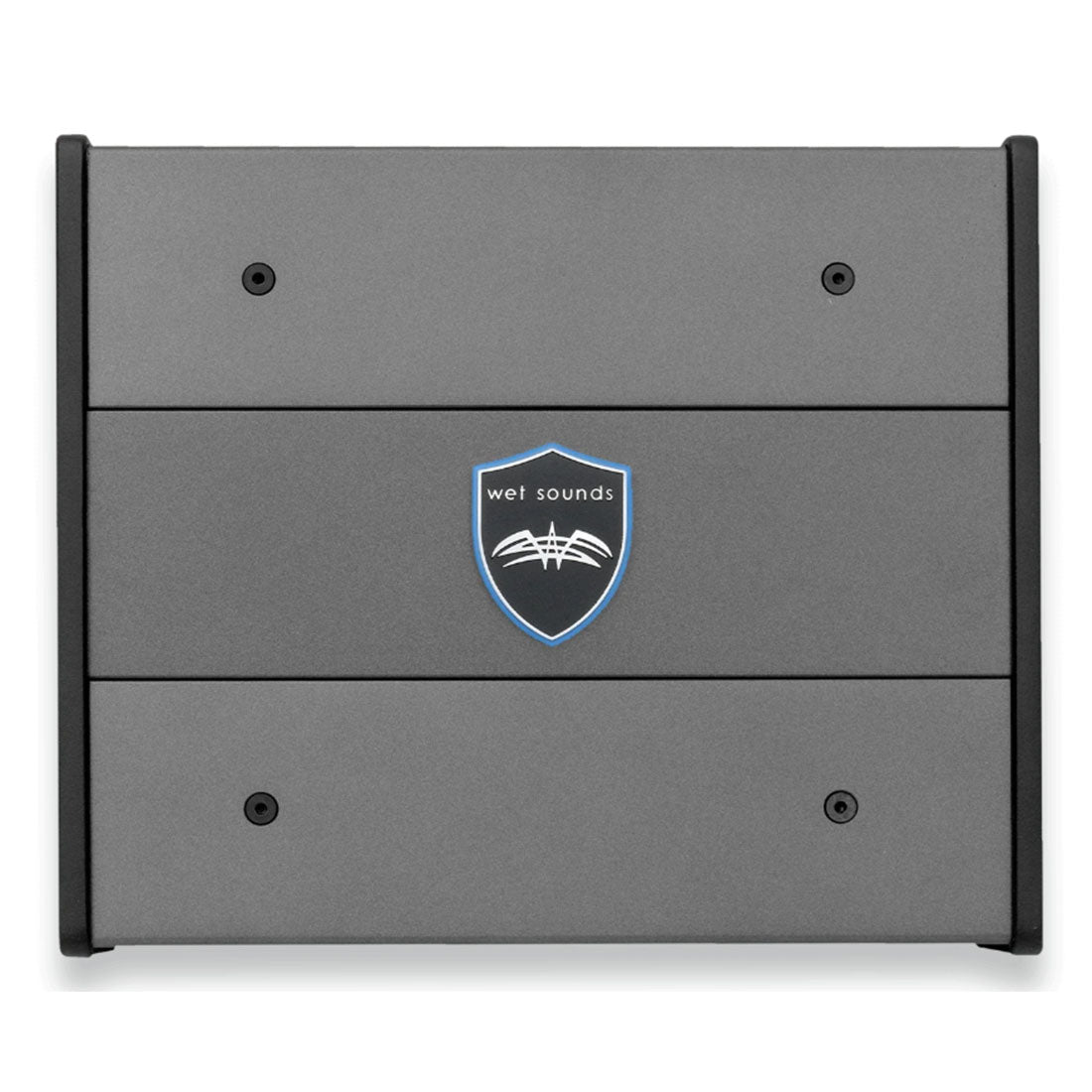

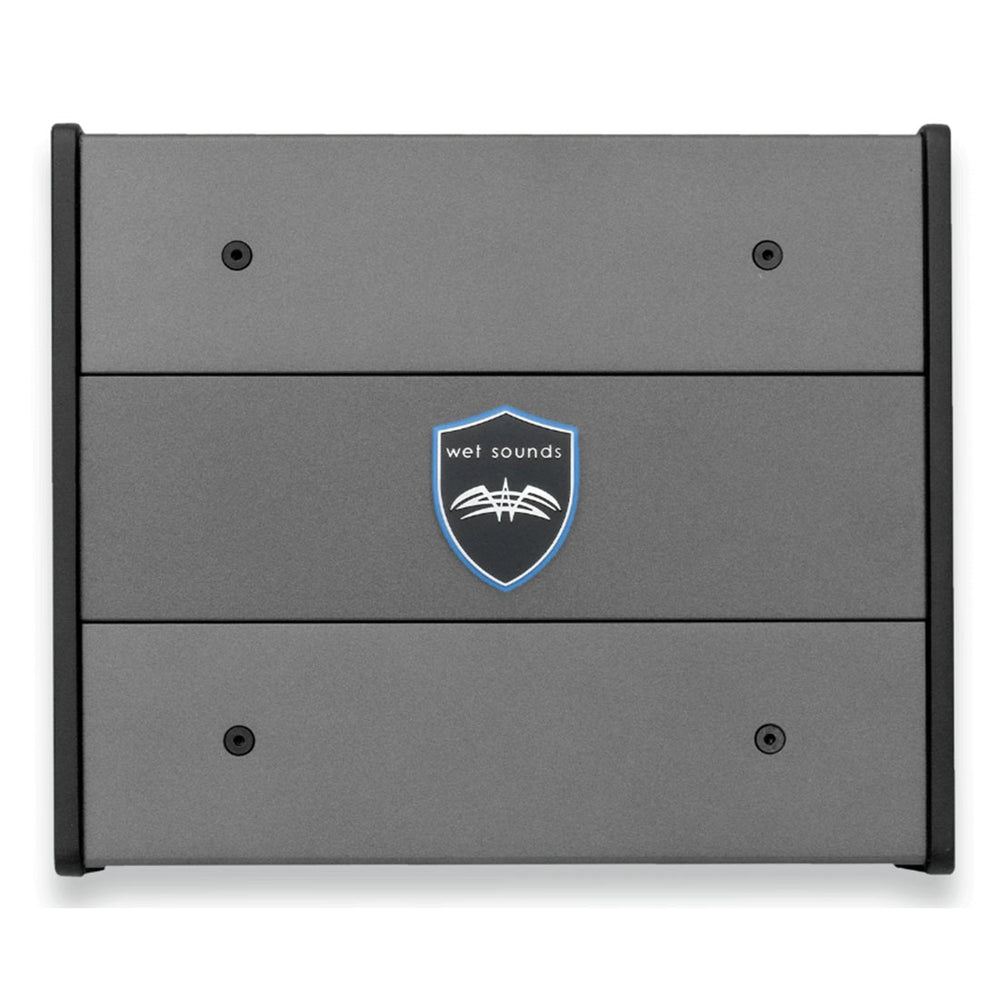

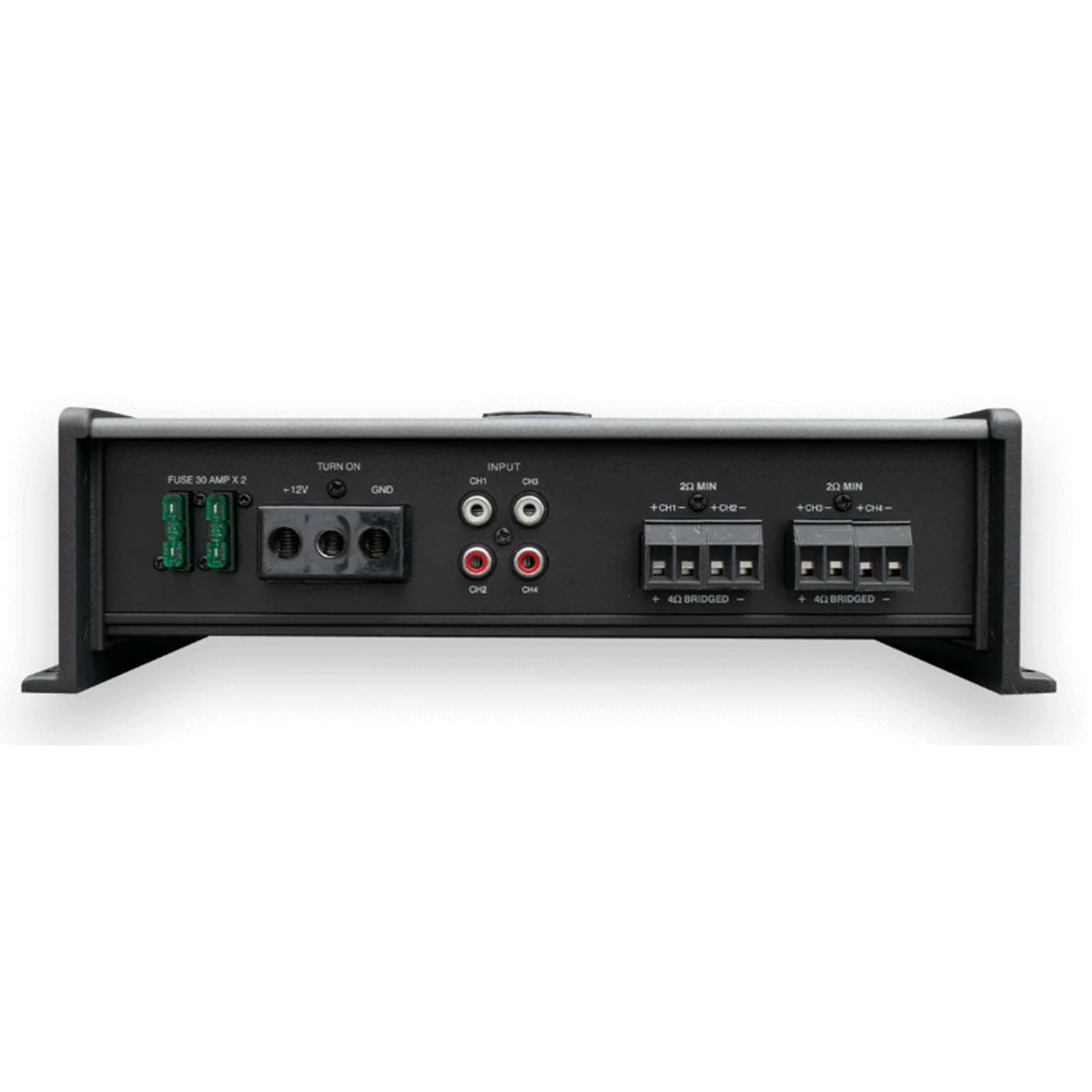

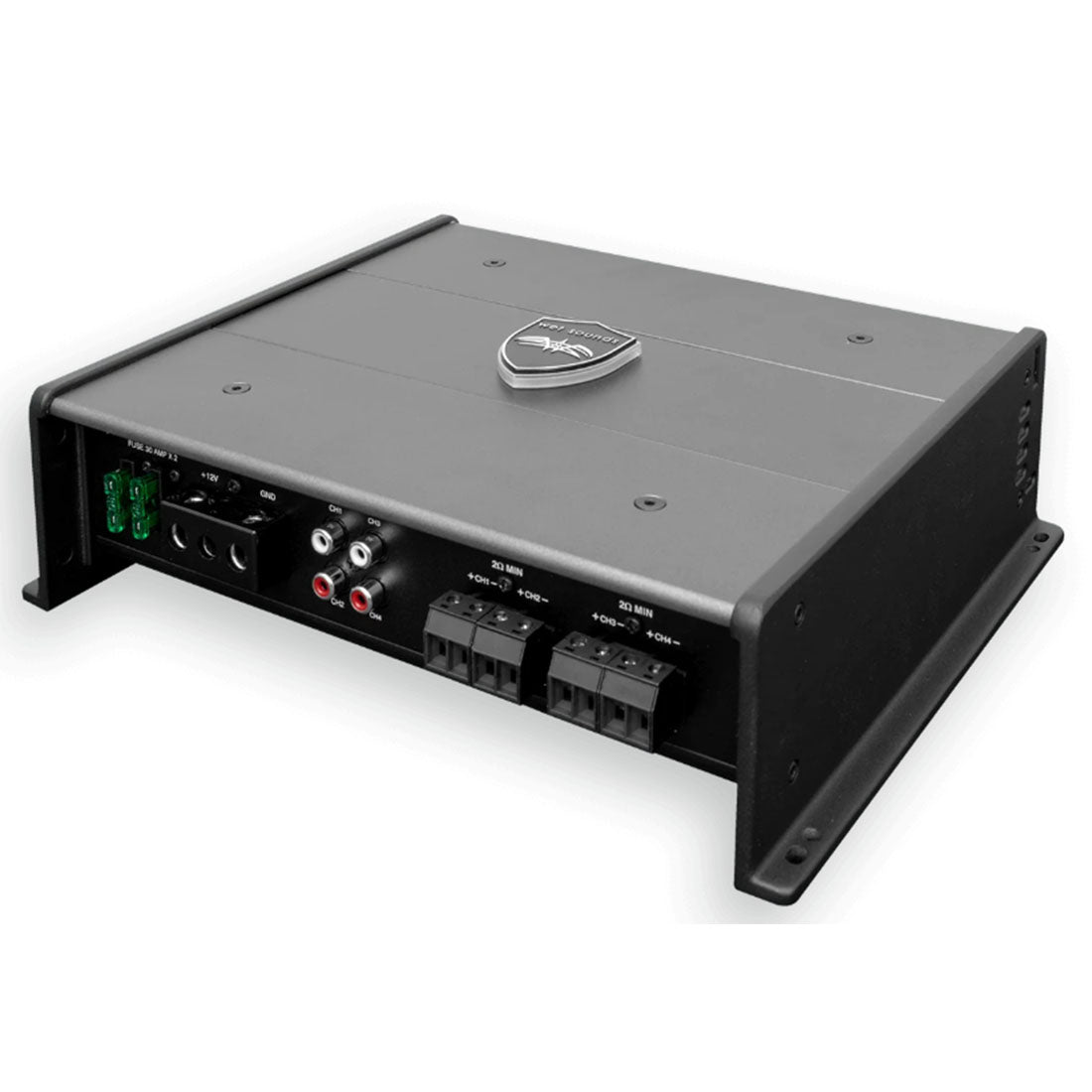

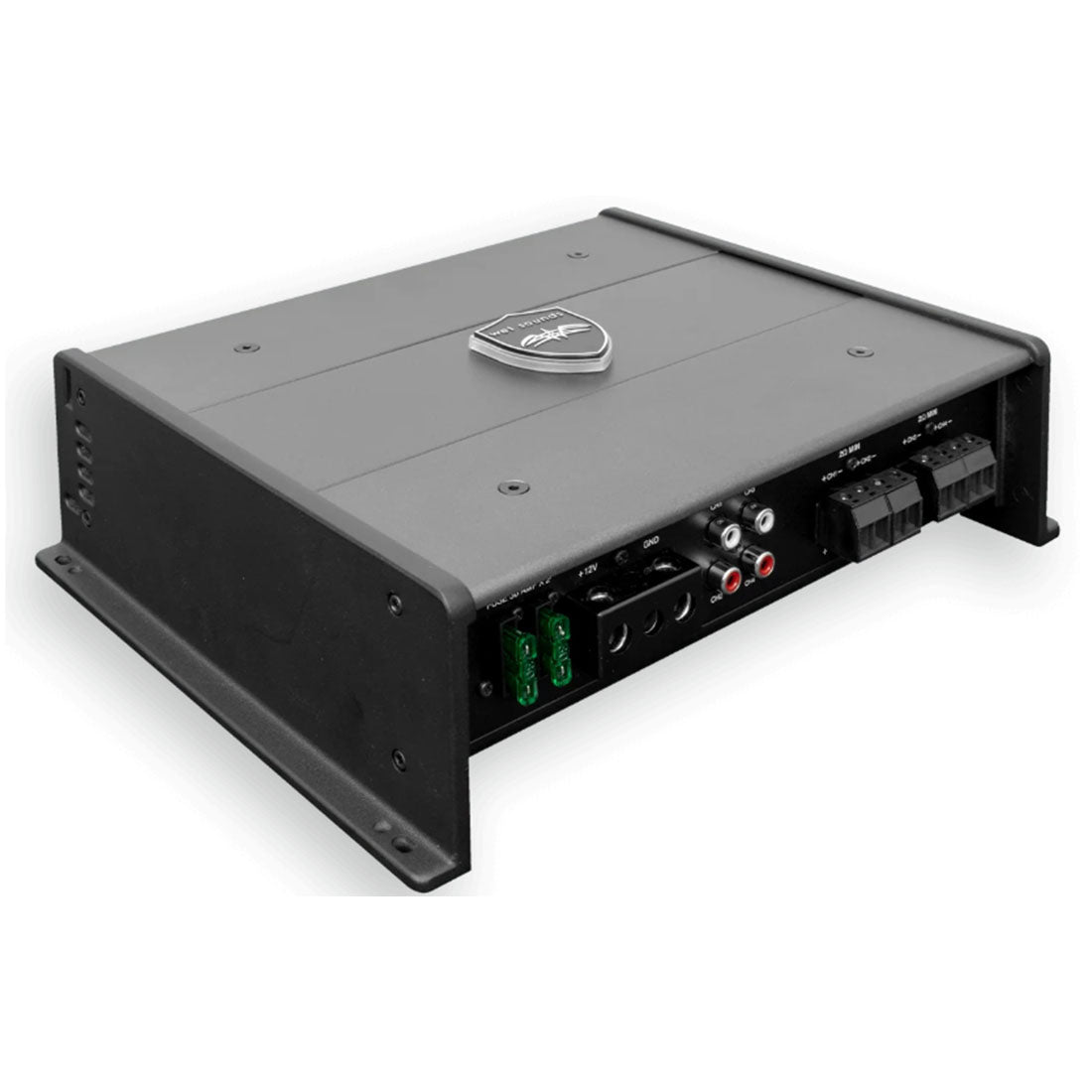

Wet Sounds SYN-DX4 Class D 4-Channel Marine Amplifier

Wet Sounds SYN-DX4 Class D 4-Channel Marine Amplifier

Wet Sounds SYN-DX4 brings four channels of efficient Class-D amplification to marine and powersports audio systems that need strong, clean output in a compact chassis. Part of the SYN-DX Series, it combines high power, flexible crossover controls, extended input compatibility, and protection features in a design made for demanding audio environments.

Compact Class-D Power for Marine Audio

The Wet Sounds SYN-DX4 uses a Class-D power supply to deliver efficient amplification while helping reduce current draw and maintain thermal stability. With 125 watts RMS x 4 at 4 ohms and 200 watts RMS x 4 at 2 ohms, it provides plenty of power for full-range speaker configurations. Need more output from a two-channel setup? The amplifier can also deliver 400 watts RMS x 2 when bridged at 4 ohms.

Flexible Four-Channel Configuration

Four channels give the SYN-DX4 plenty of flexibility for different marine and powersports audio systems. It can support full-range speaker setups, multi-zone configurations, or bridged applications when additional output is needed. Its compact chassis also makes it easier to work into systems where available space is limited.

Flexible Crossover Controls

The SYN-DX4 includes variable high-pass and low-pass crossovers with a range of 50 Hz to 250 Hz and a 12dB/octave slope. These controls give you more flexibility when tuning the amplifier to the rest of your audio system. Why settle for a one-size-fits-all setup when you can adjust the crossover range to suit your system?

Extended Input Compatibility

With an input sensitivity range of 0.2 V to 6.0 V, the SYN-DX4 is designed to work with a wide range of audio system configurations. Extended inputs make system integration more flexible, while the smart microprocessor provides control for dependable operation.

Built for Demanding Environments

Marine and powersports audio systems can face moisture, vibration, and temperature extremes, so durability matters. The SYN-DX4 features thermal overload protection and a conformal-coated PCB board to support reliable operation in demanding environments. Think of the protection circuitry as an extra layer of defense for the amplifier when conditions get tough.

Designed to Work With Wet Sounds Systems

The Wet Sounds SYN-DX4 is designed as a well-balanced match for Wet Sounds speakers and subwoofers. Its combination of four-channel power, flexible crossover controls, and compact construction makes it suited to marine boat audio systems, wake and surf boats, UTVs, ATVs, SxS vehicles, motorcycles, Jeeps, off-road builds, golf carts, and custom outdoor audio installations.

Power and Performance Specifications

The amplifier delivers 125 watts RMS per channel at 4 ohms and 200 watts RMS per channel at 2 ohms. When bridged at 4 ohms, it provides 400 watts RMS x 2. The frequency response is 20 Hz to 20 kHz, while both the high-pass and low-pass crossover ranges extend from 50 Hz to 250 Hz at 12dB/octave. With four channels and Class-D power supply technology, it combines flexible system configuration with efficient amplification in a compact design.

Whether you're building a boat audio system, upgrading a powersports setup, or creating a multi-zone configuration, the Wet Sounds SYN-DX4 provides four-channel Class-D amplification with the flexibility to match different system designs. Its compact chassis, protection features, extended inputs, and adjustable crossovers give you the tools to build a powerful and adaptable audio system around Wet Sounds equipment.

FAQs

1. How many channels does the Wet Sounds SYN-DX4 have? The SYN-DX4 is a 4-channel marine amplifier.
2. How much power does the SYN-DX4 produce at 4 ohms? It produces 125 watts RMS x 4 at 4 ohms.
3. How much power does it produce at 2 ohms? The amplifier produces 200 watts RMS x 4 at 2 ohms.
4. What is the crossover range on the SYN-DX4? Both the high-pass and low-pass crossovers have a range of 50 Hz to 250 Hz with a 12dB/octave slope.
5. What type of audio systems is the SYN-DX4 designed for? It is designed for marine and powersports systems, including boats, wake and surf boats, UTVs, ATVs, SxS vehicles, motorcycles, Jeeps, off-road builds, golf carts, and custom outdoor audio installations.
