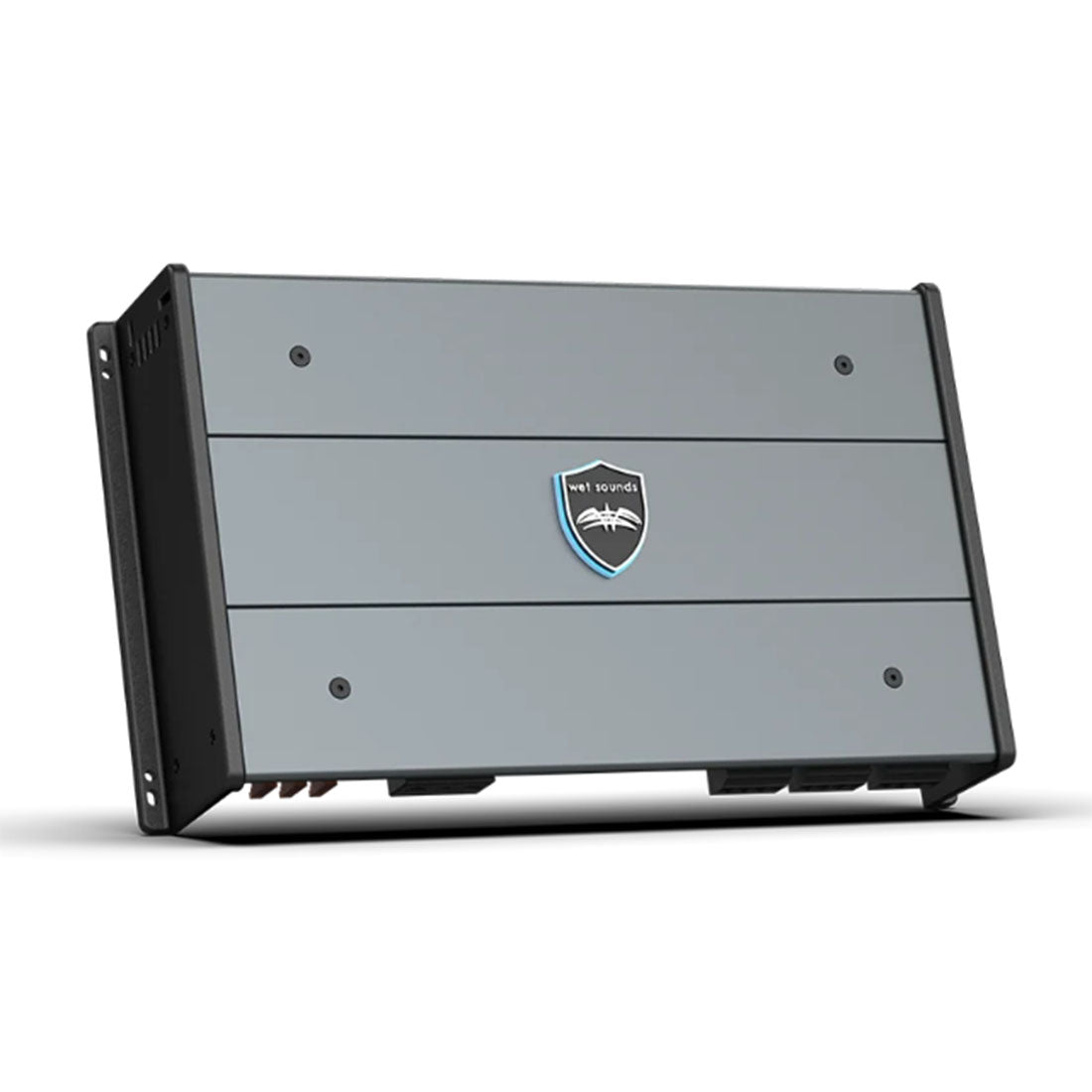

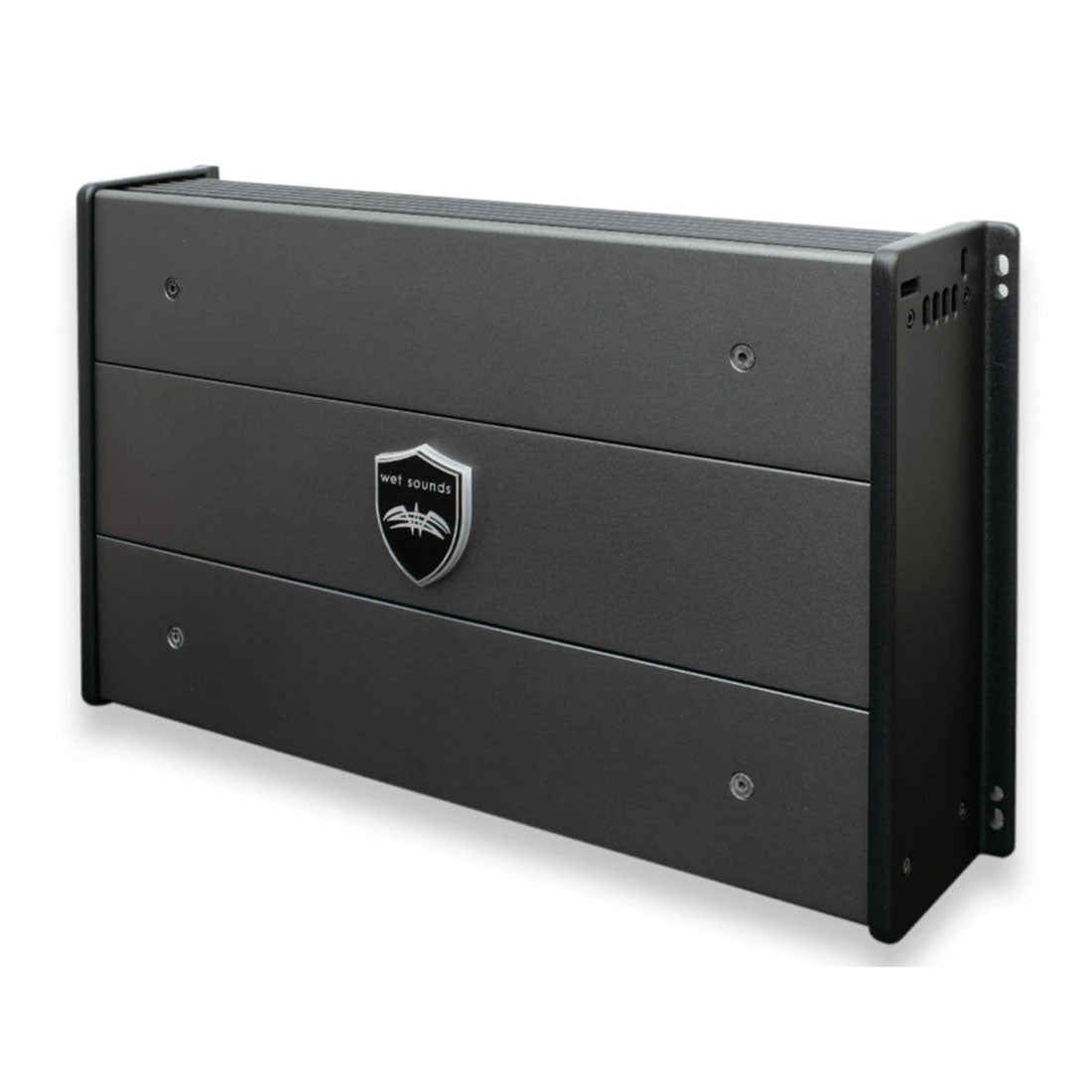

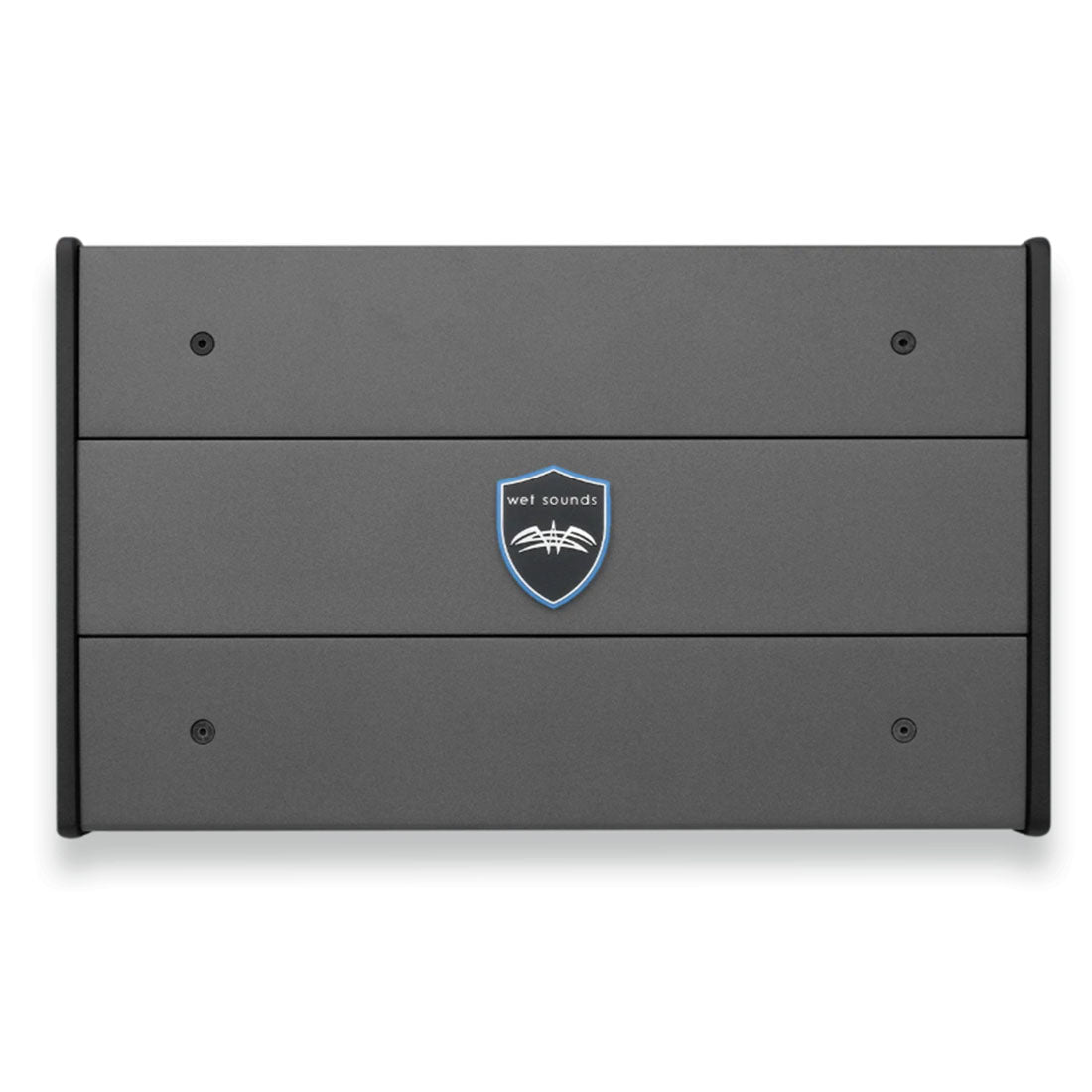

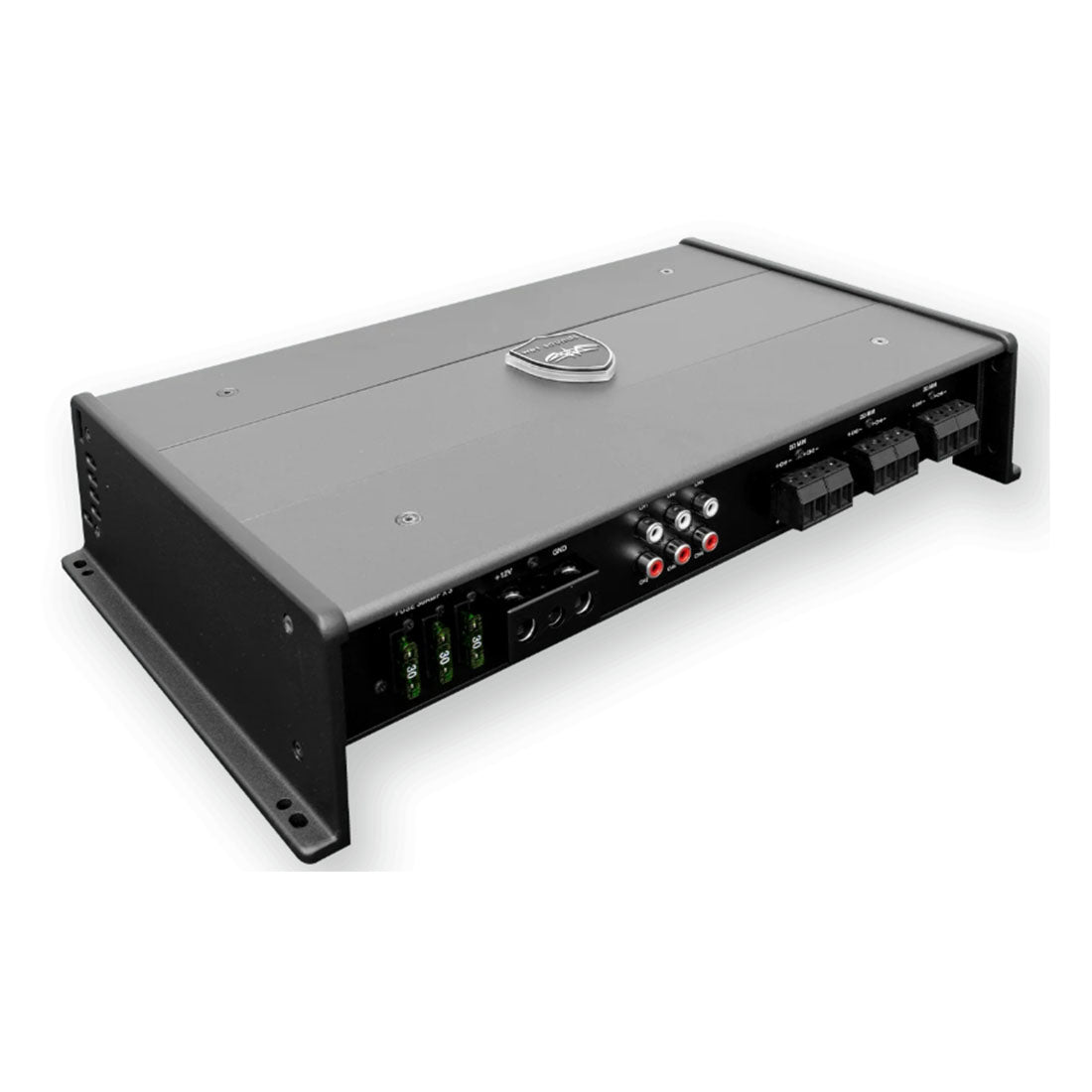

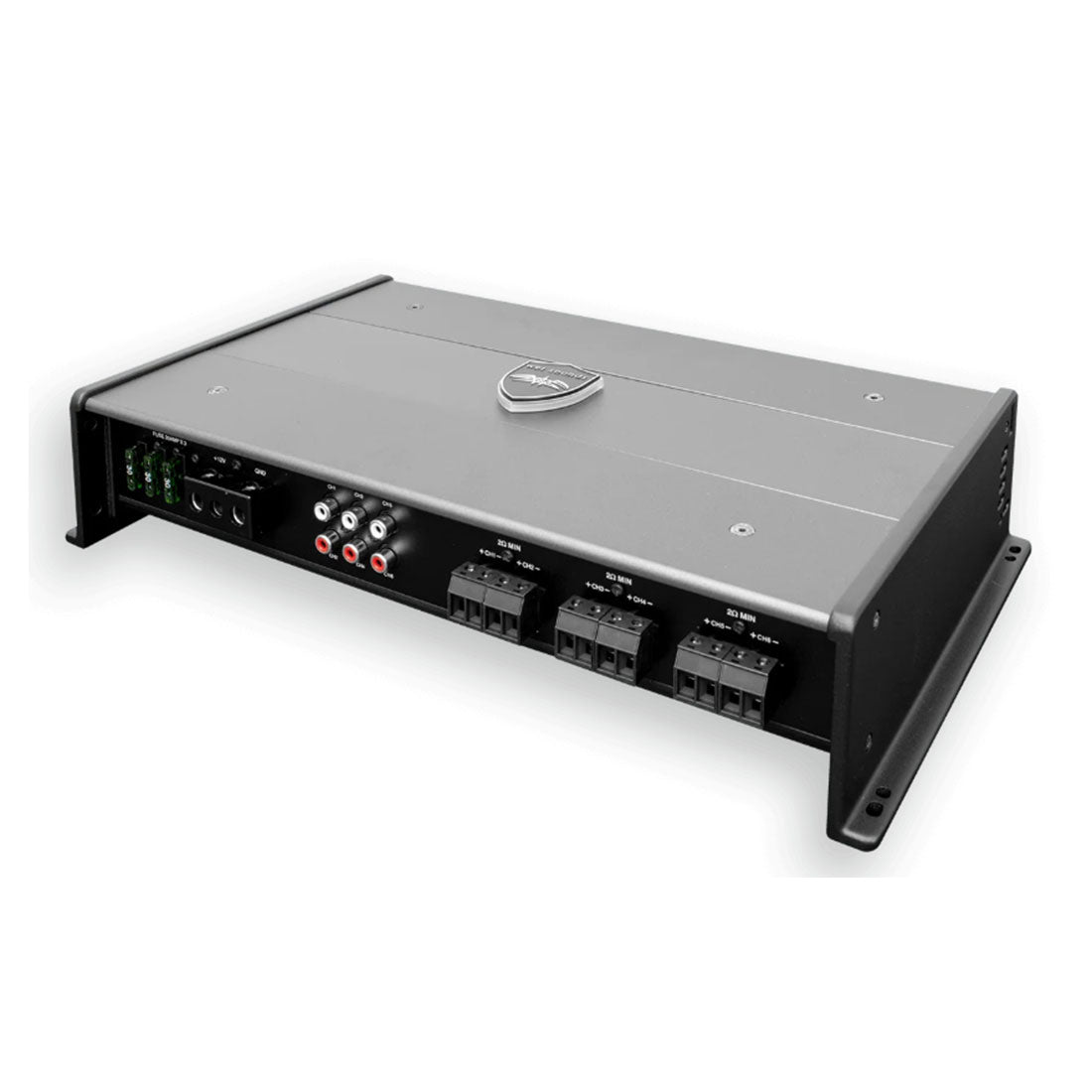

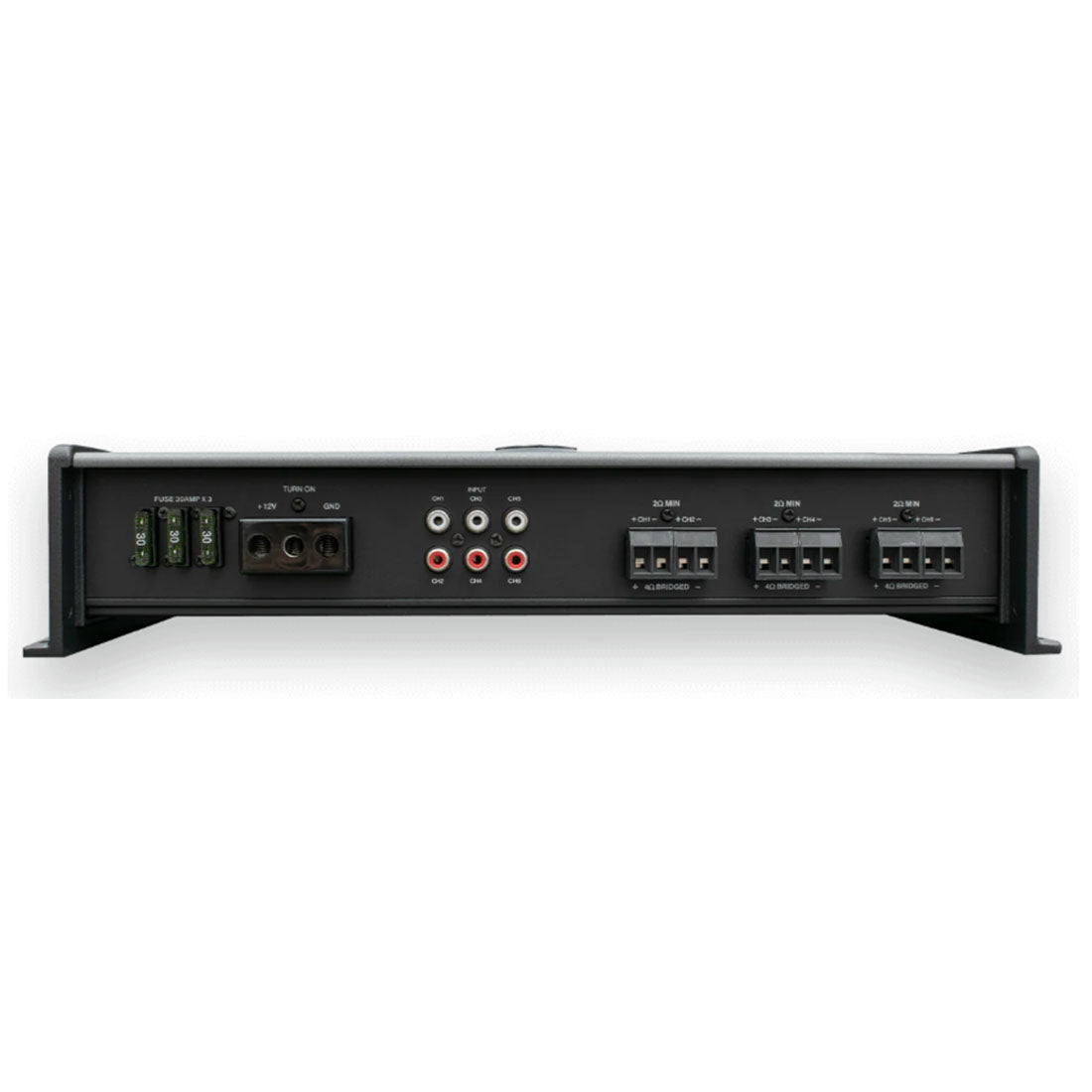

Wet Sounds SYN-DX6 6 Channel Marine Amplifier

Wet Sounds SYN-DX6 6 Channel Marine Amplifier

The Wet Sounds SYN-DX6 delivers high-efficiency, high-output amplification for advanced marine and powersports audio systems. Its Class-D power supply packs substantial power into a compact chassis, helping provide strong, clean performance while maintaining thermal stability and reduced current draw.

Six Channels for Flexible Audio Systems

With six channels and multiple power configurations, the Wet Sounds SYN-DX6 can handle full-range speakers, multi-zone audio systems, or bridgeable applications that need additional output. Channels 1-4 deliver up to 125W RMS each at 4 ohms or 200W RMS each at 2 ohms, while channels 5-6 provide up to 150W RMS each at 4 ohms or 300W RMS each at 2 ohms.

Need even more output from a particular channel group? The amplifier supports bridged operation, delivering 400W RMS x 2 at 4 ohms through channels 1-4 and up to 600W RMS x 1 at 4 ohms through channels 5-6. Think of it as having several ways to distribute the amplifier's power depending on your audio system.

Class-D Power in a Compact Chassis

The Wet Sounds SYN-DX6 uses Class-D power supply technology to combine high output with an efficient amplifier design. Its compact 14.75-inch wide, 3-inch high, and 8.52-inch deep chassis gives you substantial amplification without requiring excessive space.

Flexible Crossover and Input Controls

System tuning stays flexible with fully variable high-pass and low-pass crossover controls. Both crossover ranges extend from 50 Hz to 250 kHz with a 12 dB/octave slope, while input sensitivity from 0.2V to 6.0V provides extended input compatibility across different audio configurations.

Built for Marine and Powersports Use

The Wet Sounds SYN-DX6 is designed for demanding environments, including boats, wake and surf boats, UTVs, ATVs, SxS vehicles, motorcycles, Jeeps, off-road builds, and golf carts. Thermal overload protection adds another layer of protection, while the smart microprocessor and conformal-coated PCB board are designed to support reliable operation around moisture, vibration, and temperature extremes.

Balanced Match for Wet Sounds Audio

As part of the SYN-DX Series, the Wet Sounds SYN-DX6 is designed to work as a balanced amplification solution for Wet Sounds speakers and subwoofers. With six channels, flexible power configurations, and adjustable crossovers, it can serve as the power center of a more complex marine or powersports audio system.

Features:

• 6-Channel Design: High-efficiency amplifier for full-range, multi-zone, and bridgeable audio configurations
• Class-D Power Supply: Delivers high output performance from a compact chassis
• High Power Output: Provides substantial RMS power across multiple channel configurations
• Flexible Crossovers: Fully variable high-pass and low-pass crossover controls
• Extended Input Compatibility: 0.2V to 6.0V input sensitivity
• Thermal Overload Protection: Helps protect the amplifier during demanding operation
• Smart Microprocessor: Provides controlled amplifier operation
• Conformal-Coated PCB: Designed for reliable performance in demanding marine environments
• Marine-Grade Construction: Built for marine and powersports applications
• Wet Sounds Compatibility: Designed as a balanced match for Wet Sounds speakers and subwoofers

Specifications:

• Series: SYN-DX
• Channels: 6
• Power Supply: Class D
• RMS Power Ch 1-4: 4 x 125W @ 4Ω / 4 x 200W @ 2Ω
• RMS Bridged Ch 1-4: 2 x 400W @ 4Ω
• RMS Power Ch 5-6: 2 x 150W @ 4Ω / 2 x 300W @ 2Ω
• RMS Bridged Ch 5-6: 1 x 600W @ 4Ω
• Frequency Response: 20Hz - 20kHz
• Input Sensitivity: 0.2V - 6.0V
• High-Pass Crossover: 50Hz - 250kHz, 12dB/octave
• Low-Pass Crossover: 50Hz - 250kHz, 12dB/octave
• Signal-to-Noise Ratio: 87dB
• Width: 14.75"
• Height: 3.00"
• Depth: 8.52"

With its six-channel architecture, Class-D power supply, flexible crossover controls, and compact chassis, the Wet Sounds SYN-DX6 brings substantial amplification to marine and powersports systems without taking up unnecessary space. Its combination of power options, protection features, and flexible configuration makes it a practical centerpiece for complex audio setups.

Frequently Asked Questions

1. How many channels does the Wet Sounds SYN-DX6 have? The amplifier has six channels, with separate power configurations for channels 1-4 and channels 5-6.
2. How much power does the SYN-DX6 produce? Channels 1-4 provide 125W RMS per channel at 4 ohms or 200W RMS per channel at 2 ohms, while channels 5-6 provide 150W RMS per channel at 4 ohms or 300W RMS per channel at 2 ohms.
3. Can the Wet Sounds SYN-DX6 be bridged? Yes. Channels 1-4 can provide 400W RMS x 2 at 4 ohms when bridged, while channels 5-6 can provide 600W RMS x 1 at 4 ohms when bridged.
4. What type of power supply does the SYN-DX6 use? The amplifier uses a Class-D power supply designed to provide high output in a compact chassis.
5. What environments is the SYN-DX6 designed for? It is designed for marine and powersports applications including boats, wake and surf boats, UTVs, ATVs, SxS vehicles, motorcycles, Jeeps, off-road builds, and golf carts.
