Kenwood DAX8000S 8" HD Direct Replacement Digital Multimedia Receiver

Kenwood DAX8000S HD Direct Replacement OEM Digital Multimedia Receiver with 8" Touchscreen Display

The Kenwood DAX8000S isn’t your average receiver—it’s a direct OEM replacement that delivers high-end functionality, premium visuals, and deep vehicle integration. Designed to slide right into factory dashboards while retaining OEM controls and features, this digital multimedia receiver is packed with next-gen tech built for seamless driving experiences.

Stunning 8" HD Touchscreen

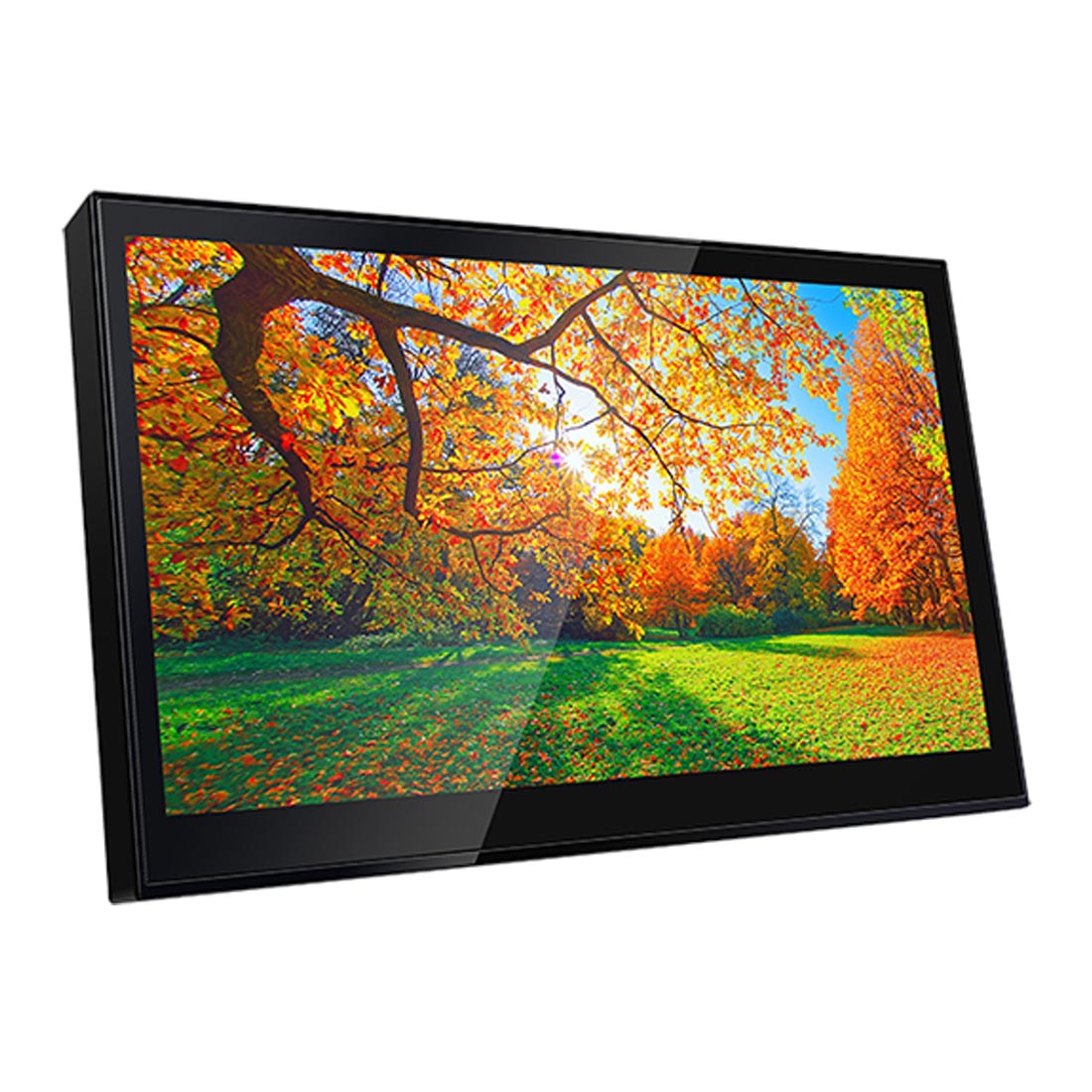

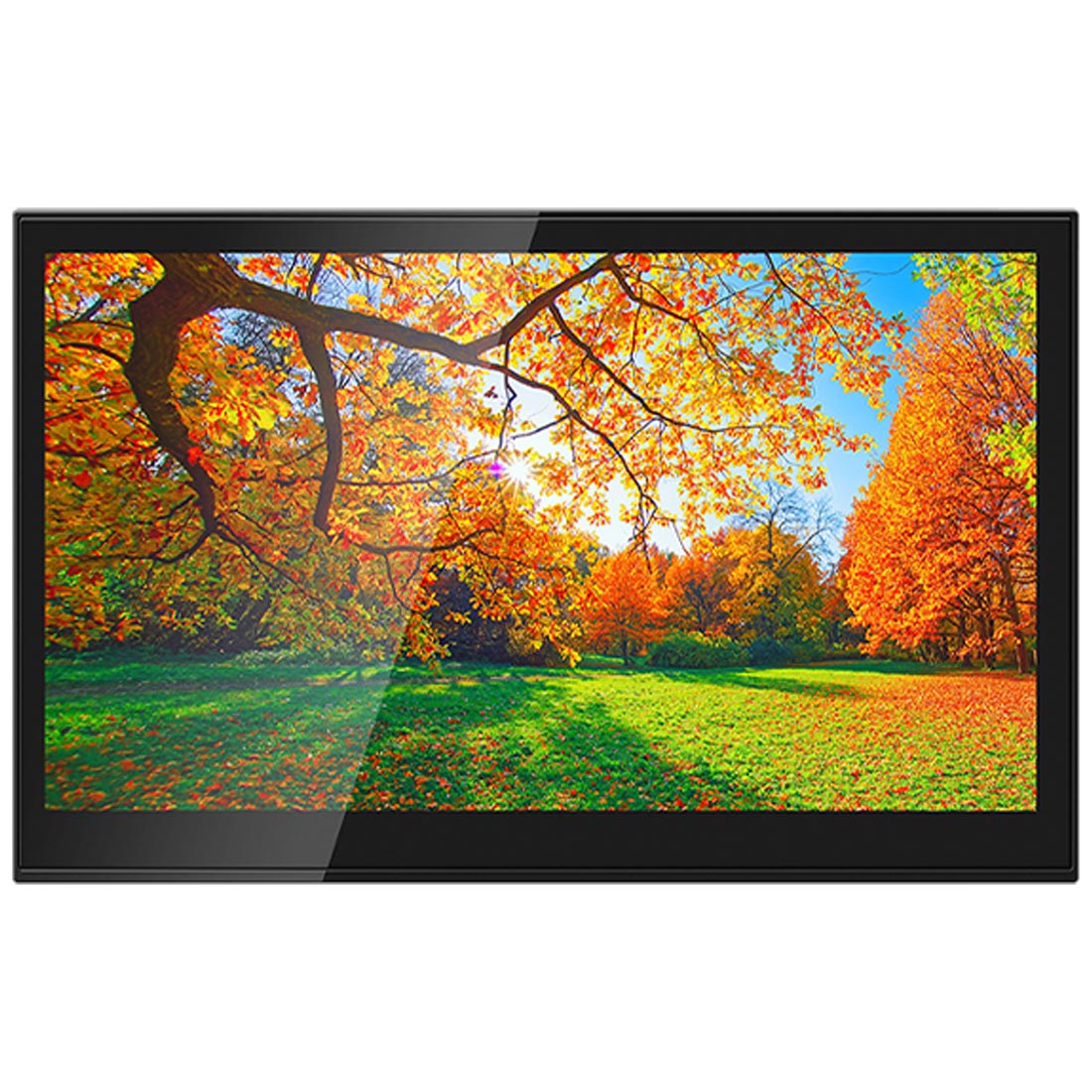

The 8" high-definition display features a 1280 x 720 resolution LCD with a capacitive touch panel. It’s powered by high luminance white LED backlighting and advanced AAS panel technology that ensures a wide 170° viewing angle—up, down, left, or right. The screen includes a protective film to reduce glare and reflection, so your view stays sharp in sunlight or shade.

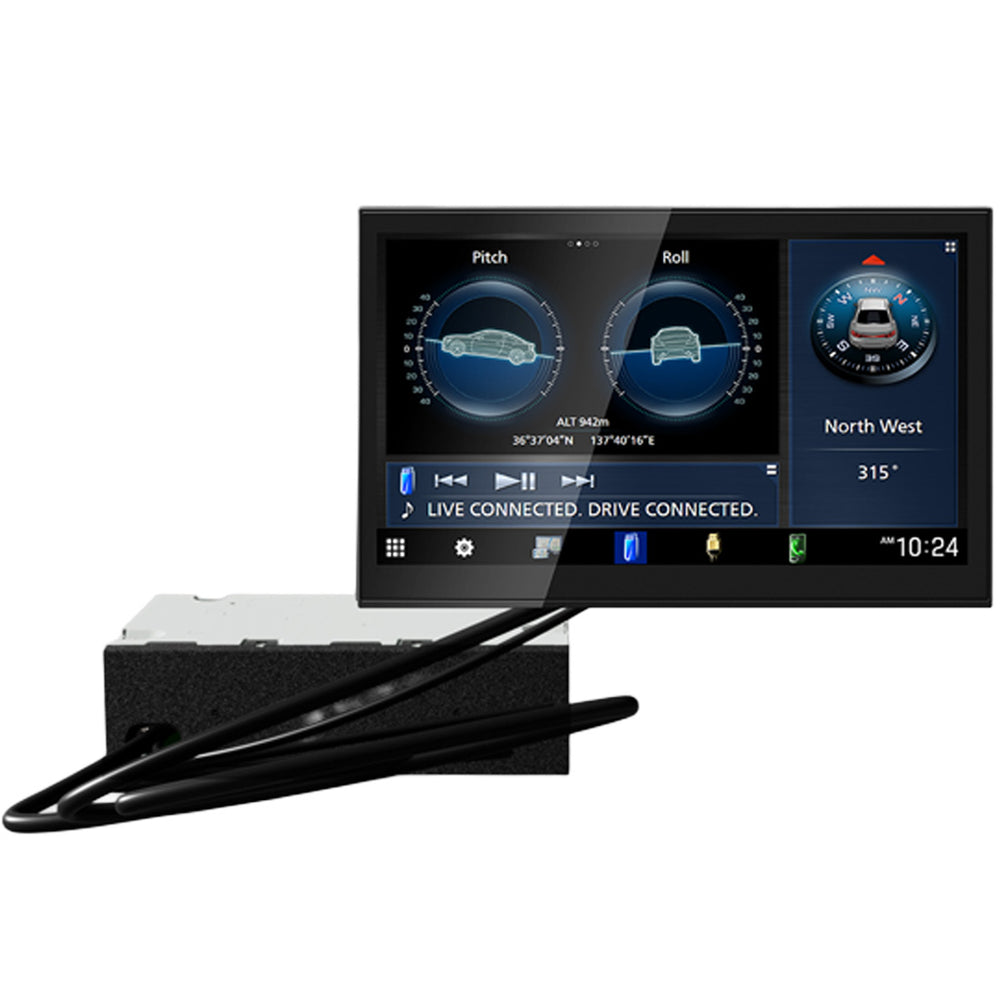

Modular Design with Separated Display and Chassis

Its separated display and chassis design opens up more installation options across various vehicle types. The chassis can be mounted either vertically or horizontally depending on your vehicle’s layout. Need more flexibility? Kenwood offers an optional 5ft extension cable (KCA-A150EX, sold separately) for situations where the default connection doesn’t reach.

Smartphone Compatibility Without the Wires

The Kenwood DAX8000S supports both wired and wireless connections for Apple CarPlay and Android Auto. You’ll have hands-free access to calls, navigation, messages, and music apps. It also supports wireless smartphone mirroring, allowing you to control your phone’s apps on the receiver display—no cables needed for select devices. Prefer HDMI mirroring? It’s ready for that too with an optional KCA-HD200 HDMI cable (sold separately).

4 Camera Inputs with HD Support

This receiver supports up to four camera inputs, giving you the flexibility to connect a front, rear, and two side or dash cameras in multiple configurations. With 4 camera inputs, you can connect a rear camera, side (blind spot) cameras, and a KENWOOD dashboard camera (DRV-N520 sold separately). It’s compatible with Kenwood’s CMOS-740HD camera, allowing HD front and rear viewing in 720p resolution. Camera switching can be done manually or automatically when used with the iDatalink Maestro RR on supported vehicles.

Pitch & Roll and Driving Widgets

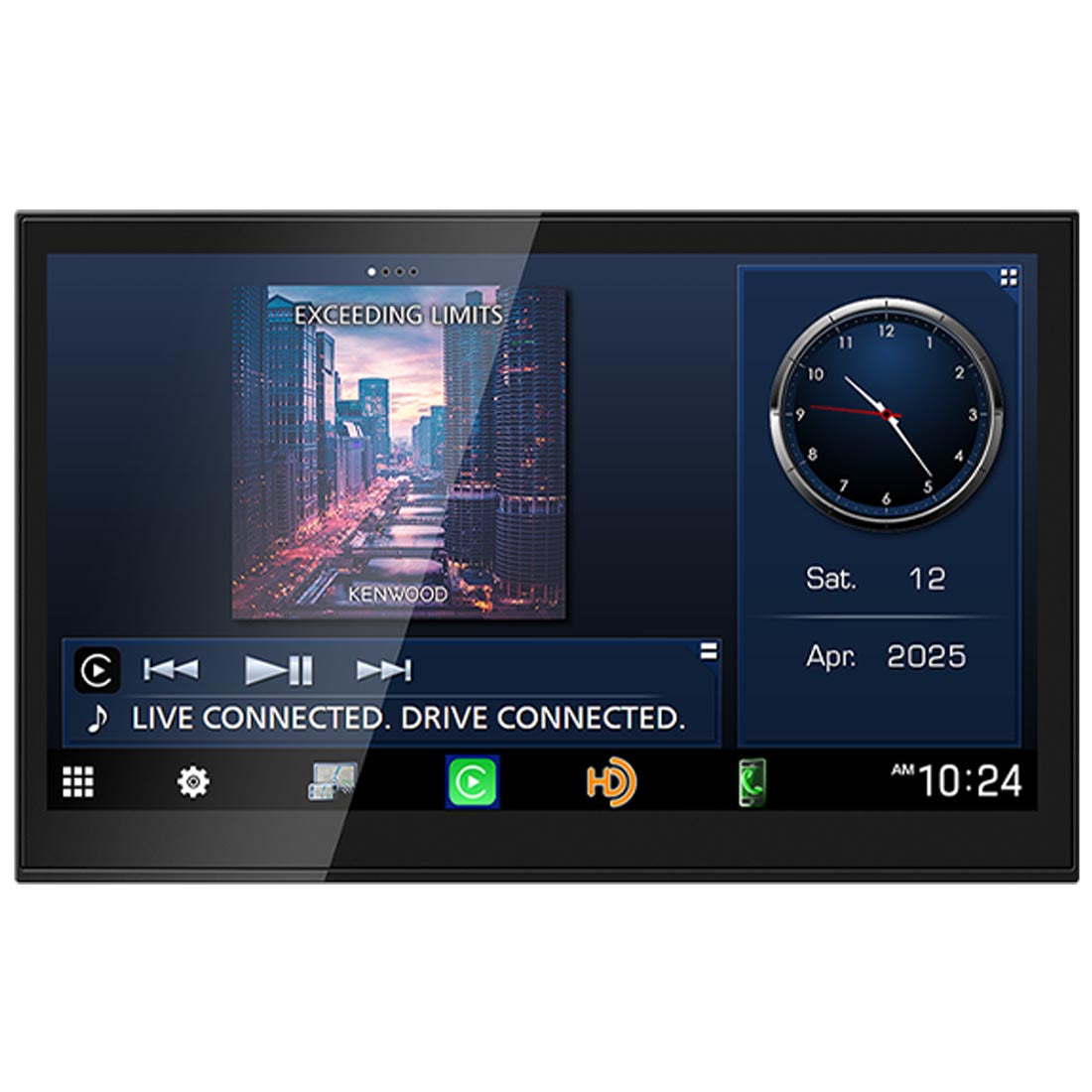

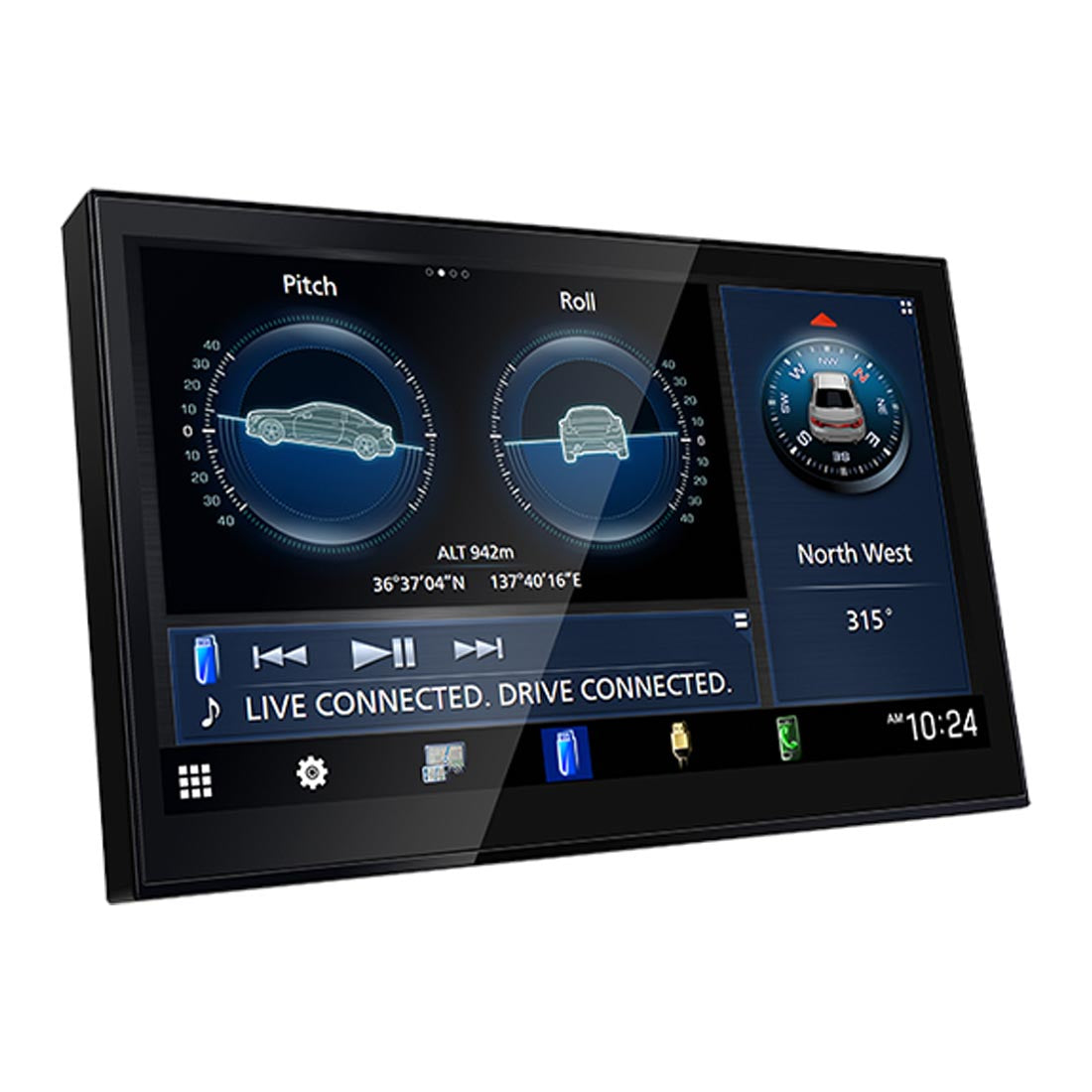

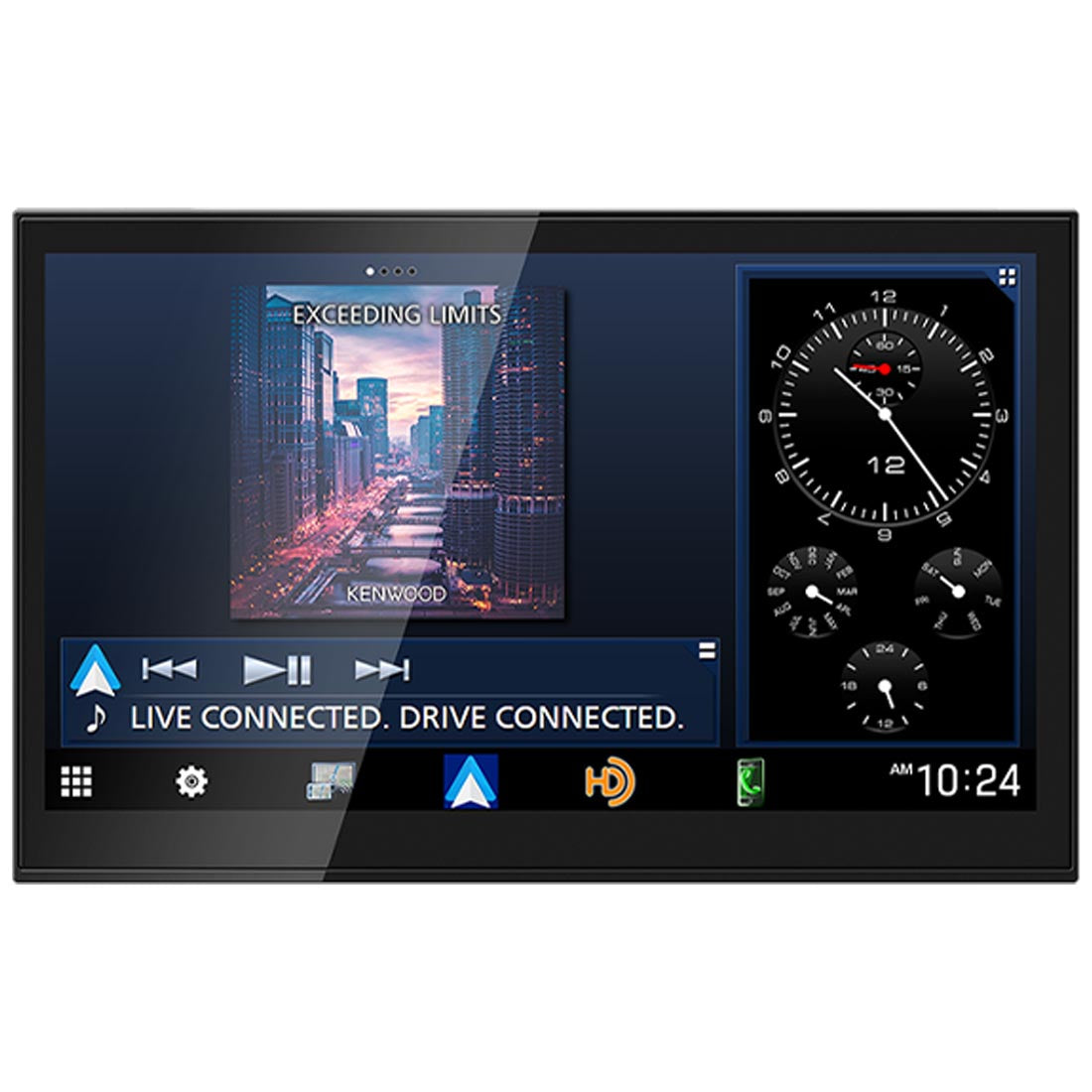

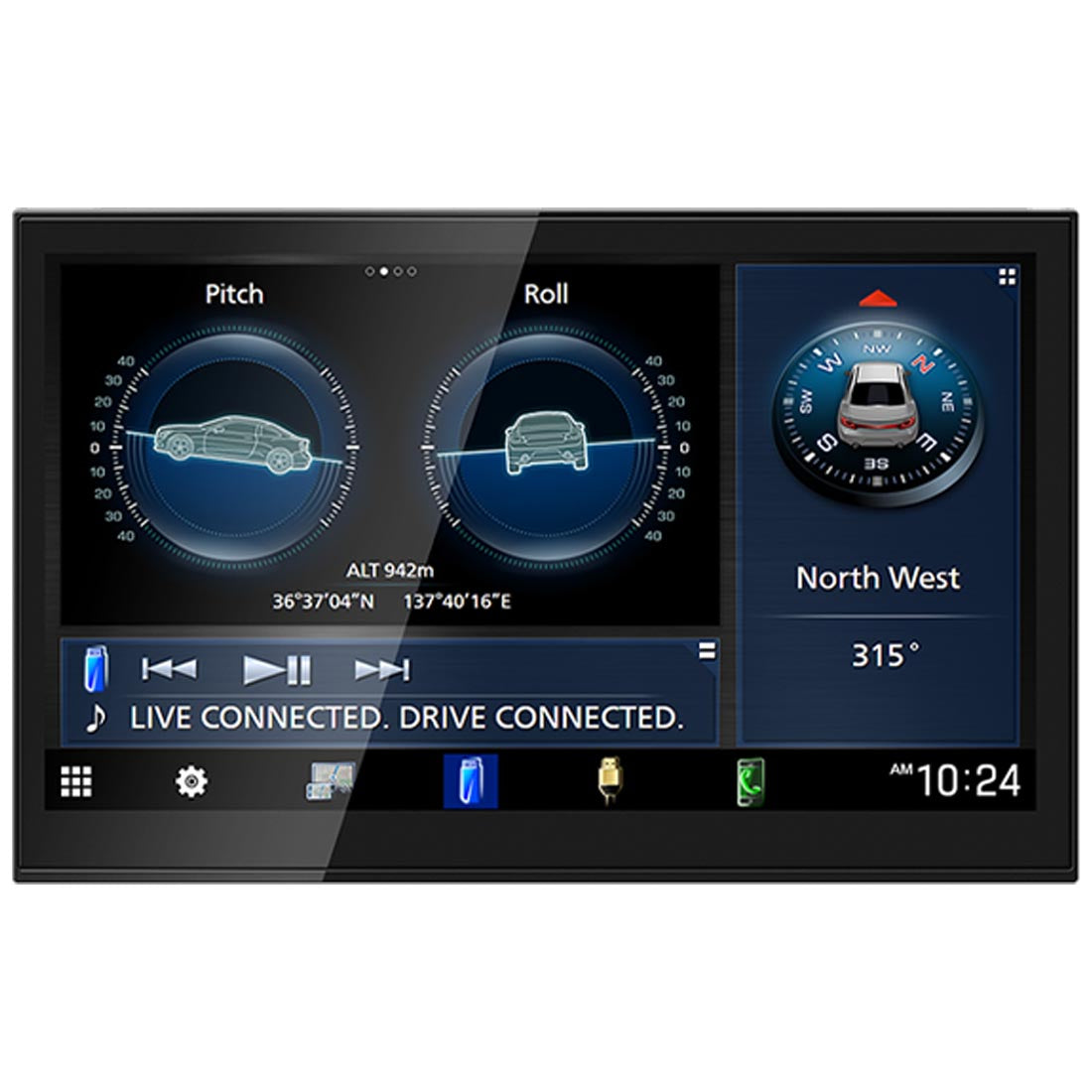

Equipped with a built-in gyro sensor, the Kenwood DAX8000S can display pitch and roll data directly on the screen. Perfect for off-road use or rough terrain, this widget adds a layer of awareness while driving. The home screen also features a customizable Driving Widget alongside a Source Control Widget. You can rearrange or resize these widgets to show what matters most—whether that’s album art, a compass, clock, or EQ settings.

Hi-Res Audio and Deep Sound Customization

If you care about audio detail, you’re covered. This receiver is Hi-Res Audio certified and supports playback up to 192kHz / 24-bit for studio-level clarity. The 13-band graphic EQ and digital time alignment help fine-tune sound based on cabin acoustics. For even more control, the parametric equalizer allows adjustment of Q factor, gain, slope, and frequency across 14 separate bands—9 common, 2 front, 2 rear, and 1 subwoofer.

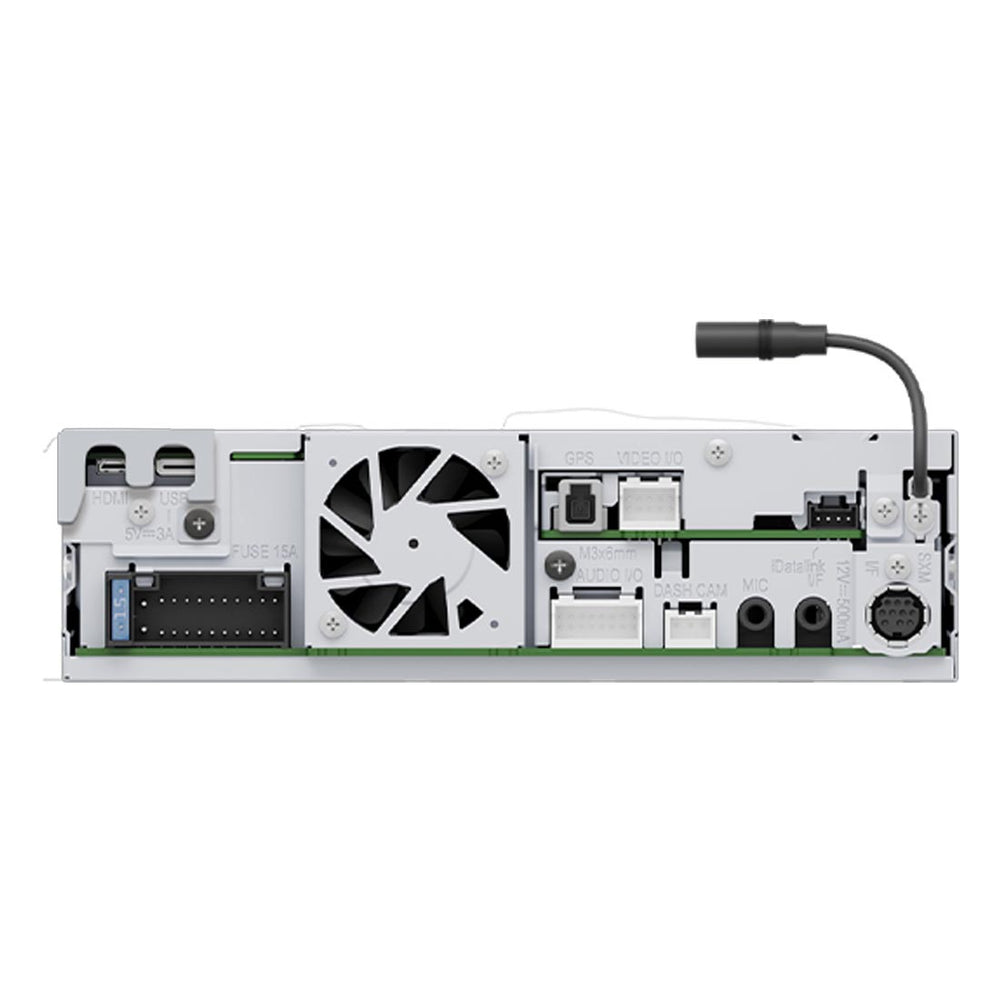

Connectivity & Control That Elevates the Drive

• Built-in Bluetooth for hands-free calls and audio streaming
• Built-in HD Radio tuner for digital FM and AM stations with no subscription
• USB Type-C port supports rapid smartphone charging up to 3.0A and includes a USB Type-A adapter
• 3 Preouts (4V) for front, rear, and subwoofer expansion
• HDMI Type-D input for external media devices
• Compatible with iDatalink Maestro RR and RR2 (sold separately) for retaining factory features and displaying vehicle performance data, climate controls, radar detector info, and more
• Ready for SiriusXM 360L with personalized content, live sports, on-demand shows, and streaming (Wi-Fi connection required, tuner sold separately)

Built for Modern Dashboards

Whether you're looking for better audio, smart features, or full OEM control retention, the Kenwood DAX8000S delivers all three. It fits flush into your dash, supports a wide range of advanced formats, and gives you more control over what’s on screen and how you drive. It’s more than a receiver—it’s the heart of your vehicle’s infotainment system.

Remote Control Included

This receiver unit can be operated using the remote control.

FAQs

1. Can the Kenwood DAX8000S display pitch and roll angles while driving? Yes, it features a Pitch & Roll GUI that uses a gyro sensor to show your vehicle’s angle and direction.
2. How many cameras can I connect to this unit? The DAX8000S supports up to four camera inputs, including front, rear, and side or dash camera combinations.
3. What makes the display better than standard receivers? It has a 1280 x 720 high-definition resolution with a 170° viewing angle and glare-resistant film for clarity in any lighting.
4. Does the receiver include a USB Type-C connection? Yes, it comes with a USB Type-C port that supports up to 3.0A charging and includes a USB Type-A adapter.
5. Is it compatible with SiriusXM 360L? Yes, it’s SiriusXM 360L ready and offers streaming, on-demand content, and personalized recommendations when connected to Wi-Fi.
